Diamond Brite LEDs

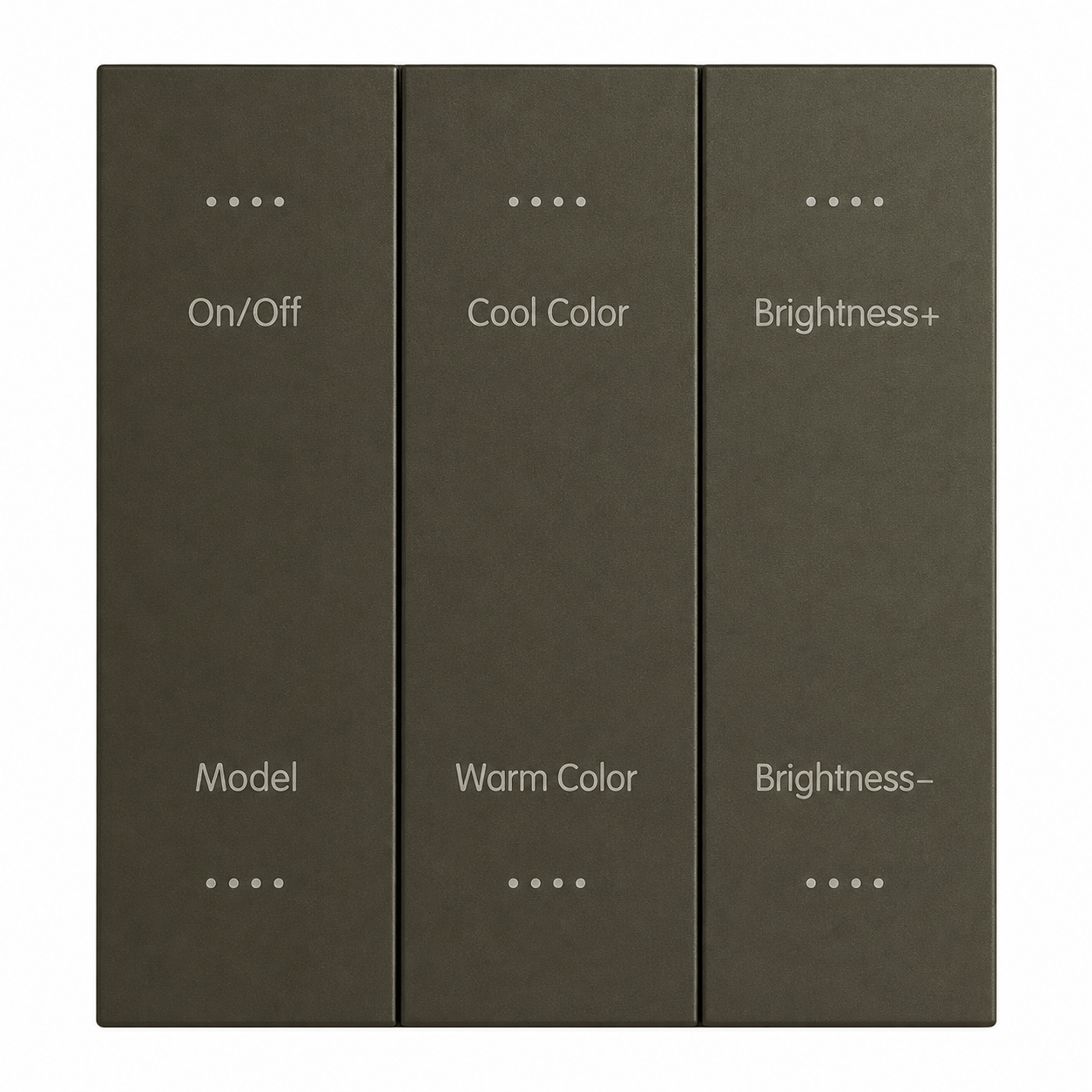

Wireless Controller PJ-5 Touch Series
Wireless Controller PJ-5 Touch Series
Couldn't load pickup availability
The Wireless Controller PJ-5 Touch Series offers sleek, touch-sensitive control for compatible smart lighting systems without the need for wiring. Featuring a modern glass-touch interface, the PJ-5 allows users to turn lights on or off, adjust brightness, and recall preset lighting scenes with a simple touch.
Powered by a 3V CR2032 lithium battery (included), the controller installs easily on virtually any flat surface using its adhesive backing, making it ideal for both new construction and retrofit applications.
The PJ-5 communicates wirelessly using LeMesh Inside 2.4G Mesh technology and is compatible with multiple smart lighting ecosystems, delivering reliable wireless control up to 98 ft (30 m) in open areas.
Features
- Wireless touch wall controller
- Capacitive touch interface
- On/Off control
- Brightness adjustment
- Scene recall functionality
- No wiring required
- Surface-mounted with adhesive backing
- Powered by 1 × CR2032 3V Lithium Battery (Included)
- Compatible with LeMesh Inside 2.4G Mesh
- Supports:
- LeMesh Inside
- SIG Mesh
- Tuya Zigbee
- Tuya Bluetooth
- Xiaomi Bluetooth
- Wireless communication range up to 98 ft (30 m) (line of sight)
- Ultra-low standby current: <5 μA
- Operating temperature: -4°F to 140°F (-20°C to 60°C)
- Slim modern wall switch design
Available Models
| Color | SKU |
|---|---|
| Champagne Bronze | PJ5-TOUCH-WH |
Specifications
| Specification | Details |
|---|---|
| Product Type | Wireless Touch Wall Controller |
| Series | PJ-5 Touch Series |
| Installation | Surface Mounted (Adhesive Backing) |
| Communication | LeMesh Inside 2.4G Mesh |
| Compatible Protocols | LeMesh Inside, SIG Mesh, Tuya Zigbee, Tuya Bluetooth, Xiaomi Bluetooth |
| Wireless Range | Up to 98 ft (30 m) Line of Sight |
| Battery | 1 × CR2032 3V Lithium Battery (Included) |
| Standby Current | <5 μA |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Product Dimensions | 86 × 90 × 11 mm |
| Color | Champagne Bronze |
Applications
Perfect for:
- Smart Homes
- Residential Lighting
- Hotels
- Restaurants
- Retail Stores
- Office Spaces
- Hospitality Lighting
- Architectural Lighting
- Wireless Retrofit Projects
- Smart LED Lighting Control
What's Included
- 1 × Wireless Controller PJ-5 Touch Series
- 1 × CR2032 3V Lithium Battery
- Adhesive Mounting Pad
- User Documentation
Compatible With
Compatible with lighting systems supporting:
- LeMesh Inside
- SIG Mesh
- Tuya Zigbee
- Tuya Bluetooth
- Xiaomi Bluetooth
Why Choose the PJ-5 Touch Series?
The Wireless Controller PJ-5 Touch Series combines elegant aesthetics with intuitive touch control, providing a simple way to manage compatible smart lighting systems without running new wiring. With wireless mesh connectivity, ultra-low power consumption, and a slim profile, it's an excellent solution for residential and commercial lighting installations where flexibility and modern design are essential.
