Diamond Brite LEDs

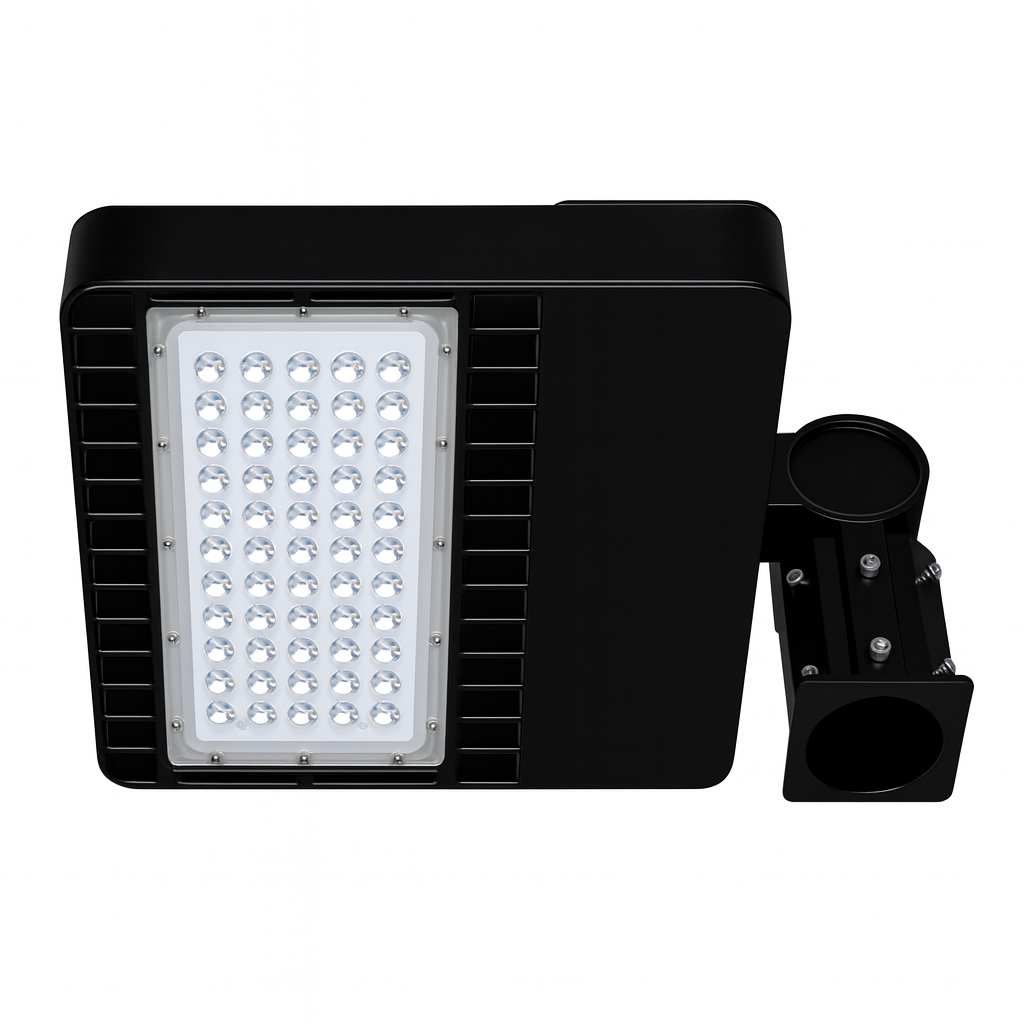

150W Titan 150 Flood & Area Light Series
150W Titan 150 Flood & Area Light Series
Couldn't load pickup availability
The 150W Titan 150 LED Flood & Area Light Series is a heavy-duty outdoor lighting solution designed to replace traditional 800W HID and metal halide fixtures. Powered by premium Samsung LEDs and a Meanwell driver, the Titan 150 Series delivers between 13,500 and 15,000 lumens while consuming only 150 watts.
Featuring rugged die-cast aluminum construction, a wide 130° beam angle, and an IP68 rating, the Titan 150 Series is engineered for demanding outdoor commercial and industrial environments. Multiple mounting bracket options provide installation flexibility for parking areas, industrial sites, sports facilities, warehouses, and security lighting applications.
Features
- 150W power consumption
- Produces 13,500–15,000 lumens depending on color temperature
- Replaces up to 800W HID / metal halide fixtures
- Premium Samsung LED technology
- Reliable Meanwell driver
- 130° beam angle for broad illumination
- Available in 3000K, 5000K & 6000K
- CRI >80
- Power factor >0.90
- Die-cast aluminum construction
- Bronze shell finish
- Multiple mounting bracket options available
- IP68 rated
- 120–277V AC operation
- Mercury-free
- Rated for approximately 60,000 hours
- Operating temperature from -13°F to 140°F (-25°C to +60°C)
Color Temperature & Light Output
| Color Temperature | Description | Lumens |
|---|---|---|
| 3000K | Warm White | 13,500 lm |
| 5000K | Pure White | 14,250 lm |
| 6000K | Bright White | 15,000 lm |
Specifications
| Product Type | LED Flood & Area Light |
|---|---|
| Series | Titan 150 Series |
| Power | 150W |
| Traditional Equivalent | Up to 800W HID / Metal Halide |
| Light Output | 13,500–15,000 lm |
| LED Source | Samsung LEDs |
| Driver | Meanwell |
| Color Temperatures | 3000K / 5000K / 6000K |
| CRI | >80 |
| Beam Angle | 130° |
| Input Voltage | 120–277V AC |
| Power Factor | >0.90 |
| Housing Material | Die-Cast Aluminum |
| Finish | Bronze |
| Mounting | Multiple Bracket Options Available |
| IP Rating | IP68 |
| Dimensions | 23.2" × 15.6" × 4.5" (590 × 395 × 115 mm) |
| Operating Temperature | -13°F to 140°F (-25°C to +60°C) |
| Rated Lifespan | Approximately 60,000 Hours |
| Environmental | Mercury-Free |
Applications
- Parking Lots & Garages
- Stadiums & Sports Fields
- Industrial Facilities
- Warehouses
- Large Outdoor Areas
- Commercial Properties
- Site Lighting
- Security Lighting
Why Choose the Titan 150 LED Flood & Area Light Series?
The 150W Titan 150 Series delivers up to 15,000 lumens using premium Samsung LED technology and a Meanwell driver, providing a high-output alternative to traditional 800W HID and metal halide fixtures. Its wide 130° beam angle provides broad illumination for large commercial, industrial, and outdoor environments.
With rugged die-cast aluminum construction, IP68 protection, multiple mounting bracket options, and an approximately 60,000-hour rated lifespan, the Titan 150 Series is designed for demanding parking, industrial, sports, site, and security lighting applications.
