High Performance Linear Spotify Strip Series
High Performance Linear Spotify Strip Series
Couldn't load pickup availability

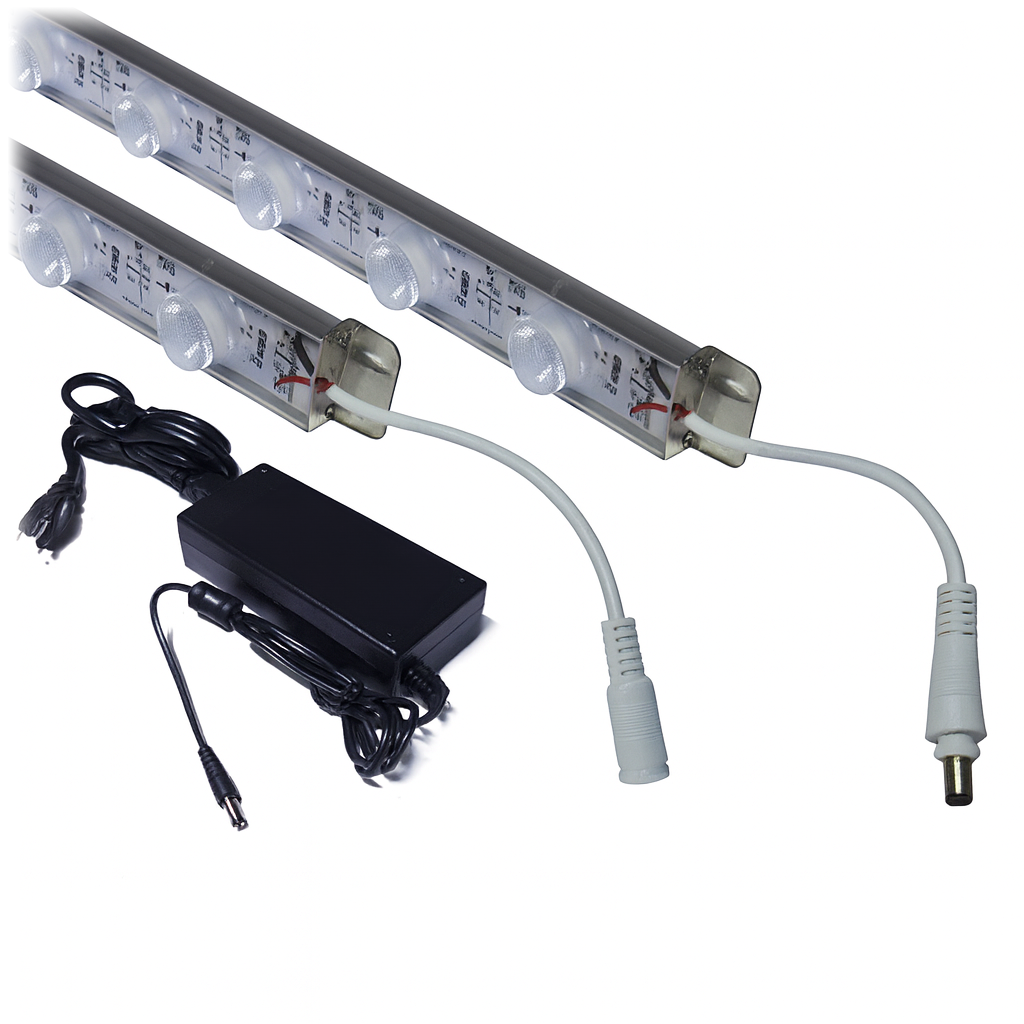

The High Performance Linear Spotify Strip Series is a low-profile, linkable LED lighting system designed for wall washing, display lighting, accent lighting, under-cabinet applications, light boxes, signage, and other architectural lighting installations.
Powered by high-output Osram LEDs, the Spotify Strip operates on 12V constant voltage and is available with multiple color temperatures, beam angles, IP ratings, and lengths. The system is cuttable every 2-1/8" (55 mm) and can be configured for indoor or outdoor applications.
Features
- High-output Osram LEDs
- Up to 6,860 lumens
- Up to 28W per 40" (1000 mm) strip
- 12V constant voltage operation
- Low-profile, linkable design
- Approximately 30 mm profile
- Cuttable every 2-1/8" (55 mm)
- 25°, 45° & 60° optics available
- IP65 indoor/outdoor or IP20 indoor-only configurations
- Standard and custom lengths available
- Surface-mounted design
- ETL Listed for wet locations
- 5-year warranty
LED Color Options
| Option | Color / CCT | CRI |
| 27K | 2700K | 95 |
| 42K | 4200K | 90 |
| 50K | 5000K | 88 |
| 65K | 6500K | 85 |
| 10K | 10000K | 80 |
| DUO | 2700K & 6500K | 95 |
| AMB | Amber – 580 nm | — |
| BLUE | Blue | — |
| RED | Red | — |
| GRN | Green | — |
Optics
| 25° | Narrow Spot |
| 45° | Medium Spot |
| 60° | Wide Spot |
IP Protection Options
| IP65 | Indoor & Outdoor |
| IP20 | Indoor Only |
Standard Length & Power Options
| Length | Metric Length | Power |
| 9" | 228 mm | 6W |
| 13.25" | 336 mm | 9W |
| 20" | 508 mm | 13.5W |
| 26.5" | 673 mm | 18W |
| 33" | 838 mm | 22.5W |
| 40" | 1000 mm | 28W |
Custom Length: 2.5"–40" (63.5–1000 mm).
Specifications
| Product Type | High Performance Linear LED Strip |
| Series | Spotify Strip Series |
| Model | LSP |
| LED Source | Osram LEDs |
| Maximum Power | 28W per 40" (1000 mm) |
| Maximum Light Output | 6,860 lm |
| Input Voltage | 12V Constant Voltage |
| Beam Angles | 25° / 45° / 60° |
| IP Options | IP20 / IP65 |
| Mounting | Surface Mount |
| Cut Increment | 2-1/8" (55 mm) |
| Standard Lengths | 9" / 13.25" / 20" / 26.5" / 33" / 40" |
| Custom Length Range | 2.5"–40" (63.5–1000 mm) |
| Wet Location Listing | ETL Listed |
| Warranty | 5 Years |
Applications
- Wall Washing
- Display Lighting
- Accent Lighting
- Under-Cabinet Lighting
- Light Box & Signage Lighting
- Indoor Architectural Lighting
- Outdoor Architectural Lighting with IP65 Configuration
Why Choose the Spotify Strip Series?
The High Performance Linear Spotify Strip Series combines high-output Osram LED technology with a compact, linkable design and extensive configuration options. Select from multiple LED colors, three beam angles, indoor or outdoor IP protection, and standard or custom lengths to configure the strip for the specific lighting application.
With 12V constant-voltage operation, a low-profile surface-mounted design, wet-location listing, and configurable lengths up to 40" (1000 mm), the Spotify Strip Series provides a flexible solution for architectural, display, accent, signage, and wall-washing applications.
