Diamond Brite LEDs
3.5W Sonic Step Light Series
3.5W Sonic Step Light Series
Couldn't load pickup availability

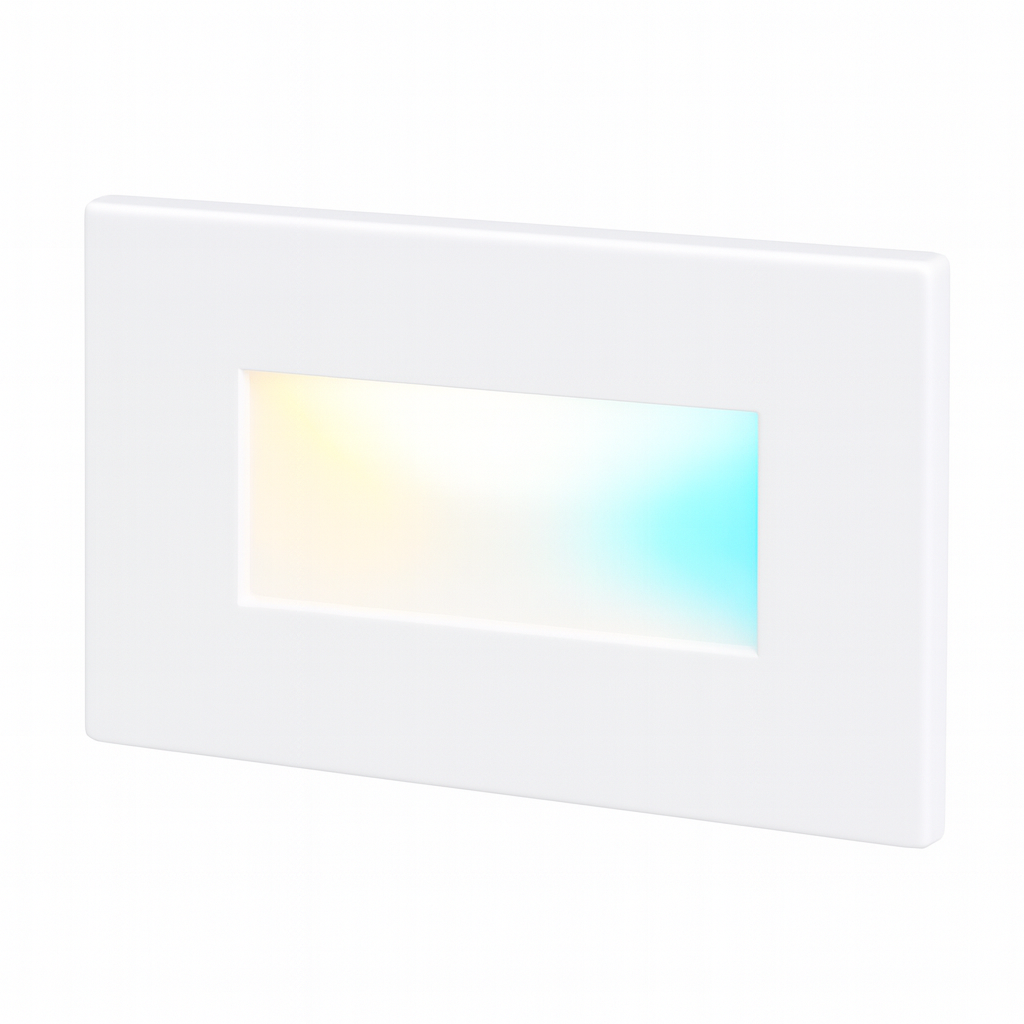

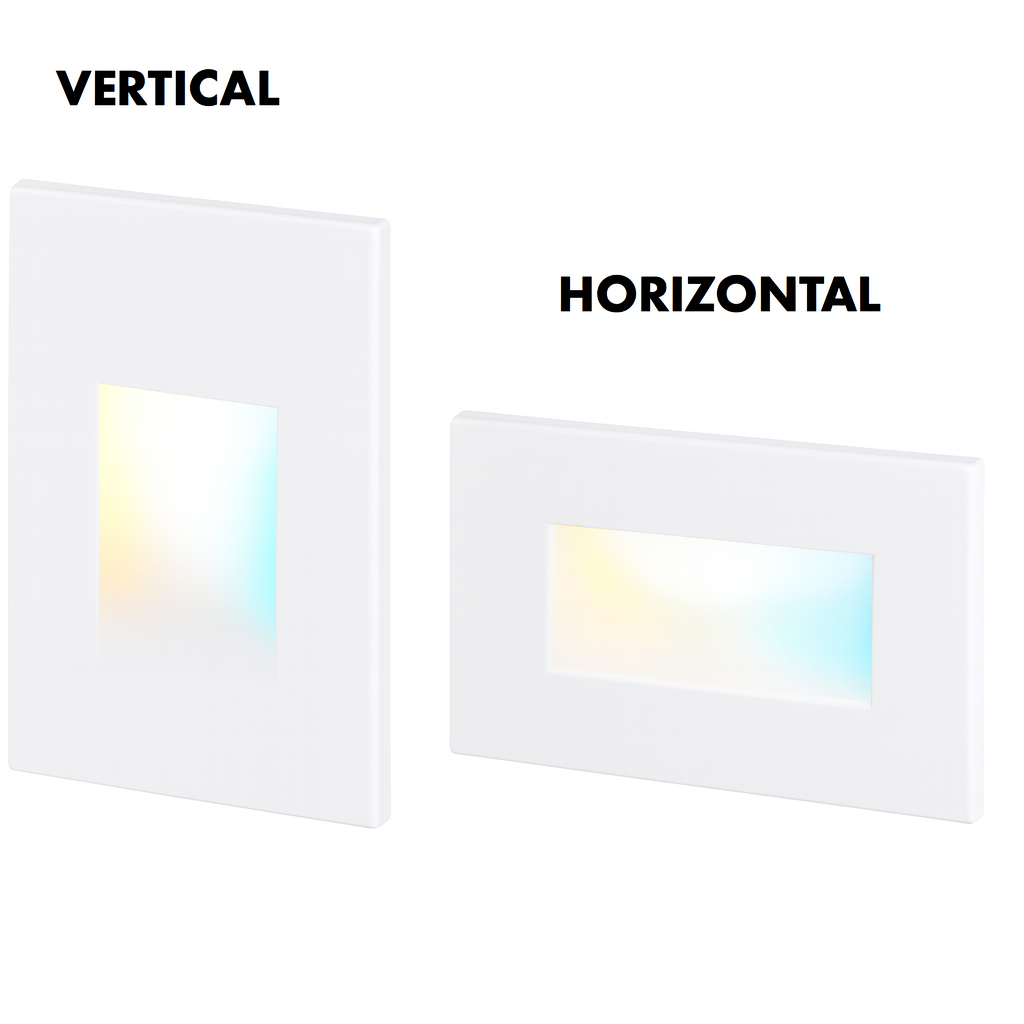

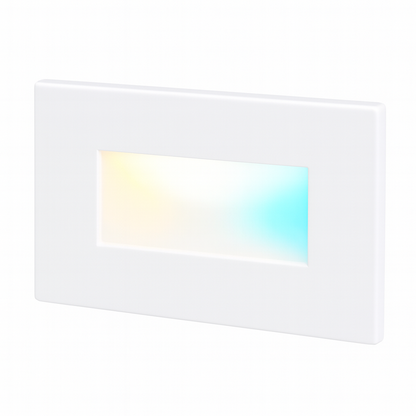

The 3.5W Sonic LED Step Light Series combines a clean architectural appearance with efficient illumination for indoor and outdoor wall-mounted applications. Designed for concrete pour, brick masonry, and drywall installations, the Sonic Series is ideal for illuminating steps, pathways, patios, entrances, and interior stairways.
Featuring an integrated 5CCT selectable LED engine, the Sonic allows the color temperature to be adjusted from 2700K to 5000K to complement a variety of environments. Its durable die-cast aluminum housing, screwless faceplate, IP65 rating, and wet-location listing provide reliable performance in both interior and exterior applications.
Features
- 3.5W integrated LED for energy-efficient illumination
- 5CCT selectable color temperature
- Selectable 2700K, 3000K, 3500K, 4000K & 5000K
- 120V AC, 50/60Hz operation
- Integrated high-lumen LED engine
- Sleek screwless faceplate design
- Durable die-cast aluminum housing
- Corrosion-resistant painted finish
- Available in White, Black & Oil Rubbed Bronze
- IP65 rated for indoor & outdoor applications
- ETL Listed for wet locations
- RoHS compliant
- Thermally protected driver
- Overload & short-circuit protection
- No lead, mercury, UV or IR emissions

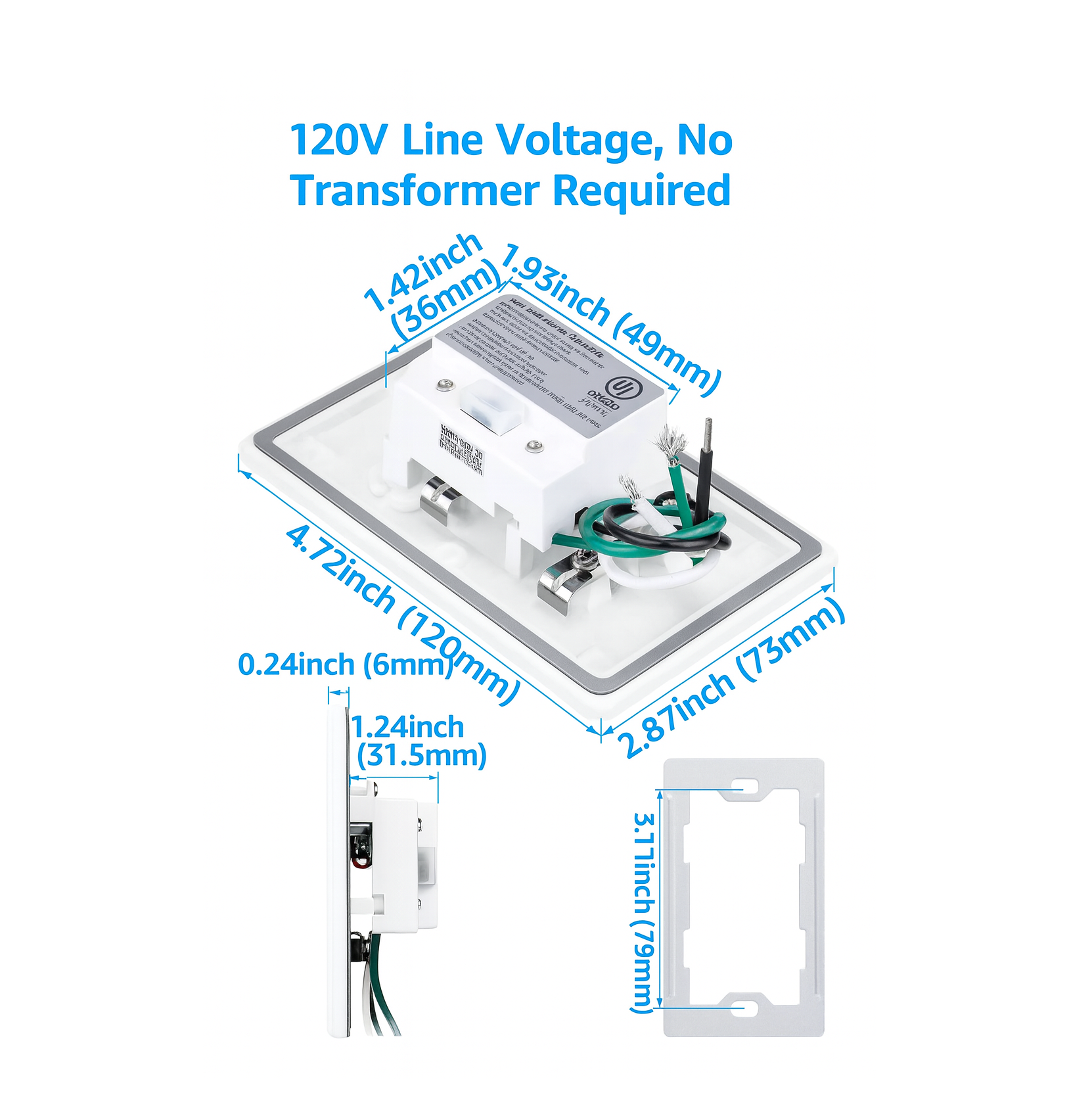

- Fits standard single-gang junction boxes
- Approximately 50,000-hour rated life at 70% lumen maintenance
- 5-year warranty on LED components
5CCT Selectable Color Temperature
| Color Temperature | Description |
|---|---|
| 2700K | Soft Warm White |
| 3000K | Warm White |
| 3500K | Soft White |
| 4000K | Neutral White |
| 5000K | Cool White |
Finish Options
- White
- Black
- Oil Rubbed Bronze
Specifications
| Product Type | LED Step Light |
|---|---|
| Series | Sonic Series |
| Power | 3.5W |
| Input Voltage | 120V AC, 50/60Hz |
| Light Source | Integrated LED Engine |
| Color Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| Housing | Die-Cast Aluminum |
| Faceplate | Screwless |
| Finish Options | White / Black / Oil Rubbed Bronze |
| Driver Protection | Thermal / Overload / Short-Circuit Protection |
| Installation | Standard Single-Gang Junction Box |
| Installation Surfaces | Concrete Pour / Brick Masonry / Drywall |
| IP Rating | IP65 |
| Location Rating | ETL Listed for Wet Locations |
| Rated Life | Approximately 50,000 Hours at 70% Lumen Maintenance |
| Compliance | ETL / RoHS |
| Warranty | 5 Years on LED Components |
Applications
- Steps & Stairways
- Indoor Stairwells
- Walkways & Pathways
- Patios
- Building Entrances
- Building Exteriors
- Residential Interiors
- Commercial Properties
- Hospitality Spaces
- Indoor & Outdoor Wall-Mounted Applications
Why Choose the Sonic Series?
The 3.5W Sonic Series LED Step Light combines a minimalist screwless design with 5CCT selectable illumination, allowing the color temperature to be adjusted from 2700K to 5000K for different architectural and ambient lighting requirements.
With durable die-cast aluminum construction, corrosion-resistant finishes, an IP65 rating, ETL wet-location listing, protected LED driver, and an approximately 50,000-hour rated life, the Sonic Series provides a dependable solution for illuminating steps, pathways, patios, entrances, and indoor stairways.
