Micro Magnetic Matrix Light Series
Micro Magnetic Matrix Light Series
Couldn't load pickup availability
The Micro Magnetic Matrix Light delivers powerful, precision illumination through a modern multi-cell optical design. Available in single, double, and triple-head configurations, the Matrix Series provides exceptional lighting performance for retail displays, museums, galleries, luxury residences, and commercial interiors.
Designed for 48V Micro Magnetic Track Systems, each module installs magnetically for quick repositioning and effortless lighting customization.
Features
- Modern matrix-style multi-cell LED optics
- Available in Single, Double, and Triple Head configurations
- Compatible with all 48V Micro Magnetic Track Systems
- Available in 3000K Warm White and 6500K Daylight
- Smooth dimmable operation
- High efficiency: 118 lm/W
- Precision accent lighting
- Magnetic tool-free installation

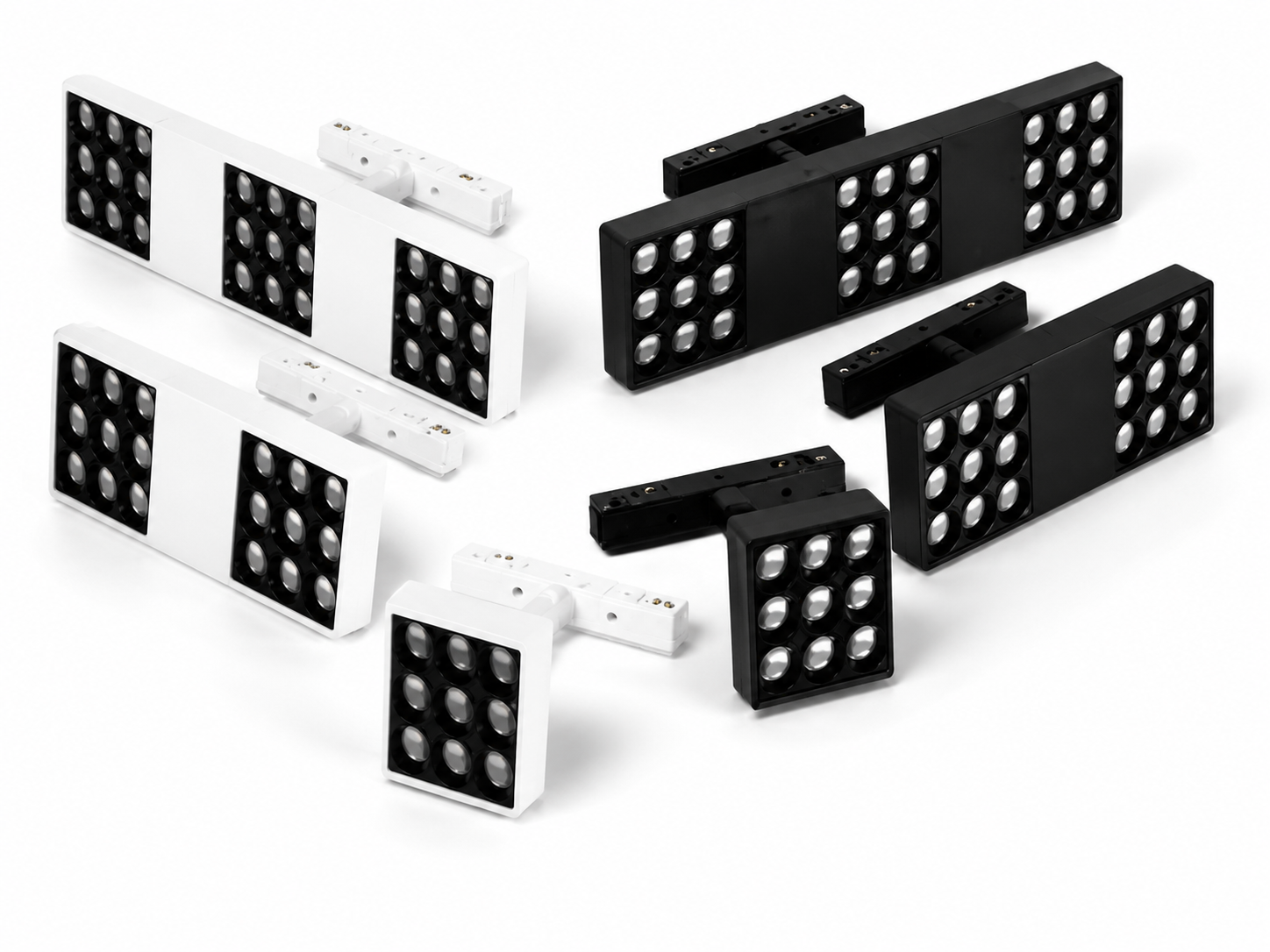

- Available in Matte Black and Matte White
- Premium aluminum construction
- Low-glare optical design
- ETL Certified
- CE Certified
- FCC Certified
- RoHS Compliant
Available Models
Matte Black
| Configuration | Power | Dimensions | Color Temp | Lumens |
|---|---|---|---|---|

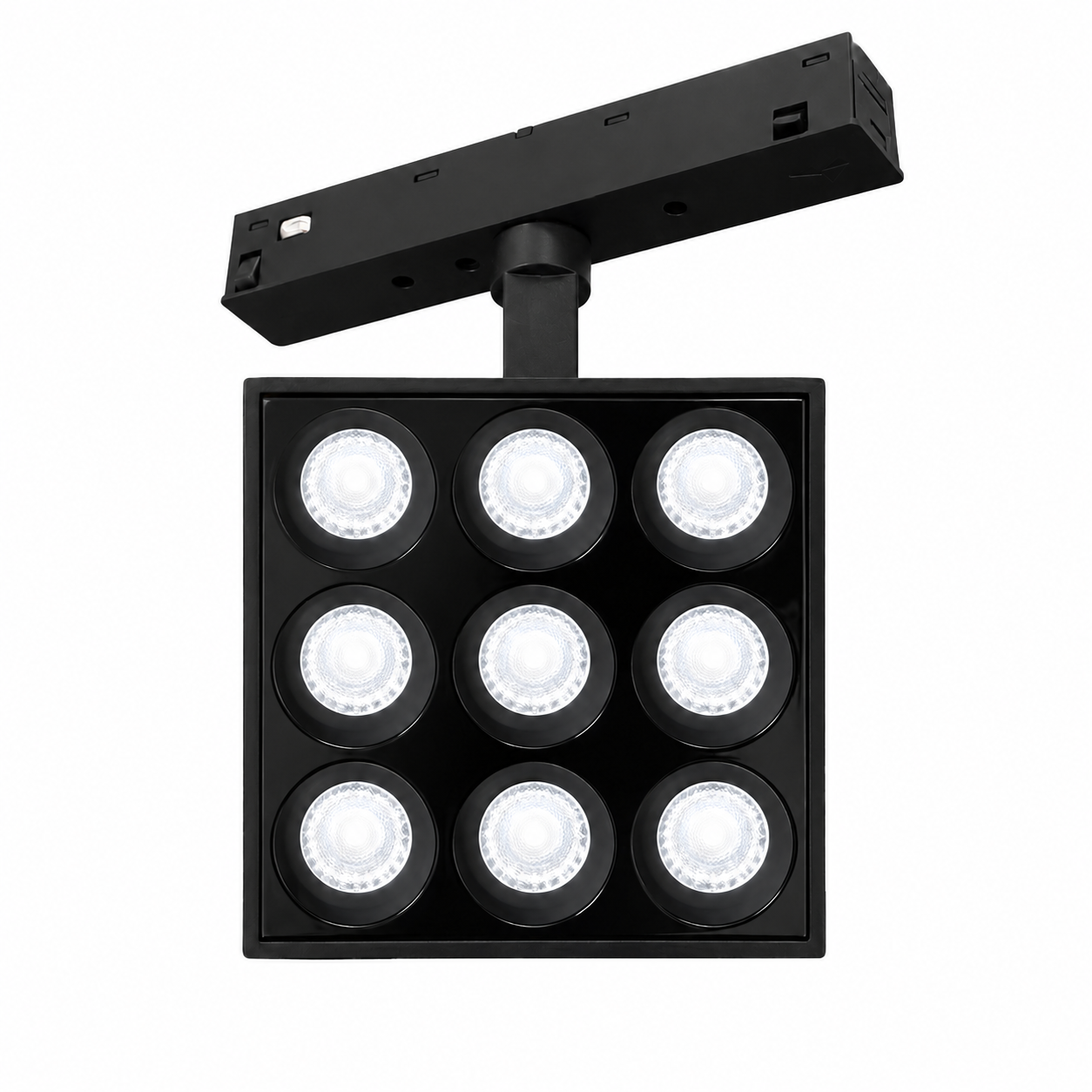

| Single Head | 9W | 3" × 1" × 4" (65 × 25 × 110 mm) | 3000K | 1,062 lm |
| Single Head | 9W | 3" × 1" × 4" (65 × 25 × 110 mm) | 6500K | 1,062 lm |

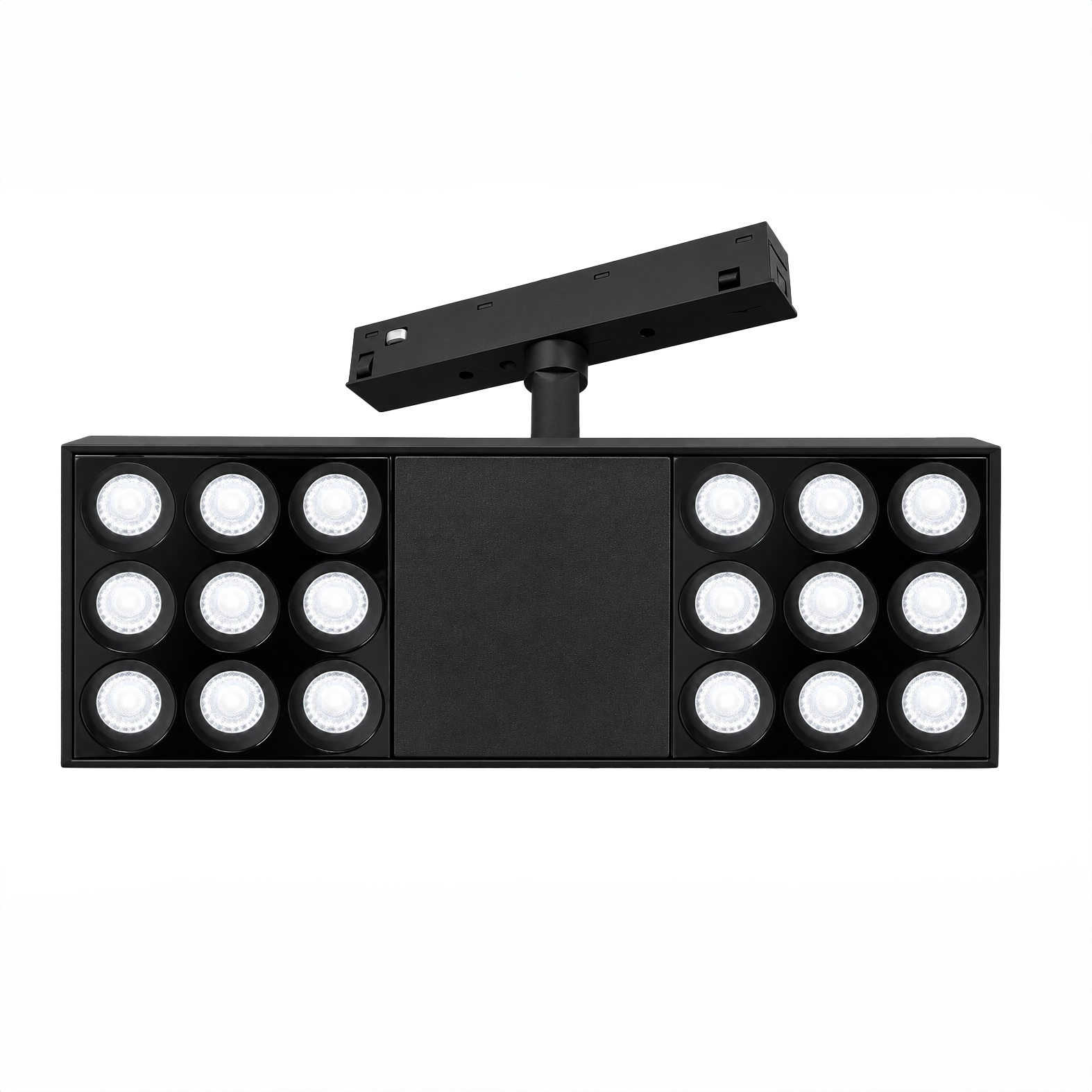

| Double Head | 18W | 7" × 1" × 4" (170 × 25 × 110 mm) | 3000K | 2,124 lm |
| Double Head | 18W | 7" × 1" × 4" (170 × 25 × 110 mm) | 6500K | 2,124 lm |

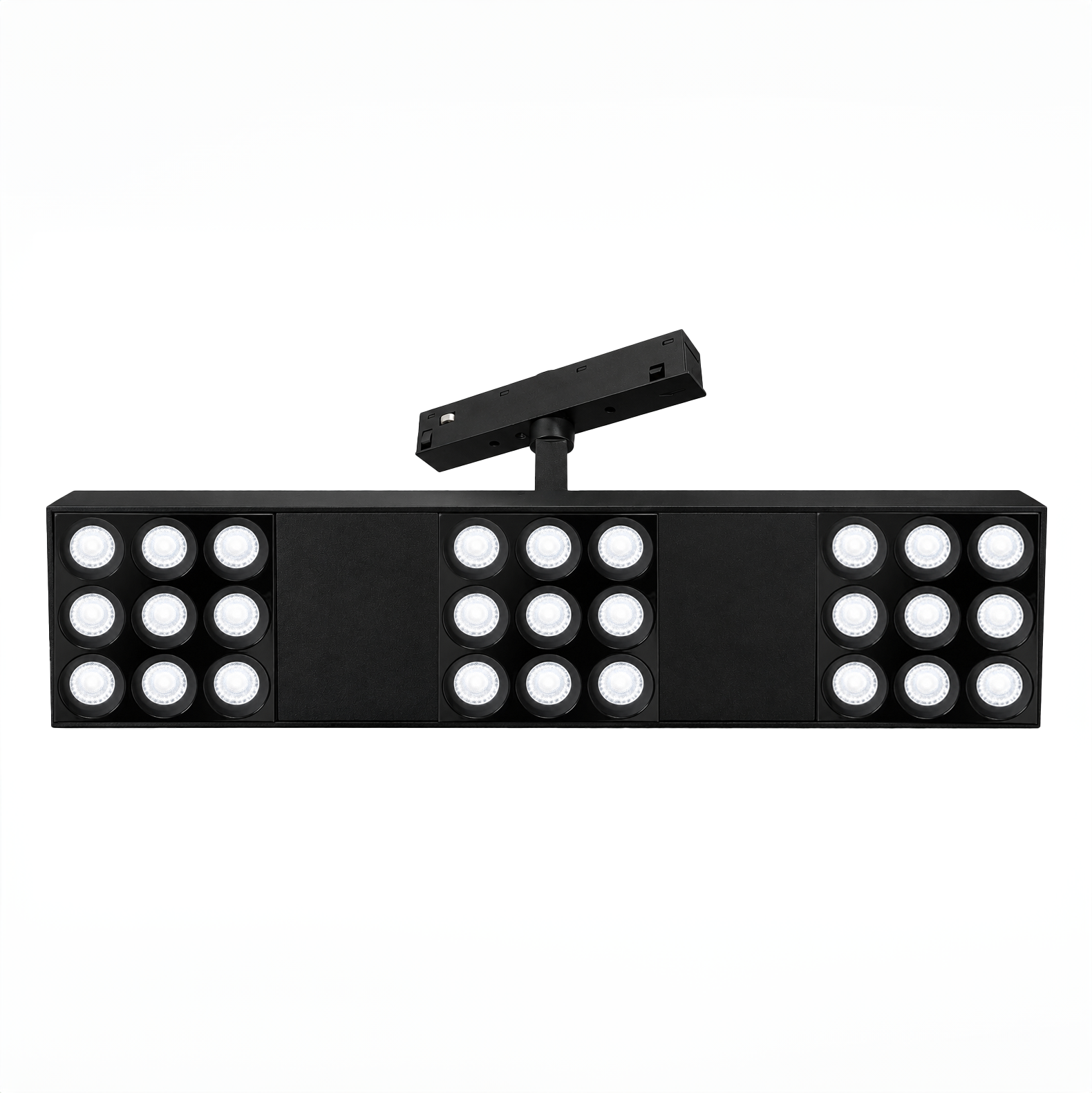

| Triple Head | 27W | 11" × 1" × 4" (280 × 25 × 110 mm) | 3000K | 3,186 lm |
| Triple Head | 27W | 11" × 1" × 4" (280 × 25 × 110 mm) | 6500K | 3,186 lm |
Matte White
| Configuration | Power | Dimensions | Color Temp | Lumens |
| Single Head | 9W | 3" × 1" × 4" (65 × 25 × 110 mm) | 3000K | 1,062 lm |
| Single Head | 9W | 3" × 1" × 4" (65 × 25 × 110 mm) | 6500K | 1,062 lm |
| Double Head | 18W | 7" × 1" × 4" (170 × 25 × 110 mm) | 3000K | 2,124 lm |
| Double Head | 18W | 7" × 1" × 4" (170 × 25 × 110 mm) | 6500K | 2,124 lm |
| Triple Head | 27W | 11" × 1" × 4" (280 × 25 × 110 mm) | 3000K | 3,186 lm |
| Triple Head | 27W | 11" × 1" × 4" (280 × 25 × 110 mm) | 6500K | 3,186 lm |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Matrix Light |
| Mounting | Magnetic Track Mounted |
| System Voltage | 48V DC |
| Configurations | Single Head, Double Head, Triple Head |
| Power Options | 9W, 18W, 27W |
| Luminous Efficacy | 118 lm/W |
| Lumen Output | 1,062 lm (9W), 2,124 lm (18W), 3,186 lm (27W) |
| Color Temperatures | 3000K Warm White, 6500K Daylight |
| Dimming | Yes |
| Finish | Matte Black or Matte White |
| Material | Aluminum |
| Optical Design | Multi-Cell Matrix LED |
| Compatible System | 48V Micro Magnetic Track |
| Certifications | ETL, CE, FCC, RoHS |

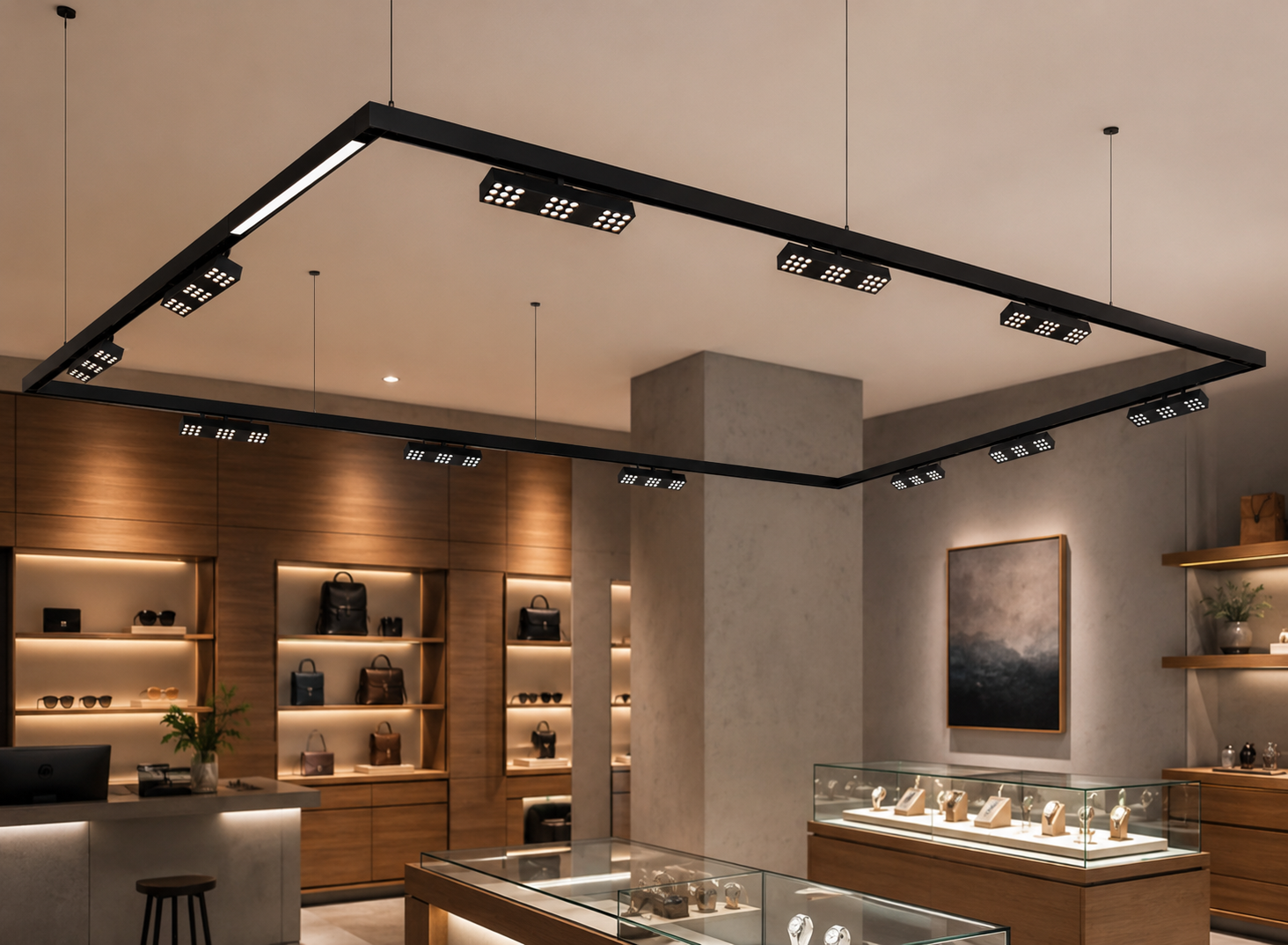

Applications
Ideal for:
- Retail Stores
- Luxury Boutiques
- Jewelry Showrooms
- Museums
- Art Galleries
- Luxury Homes
- Hospitality
- Hotels
- Restaurants
- Office Spaces
- Product Displays
- Architectural Accent Lighting
What's Included
- 1 × Micro Magnetic Matrix Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including:
- Recessed Trimless Tracks
- Surface Mount Tracks
- Suspended Mount Tracks
Why Choose the Matrix Light?
The Matrix Light combines multiple precision optics into a compact fixture, producing powerful, evenly distributed illumination with excellent glare control. With single, double, and triple-head configurations available, it offers scalable lighting performance while maintaining the clean, minimalist look of a magnetic track system.
