3W Sapphire Puck Light Series
3W Sapphire Puck Light Series
Couldn't load pickup availability

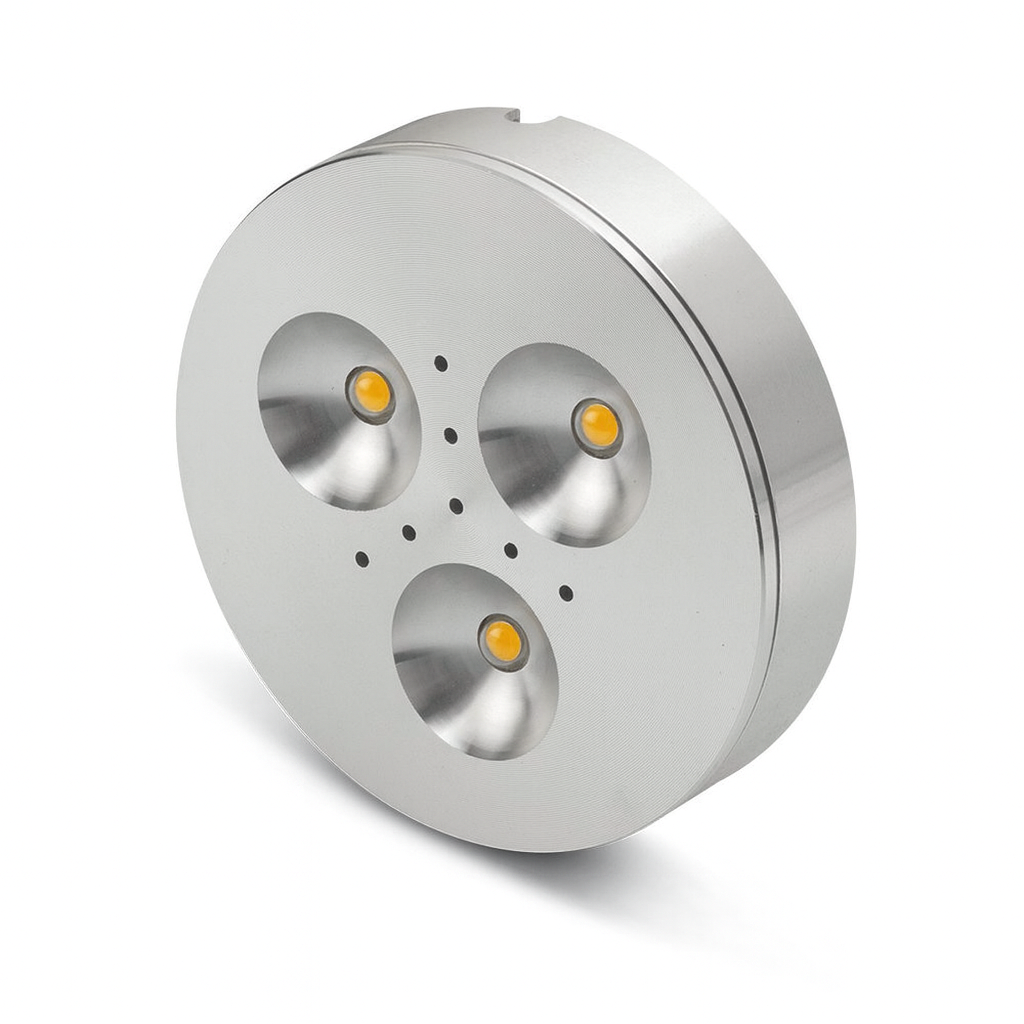

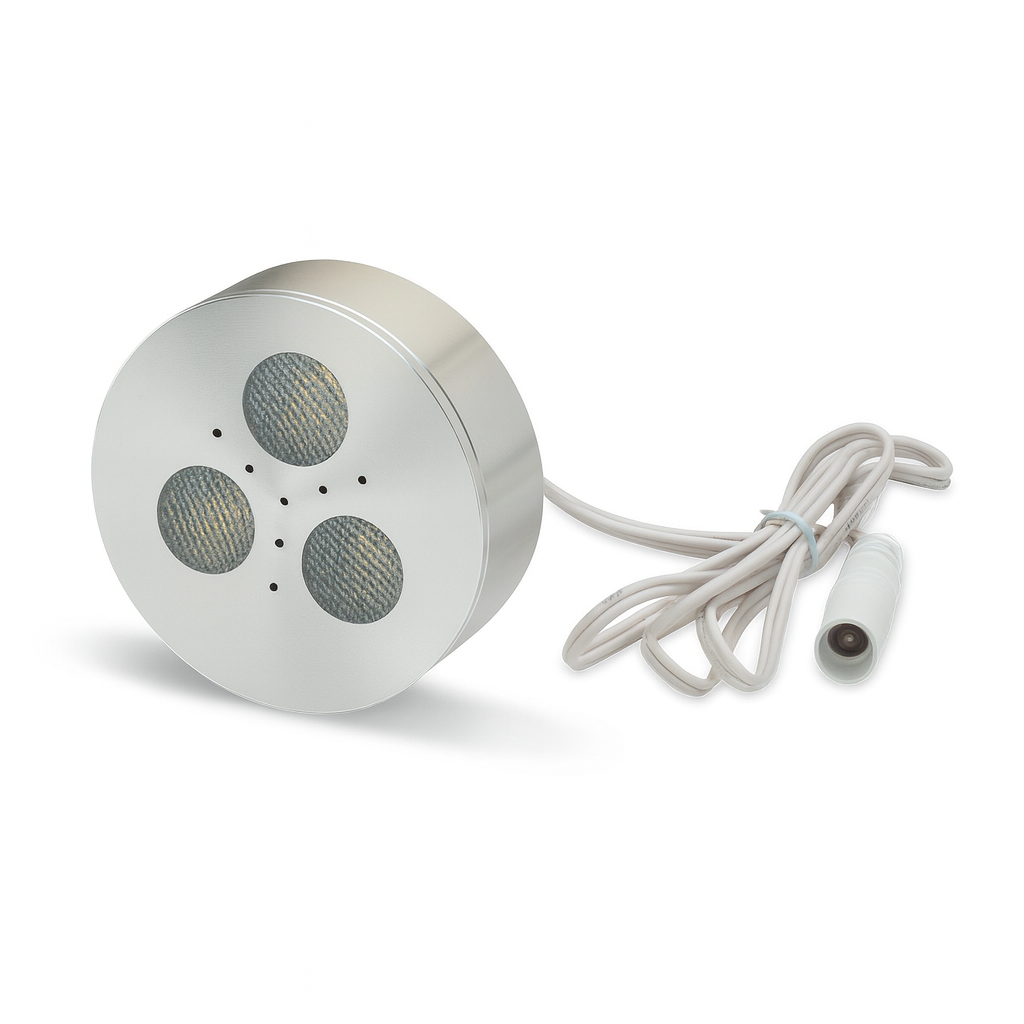

The 3W Sapphire Puck LED Light Series is a compact, high-performance fixture designed for display cases, under-cabinet lighting, accent lighting, and specialty applications. Powered by high-output CREE LEDs, the Sapphire Puck combines a slim profile with flexible mounting and optical options for clean, professional illumination.
Designed for both recessed and surface-mounted installations, the Sapphire Puck is available with either a focused 45° spot beam or a wide 120° flood beam. Three color temperatures, multiple finishes, dimming compatibility, and an included 12V driver provide flexibility for residential, retail, display, and specialty lighting projects.
Features
- 3W power consumption
- High-output CREE LED technology

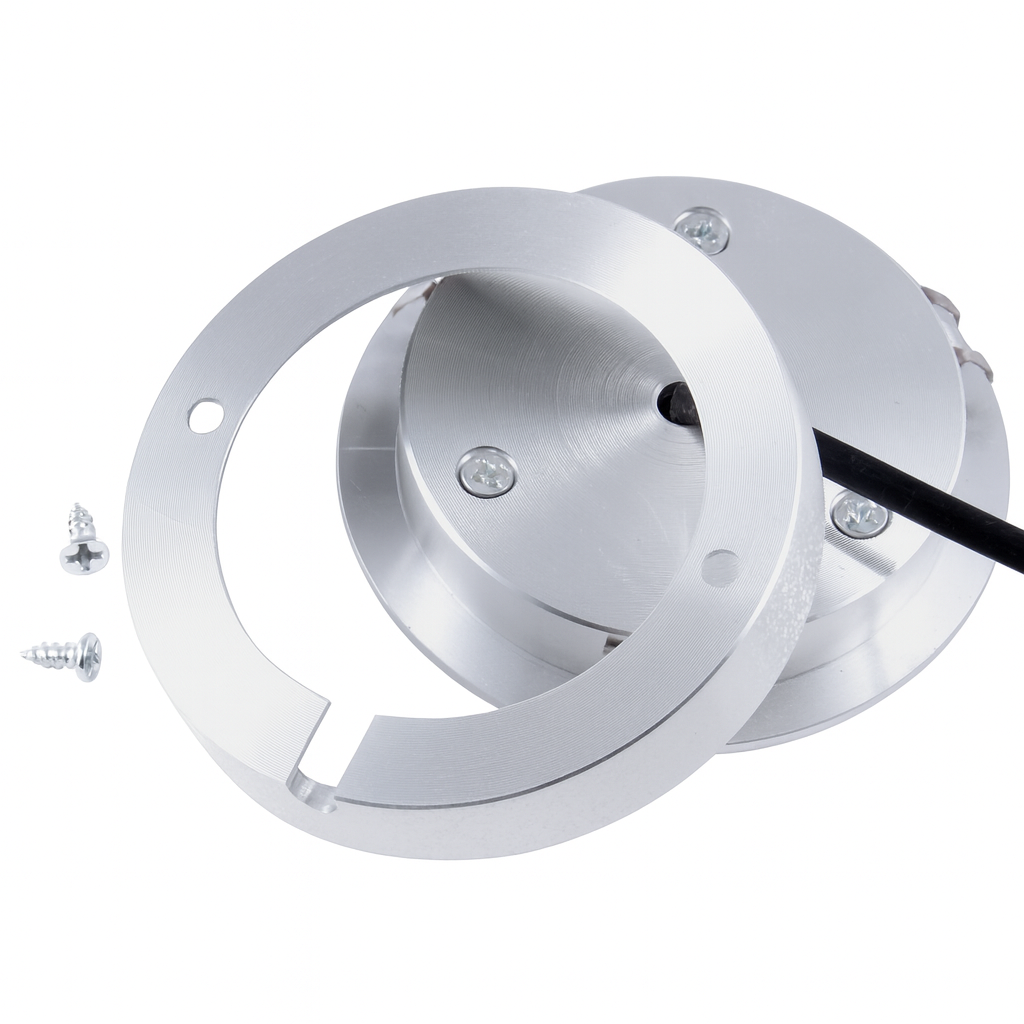

- Recessed or surface mounting options
- Two beam angle options: 45° Spot & 120° Flood
- Available in 3000K, 4500K & 6500K
- CRI up to 85
- Dimmable for adjustable light levels
- 12V driver included
- Slim, low-profile design
- Black, White & Silver finish options
- UL Listed
Color Temperature & CRI Options
| Color Temperature | Description | CRI |
|---|---|---|
| 3000K | Warm White | 85 |
| 4500K | Neutral White | 85 |
| 6500K | Cool White | 80 |
Beam Angle Options
| Beam Angle | Beam Type | Recommended Use |
|---|---|---|
| 45° | Spot | Focused display, showcase & accent illumination |
| 120° | Flood | Broad under-cabinet, display & general illumination |
Finish Options
- Black
- White
- Silver
Specifications
| Product Type | LED Puck Light |
|---|---|
| Series | Sapphire Puck Light Series |
| Power | 3W |
| LED Source | High-Output CREE LEDs |
| Color Temperatures | 3000K / 4500K / 6500K |
| CRI | 85 / 85 / 80 Depending on CCT |
| Beam Angle Options | 45° Spot / 120° Flood |
| Mounting | Recessed / Surface Mount |
| Dimming | Dimmable |
| Driver | 12V Driver Included |
| Finish Options | Black / White / Silver |
| Diameter | 2.7" (69 mm) |
| Height | 0.7" (17 mm) |
| Recessed Cutout | 2.3" (58 mm) |
| Certification | UL Listed |
Applications
- Jewelry Showcases
- Watch Displays
- Antique & Craft Showcases

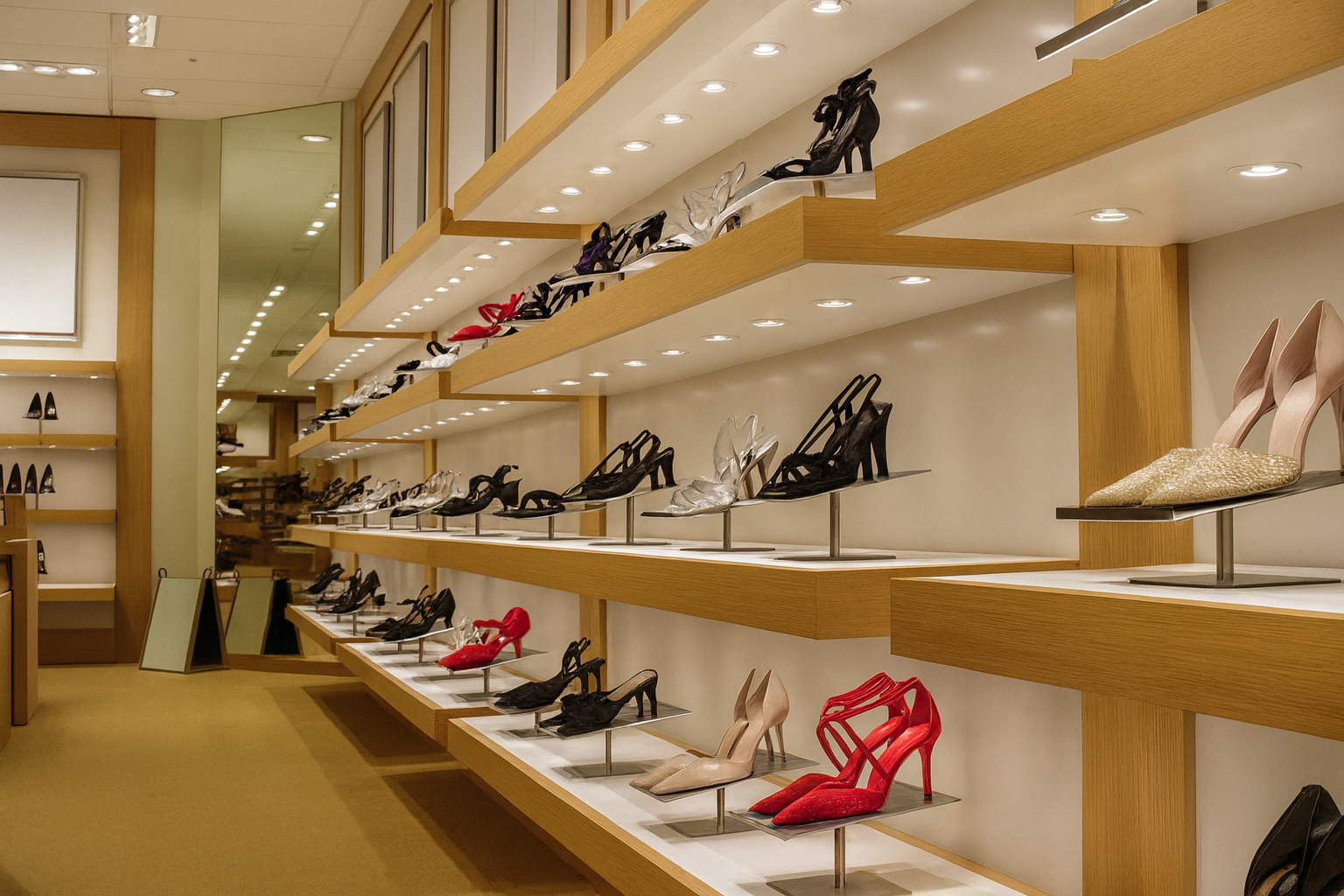

- Retail Display Cases

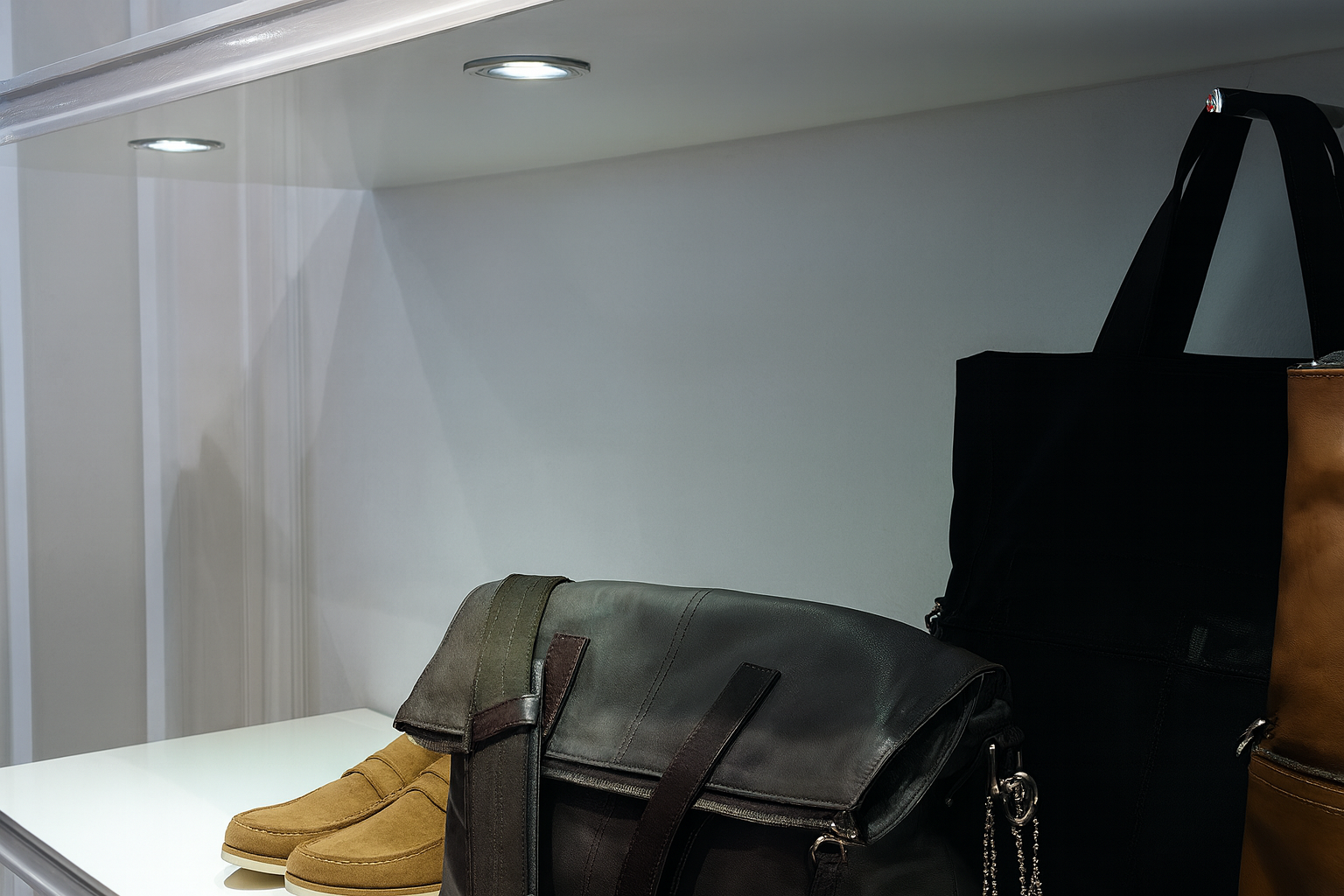

- Under-Cabinet Kitchen Lighting

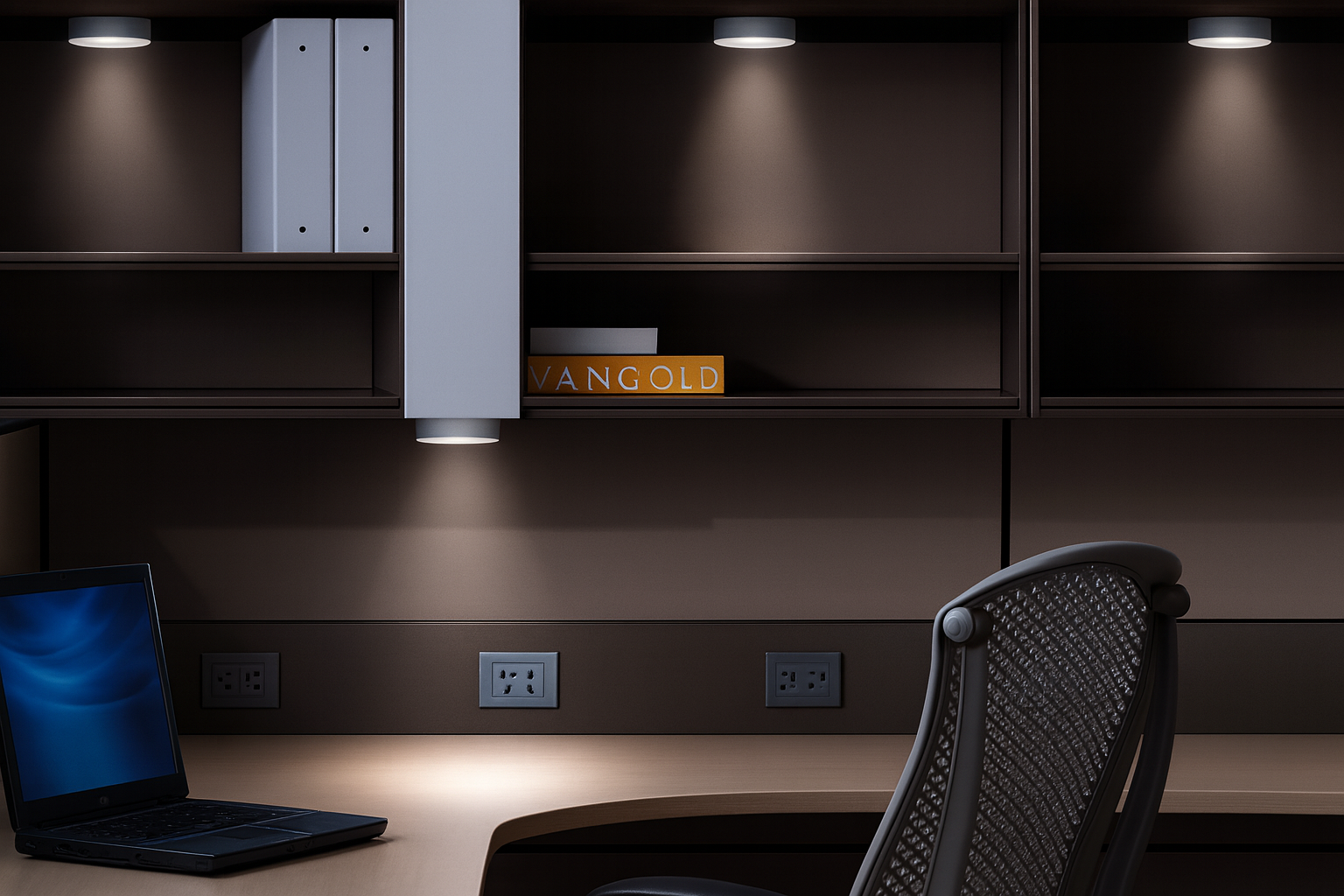

- Cabinet & Shelf Lighting
- Accent & Decorative Lighting
- Boats & Yacht Interiors
- RV Interiors
- Specialty Lighting Applications
Why Choose the Sapphire Puck LED Light Series?
The 3W Sapphire Puck LED Light Series combines high-output CREE LED technology with a compact, low-profile design for applications where discreet yet effective illumination is required. Choose between a 45° spot beam for focused highlighting or a 120° flood beam for broader illumination.
With recessed and surface mounting options, three color temperatures, Black, White, and Silver finishes, dimming compatibility, and an included 12V driver, the Sapphire Puck Series provides a flexible solution for jewelry showcases, retail displays, cabinetry, decorative lighting, and specialty interior applications.
