LS2 Smart LED Control Receiver Series
LS2 Smart LED Control Receiver Series
Couldn't load pickup availability
The LS2 Series Smart LED Control Receiver is a versatile 5-in-1 universal receiver designed to control Single Color, CCT, RGB, RGBW, and RGB+CCT constant-voltage LED strips. Its multi-function design allows one receiver platform to accommodate a wide range of LED lighting configurations for residential, commercial, hospitality, and architectural applications.
Designed for compatibility with MiBoxer wireless remotes and touch panels, the LS2 Series operates using 2.4GHz wireless communication for stable, responsive lighting control. Simple linking and unlinking, multi-zone integration, and short-circuit protection make it a flexible solution for professional smart LED lighting systems.
Features
- 5-in-1 universal LED control
- Supports Single Color LED strips
- Supports CCT tunable white LED strips
- Supports RGB LED strips
- Supports RGBW LED strips
- Supports RGB+CCT LED strips
- Compatible with MiBoxer wireless remotes and touch panels

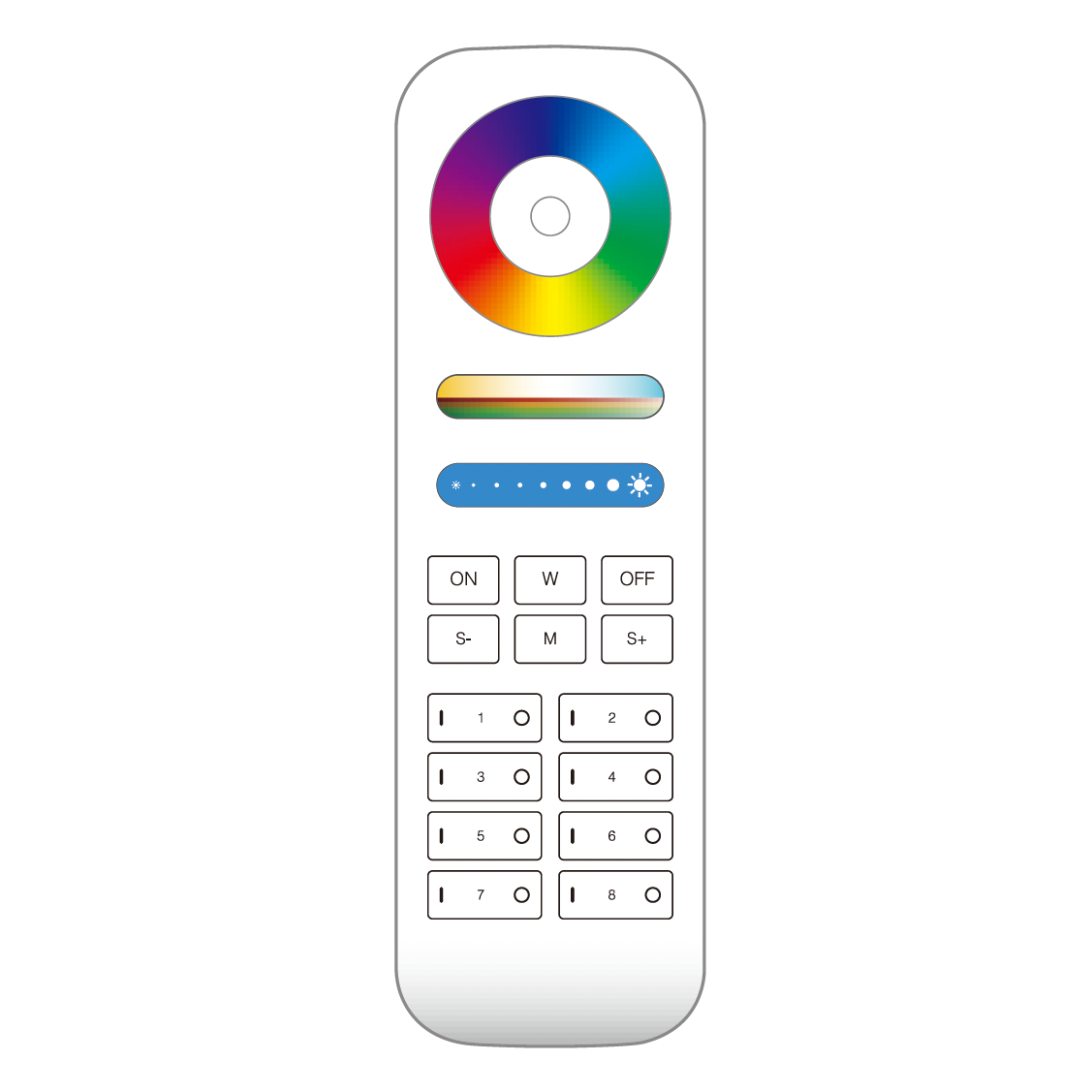

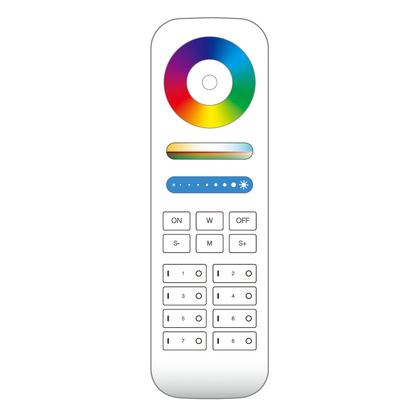

- Compatible with the FUT089 8-Zone Remote
- 2.4GHz wireless communication
- Designed for long-distance, low-power, and anti-interference communication
- Simple link and unlink pairing process
- Visual pairing confirmation through LED light blinks
- Supports multi-zone lighting configurations
- Can be integrated with multiple compatible controllers
- Designed for constant-voltage LED lighting systems
- Short-circuit protection
- Safe reconnection design
- Inline installation between the LED power supply and LED strip
5-in-1 LED Compatibility
| Lighting Type | Supported |
|---|---|
| Single Color | Yes |
| CCT / Tunable White | Yes |
| RGB | Yes |
| RGBW | Yes |
| RGB+CCT | Yes |
Wireless Control
| Function | Details |
|---|---|
| Wireless Frequency | 2.4GHz |
| Compatible Controls | MiBoxer Remotes & Touch Panels |
| Remote Compatibility | FUT089 8-Zone Remote |
| Pairing | Link / Unlink |
| Pairing Confirmation | LED Light Blinks |
| Zone Control | Supports Multi-Zone Configurations with Compatible Controllers |

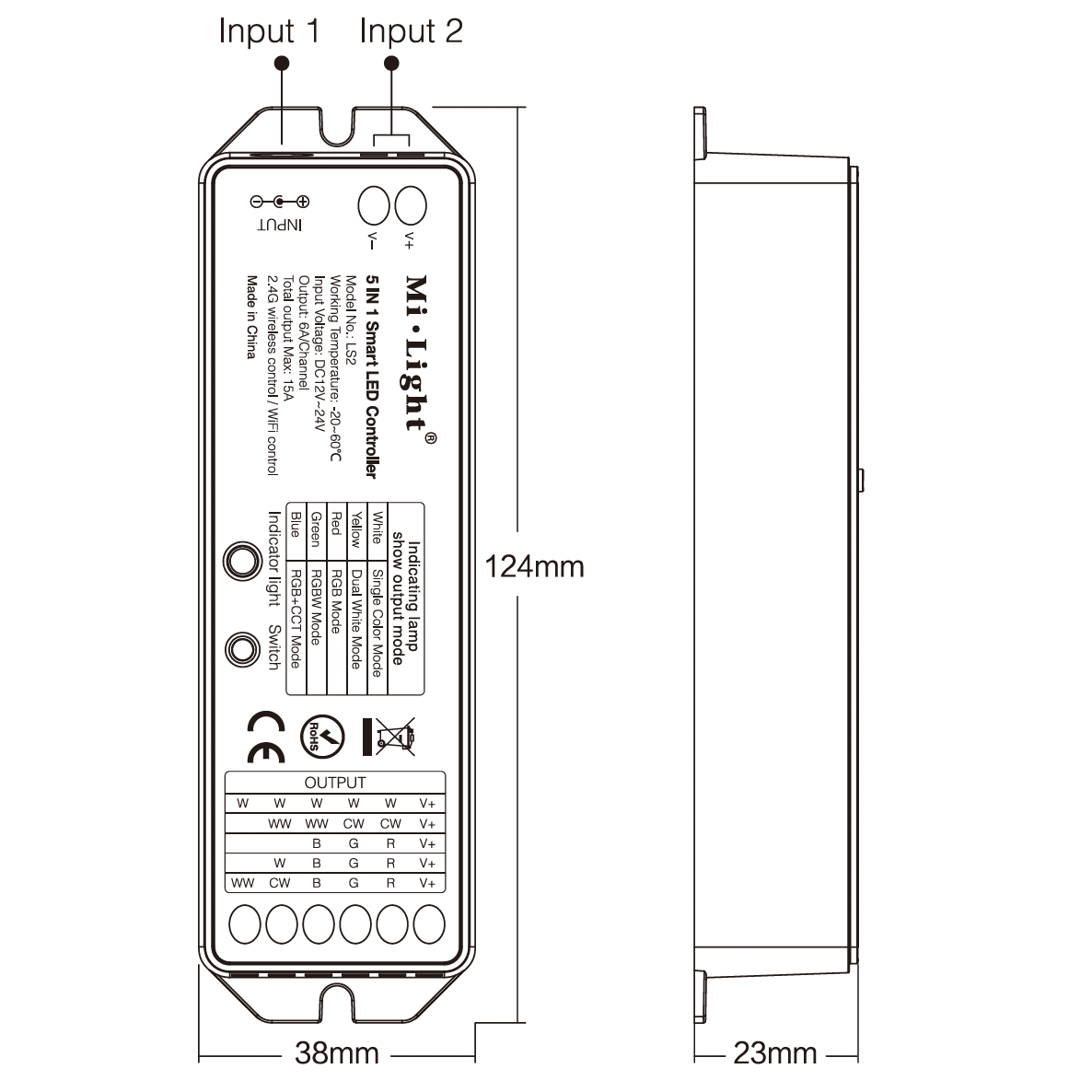

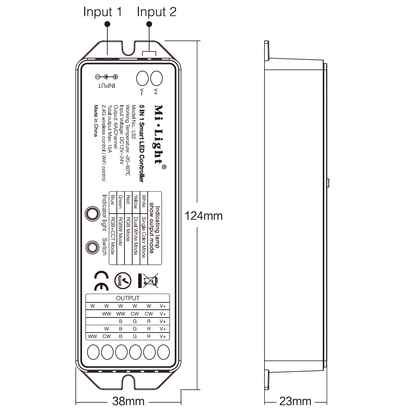

Specifications
| Product Type | 5-in-1 Smart LED Control Receiver |
|---|---|
| Series | LS2 Series |
| Control Types | Single Color / CCT / RGB / RGBW / RGB+CCT |
| Wireless Frequency | 2.4GHz |
| Compatible Controls | MiBoxer Wireless Remotes & Touch Panels |
| Pairing | Link / Unlink with Compatible Remote or Wall Panel |
| Power Input | Constant-Voltage DC |
| Input Voltage | Dependent on Compatible LED Driver and LED System |
| Protection | Short-Circuit Protection |
| Installation | Inline Between LED Power Supply and LED Strip |
Applications
- Smart Home Lighting Systems
- Residential LED Strip Lighting
- Retail Lighting
- Hospitality Lighting
- Restaurants & Hotels
- Multi-Zone Architectural Lighting
- RGB Accent Lighting
- RGB + CCT Lighting Systems
- Tunable White Lighting
- Commercial LED Strip Installations
Why Choose the LS2 Series Smart LED Control Receiver?
The LS2 Series Smart LED Control Receiver combines five LED control types in a single receiver, supporting Single Color, CCT, RGB, RGBW, and RGB+CCT LED strips. This universal configuration provides greater flexibility when designing or expanding residential and commercial smart lighting systems.
With 2.4GHz wireless communication, compatibility with MiBoxer remotes and touch panels, simple link/unlink pairing, multi-zone integration, and short-circuit protection, the LS2 Series provides a versatile control solution for professional constant-voltage LED strip installations.
