Diamond Brite LEDs
80W–110W RetroFit Falcon 180 Lamp Series
80W–110W RetroFit Falcon 180 Lamp Series
Couldn't load pickup availability

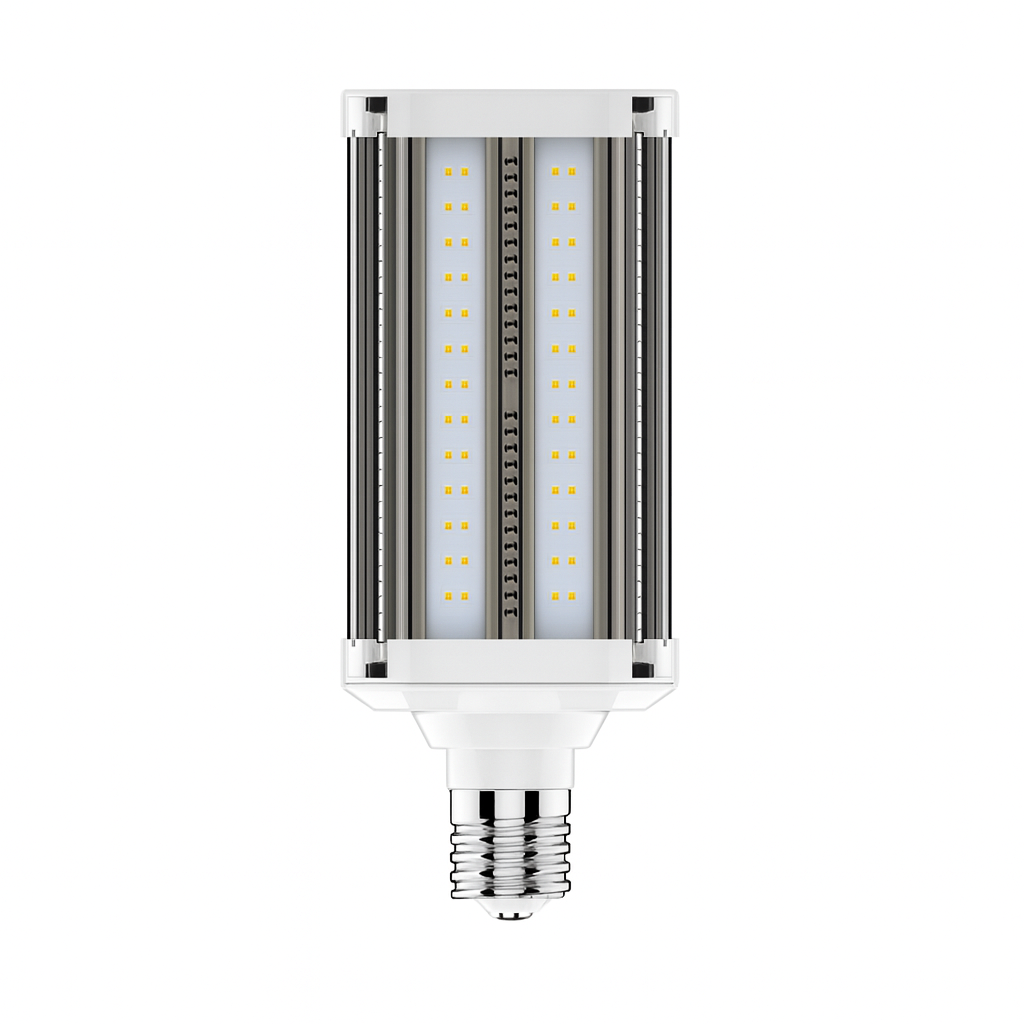

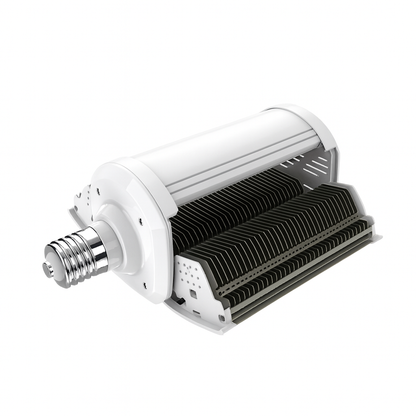

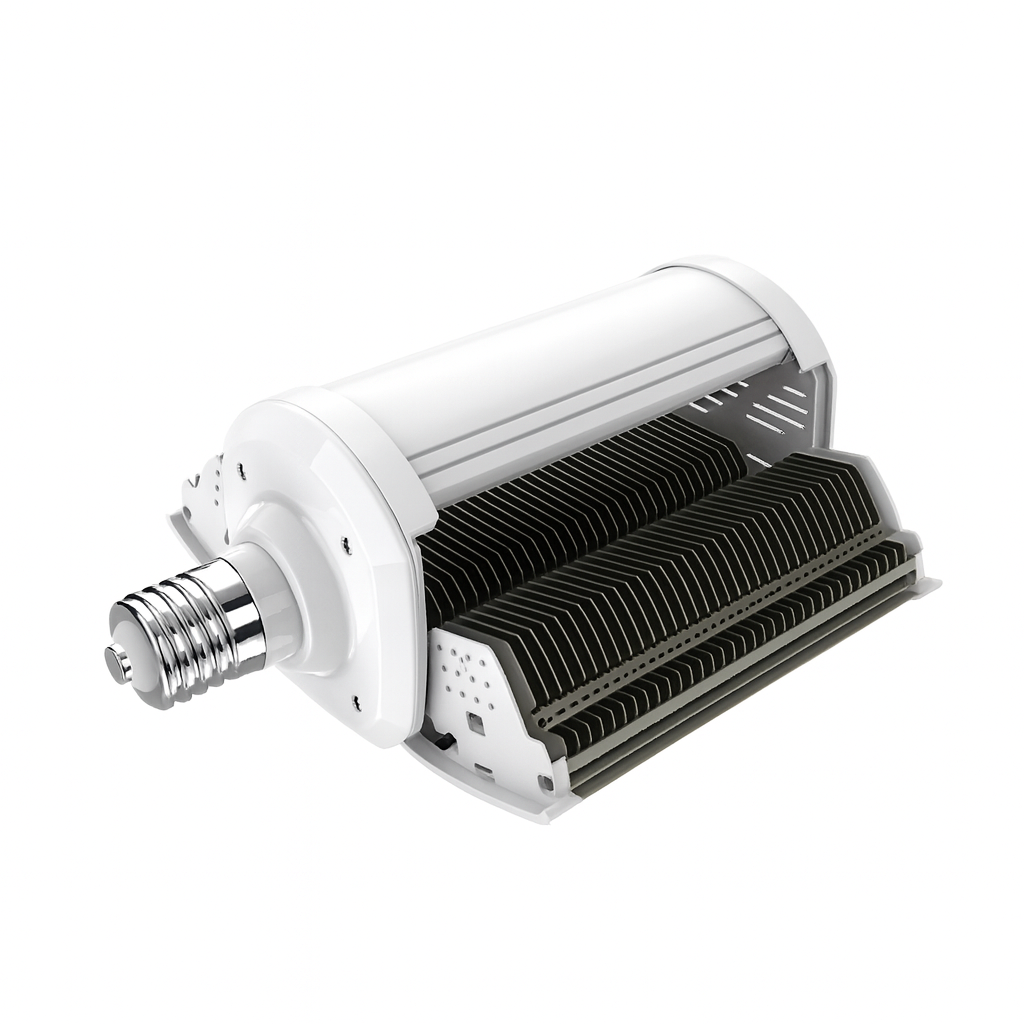

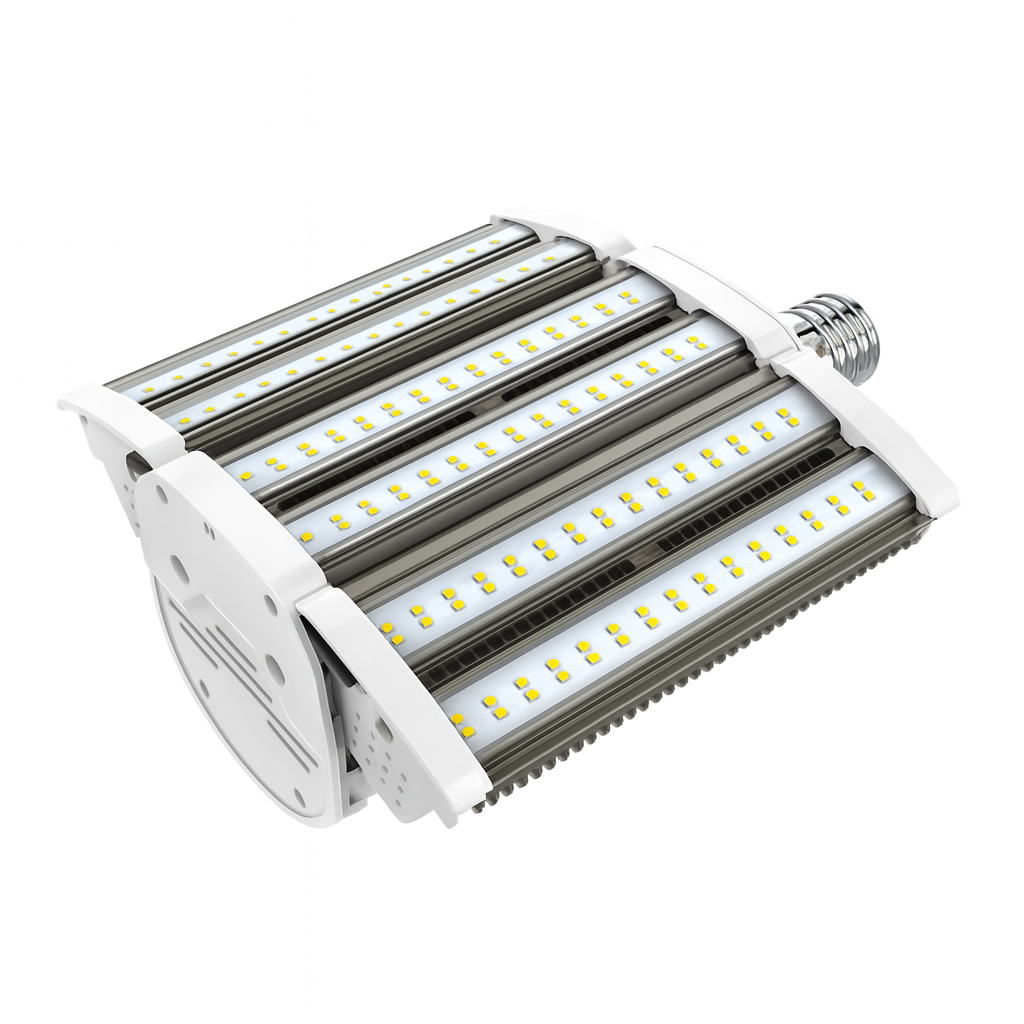

The RetroFit Falcon 180 LED Lamp Series is a heavy-duty LED retrofit solution designed to replace traditional 250W–400W HID and HPS lamps in commercial, industrial, and outdoor lighting applications. Available in 80W and 110W configurations, the series delivers up to 14,300 lumens with an efficiency of approximately 130 lm/W.
Powered by premium LG 3030 LEDs and an independent driver with Rubycon capacitors, the RetroFit Falcon 180 Series is engineered for reliable, high-output performance. Its 180° beam angle, IP64 protection, E39 base, and wide 100–277V AC input range make it a versatile retrofit option for compatible existing fixtures.
Features
- Available in 80W & 110W configurations
- Produces 10,400 or 14,300 lumens depending on wattage
- Approximately 130 lm/W efficiency
- Premium LG 3030 LEDs
- Independent driver with Rubycon capacitors
- 180° beam angle for broad illumination
- Available in 3000K, 4000K, 5000K & 6000K
- CRI ≥80
- Power factor ≥0.90
- E39 base
- Wide-range 100–277V AC, 50/60Hz operation
- IP64 rated
- Flame-retardant housing
- Suitable for totally enclosed fixtures
- Rated for 50,000+ hours
- Operating temperature from -40°F to 140°F (-40°C to +60°C)
- 5-year warranty
Models & Performance
| Wattage | Lumens | Efficiency | LED Quantity | HID / HPS Replacement |
|---|---|---|---|---|
| 80W | 10,400 lm | 130 lm/W | 120 LEDs | 250W HID / HPS |
| 110W | 14,300 lm | 130 lm/W | 168 LEDs | 400W HID / HPS |
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 3000K | Warm White |
| 4000K | Natural White |
| 5000K | Daylight |
| 6000K | Bright White |

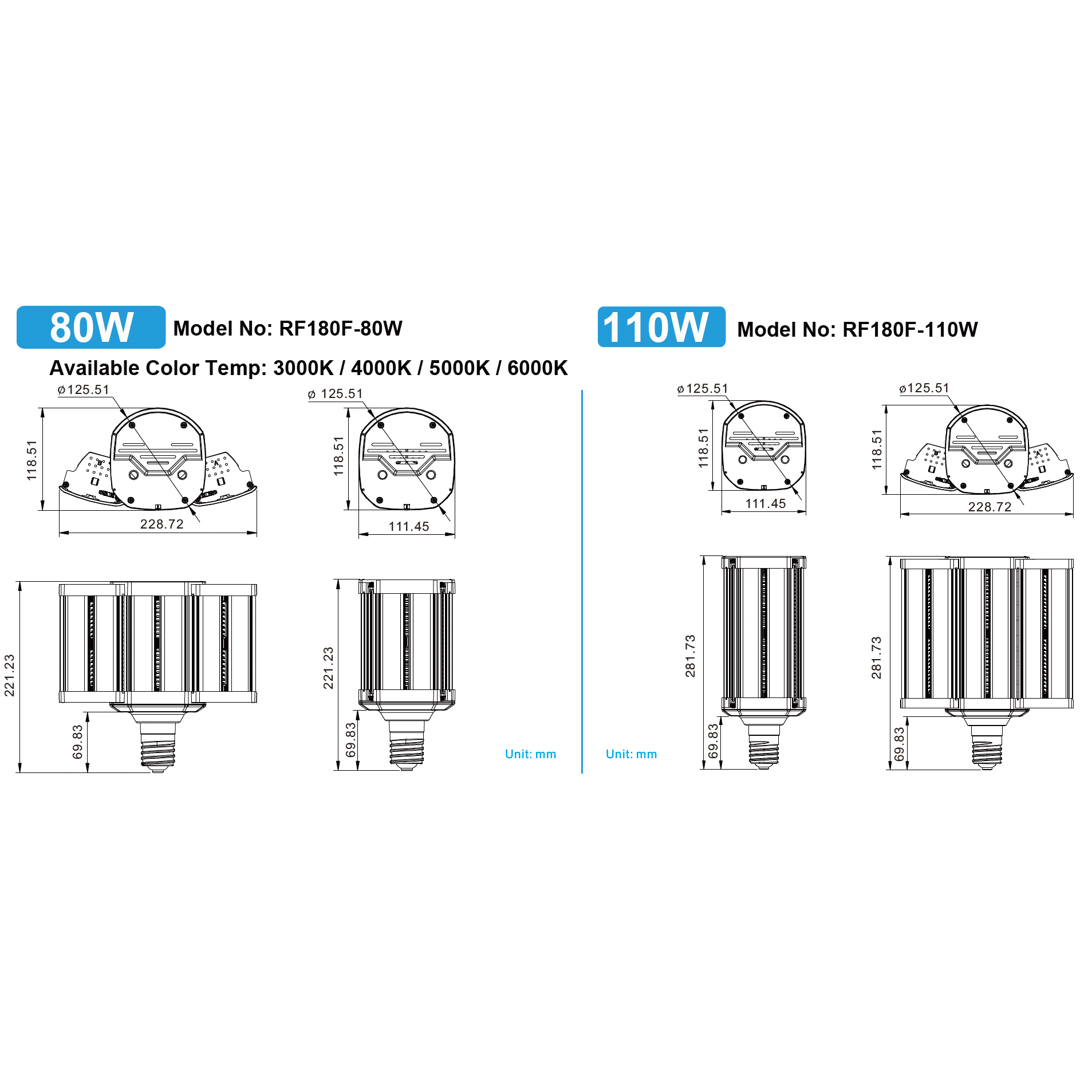

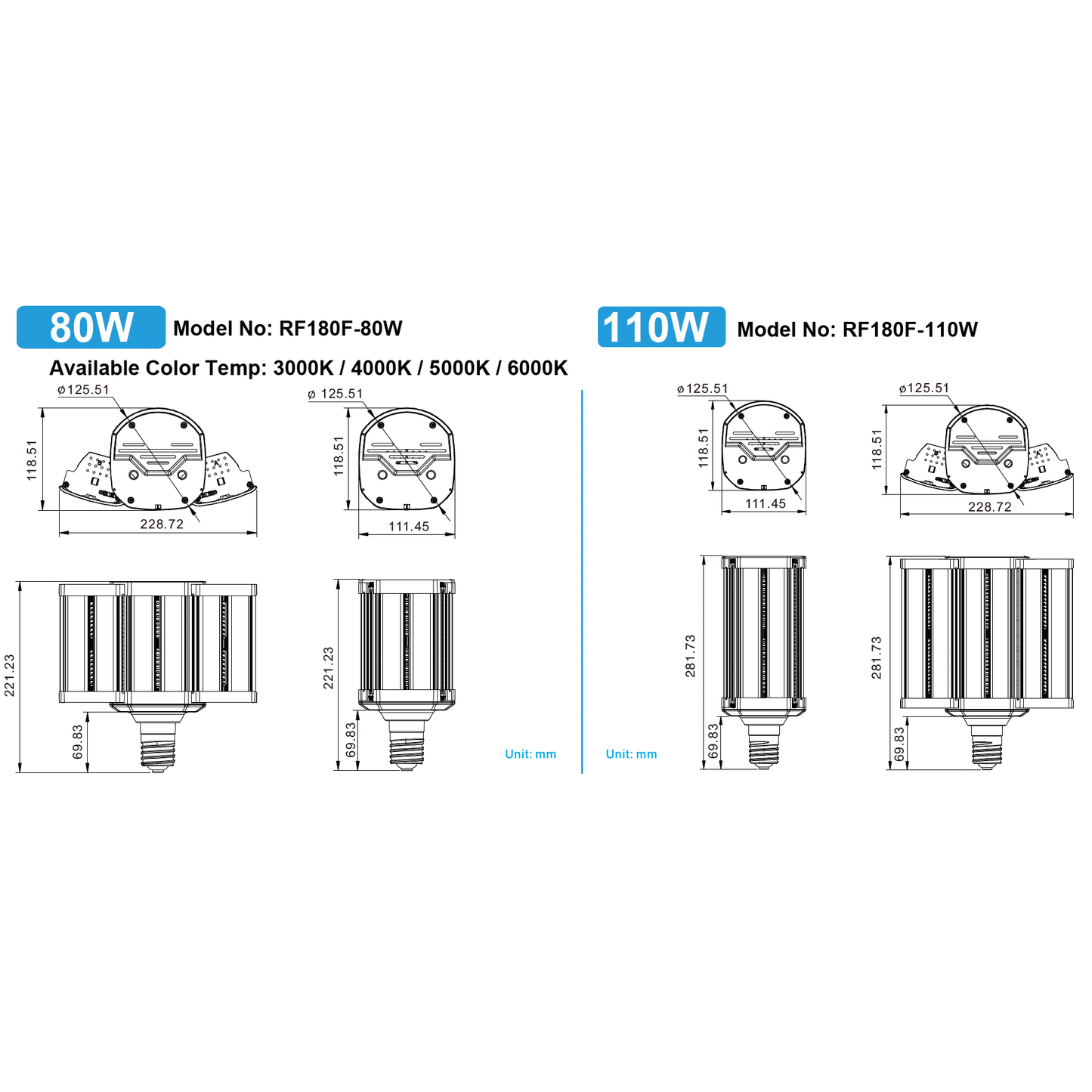

Dimensions
| Wattage | Diameter | Height |
|---|---|---|
| 80W | 4.4" (111 mm) | 8.7" (221 mm) |
| 110W | 4.4" (111 mm) | 11.1" (281 mm) |
Specifications
| Product Type | LED Retrofit Lamp |
|---|---|
| Series | RetroFit Falcon 180 Series |
| Power Options | 80W / 110W |
| Light Output | 10,400 lm / 14,300 lm |
| Efficiency | Approximately 130 lm/W |
| LED Source | LG 3030 LEDs |
| LED Quantity | 120 LEDs (80W) / 168 LEDs (110W) |
| Color Temperatures | 3000K / 4000K / 5000K / 6000K |
| CRI | ≥80 |
| Beam Angle | 180° |
| Base Type | E39 |
| Input Voltage | 100–277V AC, 50/60Hz |
| Power Factor | ≥0.90 |
| Driver | Independent Driver with Rubycon Capacitors |
| Housing | Flame-Retardant Construction |
| IP Rating | IP64 |
| Enclosed Fixture Compatibility | Suitable for Totally Enclosed Fixtures |
| Operating Temperature | -40°F to 140°F (-40°C to +60°C) |
| Rated Lifespan | 50,000+ Hours |
| Warranty | 5 Years |
Applications
- Parking Lots
- Street & Roadway Lighting
- Industrial Facilities
- Warehouses
- Large Commercial Areas
- Outdoor Site Lighting
- Security Lighting
- HID & HPS Fixture Retrofits
Why Choose the RetroFit Falcon 180 LED Lamp Series?
The RetroFit Falcon 180 LED Lamp Series provides high-output illumination with significantly lower wattage than traditional HID and HPS lamps. The 80W model produces 10,400 lumens as a replacement for 250W lamps, while the 110W model produces 14,300 lumens as a replacement for 400W lamps.
With LG 3030 LED technology, a wide 180° beam angle, IP64 protection, an operating range from -40°F to 140°F, and a rated lifespan exceeding 50,000 hours, the RetroFit Falcon 180 Series is engineered for demanding commercial, industrial, parking, roadway, and outdoor lighting applications.
