Diamond Brite LEDs
20W–40W-60W RetroFit 180 CL LED Lamp Series
20W–40W-60W RetroFit 180 CL LED Lamp Series
Couldn't load pickup availability

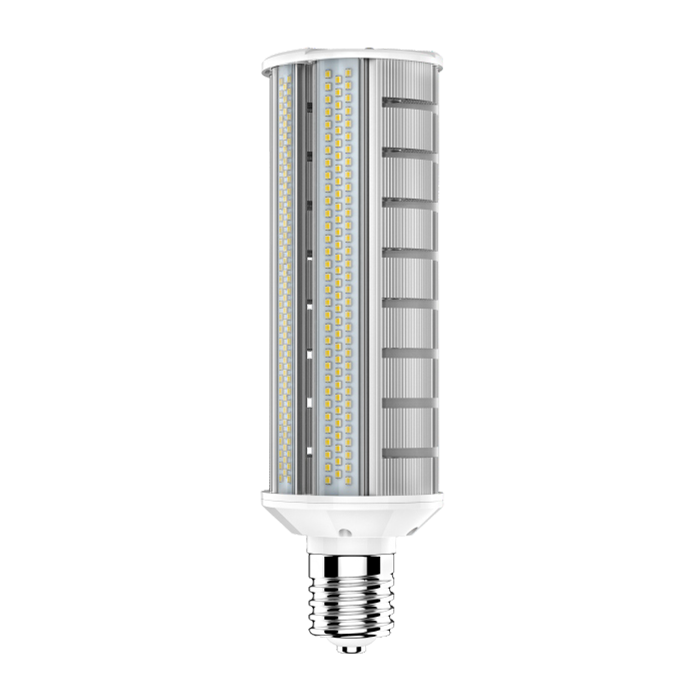

The RetroFit 180 CL LED Lamp Series is a high-efficiency retrofit lighting solution designed to replace traditional HID, CFL, and incandescent lamps with significantly lower power consumption. Available in 20W, 40W, and 60W configurations, the series delivers from 3,000 to 9,000 lumens with luminous efficacy up to 150 lm/W.
Powered by Samsung 2835 SMD LEDs, the RetroFit 180 CL Series combines high light output with a broad 180° beam angle for uniform illumination. E26 and E39 base options provide flexibility for compatible existing fixtures, making the series suitable for commercial, industrial, parking, canopy, street, and area lighting applications.
Features
- Available in 20W, 40W & 60W configurations
- Produces from 3,000 to 9,000 lumens
- High efficiency of up to 150 lm/W
- Premium Samsung 2835 SMD LEDs
- 180° beam angle for broad, uniform illumination
- Color temperature options from 2700K to 6500K
- CRI >80 for consistent color rendering
- E26 & E39 base options
- Power factor >0.95
- Designed for effective heat management
- Compact retrofit design
- Up to 50,000-hour lifespan
- Mercury-free
Models & Performance
| Wattage | LED Quantity | Lumens | Efficiency | Traditional Replacement |
|---|---|---|---|---|
| 20W | 96 LEDs | 3,000 lm | 150 lm/W | 100W Traditional Lamp |
| 40W | 192 LEDs | 6,000 lm | 150 lm/W | 150W Traditional Lamp |
| 60W | 294 LEDs | 9,000 lm | 150 lm/W | 200W Traditional Lamp |
Color Temperature Options
| Color Temperature Range | Available Light Appearance |
|---|---|
| 2700K–6500K | Warm White to Bright White |
Specifications
| Product Type | LED Retrofit Lamp |
|---|---|
| Series | RetroFit 180 CL Series |
| Power Options | 20W / 40W / 60W |
| Light Output | 3,000 / 6,000 / 9,000 lm |
| Efficiency | Up to 150 lm/W |
| LED Source | Samsung 2835 SMD LEDs |
| LED Quantity | 96 / 192 / 294 LEDs |
| Color Temperature | 2700K–6500K |
| CRI | >80 |
| Beam Angle | 180° |
| Base Options | E26 / E39 |
| Power Factor | >0.95 |
| Height Range | 5.2"–12" (131–305 mm), Depending on Wattage |
| Rated Lifespan | 50,000 Hours |
| Environmental | Mercury-Free |
Applications
- Street & Area Lighting
- Parking Garages & Structures
- Industrial Facilities
- Warehouses
- Canopy Lighting
- Outdoor Fixtures
- Large Commercial Spaces
- Legacy Fixture Retrofits
Why Choose the RetroFit 180 CL LED Lamp Series?
The RetroFit 180 CL LED Lamp Series provides three high-output configurations ranging from 3,000 to 9,000 lumens with efficiency up to 150 lm/W. Its broad 180° beam angle distributes light across a wide area, while E26 and E39 base options provide flexibility when upgrading compatible existing fixtures.
With premium Samsung 2835 SMD LEDs, CRI >80, a power factor greater than 0.95, and a rated lifespan of up to 50,000 hours, the RetroFit 180 CL Series provides an efficient replacement for traditional lamps in commercial, industrial, parking, canopy, street, and area lighting applications.
