24W Recessed Multi-Head Downlight Serie
24W Recessed Multi-Head Downlight Serie
Couldn't load pickup availability

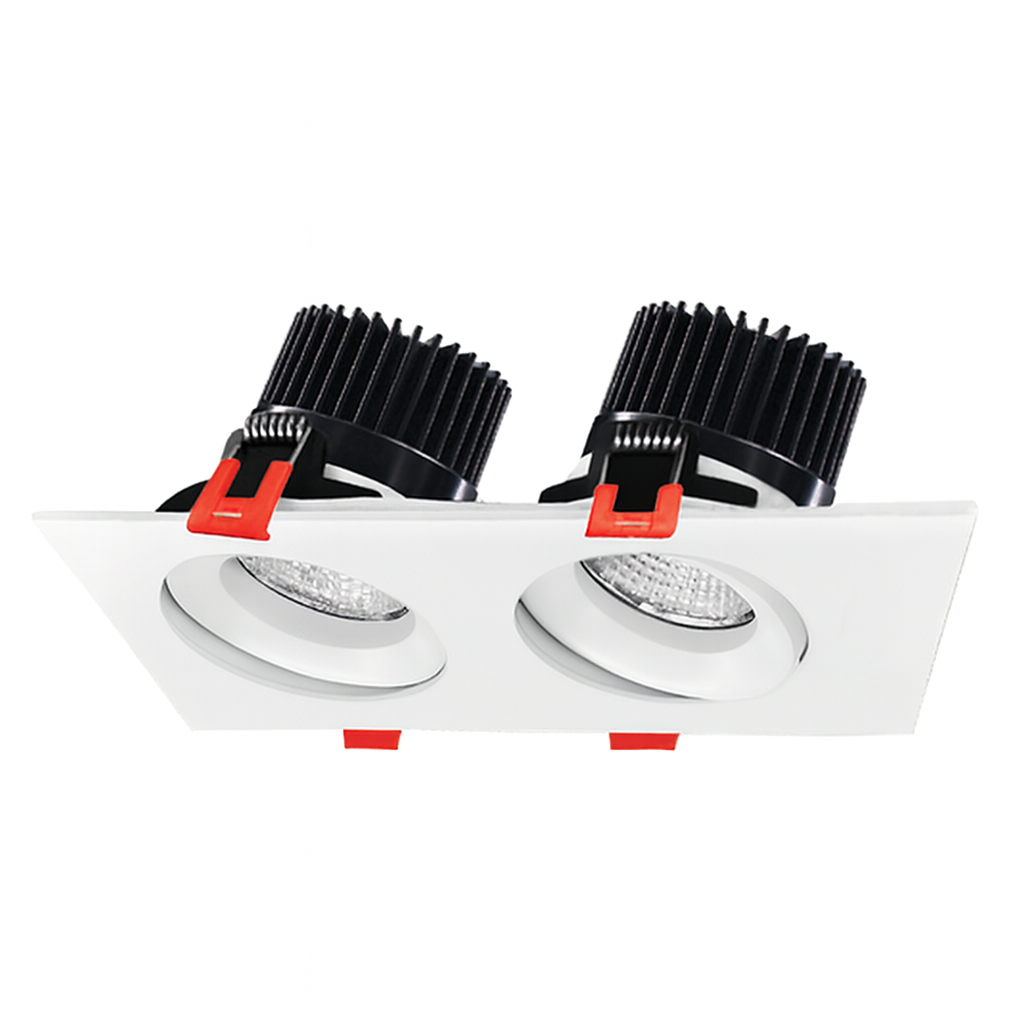

The 24W Recessed Multi-Head Downlight Series – 2-Head delivers 1,400 lumens of efficient illumination through two independently adjustable gimbals. Designed for applications requiring flexible directional lighting, the dual-head configuration allows multiple areas, displays, or architectural features to be illuminated from a single recessed fixture.
Featuring 5 selectable color temperatures from 2700K to 5000K, each head provides a 40° beam angle with 360° rotation and 15° tilt for precise aiming. The fixture is ideal for retail displays, galleries, showrooms, and multi-zone accent lighting applications.
Features
- 24W total power consumption
- Produces 1,400 lumens
- Dual independently adjustable gimbal heads
- 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- 40° beam angle
- 360° rotation per head
- 15° tilt per head
- CRI 80
- Recessed multi-head design
- IC rated
- Wet-location rated
- ETL Listed
- Energy Star Certified
- Rated for approximately 50,000 hours
Selectable Color Temperature
| Color Temperature | Description |
|---|---|
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Neutral White |
| 4000K | Natural White |
| 5000K | Daylight |
Adjustability
| Adjustment | Range |
|---|---|
| Number of Heads | 2 |
| Rotation | 360° Per Head |
| Tilt | 15° Per Head |
| Beam Angle | 40° Per Head |
Specifications
| Product Type | Adjustable Recessed Multi-Head LED Downlight |
|---|---|
| Series | Recessed Multi-Head Downlight Series |
| Configuration | 2-Head |
| Power | 24W |
| Light Output | 1,400 lm |
| Color Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 80 |
| Beam Angle | 40° |
| Rotation | 360° Per Head |
| Tilt | 15° Per Head |
| Mounting | Recessed |
| IC Rating | IC Rated |
| Location Rating | Wet Location |
| Rated Lifespan | Approximately 50,000 Hours |
| Certifications | ETL Listed / Energy Star Certified |
Applications
- Retail Displays
- Galleries & Museums
- Showrooms
- Multi-Zone Accent Lighting
- Product & Feature Displays
- Hospitality Interiors
- Commercial Interiors
- Architectural Accent Lighting
Why Choose the Recessed Multi-Head Downlight Series?
The 24W Recessed Multi-Head Downlight Series – 2-Head delivers 1,400 lumens through two independently adjustable gimbals, allowing multiple areas or features to be illuminated from a single recessed fixture. Each head provides a 40° beam angle, 360° rotation, and 15° tilt for flexible directional control.
With five selectable color temperatures, IC-rated construction, wet-location suitability, ETL listing, Energy Star certification, and an approximately 50,000-hour rated lifespan, the 2-Head configuration provides a versatile solution for retail displays, galleries, showrooms, and multi-zone architectural lighting.
