Diamond Brite LEDs
12W Recessed Multi-Head Downlight Series
12W Recessed Multi-Head Downlight Series
Couldn't load pickup availability

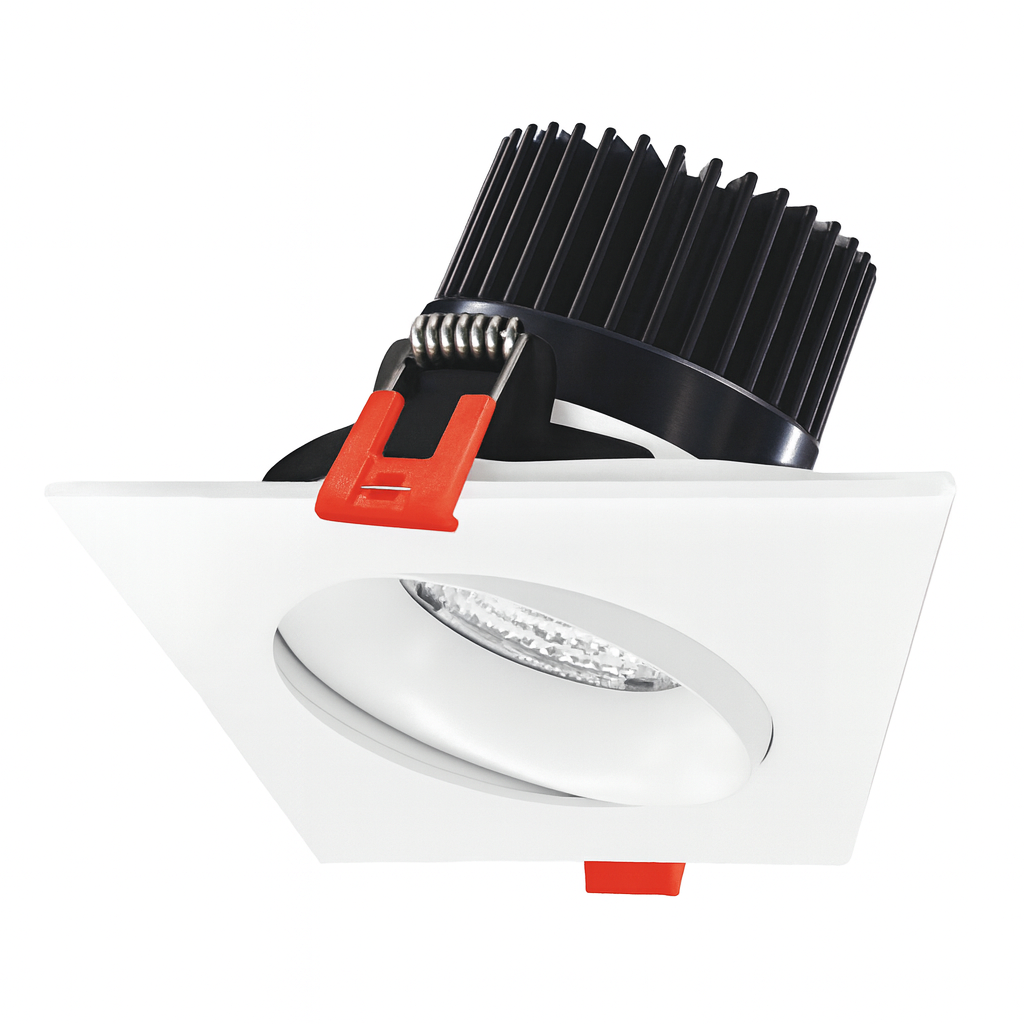

The 12W Recessed Multi-Head Downlight Series – 1-Head delivers 800 lumens of efficient, adjustable illumination in a compact recessed format. Designed for accent, task, and general lighting applications, its adjustable gimbal provides precise directional control for highlighting specific areas and surfaces.
Featuring 5 selectable color temperatures from 2700K to 5000K, the fixture can be configured to complement a variety of interior environments. A 40° beam angle, 360° rotation, and 15° tilt provide additional flexibility for kitchens, offices, retail displays, and architectural accent lighting.
Features
- 12W power consumption
- Produces 800 lumens
- 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- 40° beam angle
- 360° rotation for directional adjustment
- 15° tilt for precise aiming
- Adjustable gimbal design
- CRI 80
- IC rated
- Wet-location rated
- ETL Listed
- Energy Star Certified
- Rated for approximately 50,000 hours
Selectable Color Temperature
| Color Temperature | Description |
|---|---|
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Neutral White |
| 4000K | Natural White |
| 5000K | Daylight |
Adjustability
| Adjustment | Range |
|---|---|
| Rotation | 360° |
| Tilt | 15° |
| Beam Angle | 40° |
Specifications
| Product Type | Adjustable Recessed LED Downlight |
|---|---|
| Series | Recessed Multi-Head Downlight Series |
| Configuration | 1-Head |
| Power | 12W |
| Light Output | 800 lm |
| Color Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 80 |
| Beam Angle | 40° |
| Rotation | 360° |
| Tilt | 15° |
| Mounting | Recessed |
| IC Rating | IC Rated |
| Location Rating | Wet Location |
| Rated Lifespan | Approximately 50,000 Hours |
| Certifications | ETL Listed / Energy Star Certified |
Applications
- Architectural Accent Lighting
- Task Lighting
- Kitchens
- Office Spaces
- Retail Displays
- Showcases & Feature Displays
- Residential Interiors
- Commercial Interiors
Why Choose the Recessed Multi-Head Downlight Series?
The 12W Recessed Multi-Head Downlight Series – 1-Head delivers 800 lumens through an adjustable gimbal designed for precise directional lighting. Its 360° rotation, 15° tilt, and 40° beam angle provide flexible aiming for accent, task, display, and general lighting applications.
With five selectable color temperatures, IC-rated construction, wet-location suitability, ETL listing, Energy Star certification, and an approximately 50,000-hour rated lifespan, the 1-Head configuration provides a versatile recessed lighting solution for kitchens, offices, retail displays, and architectural interiors.
