5.5W/FT Linear SlimLine 600 Series
5.5W/FT Linear SlimLine 600 Series
Couldn't load pickup availability

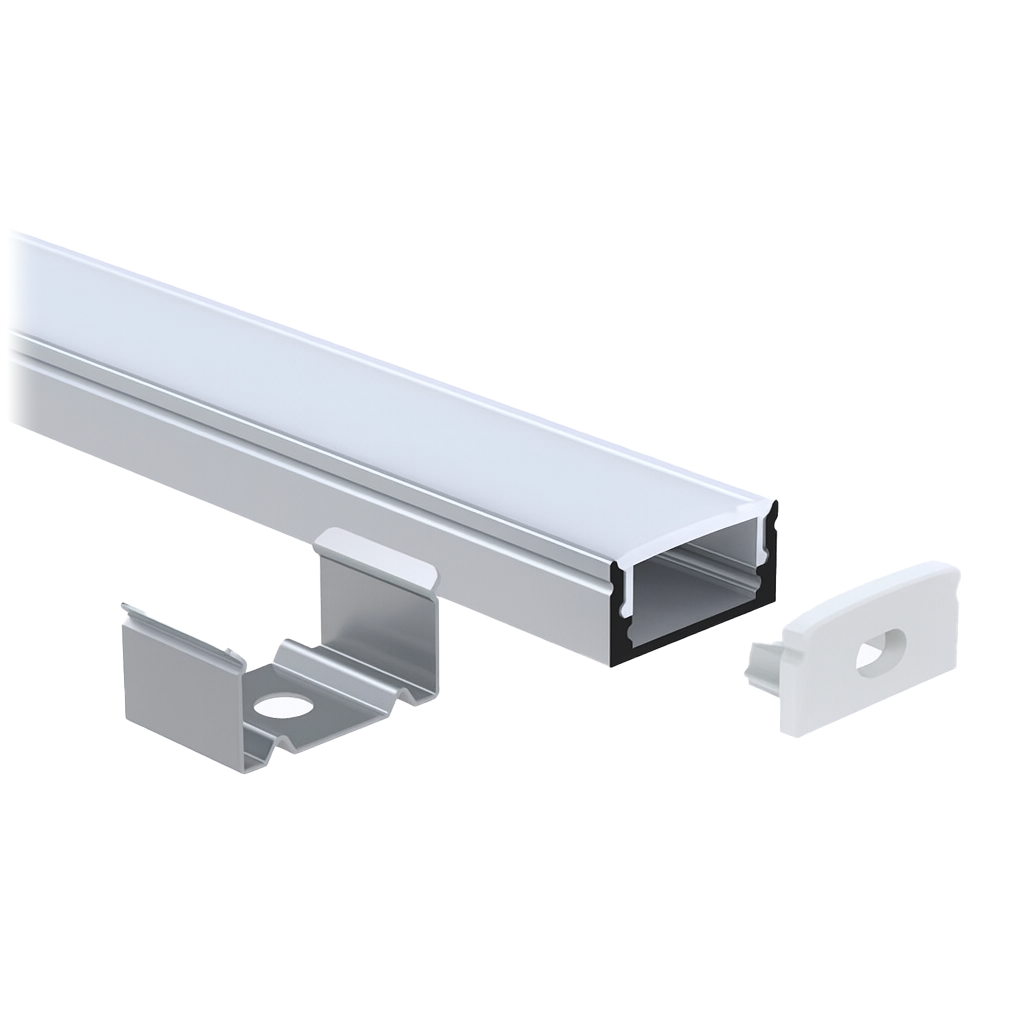

The 5.5W/FT Linear SlimLine 600 Series is a rigid LED luminaire designed for architectural, decorative, display, and outdoor lighting applications. Featuring 120 LEDs per meter, the series provides smooth, continuous illumination in a slim linear format suitable for residential and commercial projects.
Available in lengths starting at 1 ft and cuttable every 1.0 inch, the Linear SlimLine 600 Series provides extensive flexibility for custom installations. Multiple white and accent colors, 12V DC and 24V DC configurations, several optical lenses, and IP ratings from IP20 through IP68 allow the luminaire to be configured for indoor, outdoor, wet-location, and submersible applications.
Features
- 120 LEDs per meter for high-density, even illumination
- 5.5W per foot power consumption
- Available in lengths starting at 1 ft
- Cuttable every 1.0 inch for custom installations
- Multiple white color temperatures from 2200K to 7500K
- Available in Amber, Blue, Green, and Red accent colors
- 12V DC or 24V DC voltage options
- 120° wide beam angle
- Clear, Semi-Clear, and Frosted lens options
- IP20, IP50, IP66, and IP68 configurations available
- Suitable for indoor, outdoor, wet-location, and submersible applications depending on selected IP rating
- 5 ft DC cable leads included
- Conforms to UL Standard 1598
White Color Temperature Options
| Color Temperature | Light Appearance |
|---|---|
| 2200K | Extra Warm White |
| 2700K | Warm White |
| 3000K | Soft White |
| 3700K | Neutral White |
| 4200K | Cool White |
| 5000K | Bright White |
| 6500K | Daylight White |
| 7500K | Cool Daylight |
Accent Color Options
| Color | Wavelength |
|---|---|
| Amber | 580–590 nm |
| Blue | 465–475 nm |
| Green | 520–530 nm |
| Red | 620–630 nm |
Power by Length
| Length | Power Consumption |
|---|---|
| 1 ft | 5.5W |
| 2 ft | 11W |
| 3 ft | 16.5W |
| 4 ft | 22W |
| 5 ft | 27.5W |
| 6 ft | 33W |
| 7 ft | 38.5W |
| 8 ft | 44W |
IP Rating Options
| IP Rating | Application |
|---|---|
| IP20 | Indoor Use |
| IP50 | Weatherproof Configuration |
| IP66 | Outdoor-Rated Configuration |
| IP68 | Wet-Location / Submersible Configuration |
Optics Options
| Lens | Option |
|---|---|
| Clear | Available |
| Semi-Clear | Available |
| Frosted | Available |
Specifications
| Product Type | Rigid Linear LED Luminaire |
|---|---|
| Series | Linear SlimLine 600 Series |
| LED Density | 120 LEDs per Meter |
| Power Consumption | 5.5W per Foot |
| Minimum Order Length | 1 ft |
| Cut Interval | Every 1.0" |
| White CCT Options | 2200K / 2700K / 3000K / 3700K / 4200K / 5000K / 6500K / 7500K |
| Accent Colors | Amber / Blue / Green / Red |
| Voltage Options | 12V DC / 24V DC |
| Beam Angle | 120° |
| Optics | Clear / Semi-Clear / Frosted |
| IP Rating Options | IP20 / IP50 / IP66 / IP68 |
| Cable Leads | 5 ft DC Cable Leads Included |
| Compliance | Conforms to UL Standard 1598 |
Applications
- Cove Lighting
- Under-Cabinet Lighting
- Retail Showcases
- Display Lighting
- Pathway Lighting
- Architectural Accent Lighting
- Decorative Illumination
- Light Boxes
- Signage Backlighting
- Residential Interiors
- Commercial Interiors
- Outdoor Lighting with IP66 Configuration
- Wet-Location & Submersible Applications with IP68 Configuration
Why Choose the Linear SlimLine 600 Series?
The Linear SlimLine 600 Series combines 120 LEDs per meter, 5.5W per foot power consumption, and a wide 120° beam angle to provide smooth linear illumination for architectural, display, decorative, and specialty lighting applications. Multiple white CCTs and dedicated accent colors provide extensive flexibility for residential and commercial lighting designs.
With custom lengths starting at 1 ft, 1.0-inch cut intervals, 12V DC and 24V DC configurations, multiple optical lenses, included 5 ft DC cable leads, and IP options ranging from IP20 through IP68, the Linear SlimLine 600 Series provides an adaptable solution for indoor, outdoor, wet-location, and submersible lighting projects.
