Diamond Brite LEDs
27W–60W QuadLamp C Retrofit Lamp Series
27W–60W QuadLamp C Retrofit Lamp Series
Couldn't load pickup availability

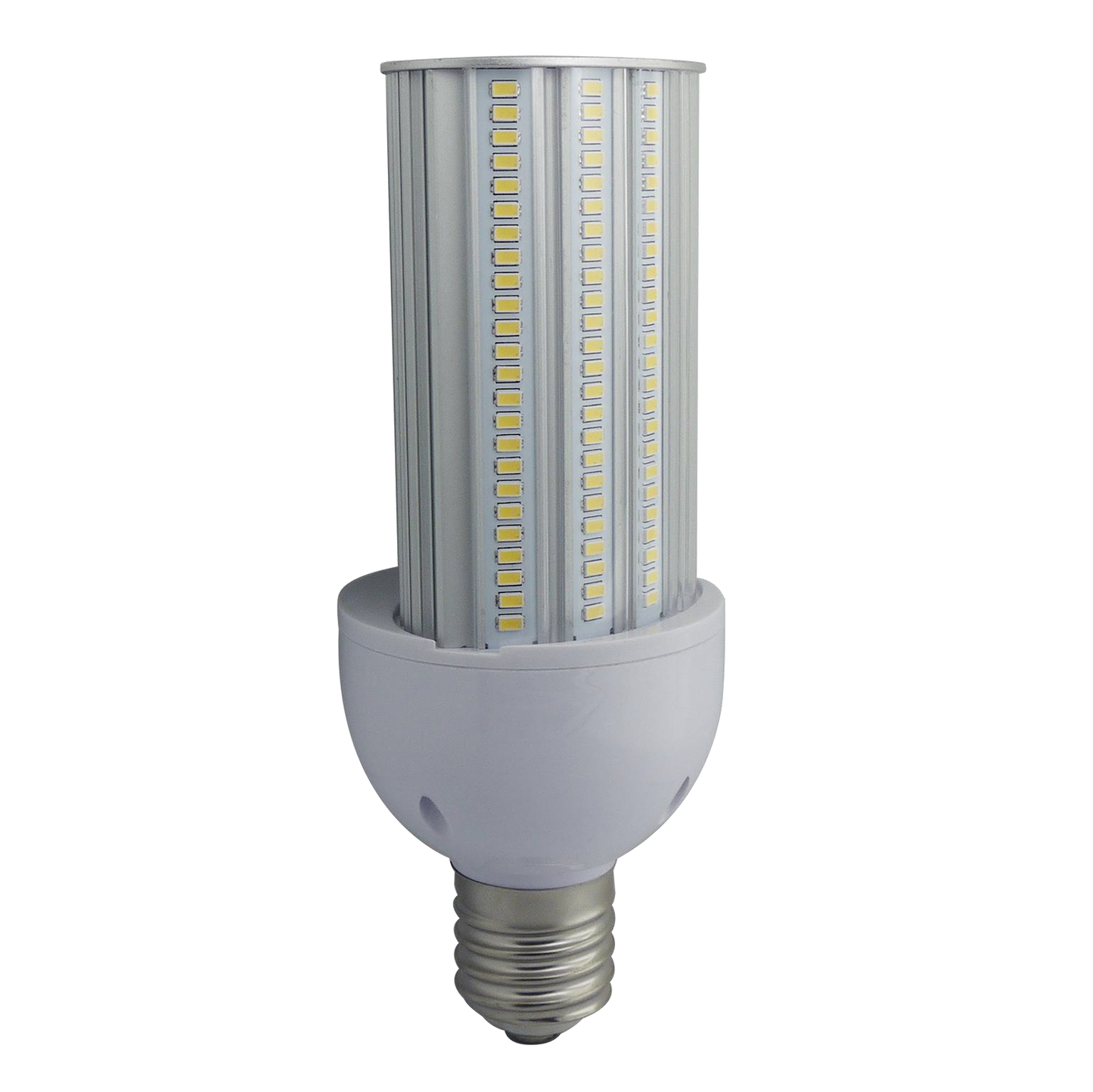

The QuadLamp C LED Retrofit Lamp Series is a high-output retrofit solution designed to replace traditional CFL, metal halide, HPS, and incandescent lamps in commercial and industrial fixtures. Available in 27W, 36W, 45W, 54W, and 60W configurations, the series delivers up to 7,000 lumens with efficiency up to 120 lm/W.
Built with premium Samsung 2835 SMD LEDs and a rugged 6063 aluminum thermal structure, the QuadLamp C Series is engineered for efficient heat management and long-term operation. Multiple base options, a wide 85–305V AC input range, and clear or frosted lampshade options provide flexibility for a variety of retrofit applications.
Features
- Available in 27W, 36W, 45W, 54W & 60W configurations
- Produces up to 7,000 lumens
- Efficiency up to 120 lm/W
- Premium Samsung 2835 SMD LEDs
- LM80-listed LED chips
- Rubycon capacitors for stable operation
- Dow Corning thermal silicone & RTV-T for thermal management
- 6063 aluminum thermal structure with surface treatment
- 180° beam angle for broad illumination
- Clear or frosted lampshade options
- Amber 585nm plus multiple white color temperature options
- E26, E27, E39 & E40 base options
- Wide-range 85–305V AC operation
- IP64 rated
- Anti-UV construction
- Rated for up to 50,000 hours
- UL/cUL, CE & RoHS approved
Wattage & Replacement Options
| LED Wattage | CFL Replacement | Metal Halide Replacement | Incandescent Replacement |
|---|---|---|---|
| 27W | 55W CFL | 90W MHL | 230W Incandescent |
| 36W | 75W CFL | 120W MHL | 300W Incandescent |
| 45W | 90W CFL | 150W MHL | 380W Incandescent |
| 54W | 110W CFL | 180W MHL | 450W Incandescent |
| 60W | 130W CFL | 200W MHL | 550W Incandescent |
Color Temperature Options
| Color Option | Color Temperature / Wavelength |
|---|---|
| Amber | 585 nm |
| Warm White | 2700K |
| Warm White | 3000K |
| Neutral White | 4000K |
| Daylight | 5000K |
| Daylight | 5700K |
| Bright White | 6500K |
Specifications
| Product Type | LED Retrofit Lamp |
|---|---|
| Series | QuadLamp C Series |
| Power Options | 27W / 36W / 45W / 54W / 60W |
| Light Output | Up to 7,000 lm |
| Efficiency | Up to 120 lm/W |
| LED Source | Samsung 2835 SMD LEDs |
| LED Qualification | LM80 Listed |
| Color Options | Amber 585 nm / 2700K / 3000K / 4000K / 5000K / 5700K / 6500K |
| Beam Angle | 180° |
| Lampshade Options | Clear / Frosted |
| Base Options | E26 / E27 / E39 / E40 |
| Input Voltage | 85–305V AC |
| Housing | 6063 Aluminum |
| Thermal Management | Dow Corning Thermal Silicone & RTV-T |
| Capacitors | Rubycon |
| IP Rating | IP64 |
| Rated Lifespan | 50,000 Hours |
| Certifications | UL/cUL (E474634) / CE / RoHS |
Applications
- Street & Roadway Lighting
- Industrial Facilities
- Warehouses
- Parking Structures
- Canopy Lighting
- Large Commercial Spaces
- Legacy Fixture Retrofits
Why Choose the QuadLamp C Series?
The QuadLamp C Series provides a flexible LED retrofit platform with wattages ranging from 27W to 60W and output up to 7,000 lumens. Multiple E26, E27, E39, and E40 base options make the series adaptable to a variety of existing fixtures, while its broad 180° beam provides wide light distribution.
With Samsung 2835 SMD LEDs, a rugged 6063 aluminum thermal structure, premium thermal-management components, IP64 protection, and a rated lifespan of up to 50,000 hours, the QuadLamp C Series provides an efficient and durable upgrade for commercial, industrial, parking, canopy, and roadway lighting applications.
