Diamond Brite LEDs

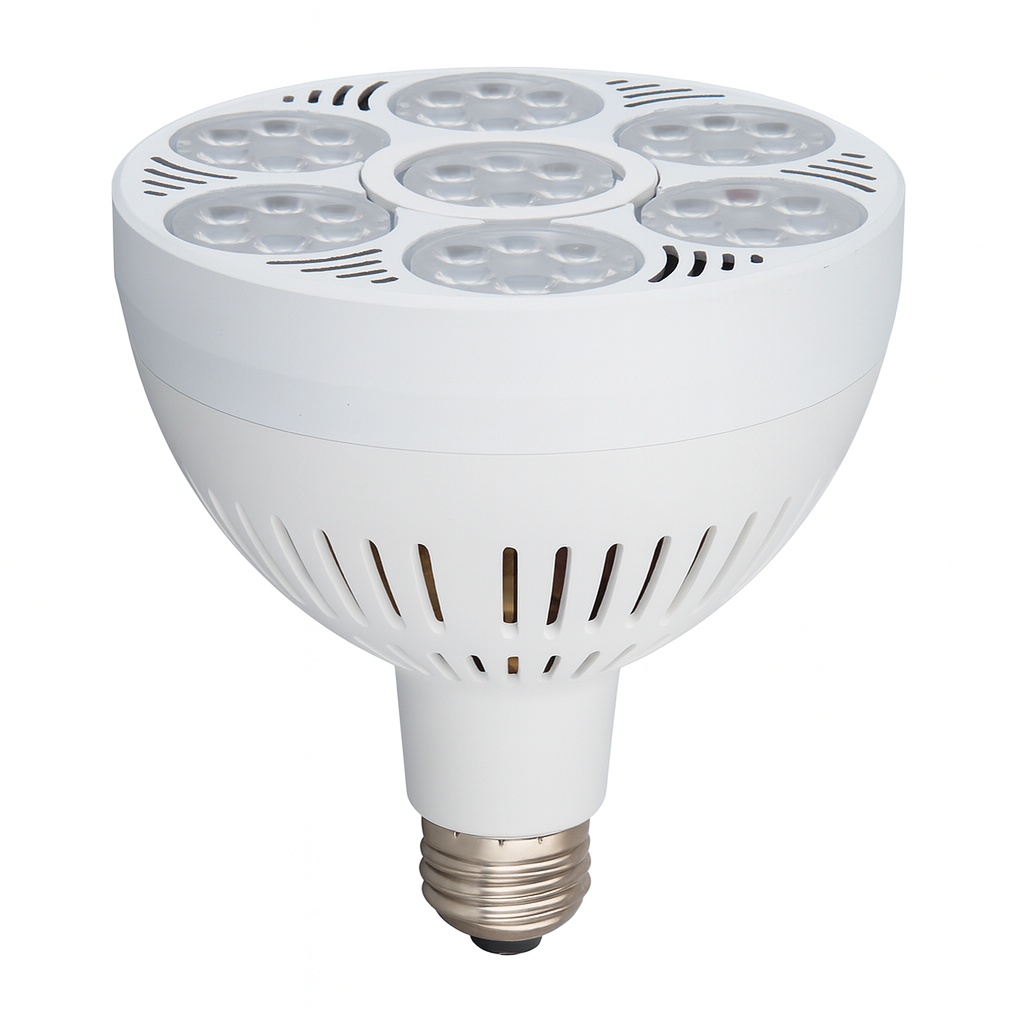

55W PAR38 Quattro XL Spot Lamp Series
55W PAR38 Quattro XL Spot Lamp Series
Couldn't load pickup availability
The 55W PAR38 Quattro XL LED Spot Lamp Series is a high-output LED spotlight designed for demanding residential, retail, showroom, gallery, and commercial lighting applications. Powered by 42 CREE high-power LEDs, it produces up to 5,400 lumens while consuming only 55 watts, providing an efficient replacement for traditional 250W halogen lamps.
Featuring a 45° beam angle, durable aluminum alloy construction, and efficient heat dissipation, the PAR38 Quattro XL delivers powerful directional illumination for larger spaces and applications requiring increased light output. Dimmable and non-dimmable configurations are available for additional project flexibility.
Features
- 55W LED replaces traditional 250W halogen lamps
- Produces up to 5,400 lumens
- 42 premium CREE high-power LEDs
- 45° beam angle for powerful, focused illumination
- Available in 3000K, 4000K, 5000K, 8000K & 10000K
- CRI >80 for consistent color rendering
- Durable aluminum alloy construction
- Designed for efficient heat dissipation
- E27 medium screw base
- 85–240V AC operation
- Available in dimmable or non-dimmable configurations
- Power factor >0.90
- Up to 50,000-hour lifespan
- Mercury-free
- RoHS compliant
Color Temperature & Light Output
| Color Temperature | Description | Lumens |
|---|---|---|
| 3000K | Warm White | 5,200 lm |
| 4000K | Natural White | 5,200 lm |
| 5000K | Daylight | 5,250 lm |
| 8000K | Bright White | 5,400 lm |
| 10000K | Blue Sky | 5,400 lm |
Specifications
| Product Type | PAR38 LED Spot Lamp |
|---|---|
| Series | Quattro XL Series |
| Power | 55W |
| Traditional Equivalent | 250W Halogen |
| Light Output | Up to 5,400 lm |
| LED Source | 42 CREE High-Power LEDs |
| Color Temperatures | 3000K / 4000K / 5000K / 8000K / 10000K |
| CRI | >80 |
| Beam Angle | 45° |
| Base Type | E27 Medium Screw Base |
| Input Voltage | 85–240V AC |
| Dimming | Dimmable or Non-Dimmable Options Available |
| Power Factor | >0.90 |
| Housing | Aluminum Alloy |
| Dimensions | 4.7" (120 mm) Diameter × 4.9" (125 mm) Height |
| Operating Temperature | -20°C to +50°C |
| Rated Lifespan | 50,000 Hours |
| Environmental | Mercury-Free |
| Compliance | RoHS |
Applications
- Retail Stores & Showrooms
- Jewelry & Product Displays
- Art Galleries & Museums
- Track Lighting
- Recessed Lighting
- Large Residential Areas
- Commercial Spaces
- Hospitality Environments
- Architectural Accent Lighting
Why Choose the PAR38 Quattro XL LED Spot Lamp Series?
The 55W PAR38 Quattro XL LED Spot Lamp Series produces up to 5,400 lumens of powerful illumination while consuming only 55 watts. Its 45° beam angle provides strong directional coverage for larger spaces, merchandise displays, galleries, showrooms, architectural features, and other applications requiring high light output.
With 42 CREE high-power LEDs, durable aluminum alloy construction, five color temperature options, optional dimming configurations, and a rated lifespan of up to 50,000 hours, the PAR38 Quattro XL provides a high-output and efficient replacement for traditional 250W halogen lamps.
