Diamond Brite LEDs

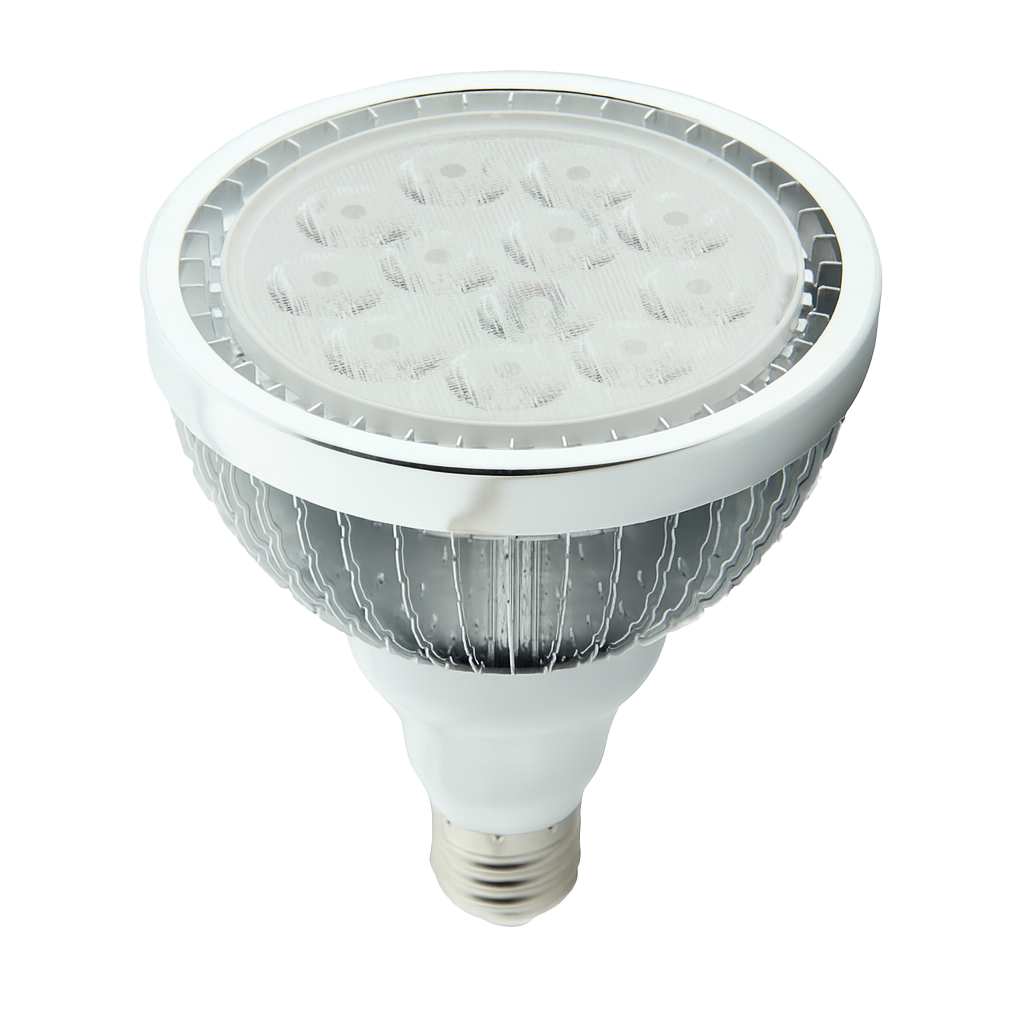

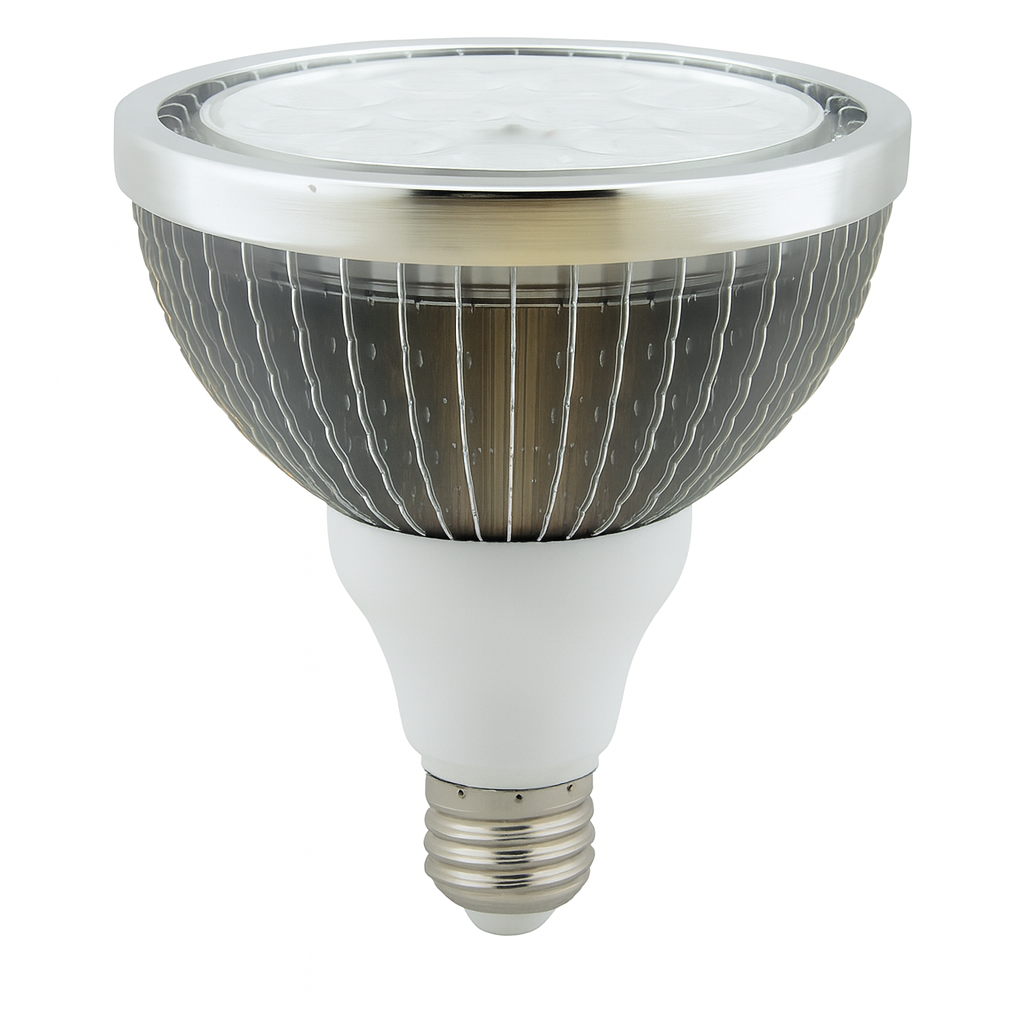

18W PAR38 Nexus Spot Lamp Series
18W PAR38 Nexus Spot Lamp Series
Couldn't load pickup availability
The 18W PAR38 Nexus LED Spot Lamp Series delivers powerful, energy-efficient illumination with advanced anti-glare optics for residential, retail, hospitality, and commercial applications. Powered by 18 BridgeLux high-power LEDs, it produces 1,600 lumens while consuming only 18 watts, providing an efficient replacement for traditional 100W incandescent, halogen, and HID lamps.
Featuring a patented LumiBrite HD optical lens and a focused 45° beam angle, the PAR38 Nexus provides controlled, glare-reduced illumination for displays, merchandise, artwork, and architectural features. Its aircraft-grade aluminum fin heat-dissipation system helps maintain consistent performance and long-term reliability.
Features
- 18W LED replaces traditional 100W incandescent, halogen & HID lamps
- Produces 1,600 lumens

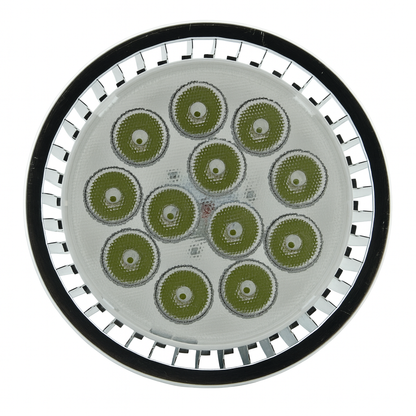

- 18 premium BridgeLux high-power LEDs
- 45° beam angle for focused illumination
- Patented LumiBrite HD anti-glare optical lens
- Available in 3000K, 4000K, 5000K & 8000K
- CRI >90 for accurate color rendering
- Aircraft-grade aluminum fin heat-dissipation system
- Aluminum alloy + PVC construction
- Brushed aluminum finish
- E26/E27 medium screw-in base
- 85–265V AC, 50/60Hz operation
- Power factor >0.90
- Up to 60,000-hour lifespan
- Non-dimmable
- CE, RoHS & FCC certified
- 2-year warranty
Color Temperature Options
| Color Temperature | Description | Lumens |
|---|---|---|
| 3000K | Warm White | 1,600 lm |
| 4000K | Soft White | 1,600 lm |
| 5000K | Pure White | 1,600 lm |
| 8000K | Ultra Bright | 1,600 lm |
Specifications
| Product Type | PAR38 LED Spot Lamp |
|---|---|
| Series | Nexus Series |
| Power | 18W |
| Traditional Equivalent | 100W Incandescent / Halogen / HID |
| Light Output | 1,600 lm |
| LED Source | 18 BridgeLux High-Power LEDs |
| Color Temperatures | 3000K / 4000K / 5000K / 8000K |
| CRI | >90 |
| Beam Angle | 45° |
| Optics | LumiBrite HD Anti-Glare Optical Lens |
| Base Type | E26 / E27 Medium Screw Base |
| Input Voltage | 85–265V AC, 50/60Hz |
| Dimming | Non-Dimmable |
| Power Factor | >0.90 |
| Housing | Aluminum Alloy + PVC |
| Finish | Brushed Aluminum |
| Heat Dissipation | Aircraft-Grade Aluminum Fin System |
| Dimensions | 4.7" (120 mm) Diameter × 4.9" (125 mm) Height |
| Weight | 0.6 lb |
| Operating Temperature | -20°C to +40°C |
| Rated Lifespan | 60,000 Hours |
| Certifications | CE / RoHS / FCC |
| Warranty | 2 Years |
Applications
- Jewelry Stores & Showcases
- Luxury Boutiques
- Trade Shows & Exhibitions
- Art Galleries & Museums
- Optical Showrooms
- Clothing Stores & Beauty Salons
- Theaters & Hotels
- Residential Accent Lighting
- Hospitality Environments
- Yachts & High-End Facilities
- Government Facilities
Why Choose the PAR38 Nexus LED Spot Lamp Series?
The 18W PAR38 Nexus LED Spot Lamp Series combines 1,600 lumens of powerful illumination with a patented LumiBrite HD anti-glare optical lens and CRI >90 for accurate color rendering. Its focused 45° beam makes it particularly well suited for merchandise, jewelry, artwork, displays, and architectural accent lighting.
With 18 BridgeLux high-power LEDs, an aircraft-grade aluminum fin heat-dissipation system, and a rated lifespan of up to 60,000 hours, the PAR38 Nexus provides an efficient and reliable replacement for traditional 100W incandescent, halogen, and HID lamps.
