Diamond Brite LEDs

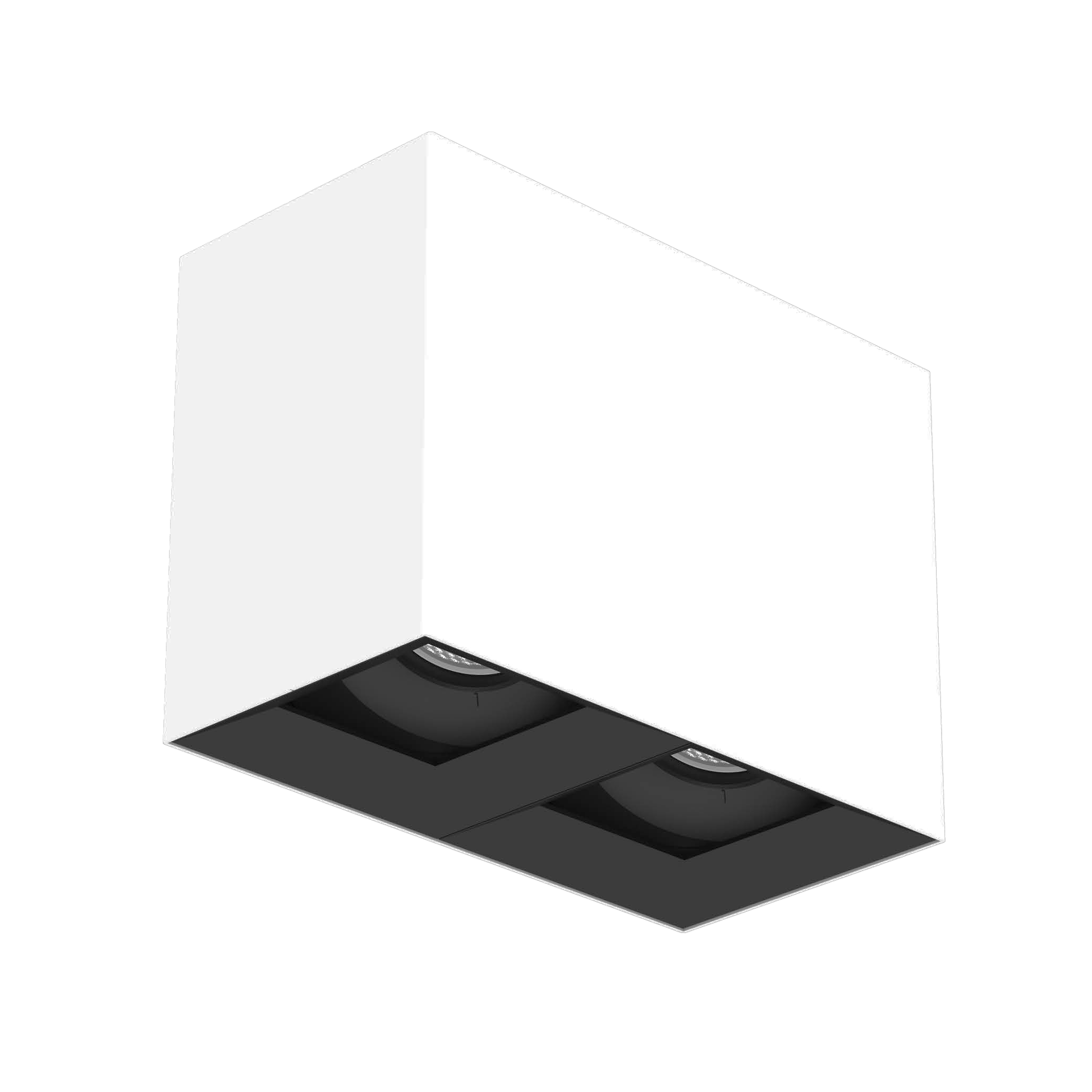

22W ORACLE Surface Downlight Series
22W ORACLE Surface Downlight Series
Couldn't load pickup availability
The 22W ORACLE LED Surface Downlight Series delivers 1,920 lumens of high-quality illumination in a clean, architectural surface-mounted design. Powered by a premium CREE CXB1830 LED, the ORACLE provides flexible beam control and multiple color temperature options for residential, retail, hospitality, office, and gallery applications.
With interchangeable reflectors, three beam angle options, and multiple trim finishes, the ORACLE Surface Downlight can be configured to complement a variety of interior environments. TRIAC and 0–10V dimming options provide additional lighting control for compatible installations.
Features
- 22W power consumption
- Produces 1,920 lumens
- Premium CREE CXB1830 LED
- Three beam angle options: 15°, 30° & 50°
- Six color temperature options from 2700K to 5700K
- 120V TRIAC or 0–10V dimming options
- Interchangeable reflectors for flexible beam configurations
- Die-cast aluminum construction
- White, Black & Mercury trim finishes
- Surface-mounted architectural design
- ETL Listed
- IP40 rated
- Wet-location rated
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Neutral White |
| 4000K | Natural White |
| 5000K | Daylight |
| 5700K | Bright White |
Beam Angle Options
| Beam Angle | Beam Type | Recommended Use |
|---|---|---|
| 15° | Narrow | Focused accent & display lighting |
| 30° | Medium | General accent & architectural lighting |
| 50° | Wide | Broader ambient & area illumination |
Trim Finish Options
- White
- Black
- Mercury
Specifications
| Product Type | LED Surface Downlight |
|---|---|
| Series | ORACLE Surface Downlight |
| Power | 22W |
| Light Output | 1,920 lm |
| LED Source | CREE CXB1830 LED |
| Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K / 5700K |
| Beam Angle Options | 15° / 30° / 50° |
| Dimming | 120V TRIAC / 0–10V |
| Housing Material | Die-Cast Aluminum |
| Reflectors | Interchangeable |
| Trim Finishes | White / Black / Mercury |
| Mounting | Surface Mount |
| IP Rating | IP40 |
| Location Rating | Wet Location |
| Certification | ETL Listed |
Applications
- Hotels & Hospitality
- Offices
- Retail Stores
- Galleries
- Luxury Residential Interiors
- Architectural Lighting
- Display & Accent Lighting
- Commercial Interiors
Why Choose the ORACLE LED Surface Downlight?
The 22W ORACLE LED Surface Downlight delivers 1,920 lumens using premium CREE CXB1830 LED technology. Three interchangeable beam angle options allow the fixture to transition from focused accent illumination to broader general lighting, while six available color temperatures provide flexibility for different interior environments.
With die-cast aluminum construction, interchangeable reflectors, multiple trim finishes, and TRIAC or 0–10V dimming options, the ORACLE provides a versatile surface-mounted lighting solution for architectural, hospitality, retail, gallery, office, and luxury residential applications.
