Diamond Brite LEDs
44W ORACLE Surface Downlight Series
44W ORACLE Surface Downlight Series
Couldn't load pickup availability

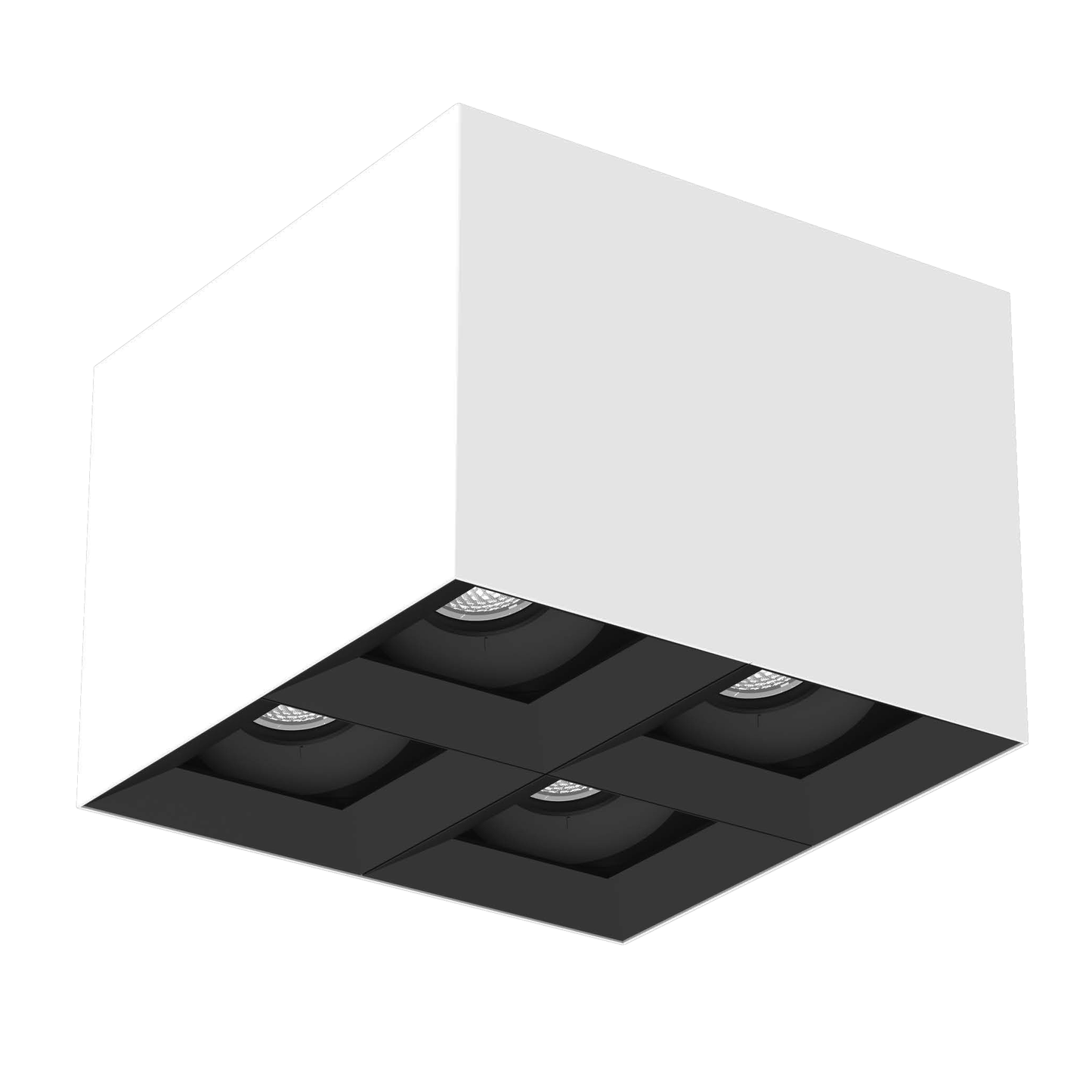

The 44W ORACLE LED Surface Downlight Series delivers 3,840 lumens of high-output illumination in a clean, architectural surface-mounted design. Engineered for larger commercial and architectural spaces, the ORACLE combines powerful light output with flexible beam control, multiple color temperature options, and interchangeable reflectors.
With three beam angle options and multiple trim finishes, the ORACLE Surface Downlight can be configured for focused accent lighting, general illumination, or broader area coverage. TRIAC and 0–10V dimming options provide additional lighting control for compatible installations.
Features
- 44W power consumption
- Produces 3,840 lumens
- Three beam angle options: 15°, 30° & 50°
- Six color temperature options from 2700K to 5700K
- 120V TRIAC or 0–10V dimming options
- Interchangeable reflectors for flexible beam configurations
- Die-cast aluminum construction
- White, Black & Mercury trim finishes
- Surface-mounted architectural design
- ETL Listed
- IP40 rated
- Wet-location rated
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Neutral White |
| 4000K | Natural White |
| 5000K | Daylight |
| 5700K | Bright White |
Beam Angle Options
| Beam Angle | Beam Type | Recommended Use |
|---|---|---|
| 15° | Narrow | Focused accent & display lighting |
| 30° | Medium | General accent & architectural lighting |
| 50° | Wide | Broader ambient & area illumination |
Trim Finish Options
- White
- Black
- Mercury
Specifications
| Product Type | LED Surface Downlight |
|---|---|
| Series | ORACLE Surface Downlight |
| Power | 44W |
| Light Output | 3,840 lm |
| Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K / 5700K |
| Beam Angle Options | 15° / 30° / 50° |
| Dimming | 120V TRIAC / 0–10V |
| Housing Material | Die-Cast Aluminum |
| Reflectors | Interchangeable |
| Trim Finishes | White / Black / Mercury |
| Mounting | Surface Mount |
| IP Rating | IP40 |
| Location Rating | Wet Location |
| Certification | ETL Listed |
Applications
- Auditoriums
- Galleries
- Showrooms
- Large Retail Spaces
- Open-Concept Commercial Spaces
- Hotels & Hospitality
- Architectural Lighting
- Display & Accent Lighting
- Large Commercial Interiors
Why Choose the ORACLE LED Surface Downlight?
The 44W ORACLE LED Surface Downlight delivers 3,840 lumens of high-output illumination for larger architectural and commercial environments. Three interchangeable beam angle options allow the fixture to be configured for precise accent lighting, general illumination, or wider area coverage, while six available color temperatures provide flexibility for different lighting designs.
With die-cast aluminum construction, interchangeable reflectors, White, Black, and Mercury trim finishes, and TRIAC or 0–10V dimming options, the ORACLE provides a versatile surface-mounted lighting solution for auditoriums, galleries, showrooms, large retail environments, and open-concept commercial spaces.
