33W ORACLE Surface Downlight Series
33W ORACLE Surface Downlight Series
Couldn't load pickup availability

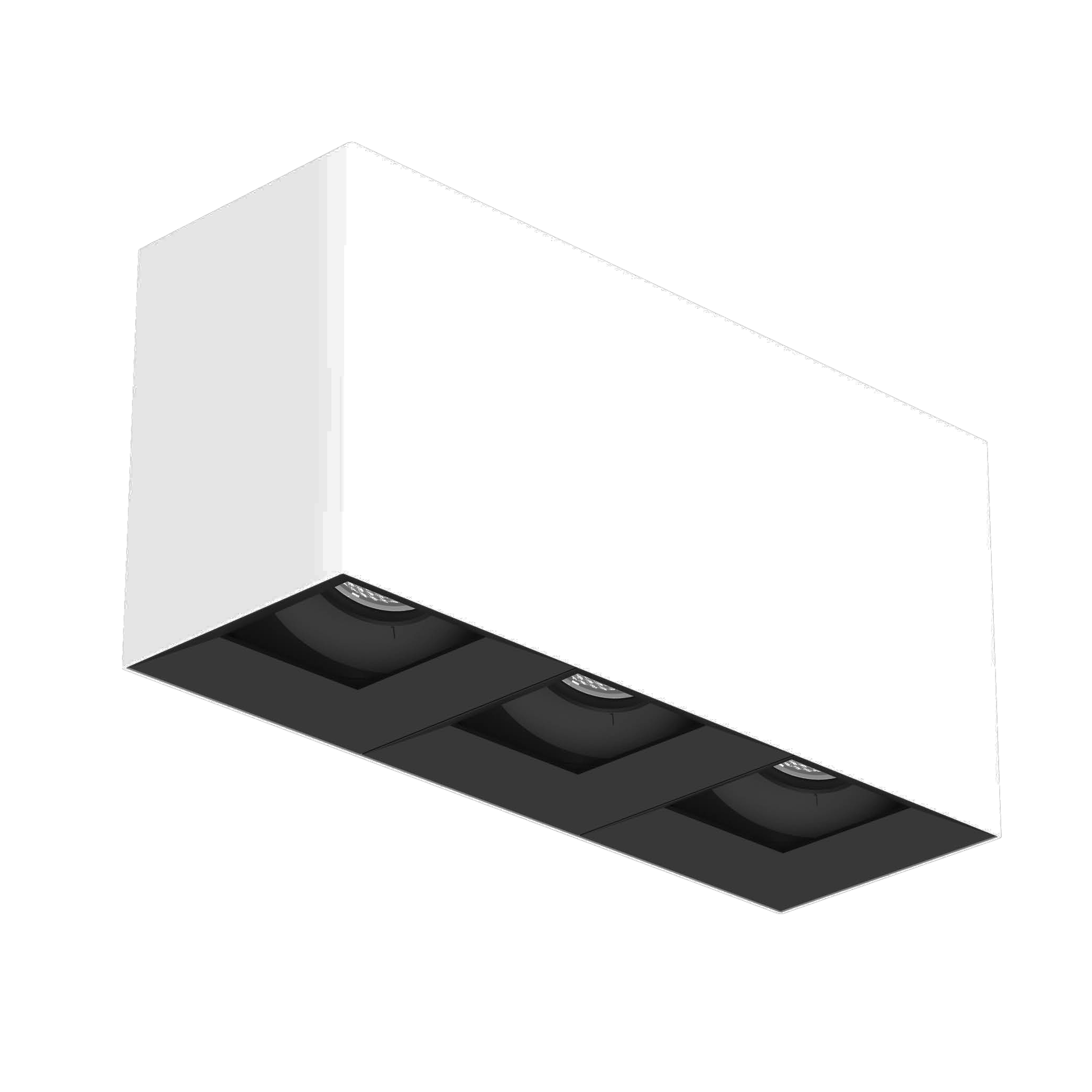

The 33W ORACLE LED Surface Downlight Series delivers 2,880 lumens of high-quality illumination in a clean, architectural surface-mounted design. Designed for commercial, hospitality, retail, gallery, and office environments, the ORACLE combines powerful light output with flexible beam and color temperature options.
Featuring interchangeable reflectors, three beam angle options, and multiple trim finishes, the ORACLE Surface Downlight can be configured for focused accent lighting or broader general illumination. TRIAC and 0–10V dimming options provide additional lighting control for compatible installations.
Features
- 33W power consumption
- Produces 2,880 lumens
- Three beam angle options: 15°, 30° & 50°
- Six color temperature options from 2700K to 5700K
- 120V TRIAC or 0–10V dimming options
- Interchangeable reflectors for flexible beam configurations
- Die-cast aluminum construction
- White, Black & Mercury trim finishes
- Surface-mounted architectural design
- ETL Listed
- IP40 rated
- Wet-location rated
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Neutral White |
| 4000K | Natural White |
| 5000K | Daylight |
| 5700K | Bright White |
Beam Angle Options
| Beam Angle | Beam Type | Recommended Use |
|---|---|---|
| 15° | Narrow | Focused accent & display lighting |
| 30° | Medium | General accent & architectural lighting |
| 50° | Wide | Broader ambient & area illumination |
Trim Finish Options
- White
- Black
- Mercury
Specifications
| Product Type | LED Surface Downlight |
|---|---|
| Series | ORACLE Surface Downlight |
| Power | 33W |
| Light Output | 2,880 lm |
| Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K / 5700K |
| Beam Angle Options | 15° / 30° / 50° |
| Dimming | 120V TRIAC / 0–10V |
| Housing Material | Die-Cast Aluminum |
| Reflectors | Interchangeable |
| Trim Finishes | White / Black / Mercury |
| Mounting | Surface Mount |
| IP Rating | IP40 |
| Location Rating | Wet Location |
| Certification | ETL Listed |
Applications
- Shopping Centers
- Retail Stores
- Galleries
- Office Spaces
- Hotels & Hospitality
- Restaurants & Lounges
- Architectural Lighting
- Commercial Interiors
- Display & Accent Lighting
Why Choose the ORACLE LED Surface Downlight?
The 33W ORACLE LED Surface Downlight delivers 2,880 lumens in a clean surface-mounted architectural form. Three interchangeable beam angle options allow the fixture to be configured for focused accent illumination, general architectural lighting, or broader area coverage, while six available color temperatures provide flexibility for different environments.
With die-cast aluminum construction, interchangeable reflectors, White, Black, and Mercury trim finishes, and TRIAC or 0–10V dimming options, the ORACLE provides a versatile lighting solution for shopping centers, galleries, offices, hospitality spaces, and other commercial interiors.
