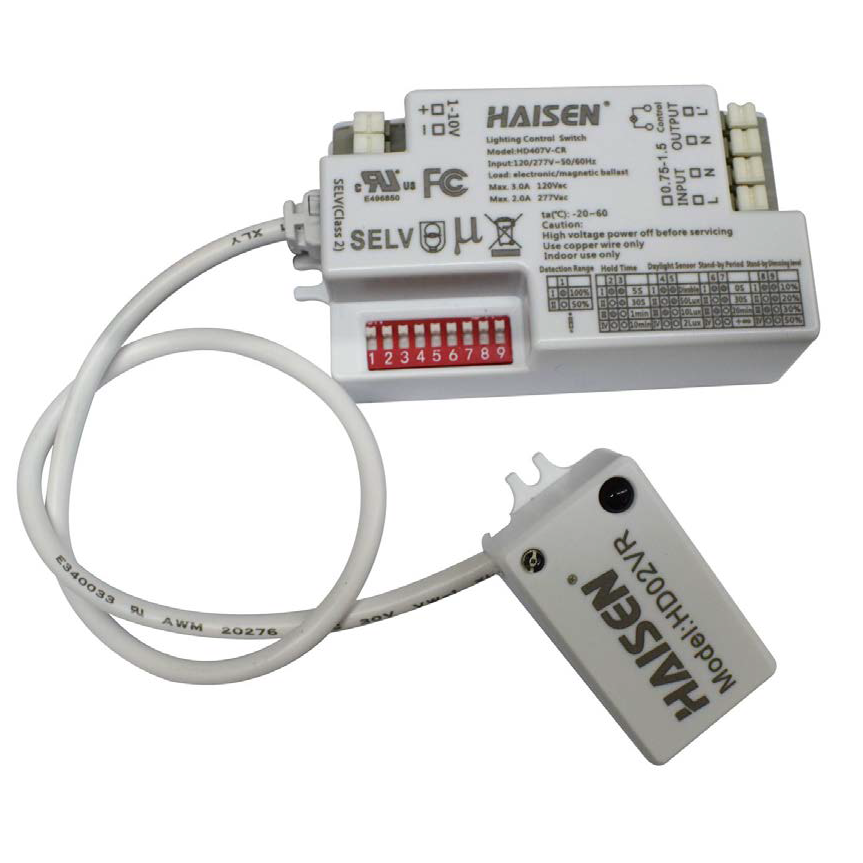

Microwave Motion Sensor – Haisen HD407V-CR Series

The Haisen HD407V-CR Microwave Motion Sensor Series is a high-performance occupancy sensor designed for energy-saving lighting control. With its advanced microwave detection technology, adjustable settings, and remote programmability, it offers precise and reliable motion sensing for commercial, industrial, and residential applications.

Key Features:

Microwave Detection: Operates at 5.8GHz with ultra-low power consumption (<0.3mW).

Wide Coverage:

Ceiling Mounted: up to 6m height, ø14m detection range

Wall Mounted: up to 3m height, 10m detection range

Flexible Settings:

Detection Area: 50% / 100%

Hold Time: 5s / 30s / 1min / 10min

Daylight Threshold: 2 Lux / 10 Lux / 50 Lux / Disable

Standby Period: 0s / 30s / 20min / ∞ (always dimmed)

Standby Dimming: 10% / 20% / 30% / 50%

Remote Control: Supports adjustment via HD02R/HD03R remotes for easy setup.

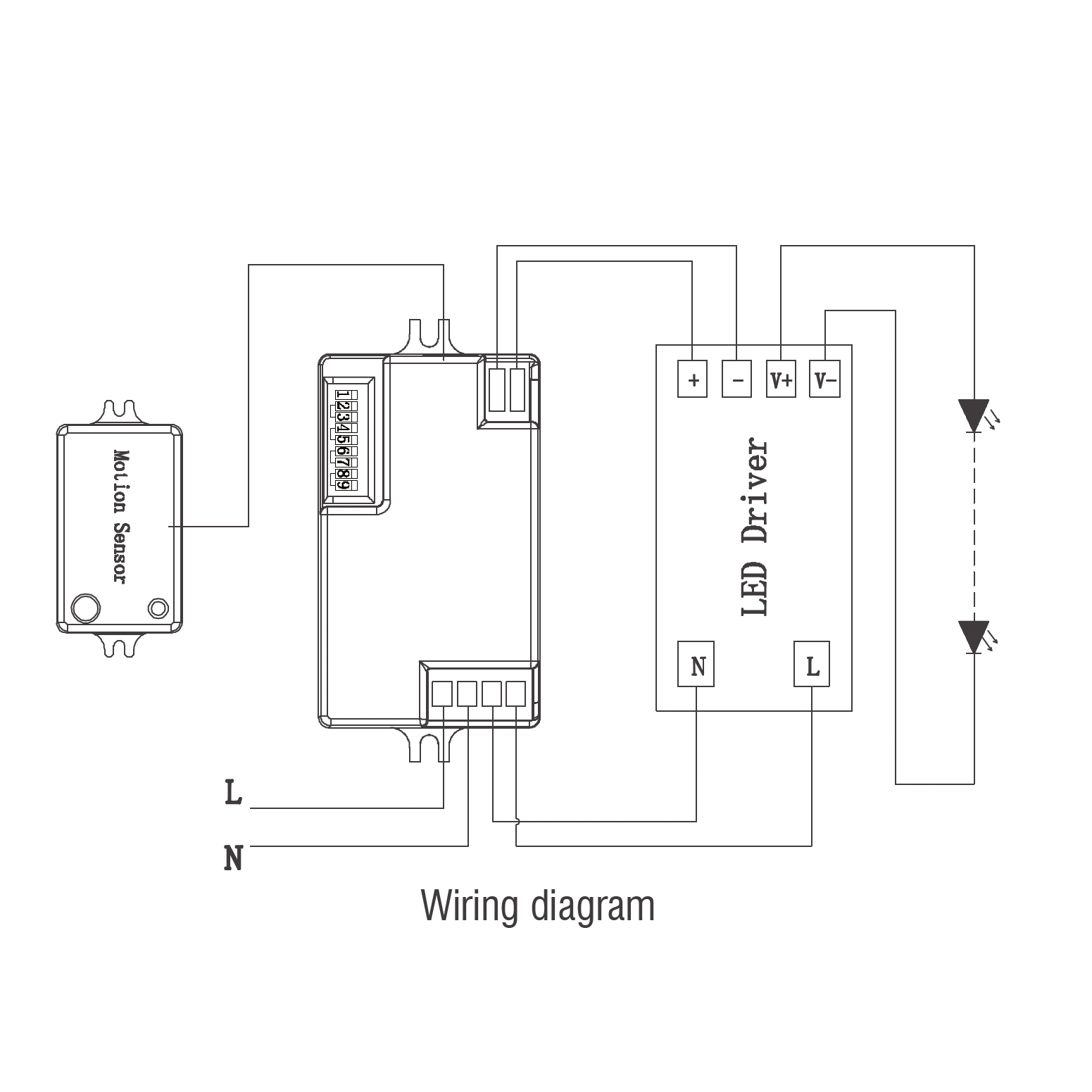

On/Off + Dimming: Integrated 1–10V dimming interface for intelligent lighting control.

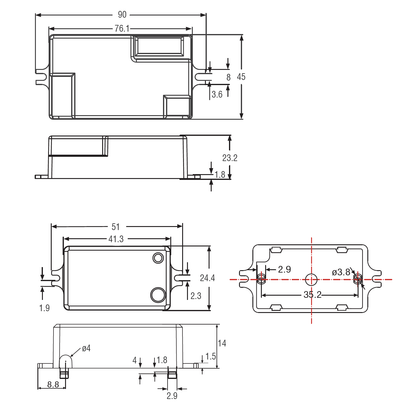

Durable Build: Compact design with detachable type, pluggable 6-pole clamp terminal.

Safe & Reliable:

Operating Voltage: 120–277V AC, 50/60Hz

Switching Capacity: Max. 3.0A @120V / 2.0A @277V

Operating Temp: -20°C to +60°C

IP20 rated for indoor use

Warranty: 5 years

Applications:

Corridor & hallway lighting

Stairwells & parking garages

Offices, warehouses, factories

Residential common areas

The Haisen HD407V-CR Microwave Motion Sensor Series provides precise detection, flexible dimming, and remote programmability, making it a smart choice for energy-efficient lighting control systems.
