Diamond Brite LEDs
Micro Magnetic Suspended X Angle Connector + Flex X Conductive Module Bundle
Micro Magnetic Suspended X Angle Connector + Flex X Conductive Module Bundle
Couldn't load pickup availability

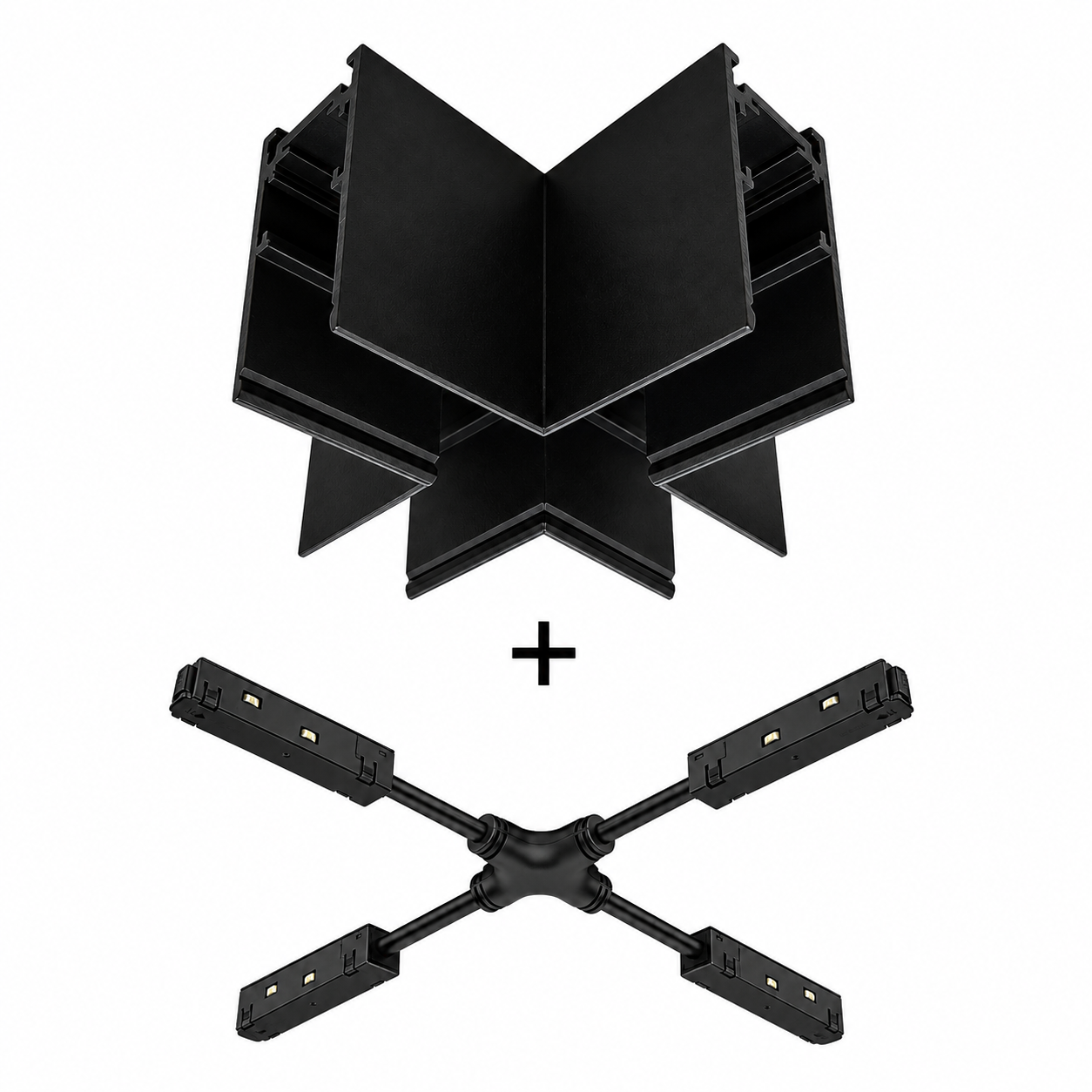

Create clean, fully powered four-way suspended track intersections with the Micro Magnetic Suspended X Angle Connector + Flex X Conductive Module Bundle. This complete intersection solution combines the precision aluminum X Angle Connector with the flexible four-head conductive module required to distribute power between all four connected suspended track sections.
Designed specifically for 48V Micro Magnetic Suspended Track Systems, this bundle makes it easy to create sophisticated floating lighting grids while maintaining continuous electrical connectivity and a clean architectural appearance.
Bundle Includes
- 1 × Suspended X Angle Connector
- 1 × Flex X Conductive Module
- Available in Matte Black and Matte White
The Suspended X Angle Connector creates the physical four-way intersection, while the Flex X Conductive Module distributes electrical power between all four connected track sections.
Features
- Complete solution for four-way suspended X-shaped track intersections
- Designed for 48V Micro Magnetic Suspended Track Systems
- Connects four suspended track sections at 90° angles
- Combines structural and electrical connections
- Maintains continuous electrical power across all four tracks
- Flexible four-head conductive connection
- Premium aluminum X Angle Connector
- Compact, concealed conductive module
- Flexible cable design for easy installation
- Precision engineered for secure connections
- Available in Matte Black and Matte White
- Clean, floating architectural appearance
- Ideal for suspended lighting grids
- Quick and secure installation
- ETL Compatible
- CE Certified
- FCC Certified
- RoHS Compliant
Available Models
Matte Black
| Component | Model No. |
|---|---|
| Suspended X Angle Connector | MCR-X-TRK-SPND-MB |
| Flex X Conductive Module | MCR-FLX-X-MB |
Matte White
| Component | Model No. |
|---|---|
| Suspended X Angle Connector | MCR-X-TRK-SPND-MW |
| Flex X Conductive Module | MCR-FLX-X-MW |
Specifications
| Specification | Details |
|---|---|
| Product Type | Suspended X Angle Connector + Flex X Conductive Module Bundle |
| Installation | Suspended Magnetic Track |
| System Voltage | 48V DC |
| Connection Type | Four-Way (X) Connection |
| Track Orientation | 90° Cross Intersection |
| Number of Track Connections | 4 |
| Conductive Module | Flexible Four-Head (X) Module |
| Function | Structural Intersection + Electrical Power Distribution |
| Connector Material | Aluminum |
| Finish | Matte Black or Matte White |
| Compatible System | 48V Micro Magnetic Suspended Track |
| Certifications | ETL Compatible, CE, FCC, RoHS |
Applications
Perfect for:
- X-Shaped Suspended Track Intersections
- Four-Way Track Connections
- Floating Lighting Grids
- Custom Suspended Track Layouts
- Architectural Lighting Designs
- Luxury Homes
- Retail Stores
- Jewelry Showrooms
- Art Galleries
- Hotels
- Restaurants
- Office Spaces
- Commercial Interiors
What's Included
- 1 × Micro Magnetic Suspended X Angle Connector
- 1 × Micro Magnetic Flex X Conductive Module
Suspended magnetic track sections, suspension cables, power feed, power supply, lighting fixtures, and other accessories are sold separately.
Compatible With
Compatible with:
- Micro Magnetic Suspended Mount Series
- Micro Magnetic Surface Mount Series
Why Choose the Suspended X Angle + Flex X Conductive Module Bundle?
The Suspended X Angle Connector and Flex X Conductive Module work together to provide everything needed for a clean, powered four-way suspended track intersection. The aluminum X Angle Connector creates the physical cross-shaped connection, while the flexible four-head conductive module distributes electrical power between all four connected track sections.
Bundling these components simplifies installation, ensures the correct conductive module is paired with the X Angle Connector, and provides a professional solution for creating sophisticated floating magnetic track lighting grids.
