Diamond Brite LEDs
Micro Magnetic Surface T Angle Connector + Flex T Conductive Module Bundle
Micro Magnetic Surface T Angle Connector + Flex T Conductive Module Bundle
Couldn't load pickup availability

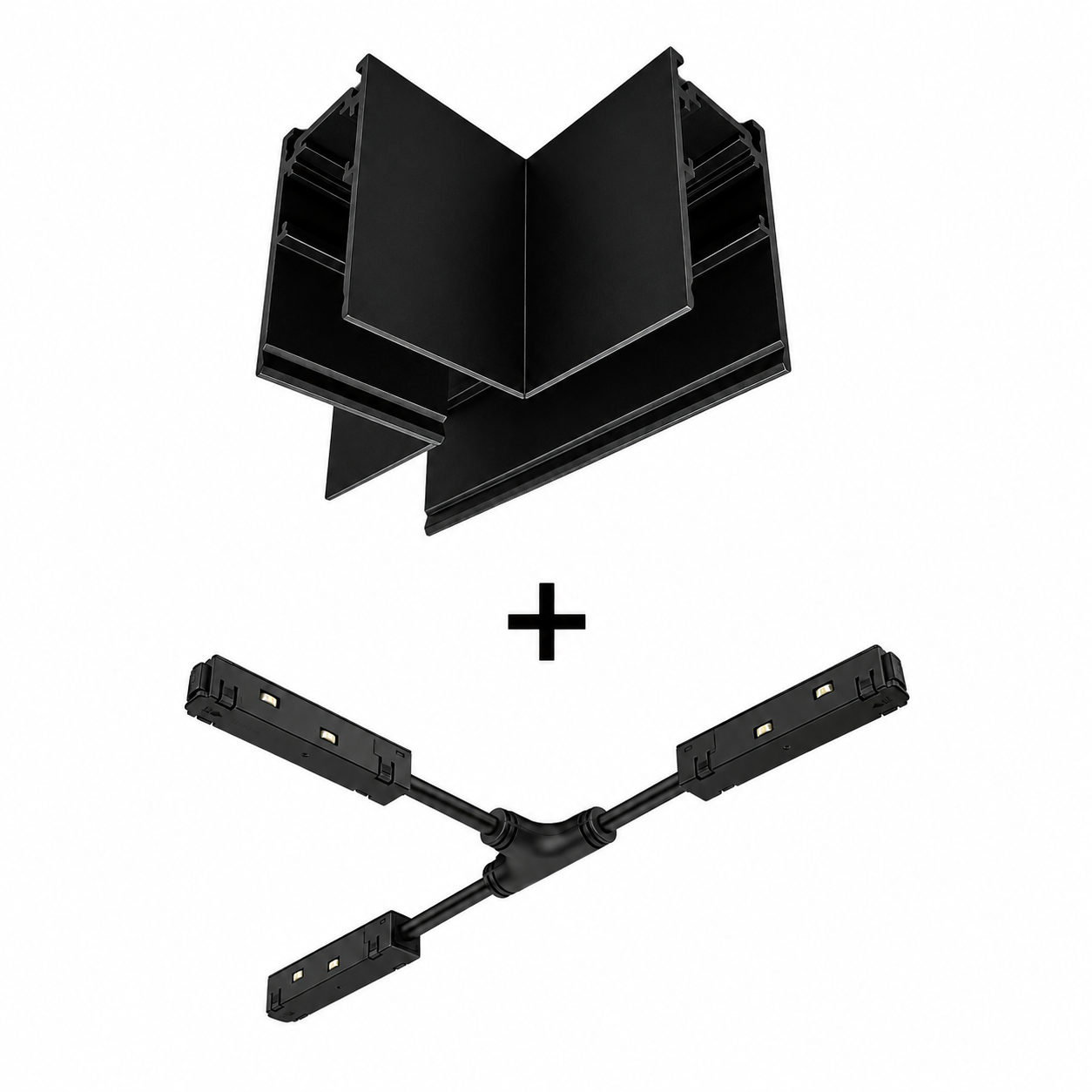

Create clean, fully powered three-way track intersections with the Micro Magnetic Surface T Angle Connector + Flex T Conductive Module Bundle. This complete intersection solution combines the precision aluminum T Angle Connector with the flexible three-head conductive module required to distribute power between all three connected track sections.
Designed specifically for 48V Micro Magnetic Surface Mount Track Systems, this bundle makes it easy to create branched lighting layouts while maintaining continuous electrical connectivity and a clean, minimalist architectural appearance.
Bundle Includes
- 1 × Surface T Angle Connector
- 1 × Flex T Conductive Module
- Available in Matte Black and Matte White
The Surface T Angle Connector creates the physical three-way intersection, while the Flex T Conductive Module distributes electrical power between all three connected track sections.
Features
- Complete solution for three-way T-shaped track intersections
- Designed for 48V Micro Magnetic Surface Mount Track Systems
- Connects three track sections at 90° angles
- Combines structural and electrical connections
- Maintains continuous electrical power across all three tracks
- Flexible three-head conductive connection
- Premium aluminum T Angle Connector
- Compact, concealed conductive module
- Flexible cable design for easy installation
- Precision engineered for secure connections
- Available in Matte Black and Matte White
- Clean, minimalist architectural appearance
- Ideal for custom branched lighting layouts
- Quick and secure installation
- ETL Compatible
- CE Certified
- FCC Certified
- RoHS Compliant
Available Models
Matte Black
| Component | Model No. |
|---|---|
| Surface T Angle Connector | MCR-T-TRK-SRFC-MB |
| Flex T Conductive Module | MCR-FLX-T-MB |
Matte White
| Component | Model No. |
|---|---|
| Surface T Angle Connector | MCR-T-TRK-SRFC-MW |
| Flex T Conductive Module | MCR-FLX-T-MW |
Specifications
| Specification | Details |
|---|---|
| Product Type | Surface T Angle Connector + Flex T Conductive Module Bundle |
| Installation | Surface Mount Magnetic Track |
| System Voltage | 48V DC |
| Connection Type | Three-Way (T) Connection |
| Track Orientation | 90° T Intersection |
| Number of Track Connections | 3 |
| Conductive Module | Flexible Three-Head (T) Module |
| Function | Structural Intersection + Electrical Power Distribution |
| Connector Material | Aluminum |
| Finish | Matte Black or Matte White |
| Compatible System | 48V Micro Magnetic Surface Track |
| Certifications | ETL Compatible, CE, FCC, RoHS |
Applications
Perfect for:
- T-Shaped Track Intersections
- Three-Way Track Connections
- Branched Magnetic Track Layouts
- Custom Surface Track Designs
- Architectural Lighting Layouts
- Luxury Homes
- Retail Stores
- Jewelry Showrooms
- Art Galleries
- Hotels
- Restaurants
- Office Spaces
- Commercial Interiors
What's Included
- 1 × Micro Magnetic Surface T Angle Connector
- 1 × Micro Magnetic Flex T Conductive Module
Magnetic track sections, power feed, power supply, lighting fixtures, and other accessories are sold separately.
Compatible With
Compatible with:
- Micro Magnetic Surface Mount Series
- Micro Magnetic Suspended Mount Series
Why Choose the Surface T Angle + Flex T Conductive Module Bundle?
The Surface T Angle Connector and Flex T Conductive Module work together to provide everything needed for a clean, powered three-way track intersection. The aluminum T Angle Connector creates the physical T-shaped connection, while the flexible three-head conductive module distributes electrical power between all three connected track sections.
Bundling these components simplifies installation, ensures the correct conductive module is paired with the T Angle Connector, and provides a professional solution for expanding and branching custom Micro Magnetic Track lighting layouts.
