Micro Magnetic Recessed Trimless X Angle Connector + Flex X Conductive Module Bundle
Micro Magnetic Recessed Trimless X Angle Connector + Flex X Conductive Module Bundle
Couldn't load pickup availability
Create clean, fully powered four-way track intersections with the Micro Magnetic Recessed Trimless X Angle Connector + Flex X Conductive Module Bundle. This complete intersection solution combines the precision aluminum X Angle Connector with the four-head conductive module required to distribute power between all four connected track sections.
Designed specifically for 48V Micro Magnetic Recessed Trimless Track Systems, this bundle makes it easy to create sophisticated lighting grids and cross-shaped layouts while maintaining continuous electrical connectivity and a seamless architectural appearance.

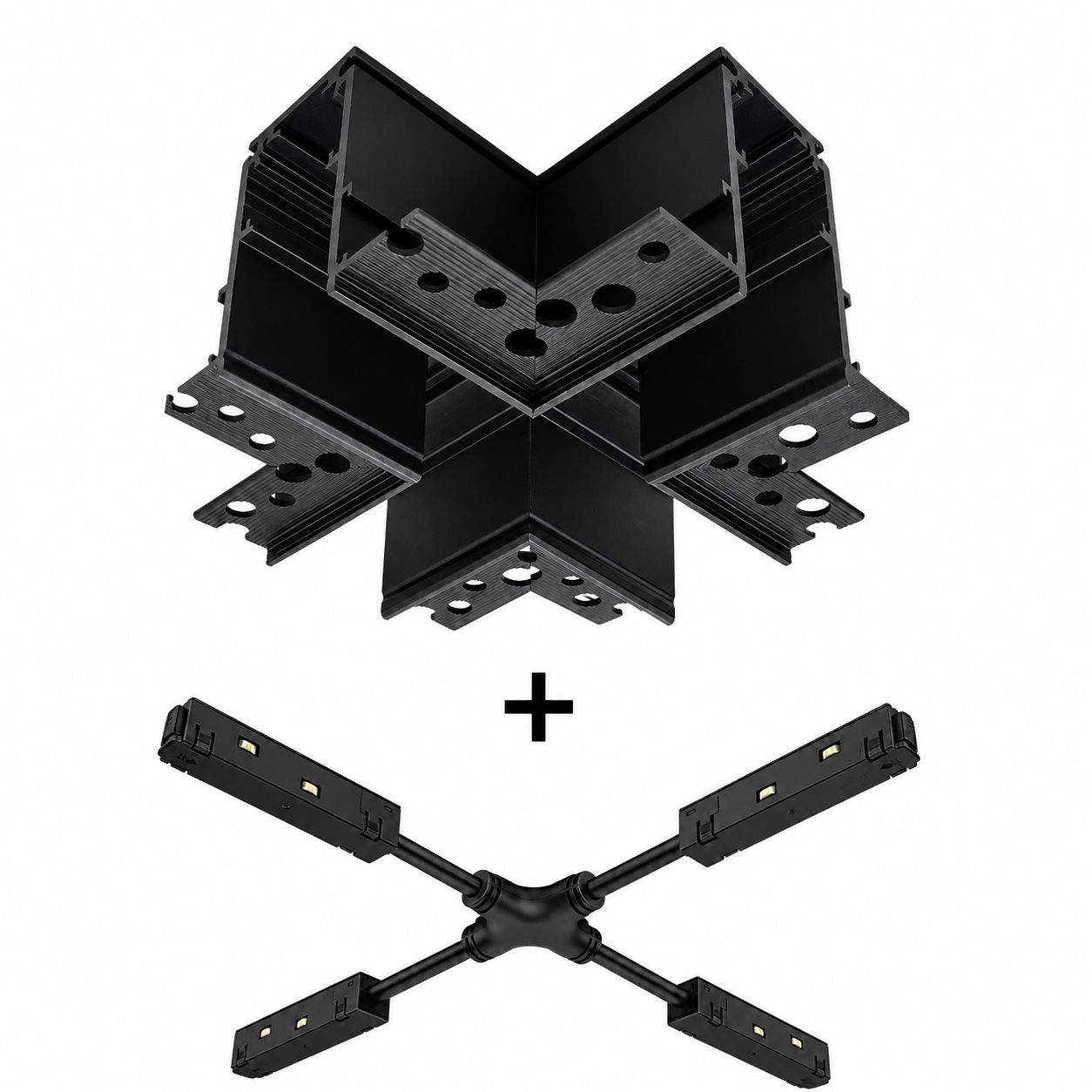

Bundle Includes
- 1 × Recessed Trimless X Angle Connector
- 1 × Flex X Conductive Module
- Available in Matte Black and Matte White
The X Angle Connector creates the physical four-way intersection, while the Flex X Conductive Module distributes electrical power between all four connected track sections.
Features
- Complete solution for four-way X-shaped track intersections
- Connects four track sections at 90° angles
- Combines structural and electrical connections
- Maintains continuous electrical power across all four tracks
- Flexible four-head conductive connection
- Designed specifically for 48V Micro Magnetic Track Systems
- Premium aluminum X Angle Connector
- Compact, concealed conductive module
- Flexible cable design for easy installation
- Precision engineered for secure connections
- Available in Matte Black and Matte White
- Clean, minimalist architectural appearance
- Ideal for custom lighting grids
- ETL Compatible
- CE Certified
- FCC Certified
- RoHS Compliant
Available Models
Matte Black
| Component | Model No. |
|---|---|
| Recessed Trimless X Angle Connector | MCR-X-TRK-TRLS-MB |
| Flex X Conductive Module | MCR-FLX-X-MB |
Matte White
| Component | Model No. |
|---|---|
| Recessed Trimless X Angle Connector | MCR-X-TRK-TRLS-MW |
| Flex X Conductive Module | MCR-FLX-X-MW |
Specifications
| Specification | Details |
|---|---|
| Product Type | X Angle Connector + Flex X Conductive Module Bundle |
| Installation | Recessed Trimless Magnetic Track |
| System Voltage | 48V DC |
| Connection Type | Four-Way (X) Connection |
| Track Orientation | 90° Cross Intersection |
| Number of Track Connections | 4 |
| Conductive Module | Flexible Four-Head (X) Module |
| Function | Structural Intersection + Electrical Power Distribution |
| Connector Material | Aluminum |
| Finish | Matte Black or Matte White |
| Compatible System | 48V Micro Magnetic Recessed Trimless Track |
| Certifications | ETL Compatible, CE, FCC, RoHS |
Applications
Perfect for:
- X-Shaped Track Intersections
- Four-Way Track Connections
- Custom Magnetic Track Grids
- Architectural Ceiling Layouts
- Luxury Homes
- Retail Stores
- Jewelry Showrooms
- Art Galleries
- Hotels
- Restaurants
- Office Spaces
- Commercial Interiors
- Large-Scale Lighting Designs
What's Included
- 1 × Micro Magnetic Recessed Trimless X Angle Connector
- 1 × Micro Magnetic Flex X Conductive Module
Magnetic track sections, power supply, lighting fixtures, and other accessories are sold separately.
Compatible With
Designed for use with:
- 48V Micro Magnetic Recessed Trimless Track Systems
Why Choose the X Angle + Flex X Conductive Module Bundle?
The X Angle Connector and Flex X Conductive Module work together to provide everything needed for a clean, powered four-way track intersection. The aluminum X Angle Connector creates the physical cross-shaped connection, while the flexible four-head conductive module distributes electrical power between all four connected track sections.
Bundling these components simplifies installation, ensures the correct conductive module is paired with the X connector, and makes it easier to create sophisticated lighting grids while maintaining the seamless, trimless appearance of the Micro Magnetic Track System.
