Diamond Brite LEDs

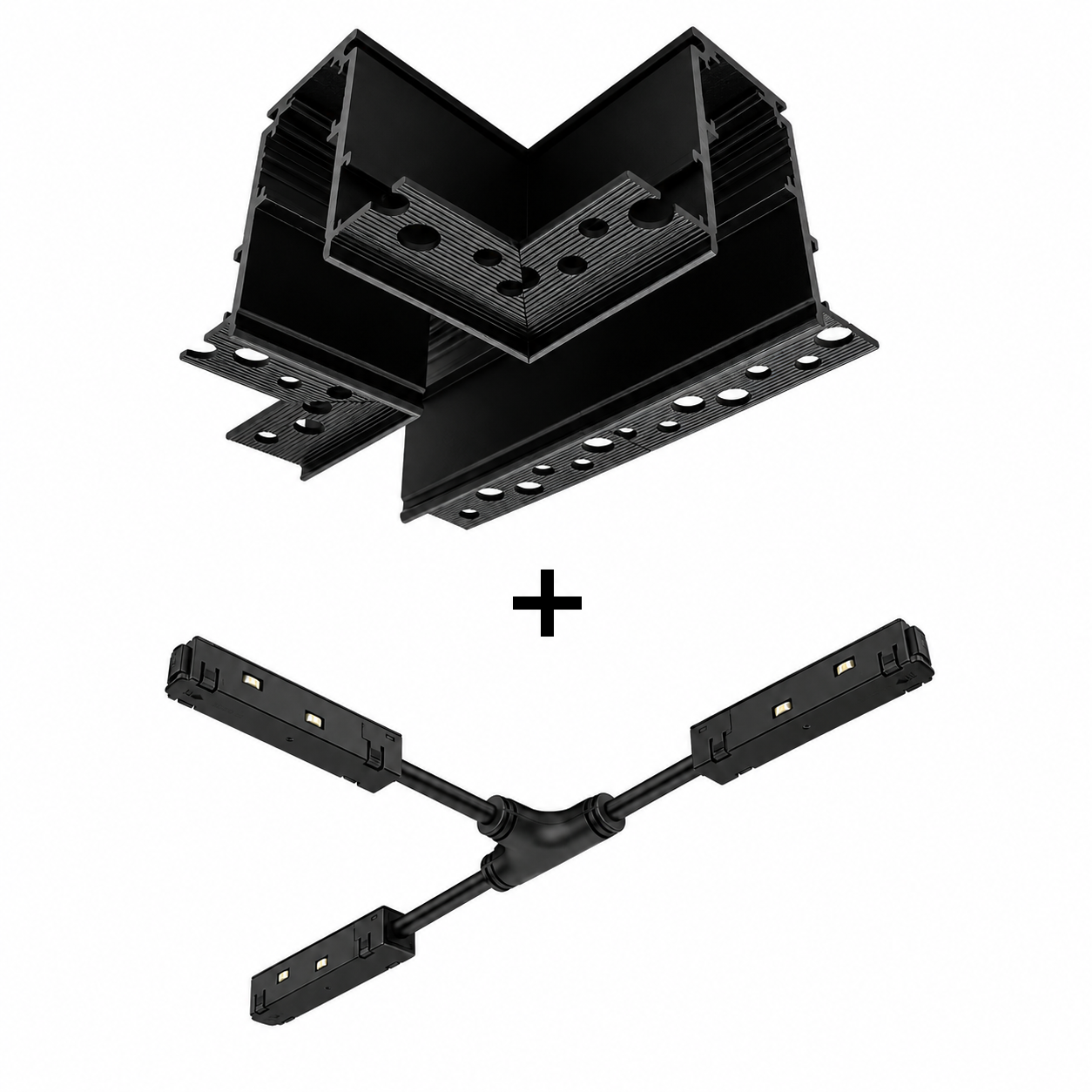

Micro Magnetic Recessed Trimless T Angle Connector + Flex T Conductive Module Bundle
Micro Magnetic Recessed Trimless T Angle Connector + Flex T Conductive Module Bundle
Couldn't load pickup availability
Create clean, fully powered three-way track intersections with the Micro Magnetic Recessed Trimless T Angle Connector + Flex T Conductive Module Bundle. This complete T-intersection solution combines the precision aluminum T Angle Connector with the three-head conductive module required to distribute power between all three connected track sections.
Designed specifically for 48V Micro Magnetic Recessed Trimless Track Systems, this bundle makes it easy to create branched lighting layouts while maintaining continuous electrical connectivity and a seamless, trimless architectural appearance.
Bundle Includes
- 1 × Recessed Trimless T Angle Connector
- 1 × Flex T Conductive Module
- T Angle Connector available in Matte Black or Matte White
- Flex T Conductive Module available in Matte Black only
The T Angle Connector creates the physical three-way intersection, while the Flex T Conductive Module distributes electrical power between all three connected track sections.
Features
- Complete solution for three-way T-shaped track intersections
- Connects three track sections at 90° angles
- Combines structural and electrical connections
- Maintains continuous electrical power across all three tracks
- Flexible three-head conductive connection
- Designed specifically for 48V Micro Magnetic Track Systems
- Premium aluminum T Angle Connector
- Compact, concealed conductive module
- Flexible cable design for easy installation
- Precision engineered for secure connections
- T Angle Connector available in Matte Black and Matte White
- Flex T Conductive Module available in Matte Black only
- Flush, trimless architectural appearance
- Ideal for custom branched lighting layouts
- ETL Compatible
- CE Certified
- FCC Certified
- RoHS Compliant
Available Models
Matte Black Connector Bundle
| Component | Model No. | Finish |
|---|---|---|
| Recessed Trimless T Angle Connector | MCR-T-TRK-TRLS-MB | Matte Black |
| Flex T Conductive Module | MCR-FLX-T-MB | Matte Black |
Matte White Connector Bundle
| Component | Model No. | Finish |
|---|---|---|
| Recessed Trimless T Angle Connector | MCR-T-TRK-TRLS-MW | Matte White |
| Flex T Conductive Module | MCR-FLX-T-MB | Matte Black |
Note: When the Matte White Connector option is selected, the T Angle Connector is Matte White while the included Flex T Conductive Module remains Matte Black.
Specifications
| Specification | Details |
|---|---|
| Product Type | T Angle Connector + Flex T Conductive Module Bundle |
| Installation | Recessed Trimless Magnetic Track |
| System Voltage | 48V DC |
| Connection Type | Three-Way (T) Connection |
| Track Orientation | 90° T Intersection |
| Number of Track Connections | 3 |
| Conductive Module | Flexible Three-Head (T) Module |
| Function | Structural Intersection + Electrical Power Distribution |
| Connector Material | Aluminum |
| Connector Finish | Matte Black or Matte White |
| Flex T Conductive Module Finish | Matte Black Only |
| Compatible System | 48V Micro Magnetic Recessed Trimless Track |
| Certifications | ETL Compatible, CE, FCC, RoHS |
Applications
Perfect for:
- T-Shaped Track Intersections
- Three-Way Track Connections
- Branched Magnetic Track Layouts
- Custom Ceiling Track Designs
- Luxury Homes
- Apartments & Condominiums
- Retail Stores
- Jewelry Showrooms
- Art Galleries
- Hotels
- Restaurants
- Office Spaces
- Commercial Interiors
- Architectural Lighting Systems
What's Included
- 1 × Micro Magnetic Recessed Trimless T Angle Connector — Matte Black or Matte White
- 1 × Micro Magnetic Flex T Conductive Module — Matte Black
Magnetic track sections, power supply, lighting fixtures, and other accessories are sold separately.
Compatible With
Designed for use with:
- 48V Micro Magnetic Recessed Trimless Track Systems
Why Choose the T Angle + Flex T Conductive Module Bundle?
The T Angle Connector and Flex T Conductive Module work together to provide everything needed for a clean, powered three-way track intersection. The aluminum T Angle Connector creates the physical T-shaped connection, while the flexible three-head conductive module distributes electrical power between all three connected track sections.
Choose between a Matte Black or Matte White T Angle Connector to match your track system. The included Flex T Conductive Module is supplied in Matte Black with either connector finish and remains concealed within the installation, allowing you to create custom branched lighting layouts with a clean, professional architectural finish.
