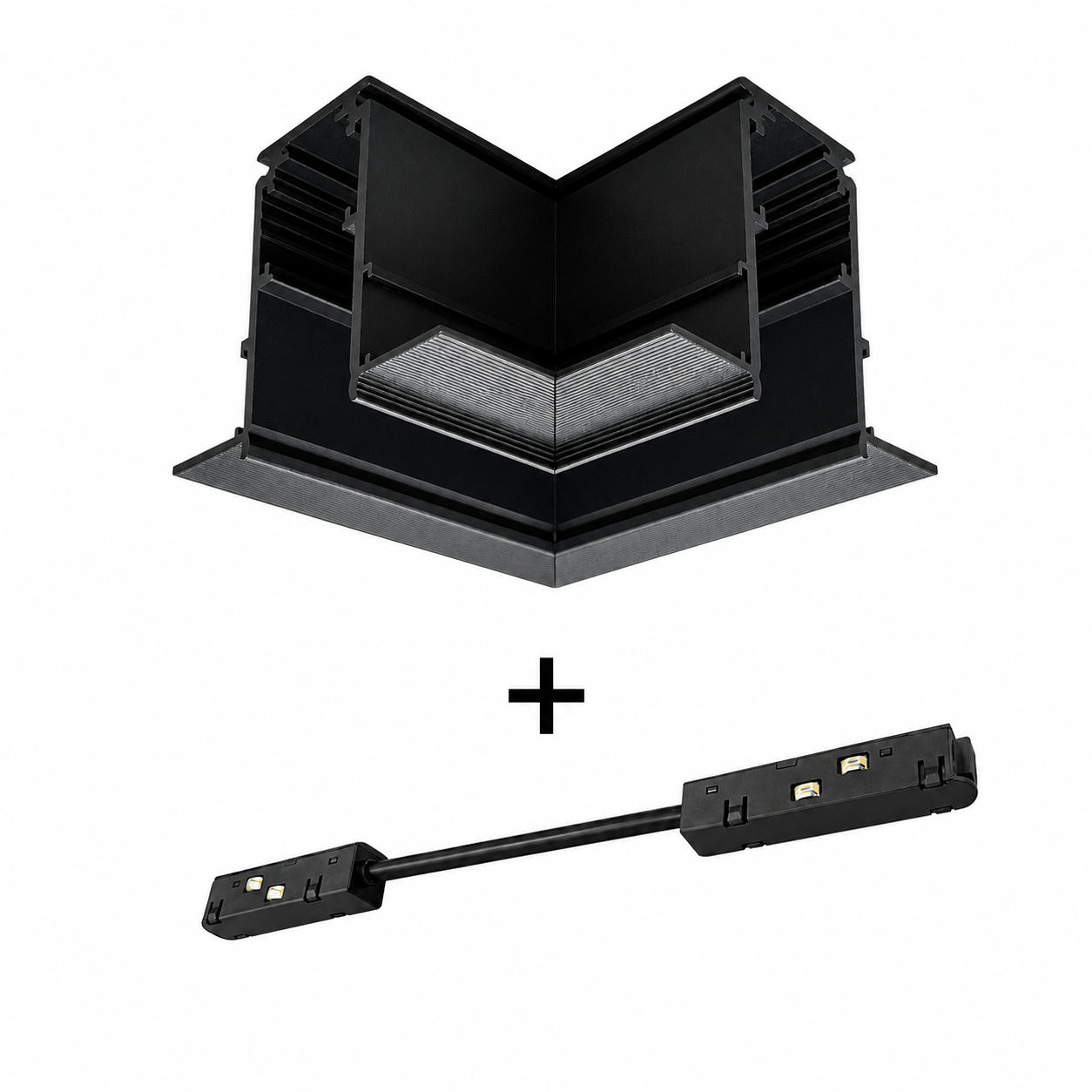

Micro Magnetic Recessed Trimless L Angle Connector + Flex Conductive Module Bundle
Micro Magnetic Recessed Trimless L Angle Connector + Flex Conductive Module Bundle
Couldn't load pickup availability
Create clean, fully powered 90-degree corners with the Micro Magnetic Recessed Trimless L Angle Connector + Flex Conductive Module Bundle. This complete corner solution combines the structural L Angle Connector with the flexible conductive module required to maintain electrical continuity between adjoining track sections.
Designed for 48V Micro Magnetic Recessed Trimless Track Systems, the bundle creates seamless right-angle track layouts while maintaining a clean, continuous architectural appearance.
Bundle Includes
- 1 × Recessed Trimless L Angle Connector
- 1 × Flex Conductive Module
- Available in Matte Black and Matte White
The L Angle Connector creates the physical 90° track transition, while the Flex Conductive Module transfers power between the connected track sections.
Features
- Complete solution for 90° recessed trimless track corners
- Combines structural and electrical corner connections
- Creates clean right-angle track transitions
- Maintains continuous electrical power through the corner
- Flexible bidirectional conductive connection
- Designed specifically for 48V Micro Magnetic Track Systems
- Premium aluminum L Angle Connector
- Compact, low-profile conductive module
- Precision engineered for secure installation
- Available in Matte Black and Matte White
- Clean architectural appearance
- ETL Compatible
- CE Certified
- FCC Certified
- RoHS Compliant
Available Models
Matte Black
| Component | Model No. |
|---|---|
| Recessed Trimless L Angle Connector | MCR-L-TRK-TRLS-MB |
| Flex Conductive Module | MCR-FLX-I-MB |
Matte White
| Component | Model No. |
|---|---|
| Recessed Trimless L Angle Connector | MCR-L-TRK-TRLS-MW |
| Flex Conductive Module | MCR-FLX-I-MW |
Specifications
| Specification | Details |
|---|---|
| Product Type | L Angle Connector + Flex Conductive Module Bundle |
| Installation | Recessed Trimless Magnetic Track |
| System Voltage | 48V DC |
| Corner Angle | 90° |
| L Angle Connector Length | 3" (80 mm) |
| Connection Type | Flexible Bidirectional Corner Connection |
| Function | Structural Corner Connection + Electrical Power Transfer |
| L Angle Connector Material | Aluminum |
| Finish | Matte Black or Matte White |
| Compatible System | 48V Micro Magnetic Recessed Trimless Track |
| Certifications | ETL Compatible, CE, FCC, RoHS |
Applications
Ideal for:
- 90° Track Corners
- Custom Track Layouts
- Luxury Homes
- Residential Lighting
- Retail Stores
- Jewelry Showrooms
- Art Galleries
- Hotels
- Restaurants
- Office Spaces
- Commercial Interiors
- Architectural Lighting Systems
What's Included
- 1 × Micro Magnetic Recessed Trimless L Angle Connector
- 1 × Micro Magnetic Flex Conductive Module
Magnetic track sections, power supply, lighting fixtures, and other accessories are sold separately.
Compatible With
Designed for use with:
- 48V Micro Magnetic Recessed Trimless Track Systems
Why Choose the L Angle + Flex Conductive Module Bundle?
The L Angle Connector and Flex Conductive Module work together to provide everything needed for a clean, powered 90-degree track transition. The aluminum L Angle Connector creates the physical corner connection, while the flexible conductive module maintains electrical continuity between both track sections.
Bundling these components simplifies installation and ensures the correct conductive accessory is paired with the corner connector for a seamless, professional magnetic track lighting layout.
