Diamond Brite LEDs

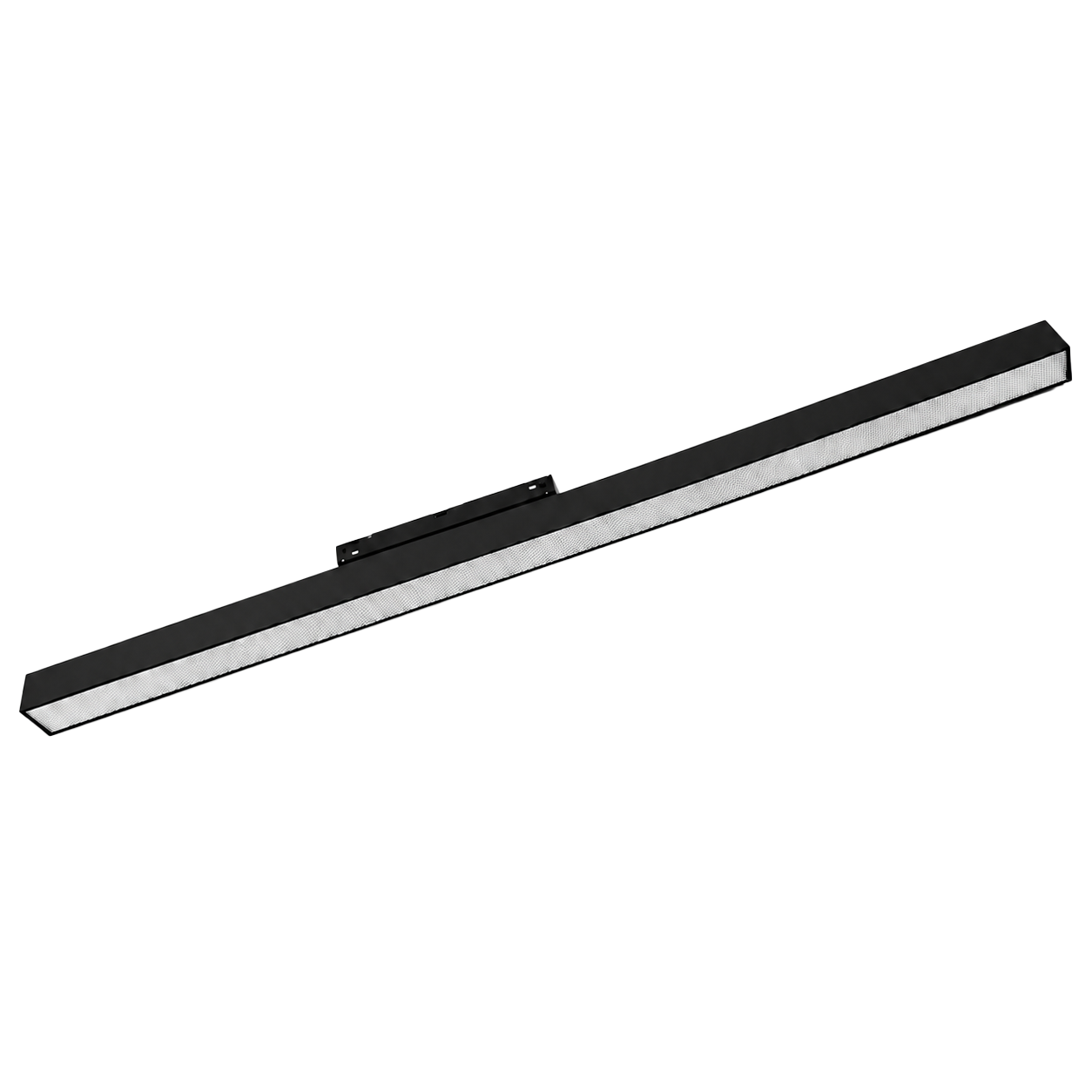

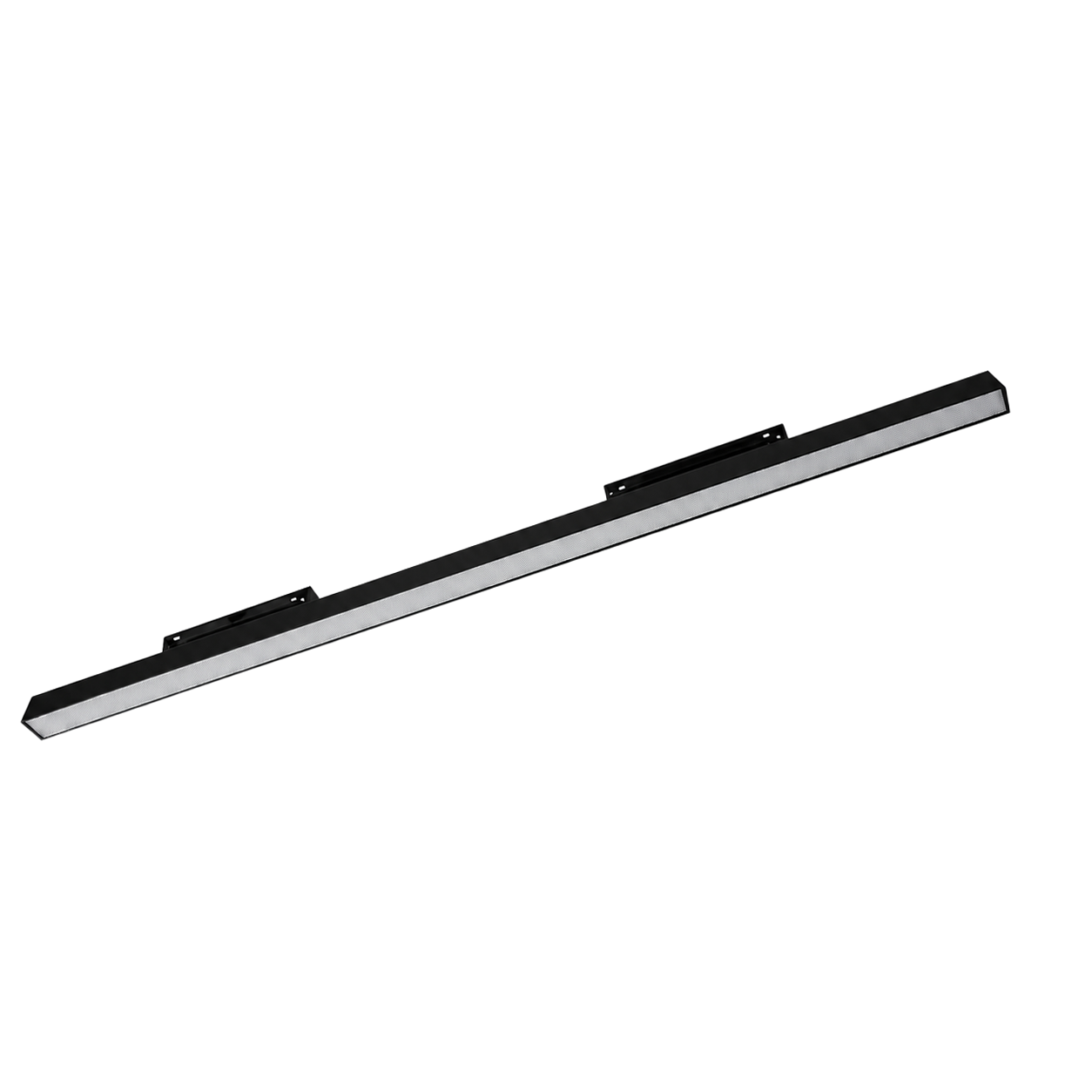

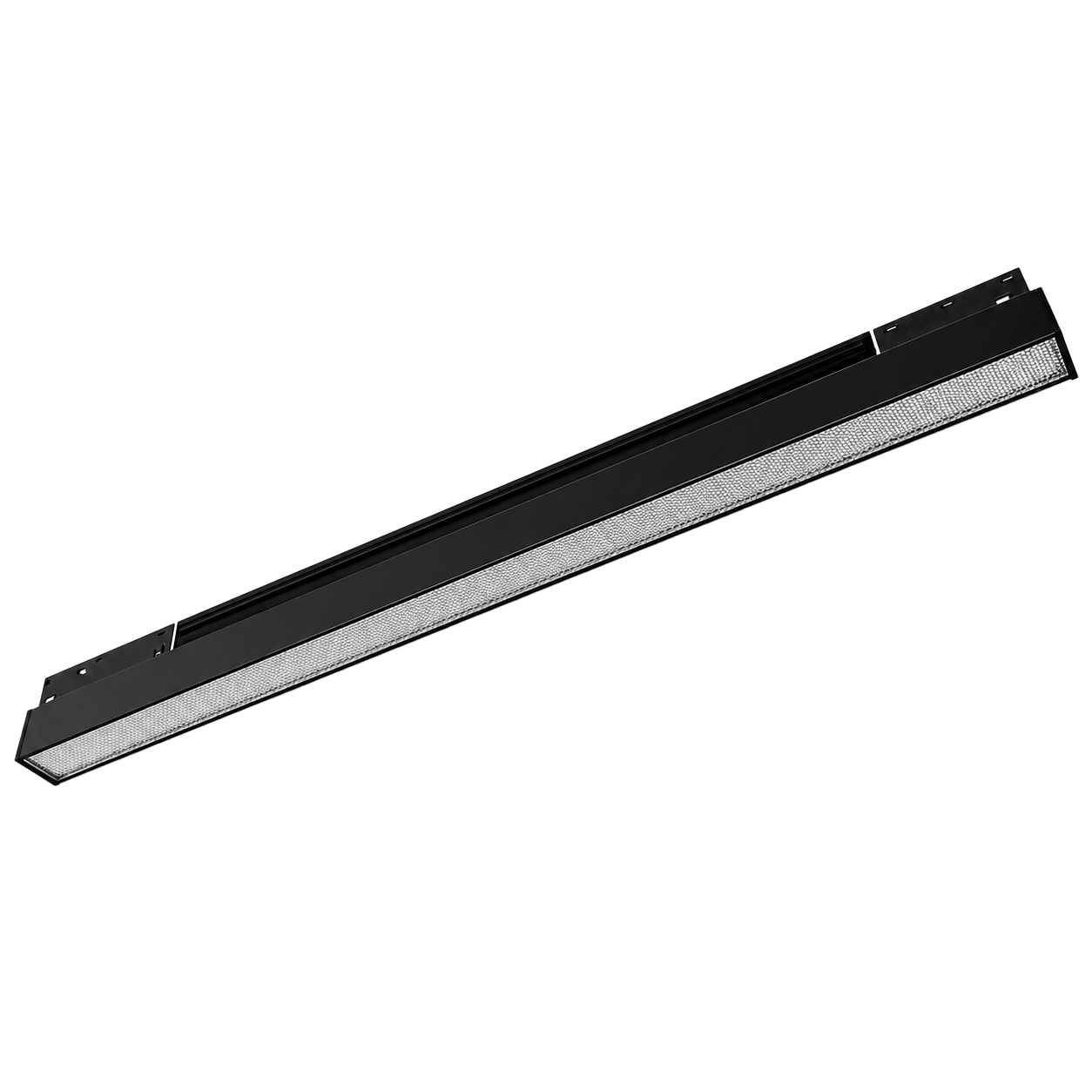

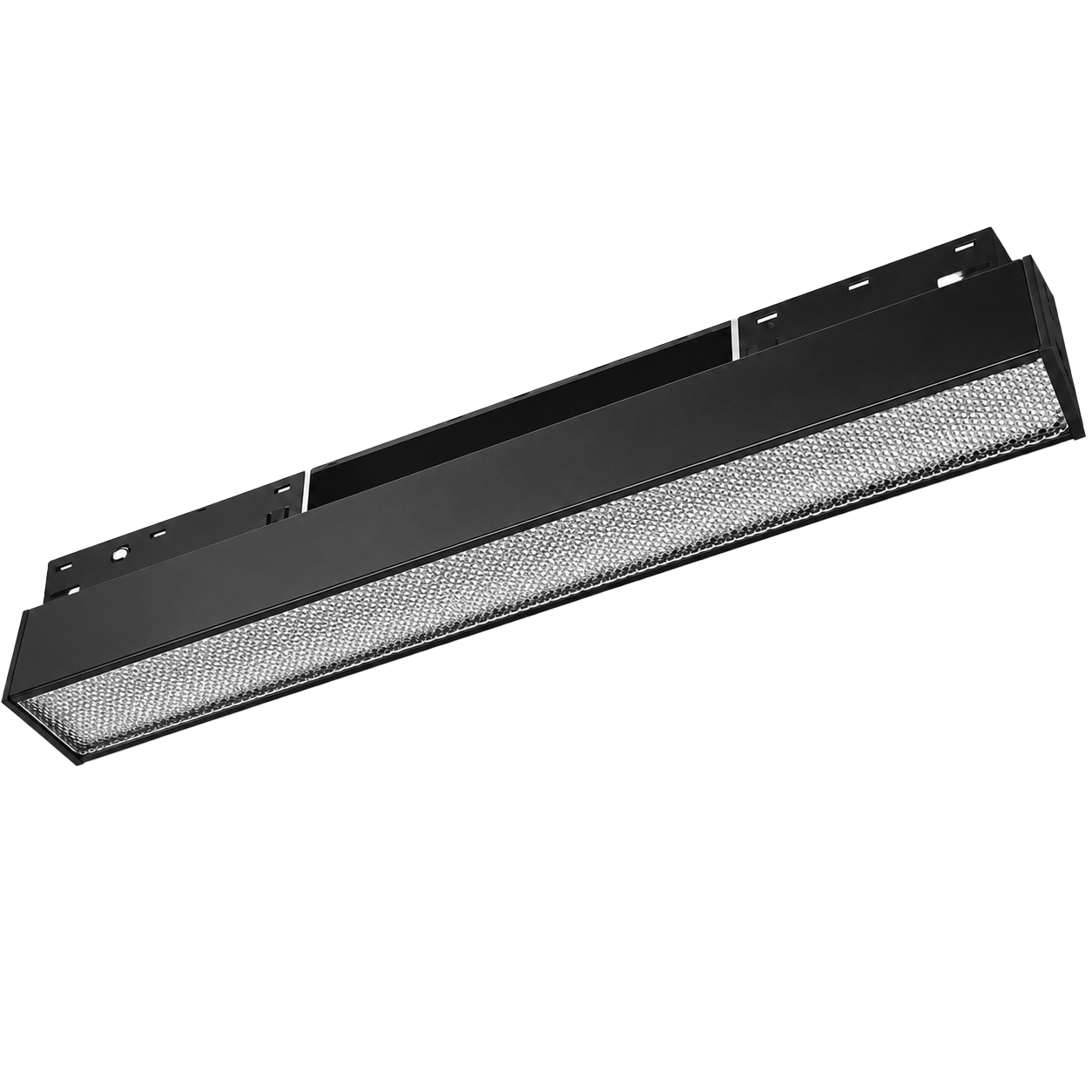

Micro Magnetic Linear Light Series
Micro Magnetic Linear Light Series
Couldn't load pickup availability
The Micro Magnetic Linear Light delivers seamless, glare-free illumination for modern magnetic track lighting systems. Designed with a minimalist architectural profile, this fixture provides uniform ambient lighting with smooth dimming and adjustable color temperature from 2700K to 6500K, making it ideal for residential, hospitality, retail, office, and commercial environments.
Engineered for 48V Micro Magnetic Track Systems, each fixture installs magnetically for quick, tool-free repositioning and effortless system customization.
Features
- Compatible with all 48V Micro Magnetic Track Systems
- Continuous linear illumination
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- High-efficiency integrated LED
- 118 lumens per watt
- Magnetic tool-free installation
- Available in Matte Black and Matte White
- Premium extruded aluminum housing
- Modern architectural design
- ETL Certified
- CE Certified
- FCC Certified
- RoHS Compliant

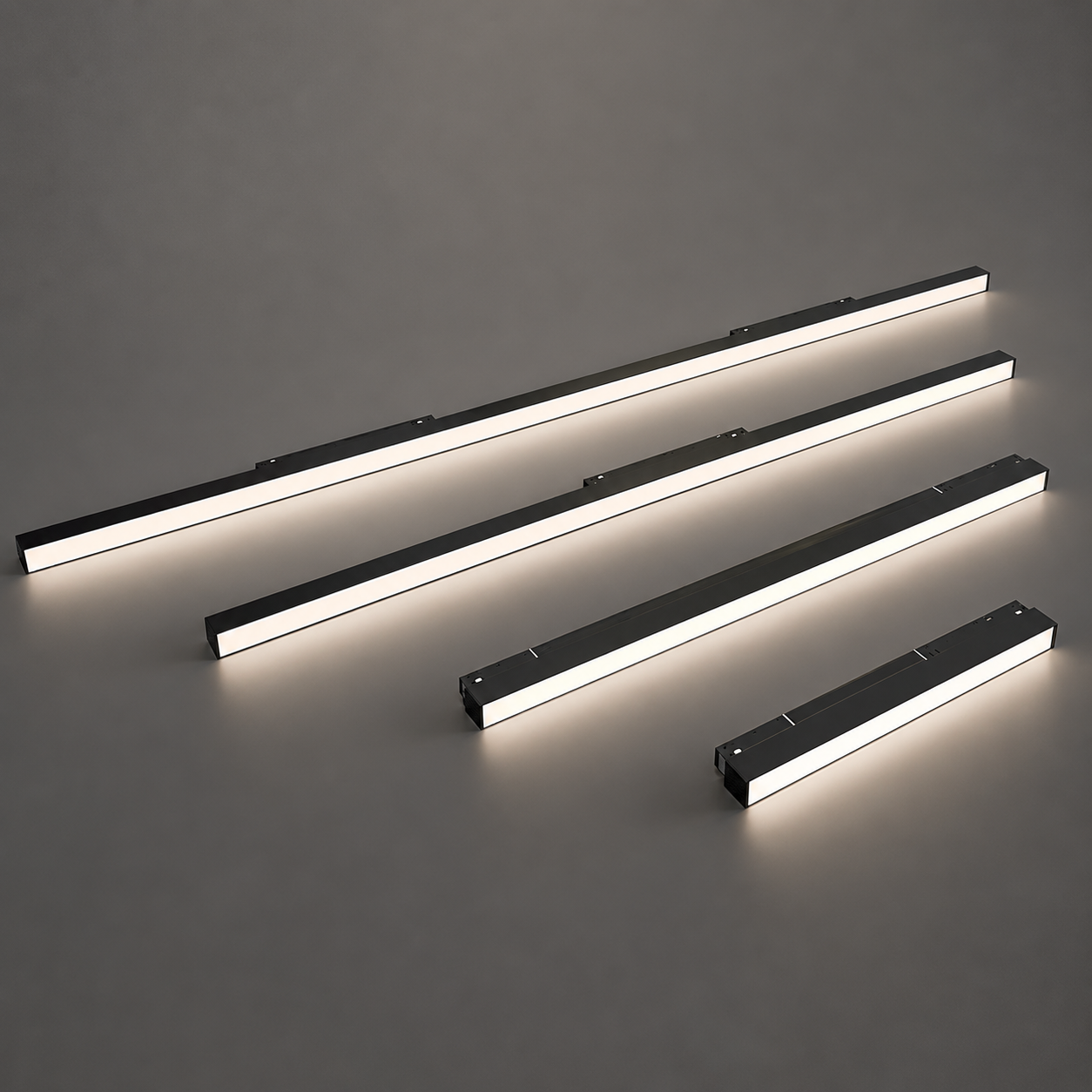

Available Models
Matte Black
| Power | Length | Lumens | Model No. |
|---|---|---|---|
| 12W | 12" (305 mm) | 1,416 lm | MCR-LNR12-12W-CCT-48V-MB |
| 24W | 24" (605 mm) | 2,832 lm | MCR-LNR24-24W-CCT-48V-MB |
| 36W | 36" (905 mm) | 4,248 lm | MCR-LNR36-36W-CCT-48V-MB |
| 48W | 48" (1205 mm) | 5,664 lm | MCR-LNR48-48W-CCT-48V-MB |
Matte White
| Power | Length | Lumens | Model No. |
| 12W | 12" (305 mm) | 1,416 lm | MCR-LNR12-12W-CCT-48V-MW |
| 24W | 24" (605 mm) | 2,832 lm | MCR-LNR24-24W-CCT-48V-MW |
| 36W | 36" (905 mm) | 4,248 lm | MCR-LNR36-36W-CCT-48V-MW |
| 48W | 48" (1205 mm) | 5,664 lm | MCR-LNR48-48W-CCT-48V-MW |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Linear Light |
| Mounting | Magnetic Track Mounted |
| System Voltage | 48V DC |
| LED Power Options | 12W, 24W, 36W, 48W |
| Luminous Efficacy | 118 lm/W |
| Lumen Output | 1,416 lm, 2,832 lm, 4,248 lm, 5,664 lm |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Dimming | Yes |
| Finish | Matte Black or Matte White |
| Material | Aluminum |
| Width | 1" (23 mm) |
| Height | 2" (45 mm) |
| Length Options | 12" (305 mm), 24" (605 mm), 36" (905 mm), 48" (1205 mm) |
| Beam Type | Linear Diffused Light |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Ideal for:
- Luxury Homes
- Living Rooms
- Kitchens
- Hallways
- Retail Stores
- Jewelry Displays
- Hospitality
- Hotels
- Restaurants
- Office Spaces
- Art Galleries
- Commercial Interiors
What's Included
- 1 × Micro Magnetic Linear Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including:
- Recessed Trimless Tracks
- Surface Mount Tracks
- Suspended Mount Tracks
Why Choose a Magnetic Linear Light?
The Micro Magnetic Linear Light provides smooth, continuous illumination while maintaining the flexibility of a modular magnetic lighting system. Easily move, replace, or add fixtures without rewiring, making it an excellent solution for dynamic residential and commercial spaces where lighting layouts may evolve over time.
