Micro Edge Line Series
Micro Edge Line Series
Couldn't load pickup availability
The Micro Edge Line Series is a patented horizontal LED showcase lighting system designed for jewelry, watches, optical displays, artwork, and high-end retail environments. Featuring an ultra-slim 6.8 mm profile, premium CREE LED technology, and 180° adjustable rotation, the Micro Edge Line provides precise illumination while maintaining a discreet architectural presence within the display.
Delivering approximately 720 lumens per foot while consuming approximately 6 watts per foot, the Micro Edge Line combines high-output performance with excellent efficiency. Multiple lengths, mounting configurations, premium finishes, high-CRI color temperatures, and optional 90° corner connectors provide extensive flexibility for custom showcase lighting layouts.
Features
- Patented horizontal LED showcase lighting system
- Ultra-slim 0.27" (6.8 mm) profile
- Premium CREE LED engine
- Approximately 6W per foot
- Approximately 720 lumens per foot
- 180° rotatable LED profile for adjustable light direction
- Optional 90° corner connectors for flexible layouts
- Standard lengths from approximately 200–800 mm
- Custom lengths available up to 60.2" (1,530 mm)
- Under-mount or surface-mount base options
- Optional mounting clips available
- Available in 3000K, 4200K & 6500K
- High CRI options up to CRI 95
- DUO option with 3200K & 6500K
- Available in Satin Black, Satin Silver & Brushed Gold
- ETL Listed
- Conforms to UL Standard 1598 for the U.S. & Canada
Color Temperature & CRI Options
| Color Temperature | Description | CRI |
|---|---|---|
| 3000K | Warm White | 95 |
| 4200K | Neutral White | 92 |
| 6500K | Cool White | 90 |
| 3200K & 6500K | DUO | 90 |
Performance
| Performance | Output |
|---|---|
| Power | Approx. 6W / ft |
| Light Output | Approx. 720 lm / ft |
| Efficacy | Approx. 120 lm/W |
Length Options
| Length | Availability |
|---|---|
| 7.9"–31.5" (200–800 mm) | Standard Length Range |
| Up to 60.2" (1,530 mm) | Custom Lengths Available |
Finish Options
- Satin Black
- Satin Silver
- Brushed Gold
Mounting & Configuration Options
- Under-Mount Base: Designed for discreet integration into showcase installations
- Surface-Mount Base: Provides a flexible surface-mounted installation option
- Mounting Clips: Optional clips available for streamlined installation
- 180° Rotation: Allows the LED profile to be aimed toward merchandise or display surfaces

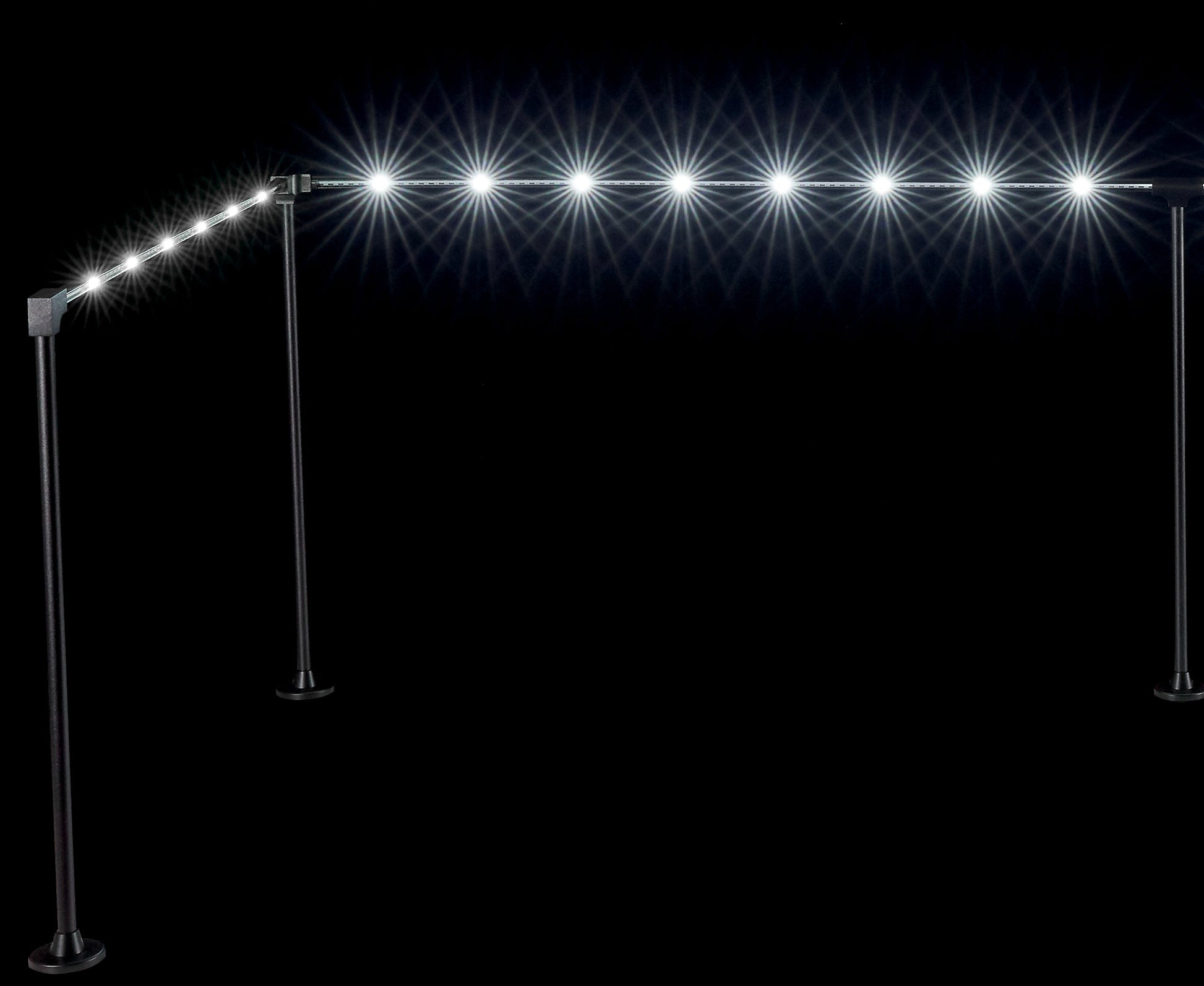

- 90° Corner Connectors: Optional connectors allow the system to follow showcase corners and custom layouts

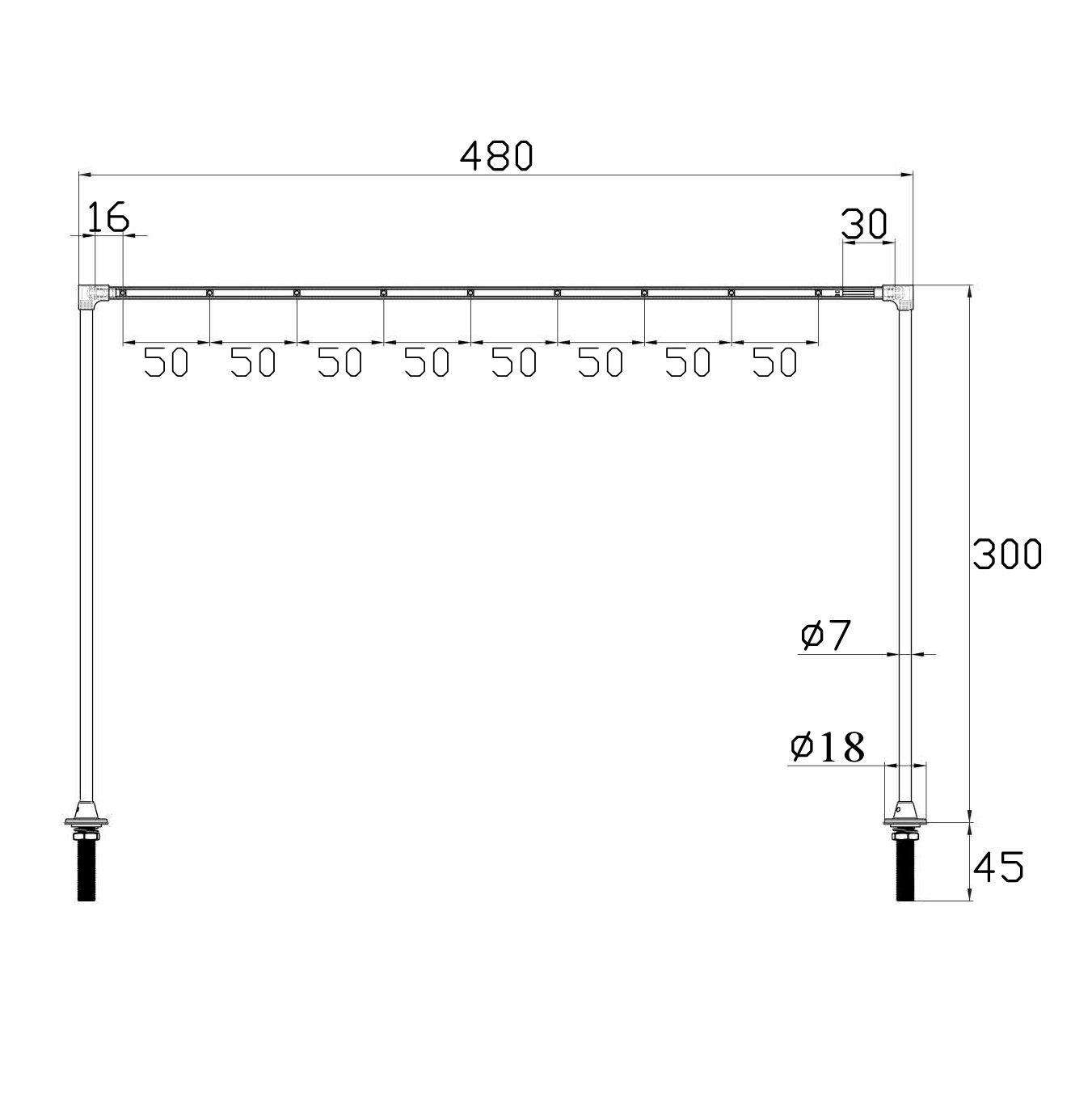

Specifications
| Product Type | Horizontal LED Showcase Light |
|---|---|
| Series | Micro Edge Line Series |
| LED Source | CREE LED Engine |
| Power | Approx. 6W / ft |
| Light Output | Approx. 720 lm / ft |
| Color Temperatures | 3000K / 4200K / 6500K / DUO 3200K & 6500K |
| CRI | Up to CRI 95 Depending on Color Temperature |
| Profile | 0.27" (6.8 mm) |
| Rotation | 180° |
| Standard Length Range | 7.9"–31.5" (200–800 mm) |
| Maximum Custom Length | 60.2" (1,530 mm) |
| Mounting | Under-Mount / Surface-Mount / Optional Clips |
| Corner Configuration | Optional 90° Connectors |
| Finish Options | Satin Black / Satin Silver / Brushed Gold |
| Listing | ETL Listed |
| Compliance | Conforms to UL Standard 1598 – U.S. & Canada |

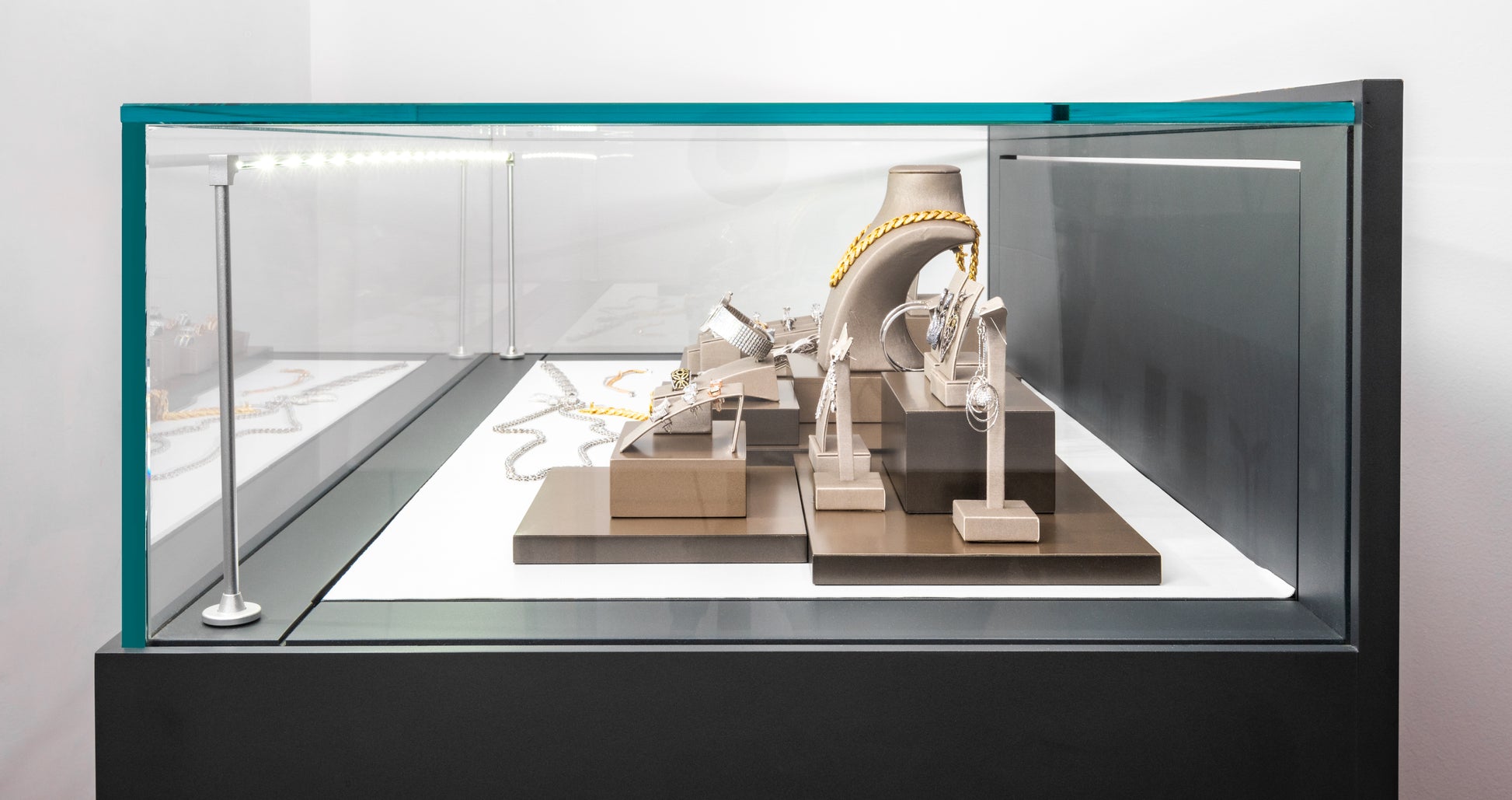

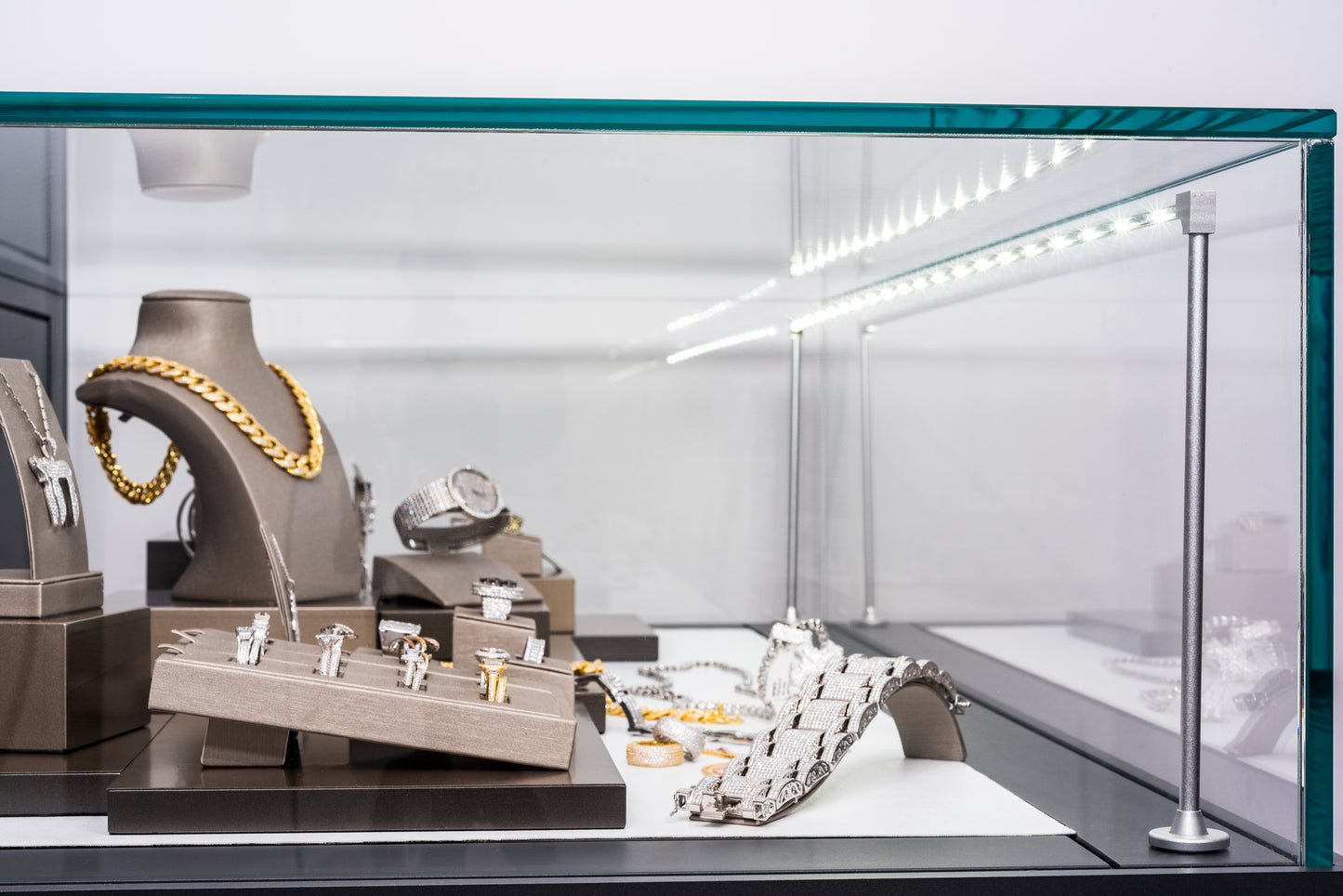

Applications
- Diamond & Jewelry Showcases
- Watch Displays
- Antique & Craft Cases
- Optical Shops
- Art Galleries
- Museums & Exhibitions
- Luxury Boutiques
- High-End Retail Environments
- Specialty Product Showcases
Why Choose the Micro Edge Line Series?
The Micro Edge Line Linear Light Series combines an ultra-slim 6.8 mm profile with premium CREE LED technology and approximately 720 lumens per foot of illumination. Its unique 180° rotatable profile allows the light direction to be precisely adjusted toward merchandise, helping create highly controlled illumination within jewelry, watch, optical, art, and luxury retail displays.
With standard and custom lengths up to 1,530 mm, under-mount and surface-mount configurations, optional 90° corner connectors, three premium finishes, and color temperatures with CRI up to 95, the Micro Edge Line Series provides a highly customizable solution for professional showcase lighting projects.
