Diamond Brite LEDs
2W Micro Dot 1.0 Light Series
2W Micro Dot 1.0 Light Series
Couldn't load pickup availability

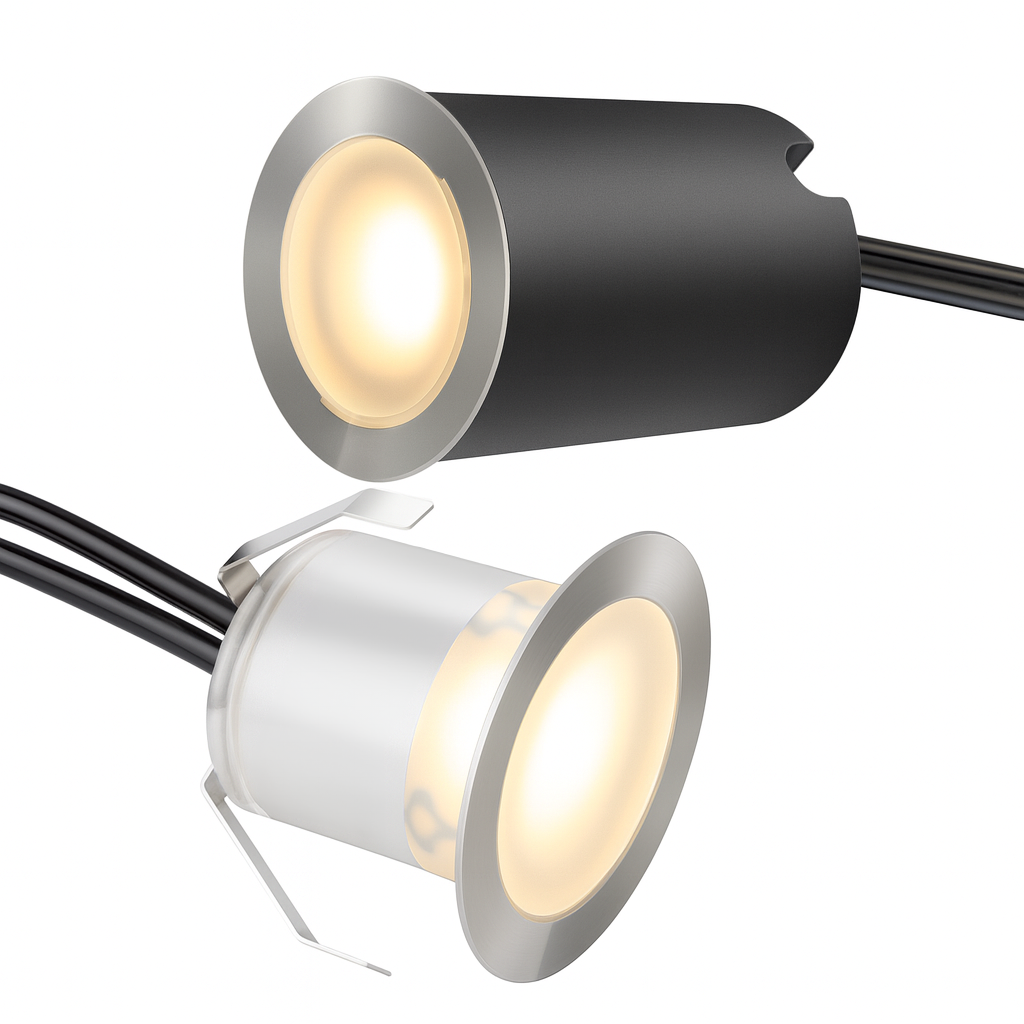

The 2W Micro Dot 1.0 Light Series is a compact recessed LED fixture designed for indoor and outdoor architectural applications. Delivering 200+ lumens with an IP67 waterproof rating, the Micro Dot 1.0 combines efficient illumination with a discreet profile for pathways, steps, walls, landscape features, and architectural accents.
Built with a die-cast aluminum housing and brushed stainless steel 1/4-inch trim, the fixture is suitable for inground, wall, brick masonry, drywall, and concrete-pour recessed installations. Waterproof wire plugs simplify daisy-chain connections, while 12V DC operation provides compatibility with remote LED drivers sold separately.
Features
- 2W LED recessed fixture
- Produces 200+ lumens
- Available in 2700K / 3000K / 3500K / 4100K / 5000K
- 12V DC operation
- Die-cast aluminum housing
- Brushed stainless steel 1/4" trim
- IP67 waterproof construction
- Suitable for indoor and outdoor installations
- Suitable for inground, wall, brick masonry, drywall, and concrete-pour recessed mounting
- Waterproof wire plugs for convenient daisy-chain connections
- Concrete pour approved
- Wet-location rated
- ETL Listed
- Rated for approximately 50,000 hours (L70)
- 5-year warranty
- LED driver required and sold separately
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Neutral White |
| 4100K | Cool White |
| 5000K | Daylight |
Installation Options
| Installation Type | Mounting |
|---|---|
| Inground | Recessed |
| Wall | Recessed |
| Brick Masonry | Recessed |
| Drywall | Recessed |
| Concrete Pour | Recessed |
Specifications
| Product Type | Recessed LED Light |
|---|---|
| Series | Micro Dot 1.0 |
| Wattage | 2W |
| Power Consumption | 1.8W ±8% |
| Light Output | 200+ lm |
| Voltage | 12V DC |
| Input Current | 0.02A |
| Frequency | 50/60Hz |
| THD | ≤10% |
| Color Temperature | 2700K / 3000K / 3500K / 4100K / 5000K |
| Housing | Die-Cast Aluminum |
| Trim | 1/4" Brushed Stainless Steel |
| Finish | Brushed Stainless Steel |
| IP Rating | IP67 Waterproof |
| Minimum Start Temperature | -4°F (-20°C) |
| Connection | Waterproof Wire Plugs / Daisy-Chain Compatible |
| LED Driver | Required – Sold Separately |
| Rated Lifespan | Approximately 50,000 Hours (L70) |
| Location Rating | Wet Location |
| Certification | ETL Listed / Concrete Pour Approved |
| Warranty | 5 Years |

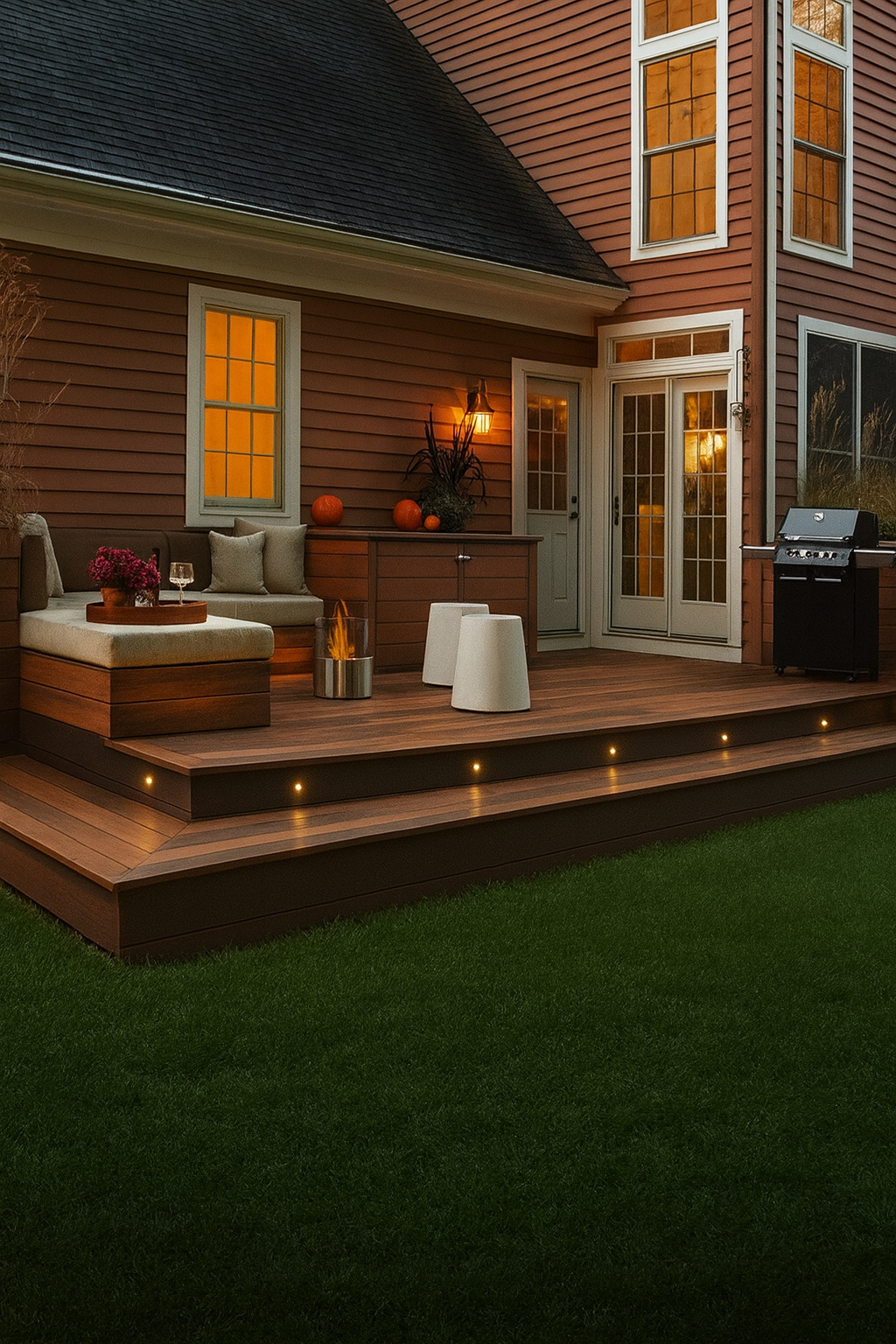

Applications

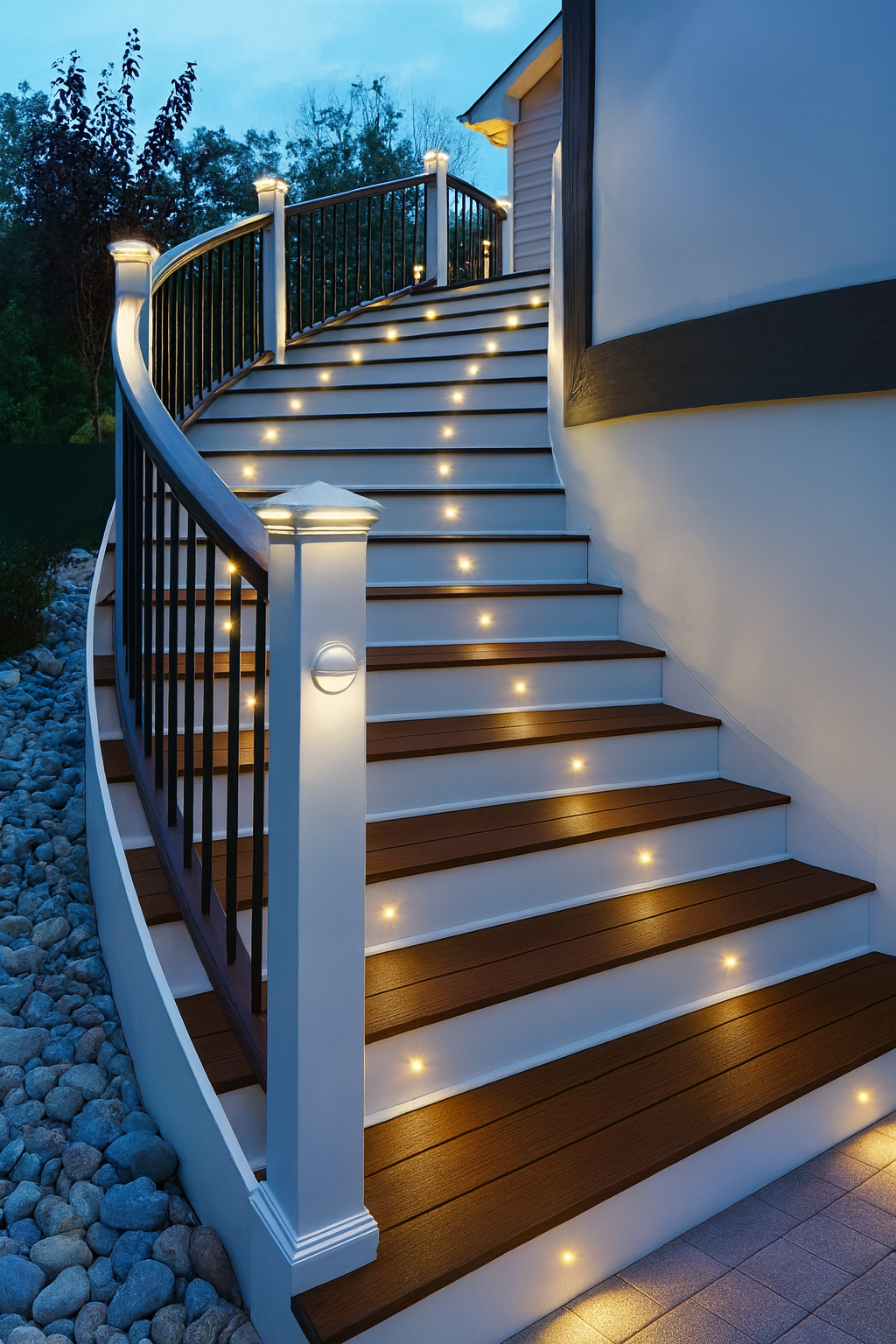

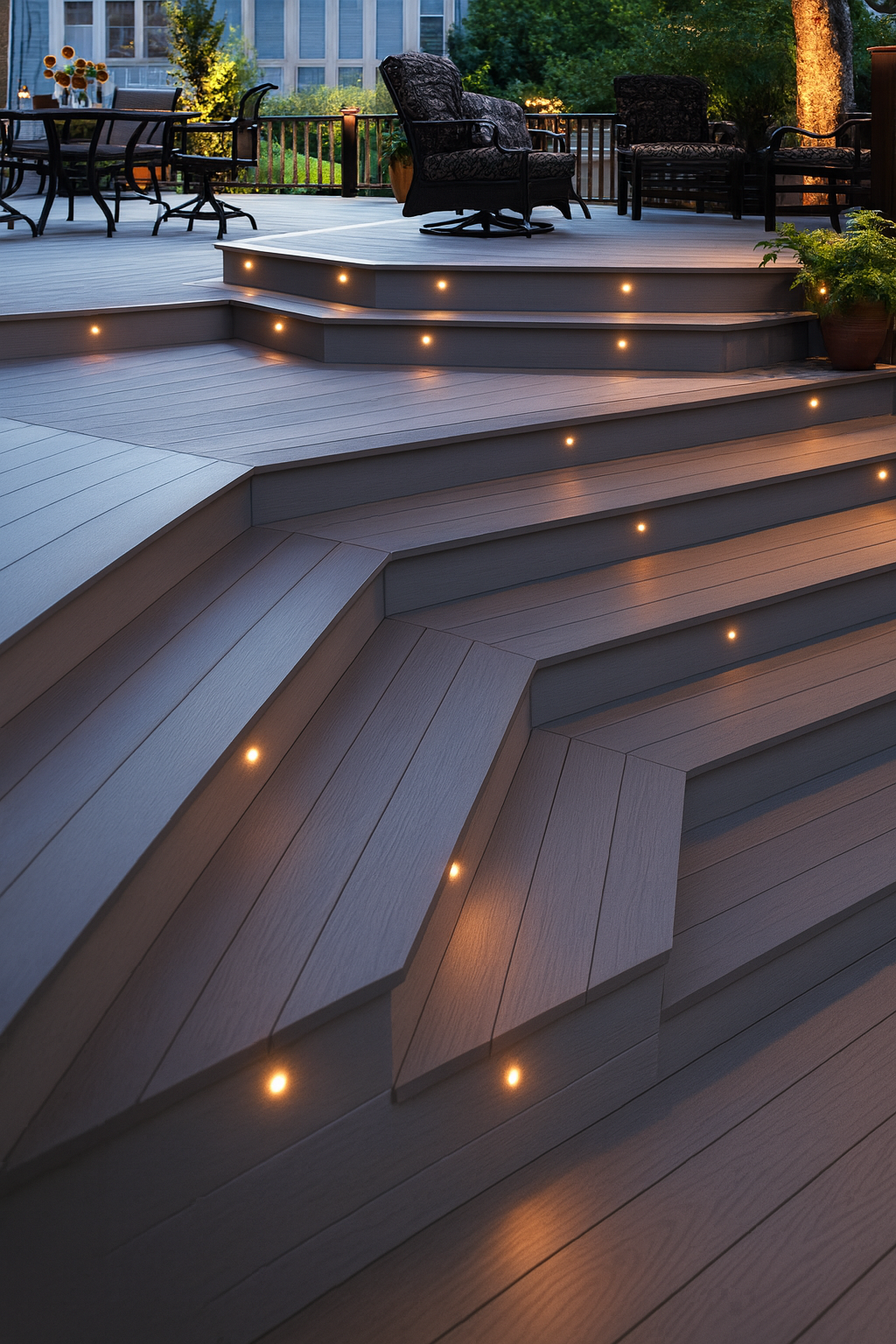

- Step & Stair Lighting

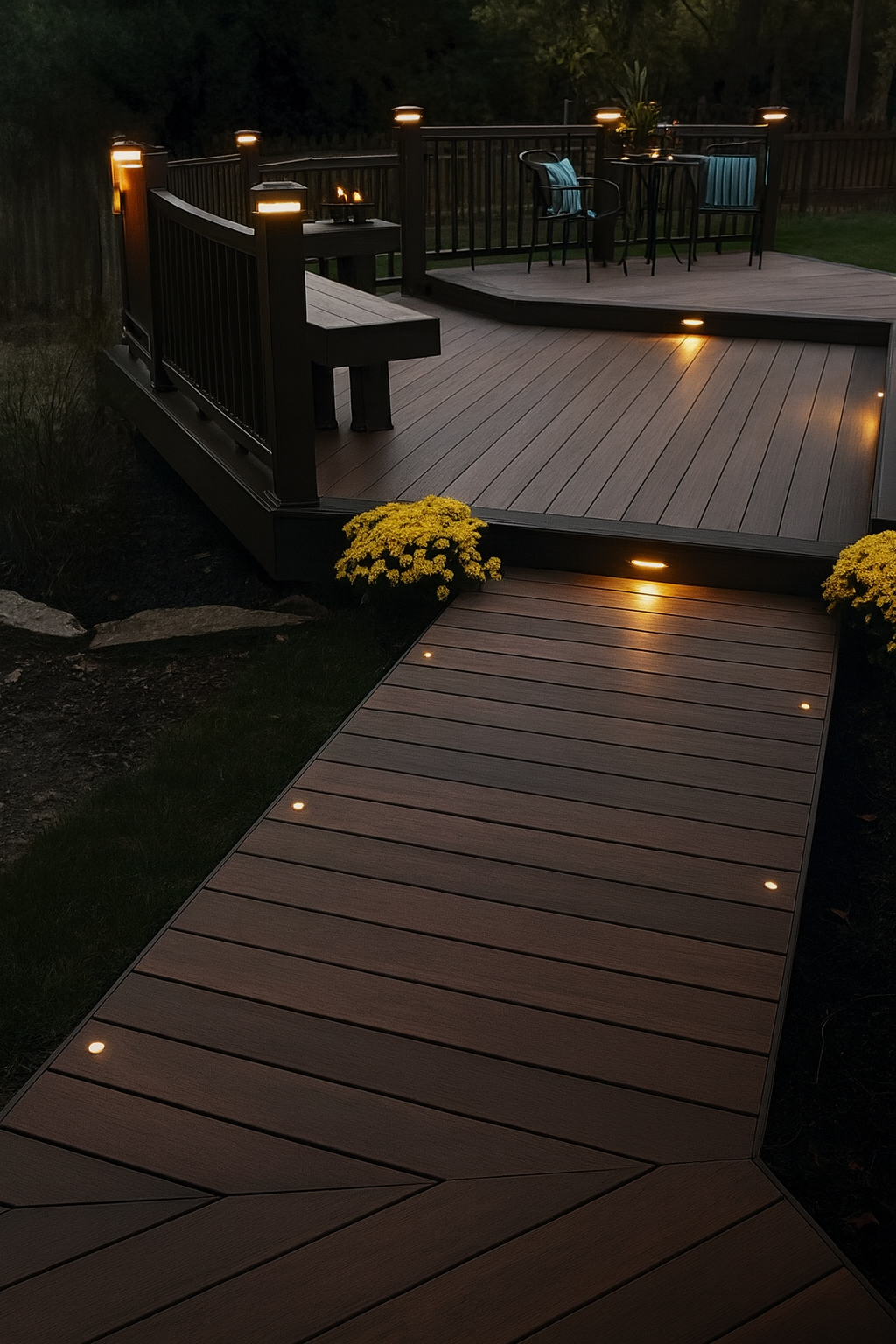

- Pathway Lighting
- Landscape Accents
- Inground Architectural Lighting
- Wall Recess Lighting
- Architectural Highlights
- Brick & Masonry Installations
- Residential Exterior Features
- Commercial Exterior Features
- Indoor & Outdoor Accent Lighting
Why Choose the Micro Dot 1.0 Light Series?
The Micro Dot 1.0 Light Series combines a compact recessed design with 200+ lumens of output, five color temperature options, and durable IP67 waterproof construction. Its die-cast aluminum housing and brushed stainless steel trim make it suitable for demanding indoor and outdoor architectural installations.
With waterproof daisy-chain connections, multiple recessed mounting options, 12V DC operation, ETL listing, wet-location rating, a 50,000-hour L70 rated lifespan, and a 5-year warranty, the Micro Dot 1.0 provides a versatile solution for pathways, steps, landscapes, walls, masonry, and other architectural lighting applications.
