Micro Curve Tower Series
Micro Curve Tower Series
Couldn't load pickup availability

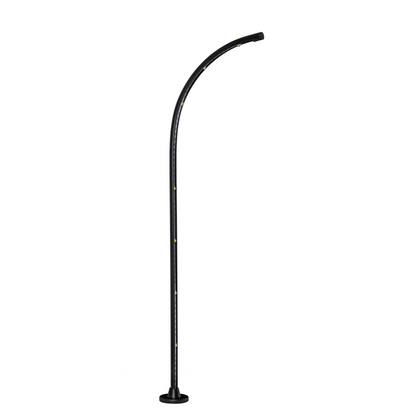

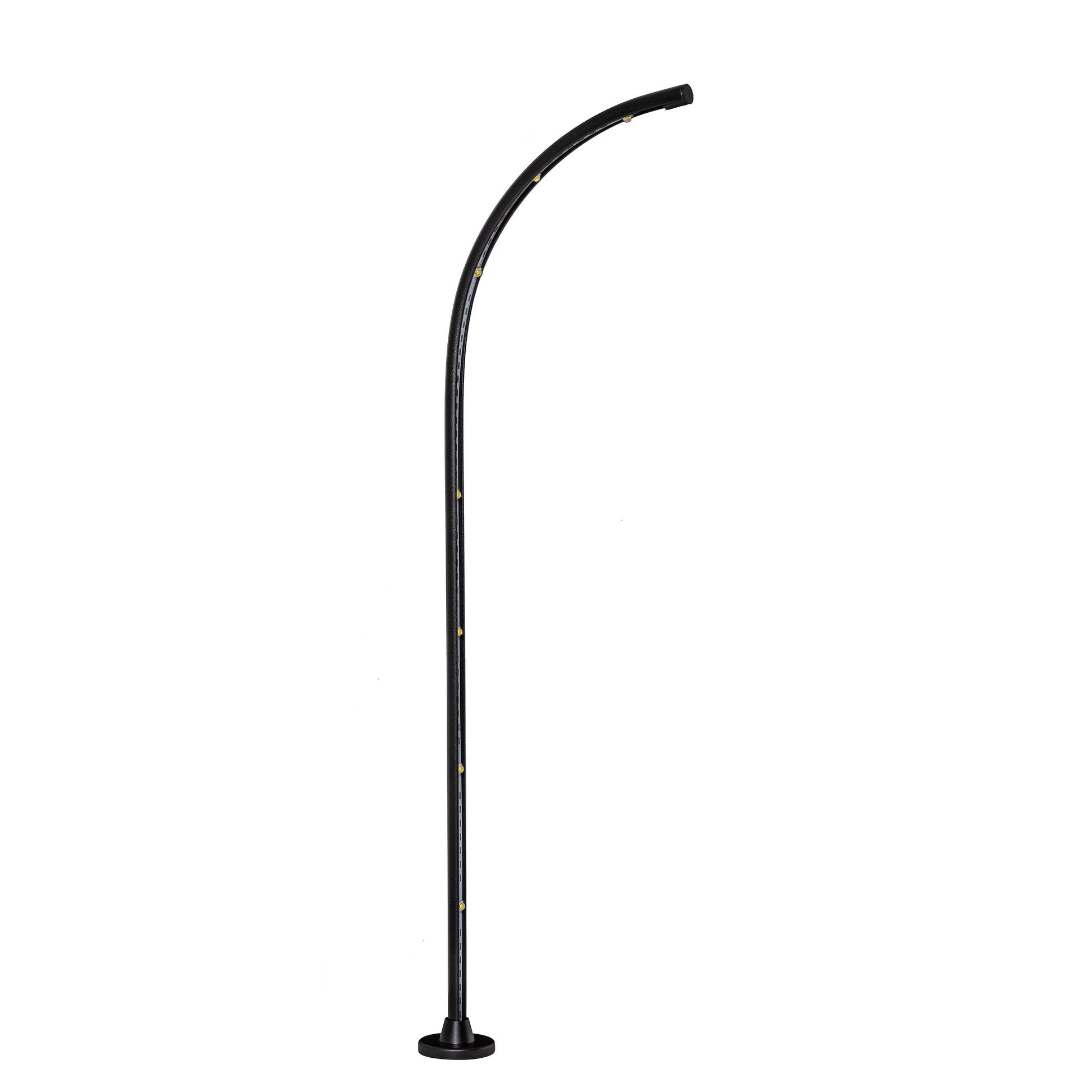

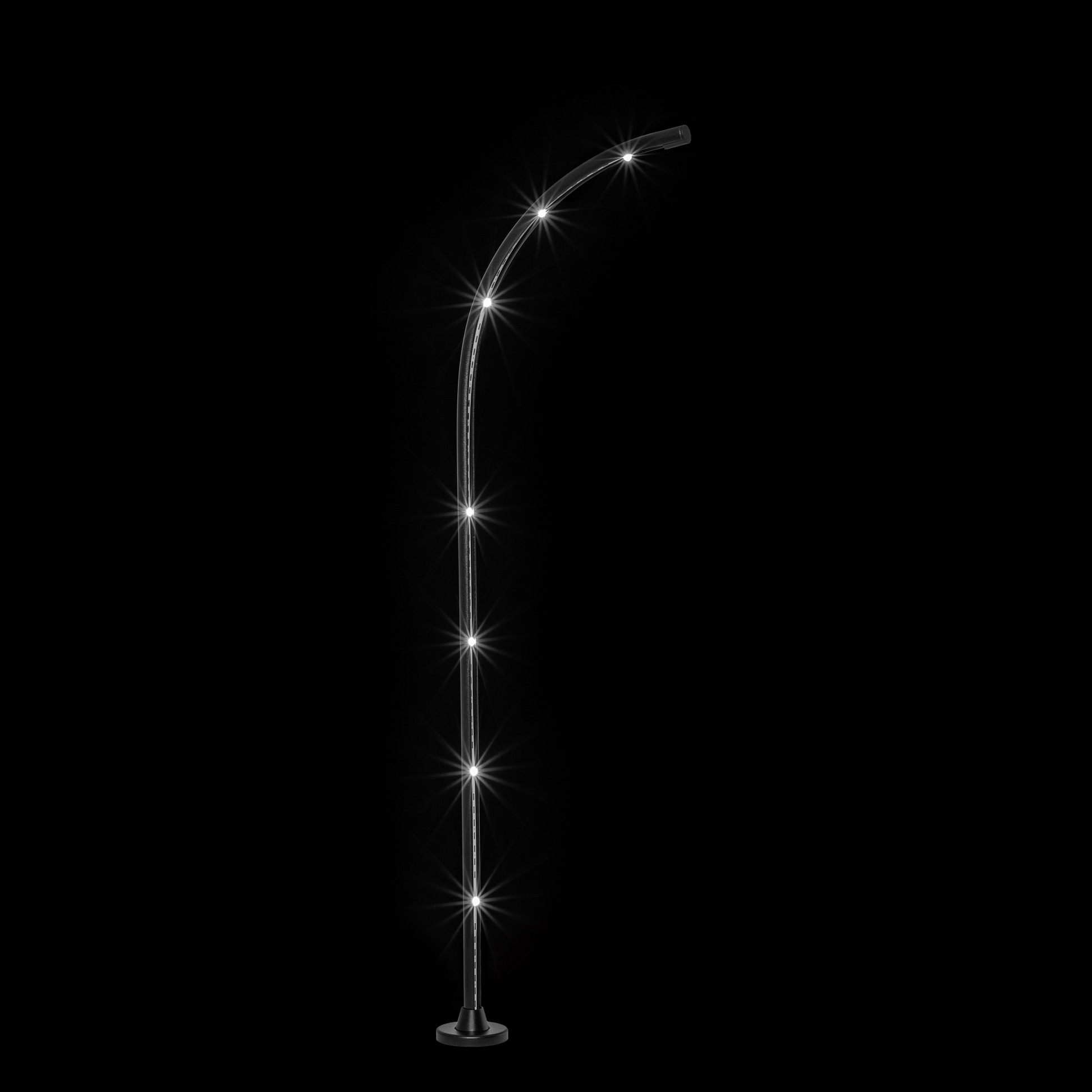

The Micro Curve Tower Series is a patented vertical LED showcase lighting system designed for jewelry, watches, artwork, optical displays, and high-end retail environments. Featuring an ultra-slim 6.8 mm profile and premium CREE LED technology, the Micro Curve delivers precise, high-quality illumination while maintaining an elegant and discreet presence within the display.
Available in configurations from 5W / 600 lumens up to 10W / 1,200 lumens, the Micro Curve Tower Series provides flexible illumination for showcases of different sizes. Multiple lengths, adjustable stem heights, mounting configurations, premium finishes, and color temperature options allow the fixture to be tailored to professional display lighting projects.
Features
- Patented curved vertical showcase lighting design
- Ultra-slim 0.27" (6.8 mm) profile
- Premium CREE LED technology
- Available from 5W / 600 lm up to 10W / 1,200 lm
- Multiple lengths from 183–783 mm
- Length configurations available in 50 mm increments
- Custom sizing available
- Adjustable stem height for installation flexibility
- Under-mount or surface-mount base options
- Available in 3000K, 4200K & 6500K
- High CRI options up to CRI 95
- DUO option with 2700K & 6500K
- Available in Satin Black, Satin Silver & Brushed Gold
- ETL Listed
- Conforms to UL Standard 1598
Color Temperature & CRI Options
| Color Temperature | Description | CRI |
|---|---|---|
| 3000K | Warm White | 95 |
| 4200K | Neutral White | 92 |
| 6500K | Cool White | 90 |
| 2700K & 6500K | DUO | 90 |
Power & Light Output
| Power | Light Output | Configuration |
|---|---|---|
| 5W | 600 lm | Varies by Length |
| Up to 10W | Up to 1,200 lm | Varies by Length |
Length Options
| Length Range | Increment |
|---|---|
| 7.2"–30.8" (183–783 mm) | Approximately 2" (50 mm) |
Custom sizing is also available for project-specific showcase requirements.
Finish Options
- Satin Black
- Satin Silver
- Brushed Gold
Mounting Options
- Under-Mount Base: Designed for discreet integration into showcase installations
- Surface-Mount Base: Provides a flexible surface-mounted installation option
- Adjustable Stem: Allows the fixture height to be adapted to different display configurations
Specifications
| Product Type | Vertical LED Showcase Light |
|---|---|
| Series | Micro Curve Tower Series |
| LED Source | CREE LEDs |
| Power Range | 5W–10W Depending on Length / Configuration |
| Light Output | 600–1,200 lm Depending on Length / Configuration |
| Color Temperatures | 3000K / 4200K / 6500K / DUO 2700K & 6500K |
| CRI | Up to CRI 95 Depending on Color Temperature |
| Profile | 0.27" (6.8 mm) |

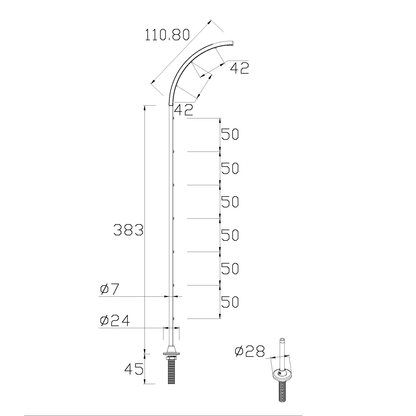

| Available Lengths | 7.2"–30.8" (183–783 mm), in 2" (50 mm) Increments |
| Stem | Height Adjustable |
| Mounting | Under-Mount / Surface-Mount |
| Finish Options | Satin Black / Satin Silver / Brushed Gold |
| Listing | ETL Listed |
| Compliance | Conforms to UL Standard 1598 |
Applications

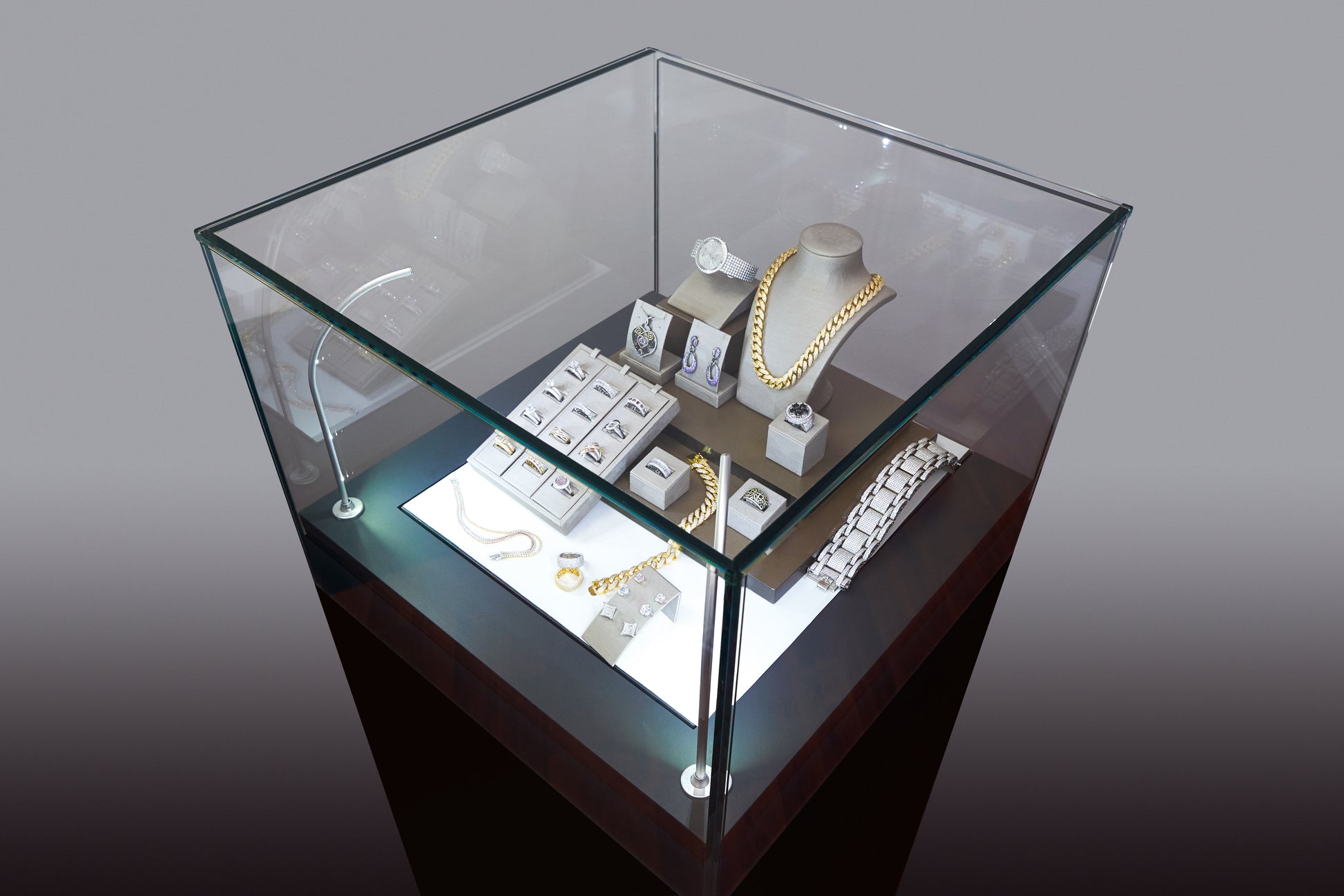

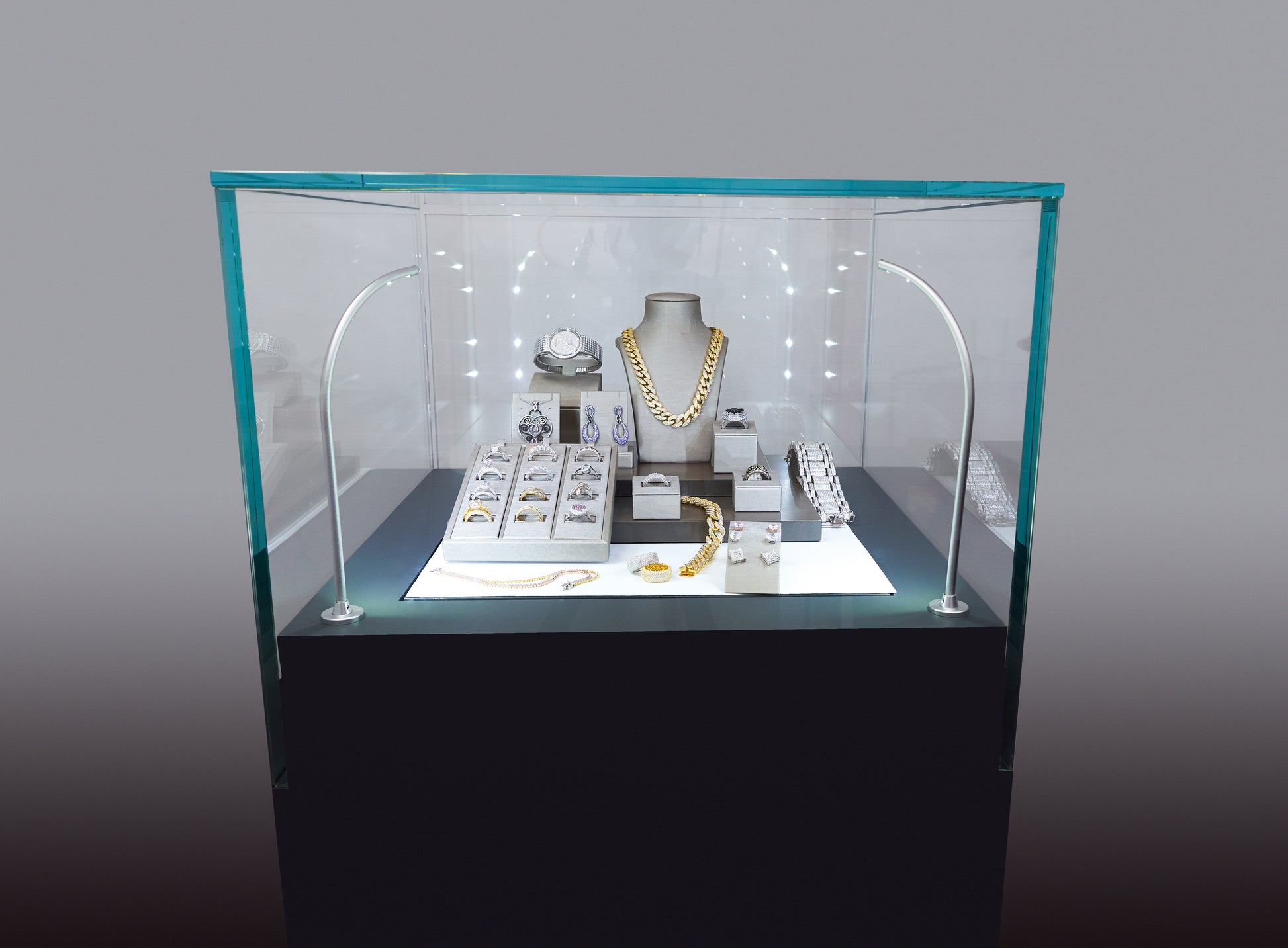

- Jewelry & Diamond Showcases
- Watch Displays
- Optical Displays
- Antique & Craft Displays
- Art Galleries
- Museums & Exhibitions
- Luxury Boutiques
- High-End Retail Environments
- Specialty Product Showcases
Why Choose the Micro Curve Tower Series?
The Micro Curve Tower Series combines an ultra-slim 6.8 mm profile with premium CREE LED technology and an elegant curved design for professional showcase illumination. With configurations ranging from 600 to 1,200 lumens, the series provides the output needed to highlight jewelry, watches, artwork, and premium merchandise while maintaining a refined appearance within the display.
With lengths from 183–783 mm, adjustable stem heights, under-mount and surface-mount bases, three premium finishes, and color temperatures with CRI up to 95, the Micro Curve Tower Series provides a highly customizable lighting solution for luxury retail and professional display environments.
