Diamond Brite LEDs
Micro Alto Tower Series
Micro Alto Tower Series
Couldn't load pickup availability
The Micro Alto Tower Series is an ultra-slim vertical LED showcase lighting system designed for jewelry, watches, artwork, optical displays, and high-end retail environments. Featuring a discreet 6.8 mm profile and premium CREE LED light engines, the Micro Alto delivers high-output, evenly distributed illumination while maintaining a minimal presence within the display.
Available in multiple lengths, three premium finishes, and several color temperature configurations, the Micro Alto Tower Series provides extensive design flexibility. Adjustable stem heights and under-mount or surface-mount base options allow the lighting system to be tailored to a wide variety of professional showcase installations.
Features
- Ultra-slim 0.27" (6.8 mm) profile
- Premium CREE LED light engines
- High-output illumination with even light distribution
- Available in multiple lengths from 140 mm to 790 mm
- Length configurations available in 50 mm increments
- Available in Satin Black, Satin Silver & Brushed Gold
- Adjustable stem height for installation flexibility
- Under-mount or surface-mount base options
- Available in 3000K, 4200K & 6500K
- High CRI options up to CRI 95
- DUO option with 2700K & 6500K
- Output configurations from 4W / 480 lm up to 9W / 1,080 lm
- Designed for premium vertical showcase illumination
- ETL Listed
- Conforms to UL Standard 1598
Color Temperature & CRI Options
| Color Temperature | Description | CRI |
|---|---|---|
| 3000K | Warm White | 95 |
| 4200K | Neutral White | 92 |
| 6500K | Cool White | 90 |
| 2700K & 6500K | DUO | Varies by Color Temperature |
Finish Options
- Satin Black
- Satin Silver
- Brushed Gold
Mounting Options
- Under-Mount Base: Designed for discreet integration into showcase installations
- Surface-Mount Base: Provides a flexible surface-mounted installation option
- Adjustable Stem: Allows the fixture height to be adjusted for different display configurations
Specifications
| Product Type | Vertical LED Showcase Light |
|---|---|
| Series | Micro Alto Tower Series |
| LED Source | CREE LED Light Engine |
| Power Range | 4W–9W Depending on Length / Configuration |
| Light Output | 480–1,080 lm Depending on Length / Configuration |
| Color Temperatures | 3000K / 4200K / 6500K / DUO 2700K & 6500K |
| CRI | Up to CRI 95 Depending on Color Temperature |
| Profile | 0.27" (6.8 mm) |

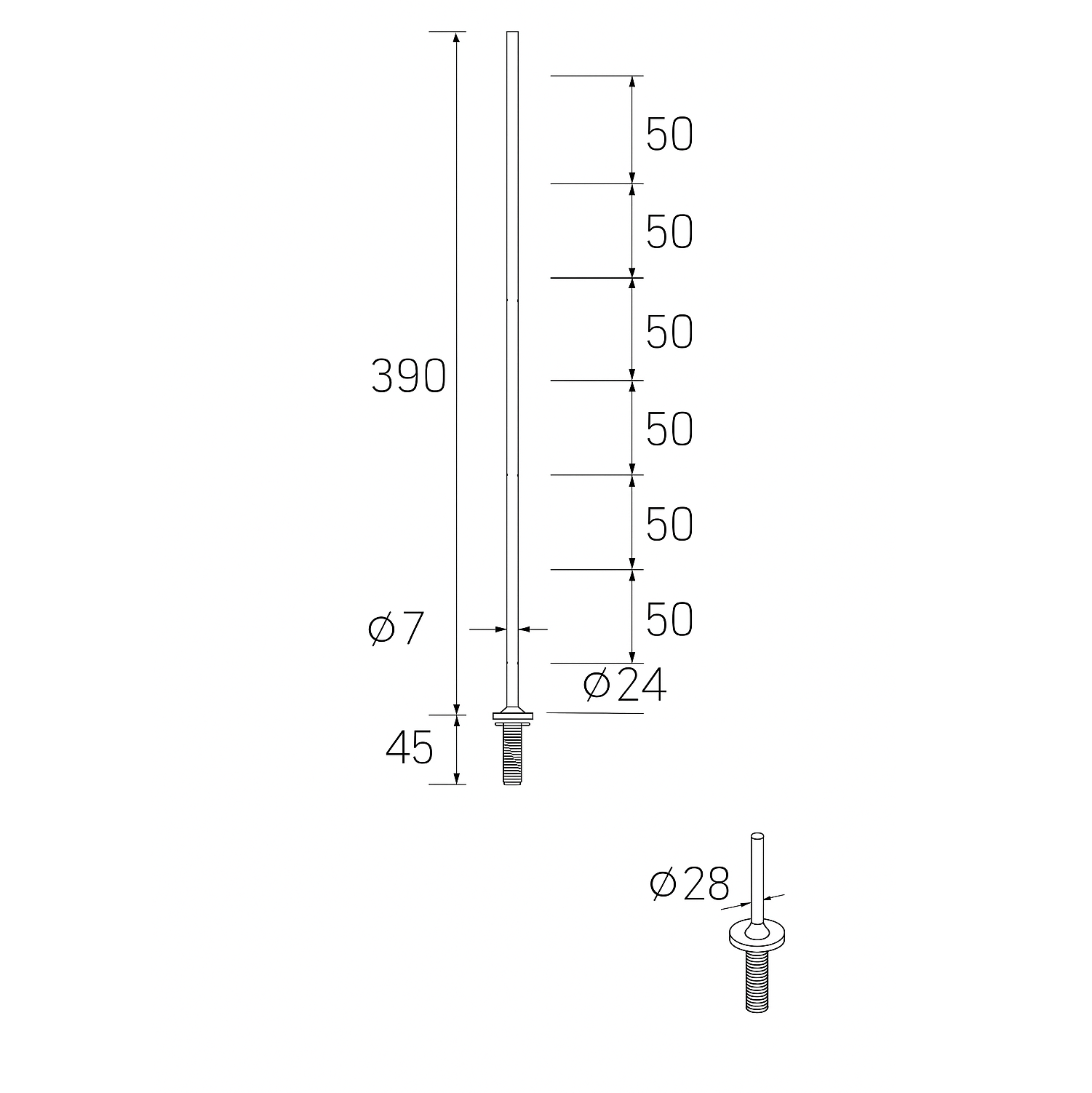

| Available Lengths | 5.5"–31.1" (140–790 mm), in 2" (50 mm) Increments |
| Output Range | 4W / 480 lm at 9.4" up to 9W / 1,080 lm at 19.3" |
| Mounting | Under-Mount / Surface-Mount |
| Stem | Height Adjustable |
| Finish Options | Satin Black / Satin Silver / Brushed Gold |
| Listing | ETL Listed |
| Compliance | Conforms to UL Standard 1598 |
Applications
- Jewelry & Diamond Showcases
- Watch Displays
- Antique & Craft Displays
- Optical Shops
- Art Galleries
- Museums & Exhibitions
- Luxury Boutiques
- High-End Retail Environments
- Specialty Product Showcases
Why Choose the Micro Alto Tower Series?
The Micro Alto Tower Series combines an exceptionally slim 6.8 mm profile with premium CREE LED technology to provide powerful vertical illumination without distracting from the merchandise being displayed. With output configurations ranging from 480 to 1,080 lumens, the series is designed to highlight fine details in jewelry, watches, artwork, and other premium products.
Multiple lengths, adjustable stem heights, under-mount and surface-mount bases, premium finish options, and color temperatures with CRI up to 95 allow the Micro Alto Tower Series to be customized for a wide variety of professional showcase designs.
