16.8W Matrix Wall Washer Series
16.8W Matrix Wall Washer Series
Couldn't load pickup availability

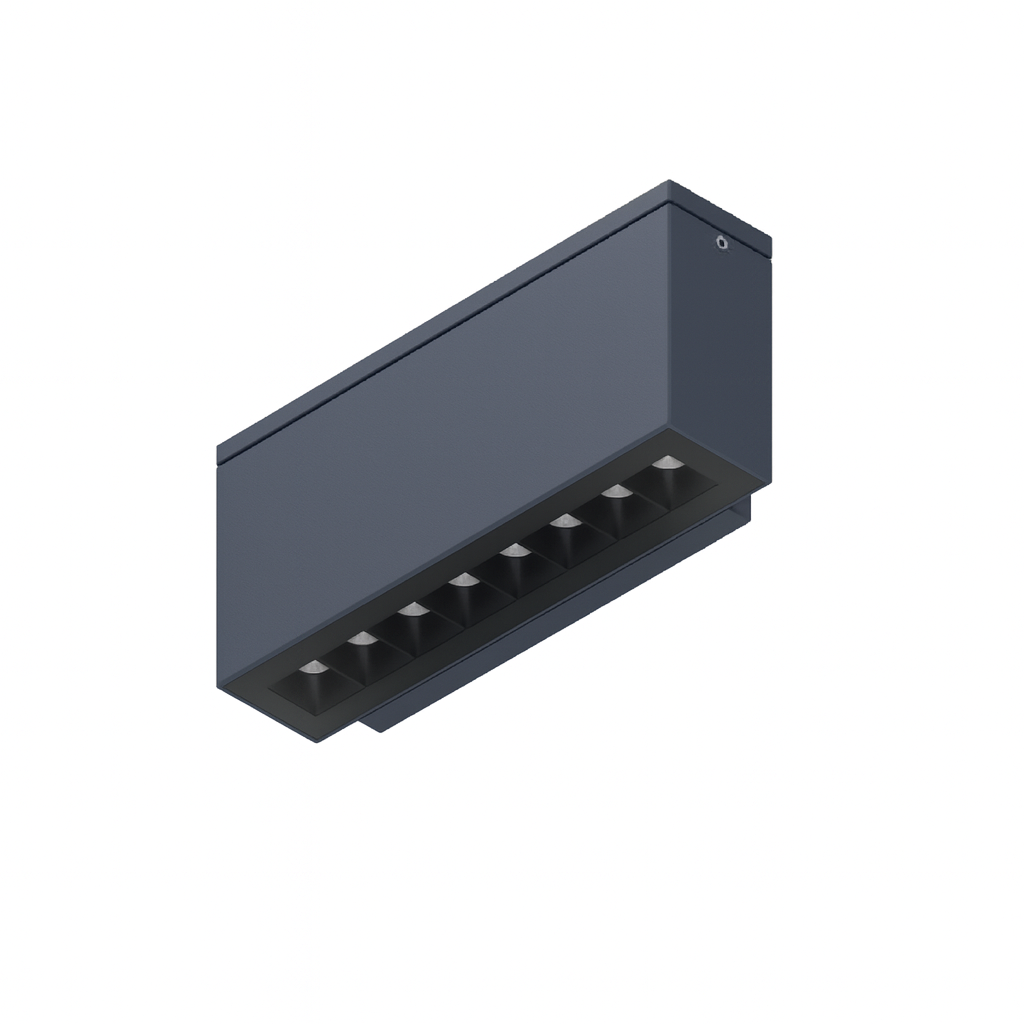

The 16.8W Matrix Wall Washer Series is a sleek architectural LED fixture designed to illuminate walls, stone, textured surfaces, and building façades with powerful, uniform light. Delivering 1,600 total lumens and 1,552 delivered lumens, its minimalist cast-aluminum body provides high-performance illumination in a slim architectural form suitable for both indoor and outdoor applications.
Available with five beam spread options and 90 CRI, the Matrix Wall Washer provides precise optical control and accurate color rendering for a variety of architectural environments. The fixture is IP66 rated, ADA compliant, CEC Title 24 JA8-2022 compliant, and can be mounted upward or downward in any orientation.
Features
- 16.8W power consumption
- Produces 1,600 total lumens
- Delivers 1,552 lumens
- 90 CRI for accurate color rendering
- Available beam spreads: 15° / 19° / 23° / 34° / 59°
- Standard 3000K color temperature
- Custom 2700K–5000K options available with minimum order quantity
- Cast-aluminum construction
- Available in Black, White, and Brushed Nickel finishes
- IP66 rated for indoor and outdoor applications
- ADA compliant
- CEC Title 24 JA8 Certified – JA8-2022 compliant
- ELV dimmable from 100%–10%
- Compatible ELV dimmer not included
- Can be mounted upward or downward in any orientation
- Rated for approximately 50,000 hours
Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 3000K | Standard |
| 2700K–5000K | Custom – Minimum Order Quantity Applies |
Beam Angle Options
| Beam Angle | Distribution |
|---|---|
| 15° | Narrow Beam |
| 19° | Narrow Beam |
| 23° | Medium-Narrow Beam |
| 34° | Medium Beam |
| 59° | Wide Beam |
Finish Options
- Black
- White
- Brushed Nickel
Specifications
| Product Type | LED Wall Washer |
|---|---|
| Series | Matrix Wall Washer |
| Wattage | 16.8W |
| Total Light Output | 1,600 lm |
| Delivered Light Output | 1,552 lm |
| Voltage | 120V AC |
| Color Temperature | 3000K Standard / 2700K–5000K Custom |
| CRI | 90 |
| Beam Angles | 15° / 19° / 23° / 34° / 59° |
| Dimming | ELV, 100%–10% |
| Construction | Cast Aluminum |
| Finish Options | Black / White / Brushed Nickel |

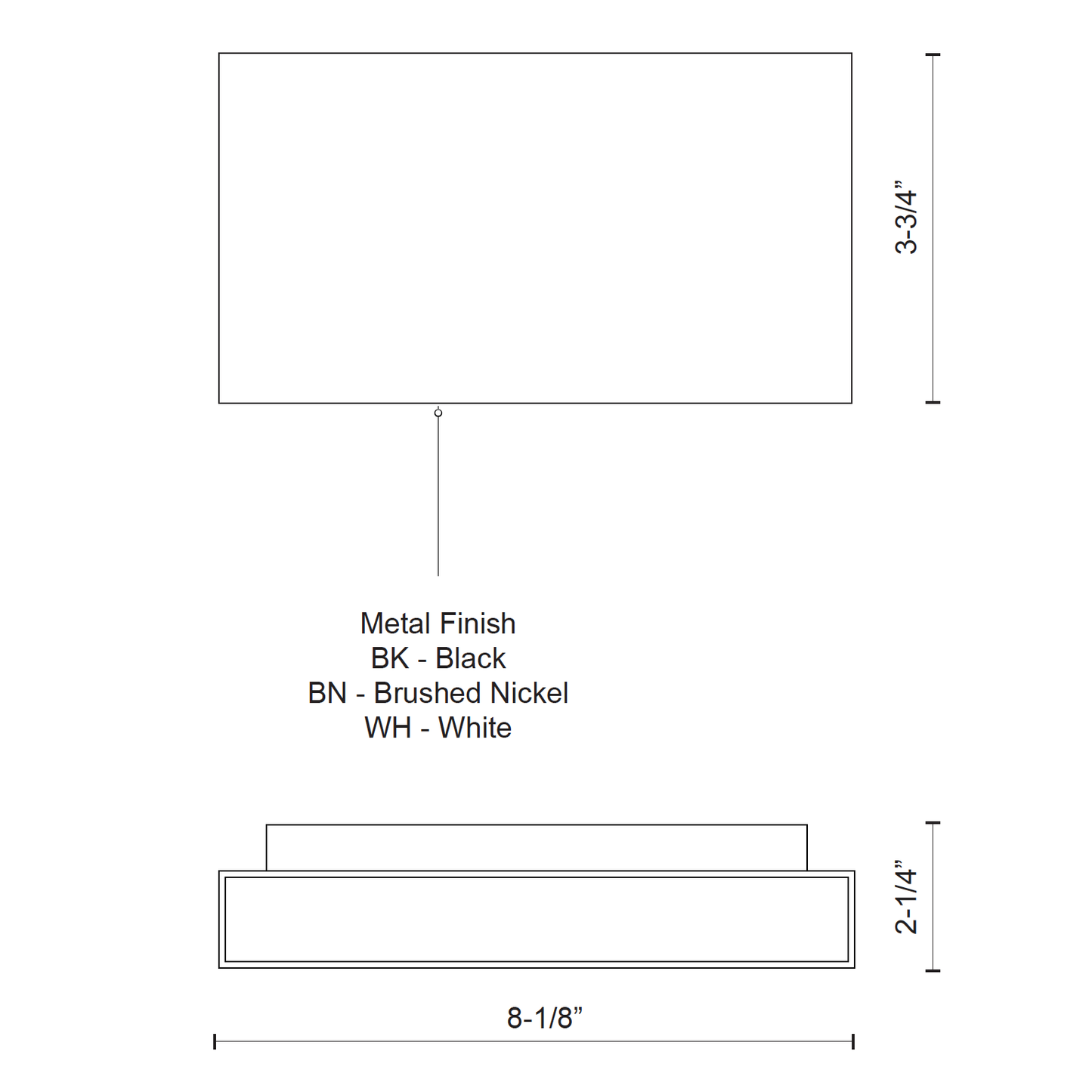

| Dimensions | 8.1" W × 3.8" H × 2.3" E (206 × 95 × 57 mm) |
| IP Rating | IP66 |
| Mounting Orientation | Upward or Downward / Any Orientation |
| Rated Lifespan | Approximately 50,000 Hours |
| Compliance | ADA Compliant / CEC Title 24 JA8-2022 |
Applications
- Architectural Wall Lighting
- Building Façades
- Stone & Textured Walls
- Exterior Architectural Features
- Indoor Feature Walls
- Gallery Spaces
- Hospitality Interiors & Exteriors
- Residential Architectural Lighting
- Commercial Architectural Lighting
Why Choose the Matrix Wall Washer Series?
The Matrix Wall Washer Series combines 1,552 delivered lumens, 90 CRI, and five precision beam options to provide controlled architectural illumination for walls, façades, stone, and textured surfaces. Its slim cast-aluminum body and multiple finish options provide a minimalist appearance that integrates cleanly into modern architectural environments.
With IP66 protection, ELV dimming from 100%–10%, flexible mounting orientation, ADA compliance, CEC Title 24 JA8-2022 compliance, and an approximately 50,000-hour rated lifespan, the Matrix Wall Washer provides a versatile lighting solution for demanding indoor and outdoor architectural applications.
