Diamond Brite LEDs
115W Magnum Retrofit Lamp Series
115W Magnum Retrofit Lamp Series
Couldn't load pickup availability

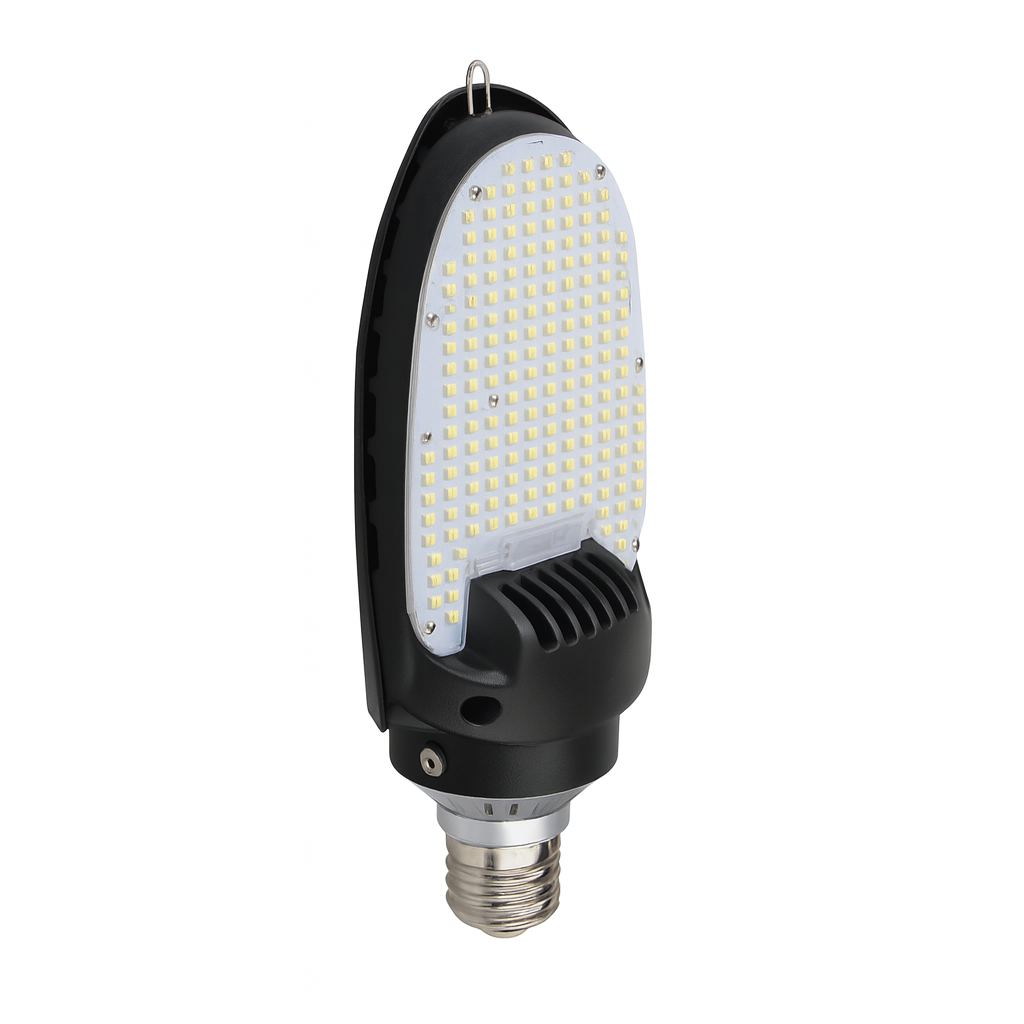

The 115W Magnum Retrofit Lamp Series is a professional-grade LED retrofit solution designed to replace 200W CFL and 400W HID, MHL, and HPS lamps. Delivering 12,500–13,500 lumens, the Magnum provides powerful illumination and efficient performance for roadway, parking lot, area, site, and other retrofit lighting applications.
Built with 196 PHILIPS LUMILEDS Luxeon 3030 2D LEDs, an internal driver, and a durable magnesium alloy, aluminum, and PC housing, the Magnum is engineered for long-term performance. Its E39 and EX39 base options feature 270° rotation for flexible positioning, while an integrated SUNON cooling fan helps manage heat during operation.
Features
- 115W power consumption
- Produces 12,500–13,500 lumens
- Efficiency of 108–118 lm/W in luminaire applications
- 196 PHILIPS LUMILEDS Luxeon 3030 2D LEDs
- CRI >80
- 90° × 150° Type III beam distribution
- Available in 4000K / 5000K / 5700K
- AC100–277V, 50/60Hz operation
- Internal LED driver

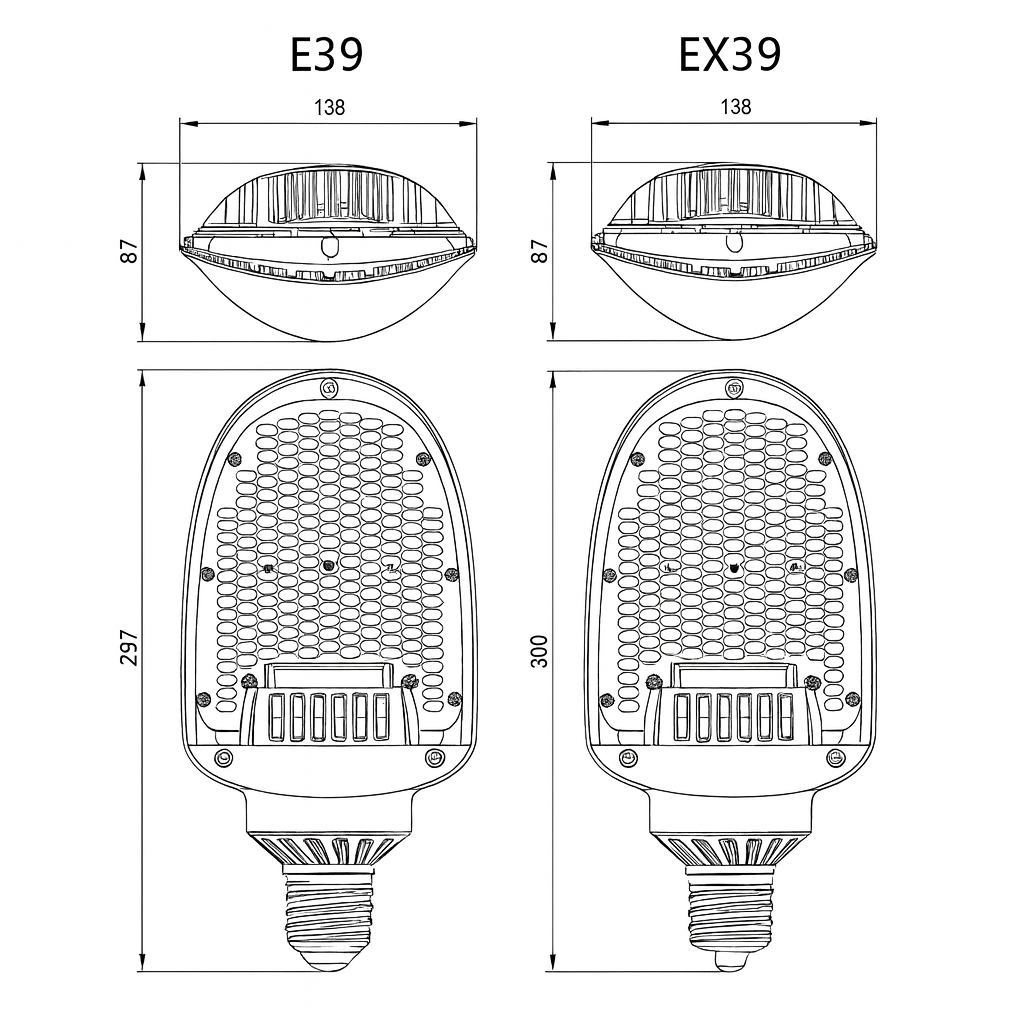

- E39 and EX39 base options
- 270° rotatable base for flexible positioning
- Integrated SUNON cooling fan
- Magnesium alloy, aluminum, and PC construction
- Power Factor >0.9
- IP51 rated for damp locations
- Rated for approximately 50,000 hours
- UL, cUL, and DLC Listed
- 5-year warranty
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 4000K | Natural White |
| 5000K | Daylight |
| 5700K | Cool Daylight |
Lamp Replacement
| LED Wattage | Replaces | Light Output |
|---|---|---|
| 115W | 200W CFL | 12,500–13,500 lm |
| 115W | 400W HID / MHL / HPS | 12,500–13,500 lm |
Specifications
| Product Type | LED Retrofit Lamp |
|---|---|
| Series | Magnum |
| Wattage | 115W |
| Light Output | 12,500–13,500 lm |
| Efficiency | 108–118 lm/W in Luminaire Applications |
| LED Source | PHILIPS LUMILEDS Luxeon 3030 2D |
| LED Quantity | 196 |
| Color Temperature | 4000K / 5000K / 5700K |
| CRI | >80 |
| Beam Distribution | 90° × 150° (Type III) |
| Input Voltage | AC100–277V, 50/60Hz |
| Driver | Internal |
| Base Options | E39 / EX39 |
| Base Adjustment | 270° Rotation |
| Cooling | Integrated SUNON Fan |
| Construction | Magnesium Alloy / Aluminum / PC |
| Power Factor | >0.9 |
| Operating Temperature | -4°F to 113°F (-20°C to +45°C) |
| IP Rating | IP51 |
| Location Rating | Damp Location |
| Rated Lifespan | Approximately 50,000 Hours |
| Certifications | UL / cUL / DLC Listed |
| Warranty | 5 Years |
Applications
- Outdoor Pole & Arm-Mounted Fixtures
- Roadway Luminaires
- Type B Roadway Fixtures
- Parking Lot Lighting
- Area & Site Lighting
- Commercial Exterior Lighting
- LED Retrofit Projects
- HID, MHL & HPS Lamp Replacement
Why Choose the Magnum Retrofit Lamp Series?
The Magnum 115W Retrofit Lamp Series delivers 12,500–13,500 lumens while replacing traditional 200W CFL and 400W HID, MHL, or HPS lamps. Its 90° × 150° Type III distribution provides broad coverage for roadway, parking lot, area, and site lighting applications.
With PHILIPS LUMILEDS technology, a 270° rotatable E39 or EX39 base, integrated SUNON cooling fan, AC100–277V operation, IP51 protection, UL, cUL, and DLC listings, an approximately 50,000-hour rated lifespan, and a 5-year warranty, the Magnum provides a durable and efficient solution for upgrading existing lighting systems to LED.
