8W/FT Linear X-LUME Luminaire Series
8W/FT Linear X-LUME Luminaire Series
Couldn't load pickup availability

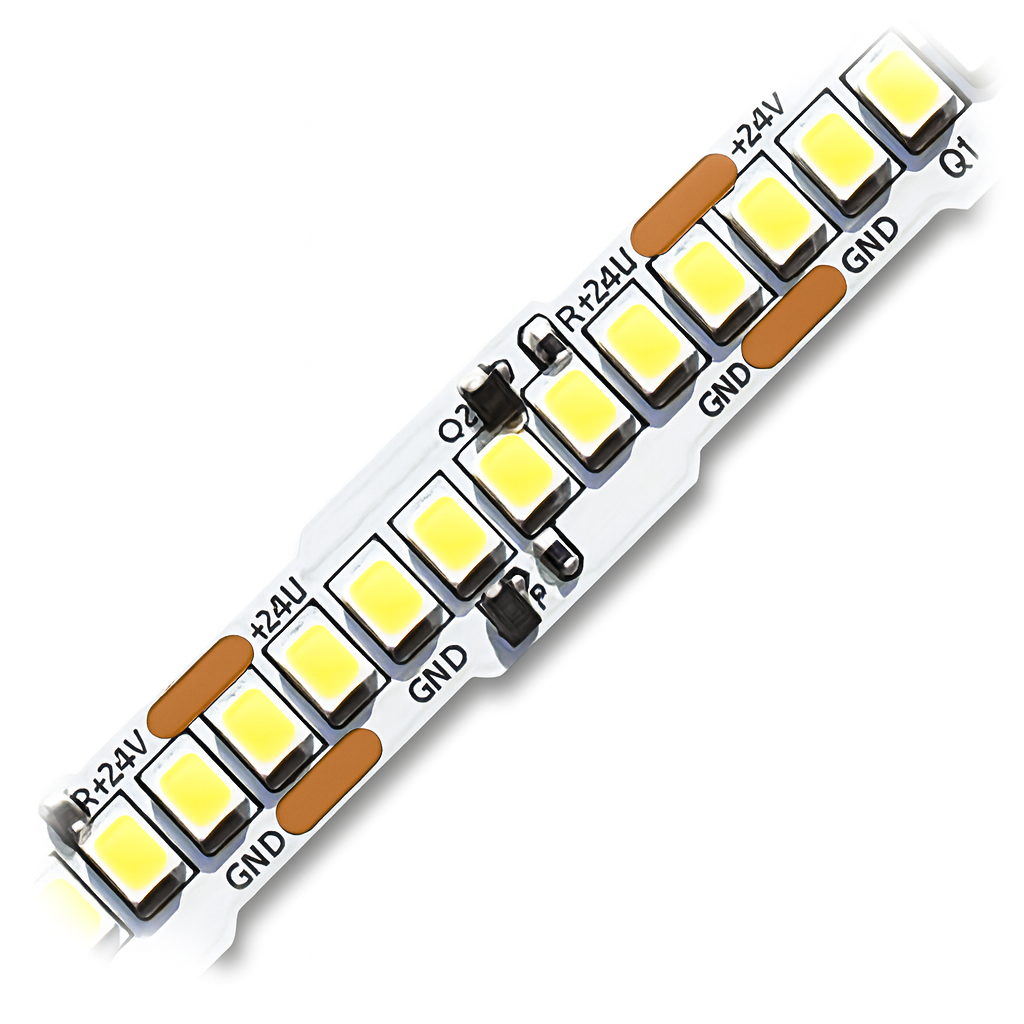

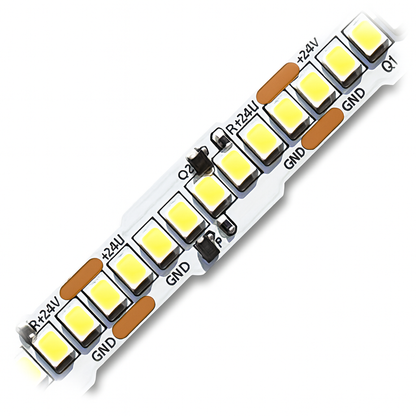

The Linear X-LUME Luminaire Series is a high-density, flexible LED lighting solution designed for architectural, accent, and decorative applications. Featuring 96 LEDs per foot and consuming 8W per foot, the series provides smooth, continuous illumination for residential and commercial lighting projects.
With cut points every 1.0 inch, multiple white and accent color options, three voltage configurations, and several optical and IP-rated configurations, the Linear X-LUME Luminaire Series can be customized for a wide range of indoor, outdoor, and wet-location installations.
Features
- 96 LEDs per foot for smooth, high-density illumination
- 8W per foot power consumption
- Available in lengths starting at 1 ft
- Cuttable every 1.0 inch for custom installations
- Multiple white color temperatures from 2200K to 7500K
- Available in Amber, Blue, Green, and Red accent colors
- 12V DC / 24V DC / 42V DC voltage options
- Clear, Semi-Clear, and Frosted cover options
- 120° wide beam angle
- IP20, IP50, IP66, and IP68 configurations available
- Suitable for indoor, outdoor, and submersible applications depending on selected IP rating
- Conforms to UL Standard 1598
White Color Temperature Options
| Color Temperature | Light Appearance |
|---|---|
| 2200K | Extra Warm White |
| 2700K | Warm White |
| 3000K | Soft White |
| 3700K | Neutral White |
| 4200K | Cool White |
| 5000K | Bright White |
| 6500K | Daylight White |
| 7500K | Cool Daylight |
Accent Color Options
| Color | Wavelength |
|---|---|
| Amber | 580–590 nm |
| Blue | 465–475 nm |
| Green | 520–530 nm |
| Red | 620–630 nm |
Power by Length
| Length | Power Consumption |
|---|---|
| 1 ft | 8W |
| 2 ft | 16W |
| 3 ft | 24W |
| 4 ft | 32W |
| 5 ft | 40W |
| 6 ft | 48W |
| 7 ft | 56W |
| 8 ft | 64W |
IP Rating Options
| IP Rating | Application |
|---|---|
| IP20 | Indoor Use |
| IP50 | Weatherproof Configuration |
| IP66 | Outdoor-Rated Configuration |
| IP68 | Submersible / Wet-Location Configuration |
Specifications
| Product Type | Flexible Linear LED Luminaire |
|---|---|
| Series | Linear X-LUME Luminaire Series |
| LED Density | 96 LEDs per Foot |
| Power Consumption | 8W per Foot |
| Available Lengths | 1 ft and Longer |
| Cut Interval | Every 1.0" |
| White CCT Options | 2200K / 2700K / 3000K / 3700K / 4200K / 5000K / 6500K / 7500K |
| Accent Colors | Amber / Blue / Green / Red |
| Voltage Options | 12V DC / 24V DC / 42V DC |
| Beam Angle | 120° |
| Optical Covers | Clear / Semi-Clear / Frosted |
| IP Rating Options | IP20 / IP50 / IP66 / IP68 |
| Compliance | Conforms to UL Standard 1598 |
Applications
- Cove Lighting
- Under-Cabinet Lighting
- Architectural Accent Lighting
- Retail Displays
- Signage Backlighting
- Wall Washing
- Decorative Lighting
- Pathway Illumination
- Residential Interiors
- Commercial Interiors
- Outdoor Lighting with IP66 Configuration
- Submersible & Wet-Location Projects with IP68 Configuration
Why Choose the Linear X-LUME Luminaire Series?
The Linear X-LUME Luminaire Series combines 96 LEDs per foot, a wide 120° beam angle, and flexible 1.0-inch cut intervals to provide smooth illumination for customized architectural and accent lighting installations. Multiple white CCTs and dedicated accent colors provide extensive flexibility for decorative, functional, and specialty lighting designs.
With 12V DC, 24V DC, and 42V DC options, multiple optical covers, and IP configurations ranging from IP20 through IP68, the Linear X-LUME Luminaire Series can be configured for indoor, outdoor, and submersible applications while providing an adaptable solution for residential and commercial lighting projects.
