11W/FT Linear Surface Architectural Blade Series
11W/FT Linear Surface Architectural Blade Series
Couldn't load pickup availability

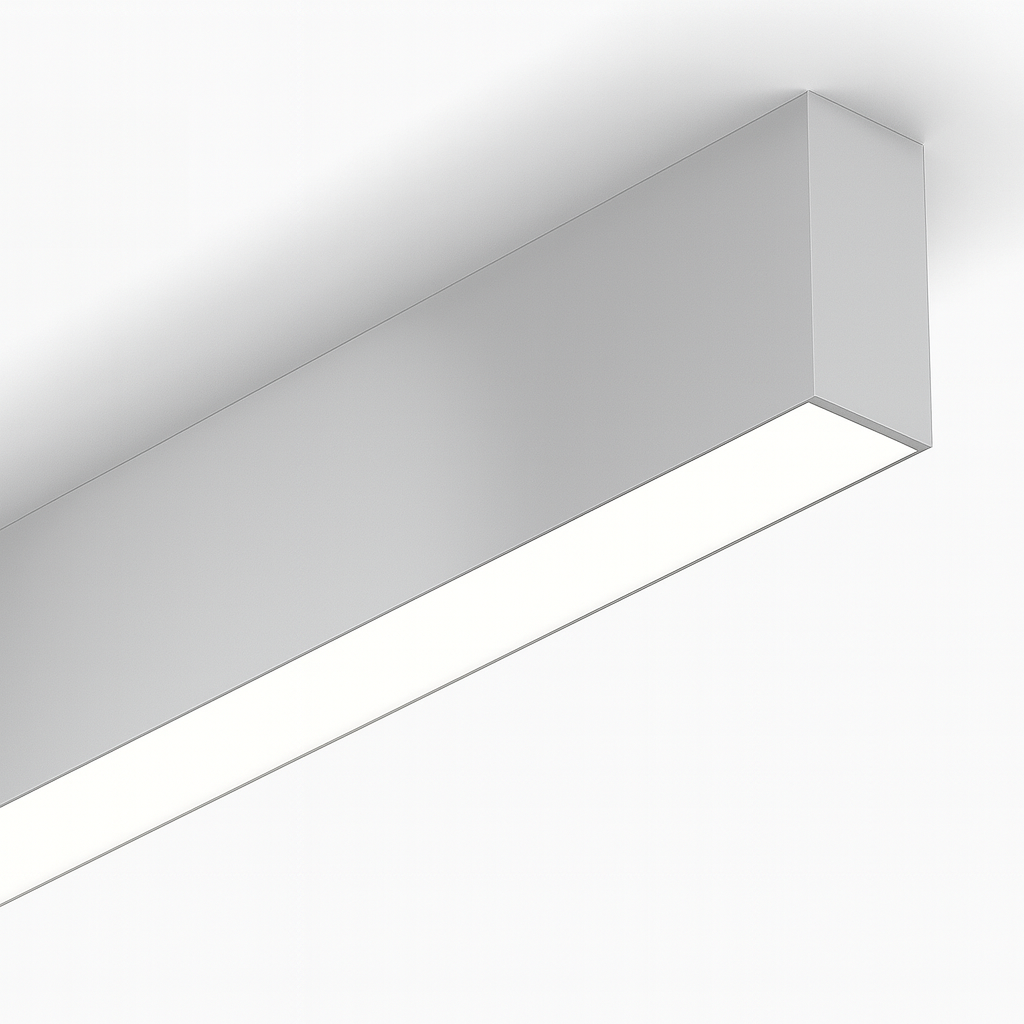

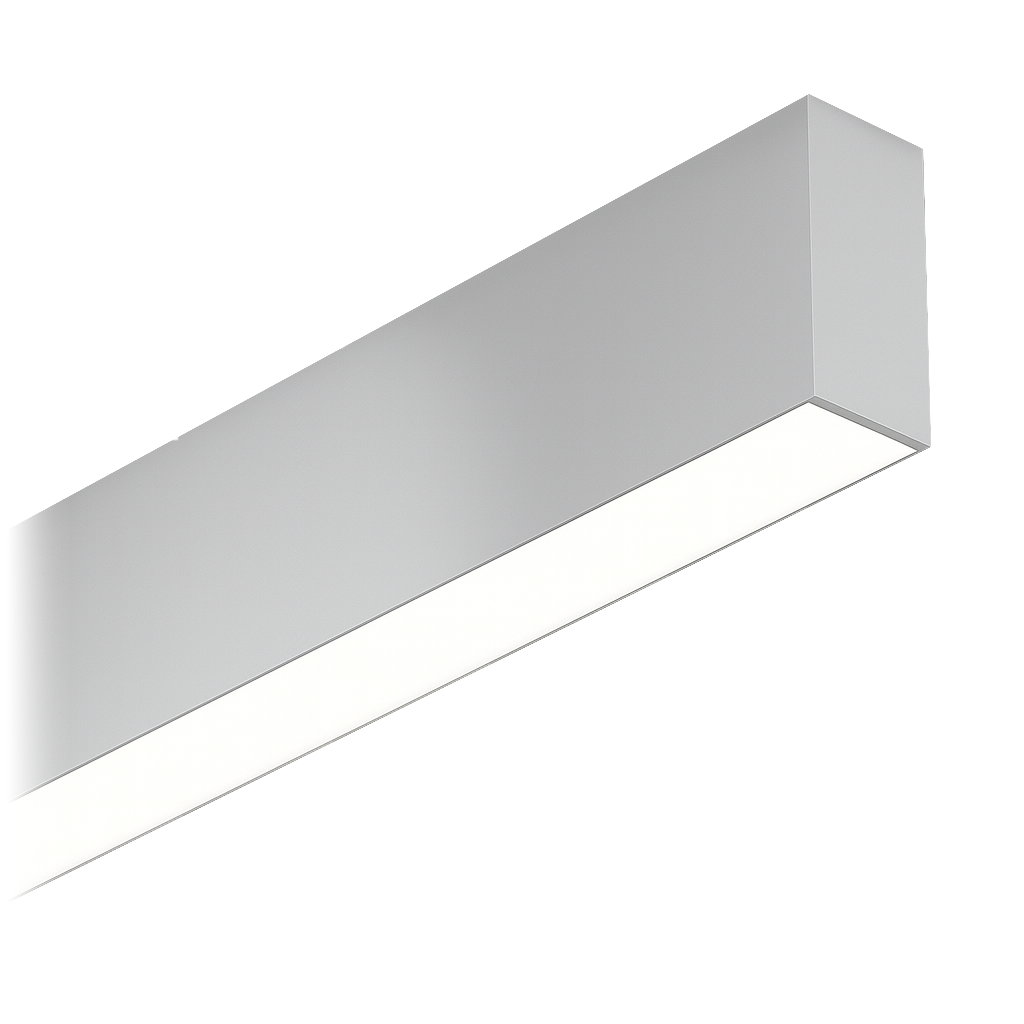

The 11W/FT Linear Surface Architectural Blade Series is a premium surface-mounted LED luminaire designed for architectural, commercial, and accent lighting applications. Delivering up to 1,430 lumens per foot, the series combines powerful linear illumination with a sleek, modern profile suitable for both indoor and outdoor projects.
Available in custom lengths from 24" to 96" in 2.0" increments, the Architectural Blade Series provides extensive flexibility for project-specific installations. Multiple color temperatures, optical lenses, finishes, and dimming configurations allow the fixture to be tailored to a wide range of architectural environments.
Features
- 11W per foot power consumption
- Produces up to 1,430 lumens per foot
- Surface-mounted architectural linear design
- Available from 24" to 96"
- Custom lengths available in 2.0" increments
- Color temperatures from 2700K to 6500K
- High CRI options up to CRI 95
- Frosted, Semi-Clear, and Clear lens options
- Anodized Aluminum, Powder-Coated Grey, Black, and White finish options
- Non-dimming, 120V phase dimming, and 0–10V dimming options
- IP54 rated
- UL Listed for wet locations
- Suitable for indoor and outdoor applications
Color Temperature & CRI Options
| Color Temperature | CRI |
|---|---|
| 2700K | 95 |
| 3000K | 95 |
| 4200K | 90 |
| 5000K | 88 |
| 6500K | 85 |
Available Lengths & Outputs
| Length | Power | Maximum Light Output |
|---|---|---|
| 24" (610 mm) | 22W | Up to 2,860 lm |
| 36" (914 mm) | 33W | Up to 4,290 lm |
| 48" (1,219 mm) | 44W | Up to 5,720 lm |
| 60" (1,524 mm) | 55W | Up to 7,150 lm |
| 72" (1,829 mm) | 66W | Up to 8,580 lm |
| 84" (2,134 mm) | 77W | Up to 10,010 lm |
| 96" (2,438 mm) | 88W | Up to 11,440 lm |
Custom lengths are available from 24" to 96" in 2.0" increments.
Optics Options
| Lens | Option |
|---|---|
| Frosted | Available |
| Semi-Clear | Available |
| Clear | Available |
Finish Options
| Finish | Option |
|---|---|
| Anodized Aluminum | Available |
| Powder-Coated Grey | Available |
| Black | Available |
| White | Available |
Dimming Options
| Dimming Protocol | Availability |
|---|---|
| Non-Dimming | Available |
| 120V Phase Dimming | Available |
| 0–10V Dimming | Available |
Specifications
| Product Type | Surface-Mounted Architectural Linear LED Luminaire |
|---|---|
| Series | Linear Surface Architectural Blade Series |
| Power Consumption | 11W per Foot |
| Maximum Light Output | Up to 1,430 lm per Foot |
| Available Lengths | 24"–96" |
| Length Increments | 2.0" |
| Color Temperature | 2700K / 3000K / 4200K / 5000K / 6500K |
| CRI | 85–95 Depending on CCT |
| Optics | Frosted / Semi-Clear / Clear |
| Finish Options | Anodized Aluminum / Powder-Coated Grey / Black / White |
| Mounting | Surface Mount |
| Dimming Options | Non-Dimming / 120V Phase Dimming / 0–10V Dimming |
| IP Rating | IP54 |
| Certification | UL Listed for Wet Locations |
Applications
- Architectural Wall Washing
- Ceiling Lighting
- Accent Lighting
- Area Lighting
- General Illumination
- Offices
- Retail Environments
- Commercial Spaces
- Architectural Installations
- Indoor & Outdoor Projects
- Wet-Location Applications
Why Choose the Linear Surface Architectural Blade Series?
The Linear Surface Architectural Blade Series combines 11W per foot power consumption with up to 1,430 lumens per foot, providing powerful linear illumination in a sleek surface-mounted architectural format. Multiple CCT options with CRI ratings up to 95 provide flexibility for applications where both light output and color quality are important.
With custom lengths from 24" to 96" in 2.0-inch increments, multiple optical lenses, four finish options, several dimming configurations, an IP54 rating, and UL listing for wet locations, the Linear Surface Architectural Blade Series provides a customizable lighting solution for architectural, commercial, indoor, and outdoor projects.
