Linear SlimStrip Series
Linear SlimStrip Series
Couldn't load pickup availability

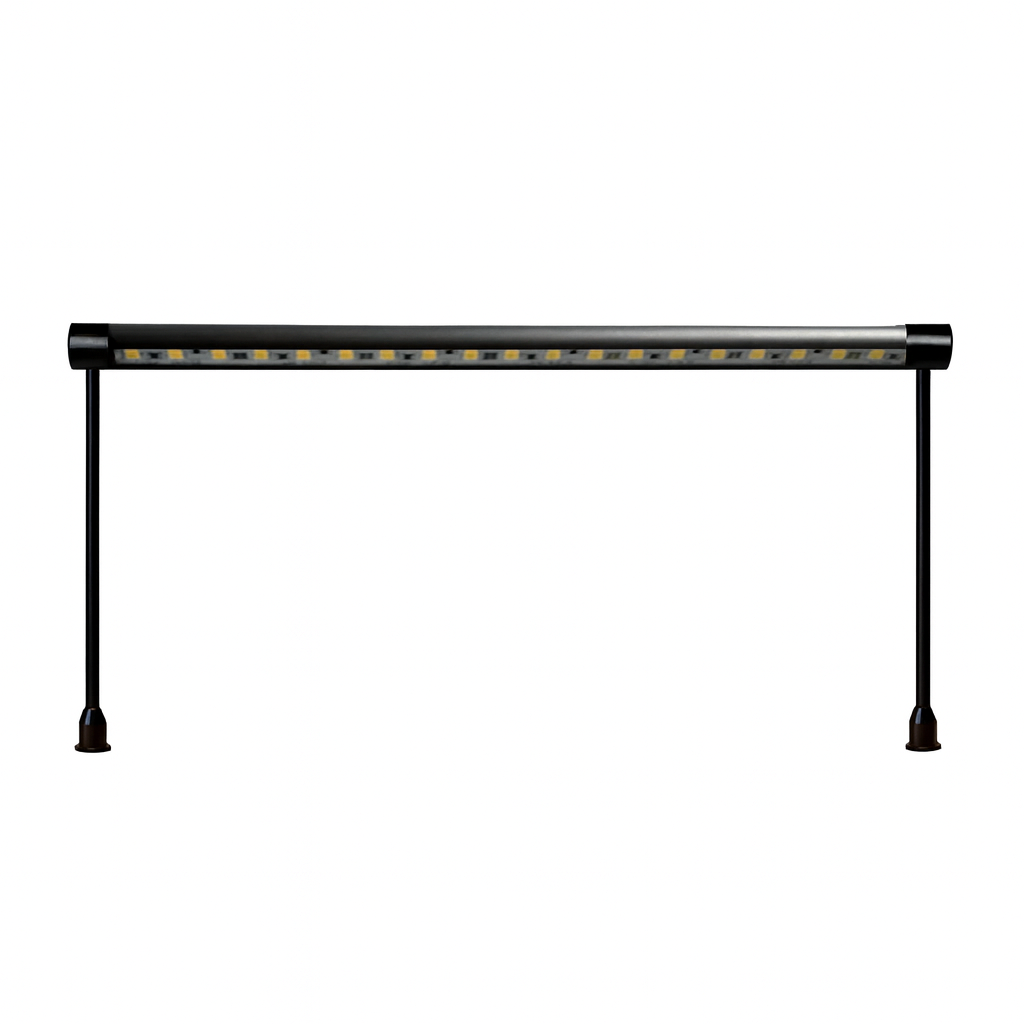

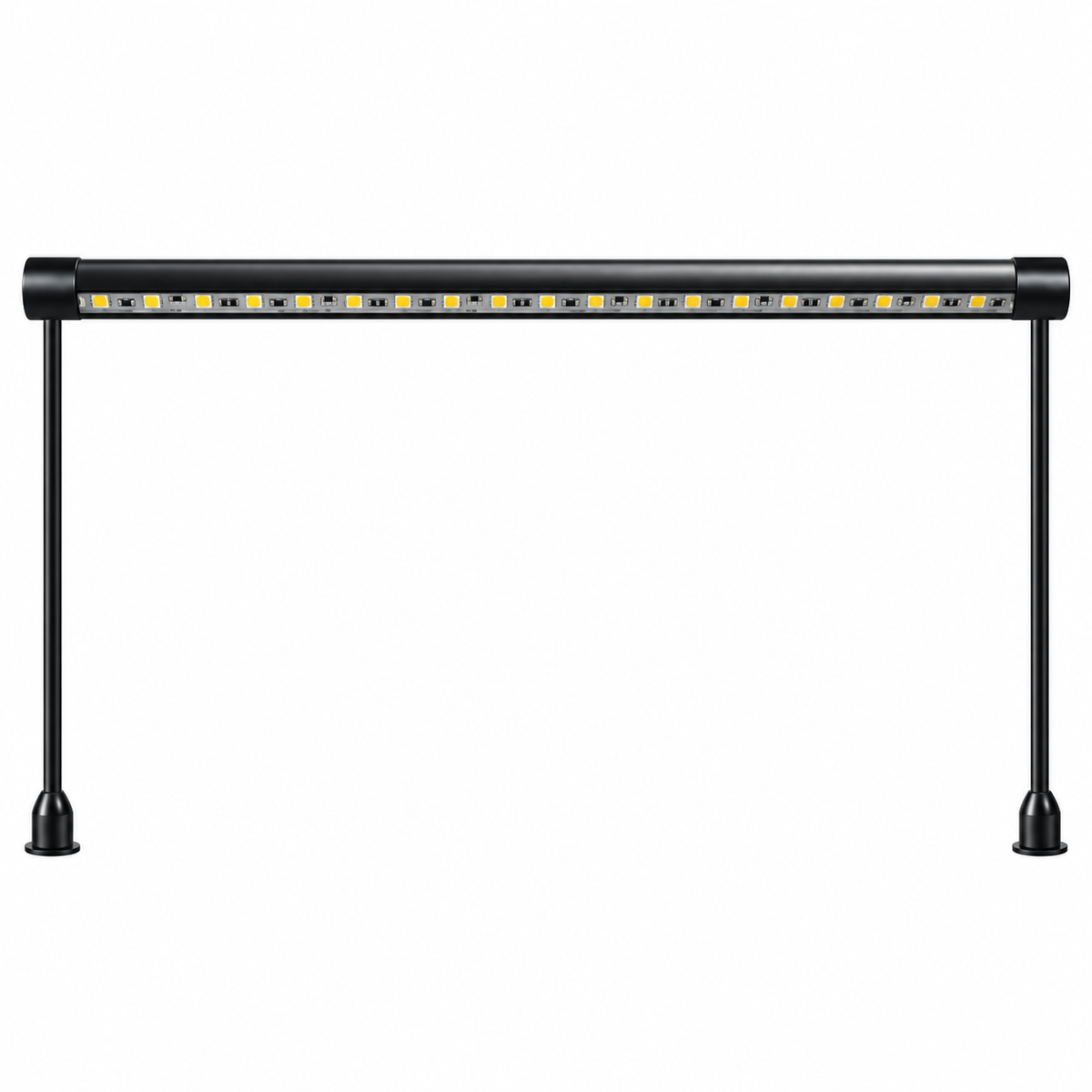

The Linear SlimStrip Series is a slim-profile LED showcase reflector designed for commercial display, retail, and architectural accent lighting. Built around a compact 16 mm (0.63") anodized aluminum extrusion, the series provides powerful, even illumination while maintaining a discreet appearance ideal for jewelry showcases and premium display environments.
Available with Deluxe or Premium LED Light Engines, the Linear SlimStrip Series delivers up to 980 lumens per foot with configurable lengths from 9" (229 mm) to 83" (2,108 mm). Multiple finishes, surface colors, adjustable mounting configurations, and 12V DC PWM dimming provide extensive flexibility for custom showcase installations.
Features
- Slim 16 mm (0.63") diameter profile
- Deluxe and Premium LED Light Engine options
- Up to 980 lumens per foot
- Available in 3200K / 4500K / 6500K
- 90° beam angle with adjustment up to 180°
- Configurable lengths from 9" (229 mm) to 83" (2,108 mm)
- Compatible with 12V DC 2-wire PWM dimmers
- Wood surface-mounting option with adjustable angle
- Glass showcase down-tube mounting option with adjustable angle
- Anodized Aluminum or Polished Chrome finishes
- Silver, Gold, Black, and Bronze surface color options
- Anodized aluminum extrusion construction
- Rated for approximately 50,000 hours at 80% lumen maintenance
- UL 2108 / UL 8750 / CSA C22.2 No. 9.0
LED Light Engine Options
| Light Engine | Power | LED Density | Light Output |
|---|---|---|---|
| Deluxe | 4.39W/ft | 19 LEDs/ft | 490 lm/ft |
| Premium | 5.48W/ft | 39 LEDs/ft | 980 lm/ft |
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 3200K | Warm White |
| 4500K | Neutral White |
| 6500K | Cool White |
Mounting Options
| Mounting Type | Adjustability |
|---|---|
| Wood Surface Mounting | Adjustable Angle |
| Glass Showcase Down-Tube Mounting | Adjustable Angle |
Finish & Surface Color Options
| Category | Available Options |
|---|---|
| Finish | Anodized Aluminum / Polished Chrome |
| Surface Color | Silver / Gold / Black / Bronze |
Specifications
| Product Type | LED Showcase Reflector |
|---|---|
| Series | Linear SlimStrip Series |
| Profile Diameter | 0.63" (16 mm) |
| Light Engine Options | Deluxe / Premium |
| Power Consumption | 4.39W/ft Deluxe / 5.48W/ft Premium |
| Light Output | 490 lm/ft Deluxe / 980 lm/ft Premium |
| LED Density | 19 LEDs/ft Deluxe / 39 LEDs/ft Premium |
| Color Temperature | 3200K / 4500K / 6500K |
| Beam Angle | 90° |
| Adjustability | Up to 180° |
| Available Lengths | 9"–83" (229–2,108 mm) |
| Dimming | Compatible with 12V DC 2-Wire PWM Dimmers |
| Construction | Anodized Aluminum Extrusion |
| Finish Options | Anodized Aluminum / Polished Chrome |
| Surface Color Options | Silver / Gold / Black / Bronze |
| Rated Lifespan | Approximately 50,000 Hours at 80% Lumen Maintenance |
| Certifications | UL 2108 / UL 8750 / CSA C22.2 No. 9.0 |
Applications
- Jewelry Showcases
- Luxury Display Cases
- Retail Display Lighting
- Museum Displays
- Gallery Lighting
- Commercial Showcases
- Merchandise Displays
- Architectural Accent Lighting
Why Choose the Linear SlimStrip Series?
The Linear SlimStrip Series combines a discreet 16 mm (0.63") profile with two high-performance LED Light Engine options. The Deluxe configuration delivers 490 lumens per foot, while the Premium configuration provides up to 980 lumens per foot for applications requiring significantly higher illumination levels.
With configurable lengths from 9" to 83", adjustable mounting options, multiple finishes and surface colors, 12V DC PWM dimming compatibility, and a rated lifespan of approximately 50,000 hours, the Linear SlimStrip Series provides a customizable lighting solution for jewelry showcases, retail displays, museums, galleries, and architectural accent applications.
