Diamond Brite LEDs
Surface Mount Nitrogen 3 Series
Surface Mount Nitrogen 3 Series
Couldn't load pickup availability

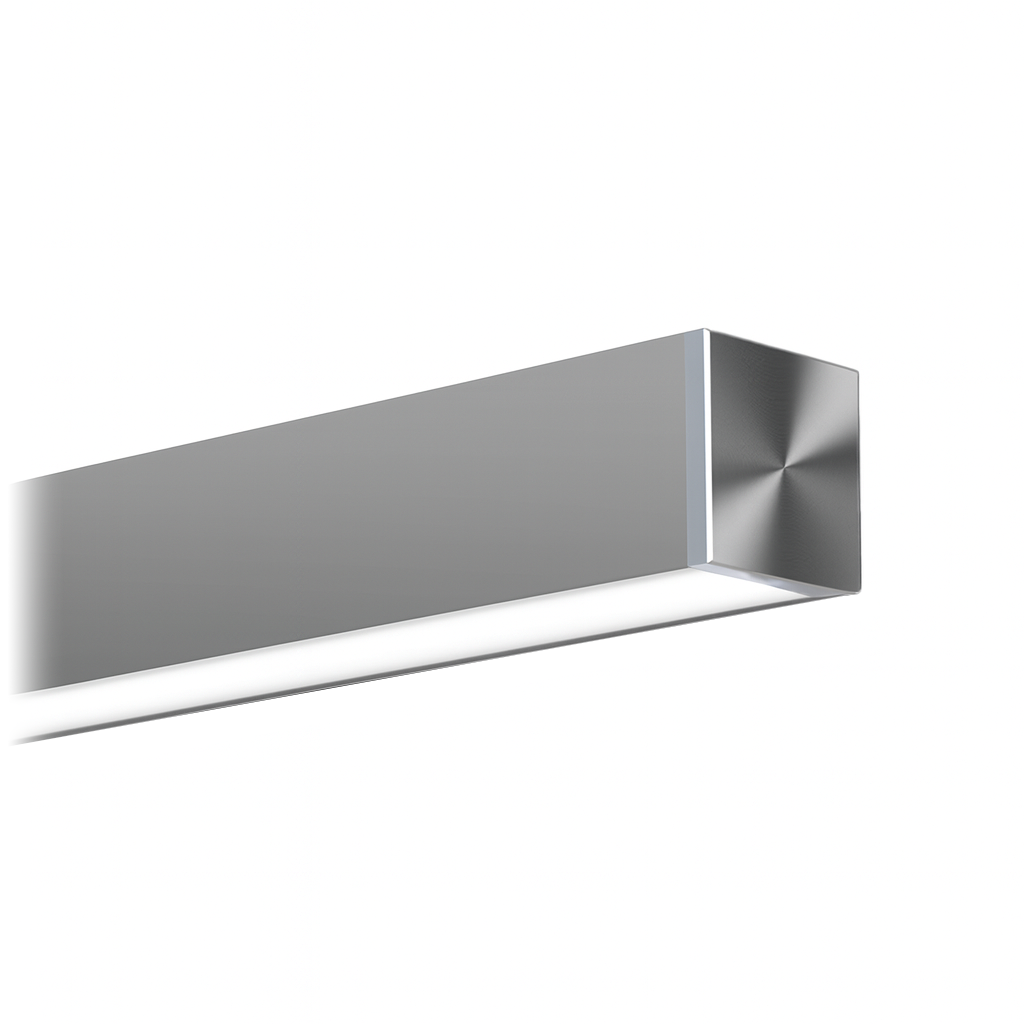

The Surface-Mount Nitrogen 3 Series is a sleek, low-profile architectural LED luminaire designed for modern interiors and commercial environments. With multiple output levels, premium optical distributions, and flexible configuration options, the series provides a clean surface-mounted solution for offices, hospitality spaces, commercial ceilings, and architectural installations.
Available in lengths from 2 ft to 8 ft, as well as continuous runs and custom welded designs, the Surface-Mount Nitrogen 3 can be configured with standard white CCTs, Dynamic White, Warm Dim, or RGBW for a wide range of general and specialty lighting applications.
Features
- Sleek, low-profile surface-mounted architectural design
- Power levels from 16W to 48W per 4 ft
- Light output from 1,944 to 5,236 lumens per 4 ft
- Standard color temperatures from 2700K to 5000K
- Dynamic White option available
- Warm Dim option available
- RGBW option available
- Flood, Narrow Flood, Wall Wash, Graze, and Aisle optics
- Available in 2 ft to 8 ft lengths
- Continuous-run configurations available
- Custom welded designs available
- Satin Clear Anodized, Satin White, Matte Black, and Custom finish options
- Designed for modern commercial and architectural interiors
Light Output
| Fixture Length | Power Range | Light Output Range |
|---|---|---|
| 4 ft | 16W–48W | 1,944–5,236 lm |
Lighting Options
| Option | Availability |
|---|---|
| Standard White | 2700K–5000K |
| Dynamic White | Available |
| Warm Dim | Available |
| RGBW | Available |
Optics Options
| Optic | Availability |
|---|---|
| Flood | Available |
| Narrow Flood | Available |
| Wall Wash | Available |
| Graze | Available |
| Aisle | Available |
Finish Options
| Finish | Availability |
|---|---|
| Satin Clear Anodized | Available |
| Satin White | Available |
| Matte Black | Available |
| Custom Finish | Available |
Specifications
| Product Type | Surface-Mounted Architectural Linear LED Luminaire |
|---|---|
| Series | Surface-Mount Nitrogen 3 |
| Power Range | 16W–48W per 4 ft |
| Light Output | 1,944–5,236 lm per 4 ft |
| Standard CCT | 2700K–5000K |
| Specialty Lighting | Dynamic White / Warm Dim / RGBW |

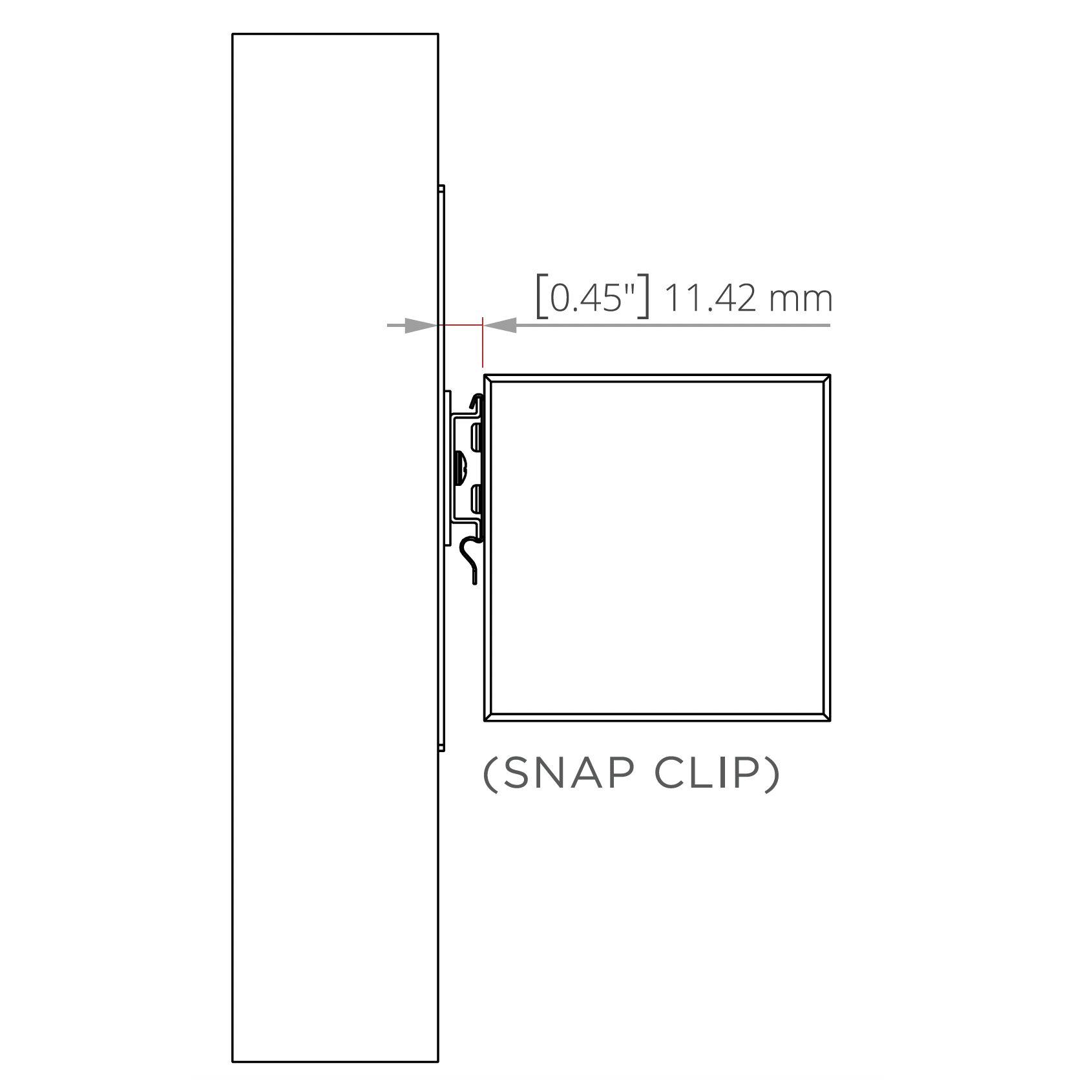

| Mounting | Surface Mount |
| Available Lengths | 2 ft–8 ft |
| Custom Configurations | Continuous Runs / Custom Welded Designs |
| Optics | Flood / Narrow Flood / Wall Wash / Graze / Aisle |
| Finish Options | Satin Clear Anodized / Satin White / Matte Black / Custom |
Applications
- Offices
- Hospitality Spaces
- Commercial Ceilings
- Retail Environments
- Architectural Interiors
- Wall Washing
- Wall Grazing
- Accent Lighting
- Continuous Linear Lighting Installations
- Custom Architectural Lighting Designs
Why Choose the Surface-Mount Nitrogen 3?
The Surface-Mount Nitrogen 3 combines a sleek, low-profile architectural form with flexible output and optical configurations. With power levels from 16W to 48W per 4 ft and outputs ranging from 1,944 to 5,236 lumens per 4 ft, the series can be configured for general illumination, wall washing, grazing, aisle lighting, and architectural accent applications.
With standard CCTs from 2700K to 5000K, Dynamic White, Warm Dim, and RGBW options, multiple architectural finishes, lengths from 2 ft to 8 ft, continuous runs, and custom welded designs, the Surface-Mount Nitrogen 3 provides a highly customizable solution for modern commercial and architectural lighting projects.
