Diamond Brite LEDs
Rotational Arm Mount Nitrogen 3 Series
Rotational Arm Mount Nitrogen 3 Series
Couldn't load pickup availability

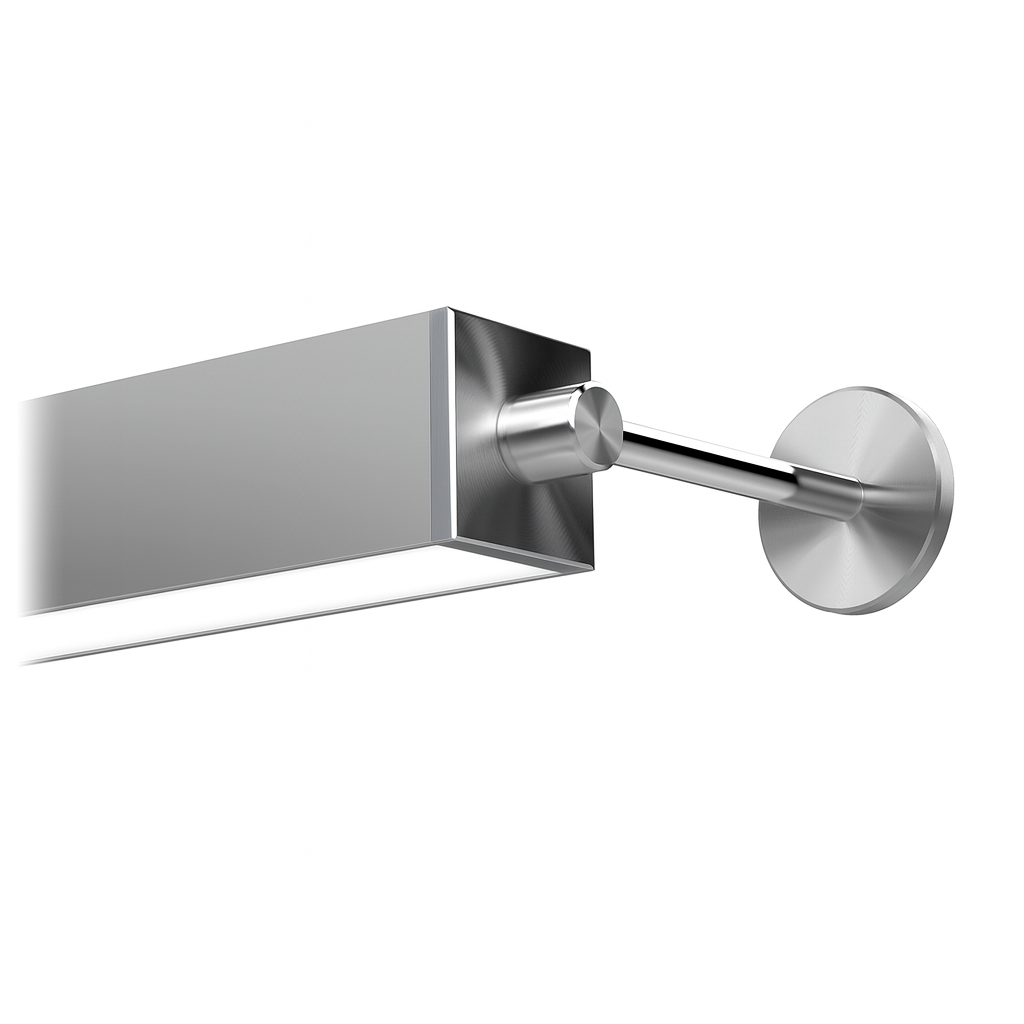

The Rotational Arm-Mount Nitrogen 3 Series is an architectural linear LED luminaire designed for applications requiring precise aiming and flexible light distribution. Featuring an adjustable 360° rotational arm with a locking mechanism, the fixture can be positioned for wall washing, grazing, accent lighting, retail displays, and architectural feature illumination.
Available in lengths from 2 ft to 8 ft, as well as continuous runs and custom patterns, the Rotational Arm-Mount Nitrogen 3 offers multiple power levels, optical distributions, standard and specialty color options, and architectural finishes for project-specific lighting designs.
Features

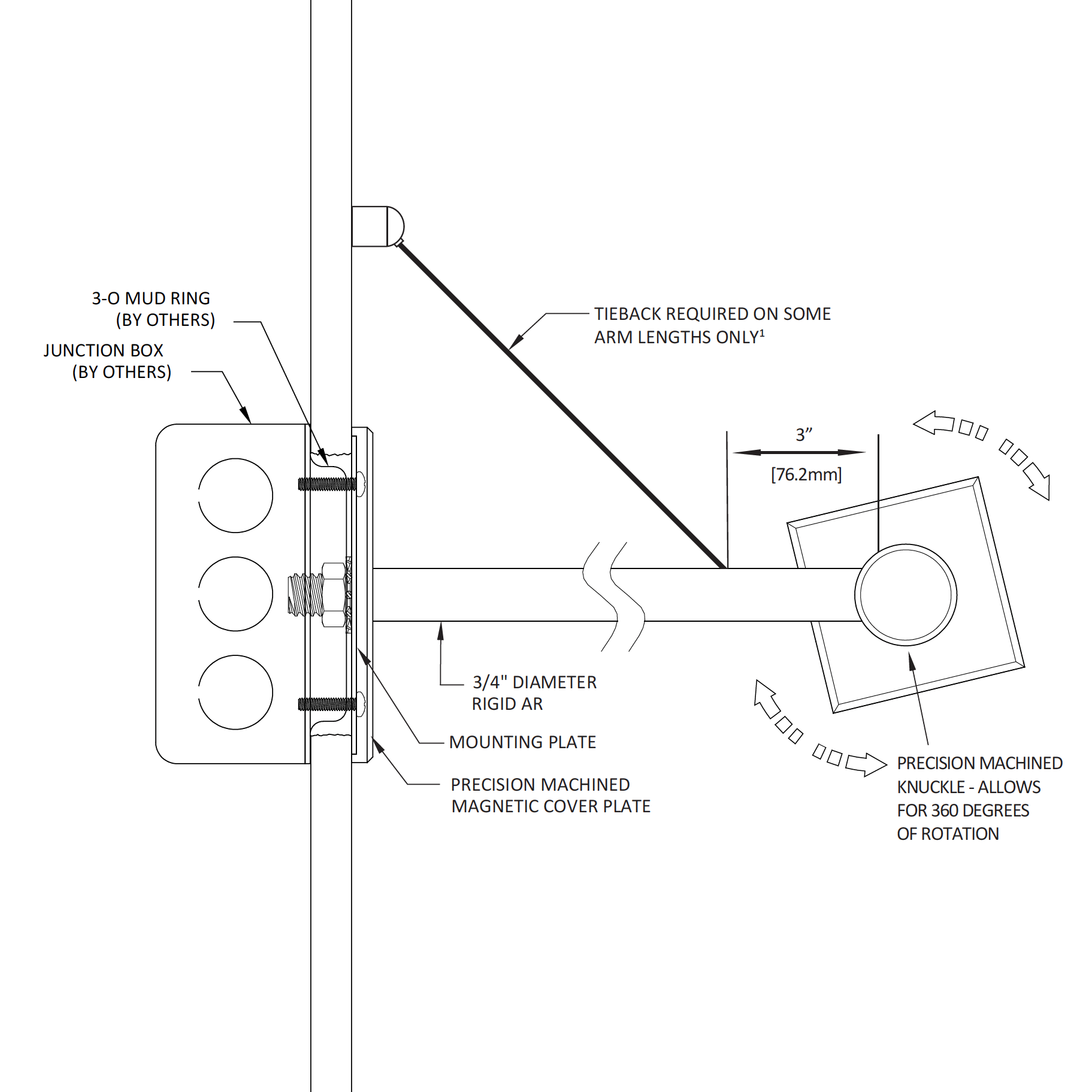

- 360° rotational arm for precise fixture aiming
- Locking mechanism maintains the selected position
- Power levels from 16W to 48W per 4 ft
- Light output from 1,944 to 5,236 lumens per 4 ft
- Standard color temperatures from 2700K to 5000K
- Dynamic White option available
- Warm Dim option available
- RGBW option available
- Flood, Narrow Flood, Wall Wash, Graze, and Aisle optics
- Available in 2 ft to 8 ft lengths
- Continuous-run configurations available
- Custom patterns available
- Satin Clear Anodized, Satin White, Matte Black, and Custom finish options
- Designed for architectural wall washing, grazing, and accent illumination
Light Output
| Fixture Length | Power Range | Light Output Range |
|---|---|---|
| 4 ft | 16W–48W | 1,944–5,236 lm |
Lighting Options
| Option | Availability |
|---|---|
| Standard White | 2700K–5000K |
| Dynamic White | Available |
| Warm Dim | Available |
| RGBW | Available |
Optics Options
| Optic | Availability |
|---|---|
| Flood | Available |
| Narrow Flood | Available |
| Wall Wash | Available |
| Graze | Available |
| Aisle | Available |
Finish Options
| Finish | Availability |
|---|---|
| Satin Clear Anodized | Available |
| Satin White | Available |
| Matte Black | Available |
| Custom Finish | Available |
Specifications
| Product Type | Rotational Arm-Mount Linear LED Luminaire |
|---|---|
| Series | Rotational Arm-Mount Nitrogen 3 |
| Power Range | 16W–48W per 4 ft |
| Light Output | 1,944–5,236 lm per 4 ft |
| Standard CCT | 2700K–5000K |
| Specialty Lighting | Dynamic White / Warm Dim / RGBW |
| Mounting | Adjustable Rotational Arm |
| Rotation | 360° |
| Positioning | Locking Mechanism |
| Available Lengths | 2 ft–8 ft |
| Custom Configurations | Continuous Runs / Custom Patterns |
| Optics | Flood / Narrow Flood / Wall Wash / Graze / Aisle |
| Finish Options | Satin Clear Anodized / Satin White / Matte Black / Custom |
Applications
- Accent Walls
- Feature Lighting
- Architectural Wall Washing
- Wall Grazing
- Retail Displays
- Showrooms
- Architectural Features
- Architectural Façades
- Commercial Accent Lighting
Why Choose the Rotational Arm-Mount Nitrogen 3?
The Rotational Arm-Mount Nitrogen 3 combines high-output linear illumination with a 360° adjustable locking mechanism, allowing precise control over the direction of light. Multiple optical distributions make the fixture adaptable for wall washing, grazing, aisle illumination, and architectural accent applications.
With outputs from 1,944 to 5,236 lumens per 4 ft, lengths from 2 ft to 8 ft, specialty Dynamic White, Warm Dim, and RGBW options, continuous-run capabilities, custom patterns, and multiple architectural finishes, the Rotational Arm-Mount Nitrogen 3 provides a flexible solution for sophisticated architectural and commercial lighting projects.
