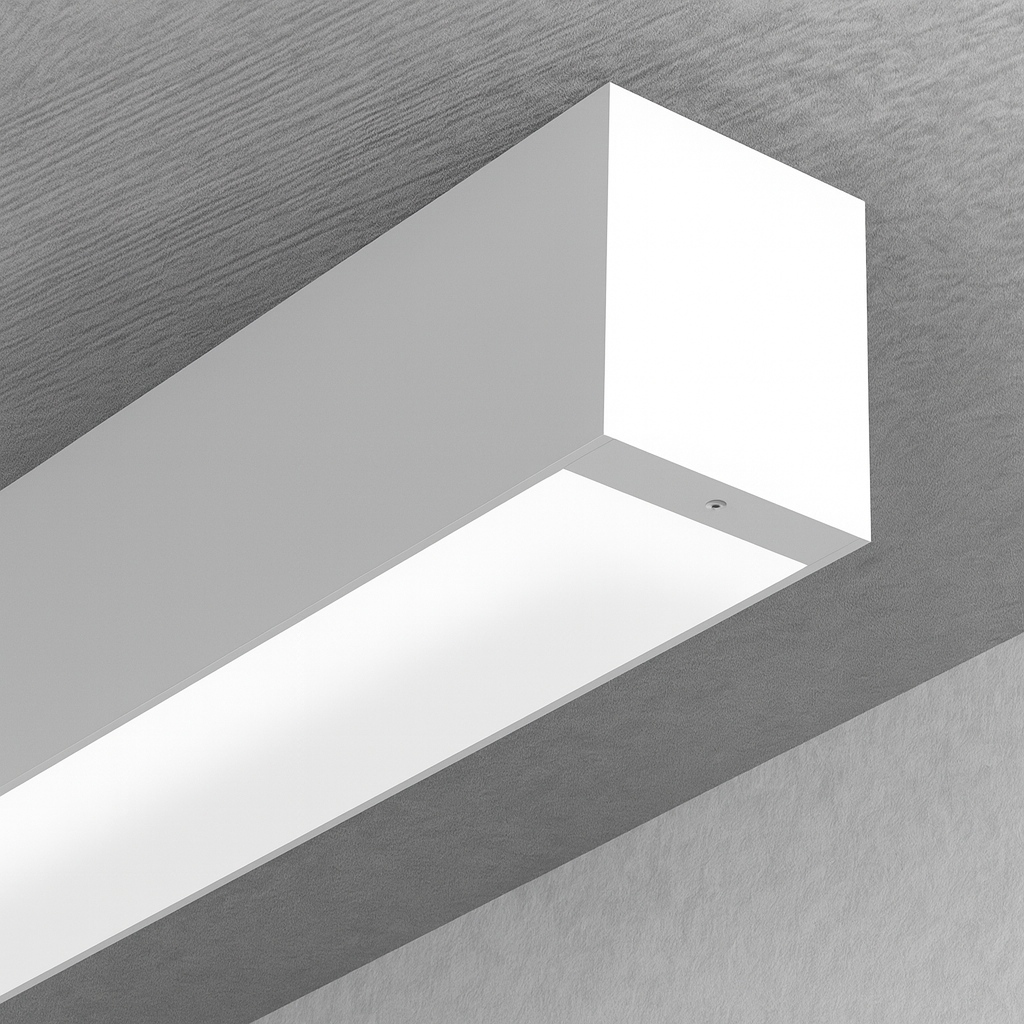

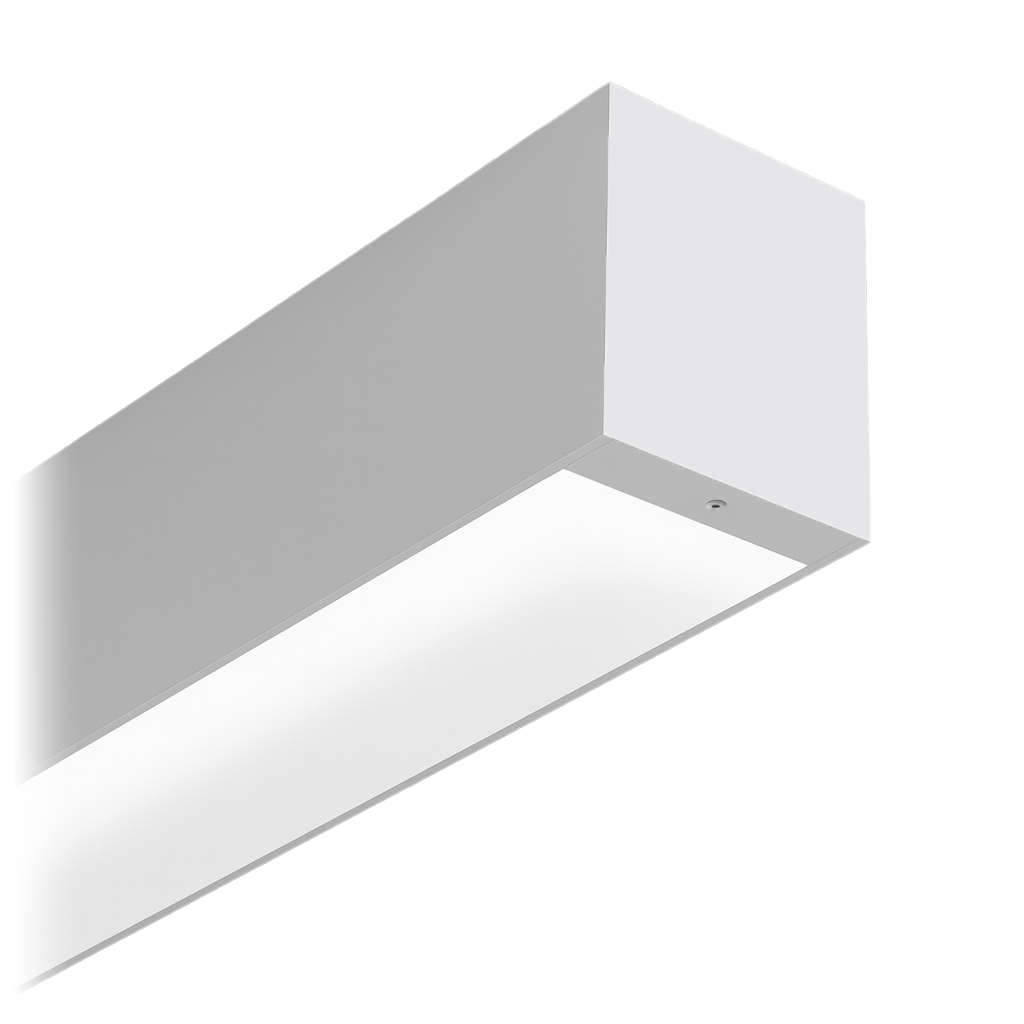

Linear Nitro Surface Series

The Linear Nitro Surface Series is a versatile, surface-mounted architectural LED fixture that delivers ultra-bright performance with efficiency. With multiple length options, high CRI ratings, and dimming compatibility, it’s designed for indoor and outdoor applications requiring powerful yet elegant illumination.

Key Features:

High Efficiency: Only 11W per foot (12")

High Output: Up to 1,430 lumens per foot (110 lm/W)

Cuttable: Custom lengths available, cuttable every 2 inches (50mm)

Waterproof Rating: IP54 – safe for wet locations

LED Color Options:

2700K (CRI 95)

3000K (CRI 95)

4200K (CRI 90)

5000K (CRI 88)

6500K (CRI 85)

Length Options: 24" / 36" / 48" / 78" / 96" (2ft–8ft)

Optics Options: Frosted, Semi-Clear, or Clear lenses

Finish: Anodized aluminum for durability

Dimming Protocols:

Non-dimming

120V phase dimming

0–10V dimming

Certification: UL Listed for wet locations

Applications:

Architectural wall washing

Accent lighting

Ceiling and area lighting

Offices and retail environments

Indoor & outdoor wet location projects

The Linear Nitro Surface Series combines sleek design, high color rendering, and robust construction, making it an ideal choice for architectural and commercial lighting projects.
