7W/FT Linear 90 Blaze Luminaire Series
7W/FT Linear 90 Blaze Luminaire Series
Couldn't load pickup availability

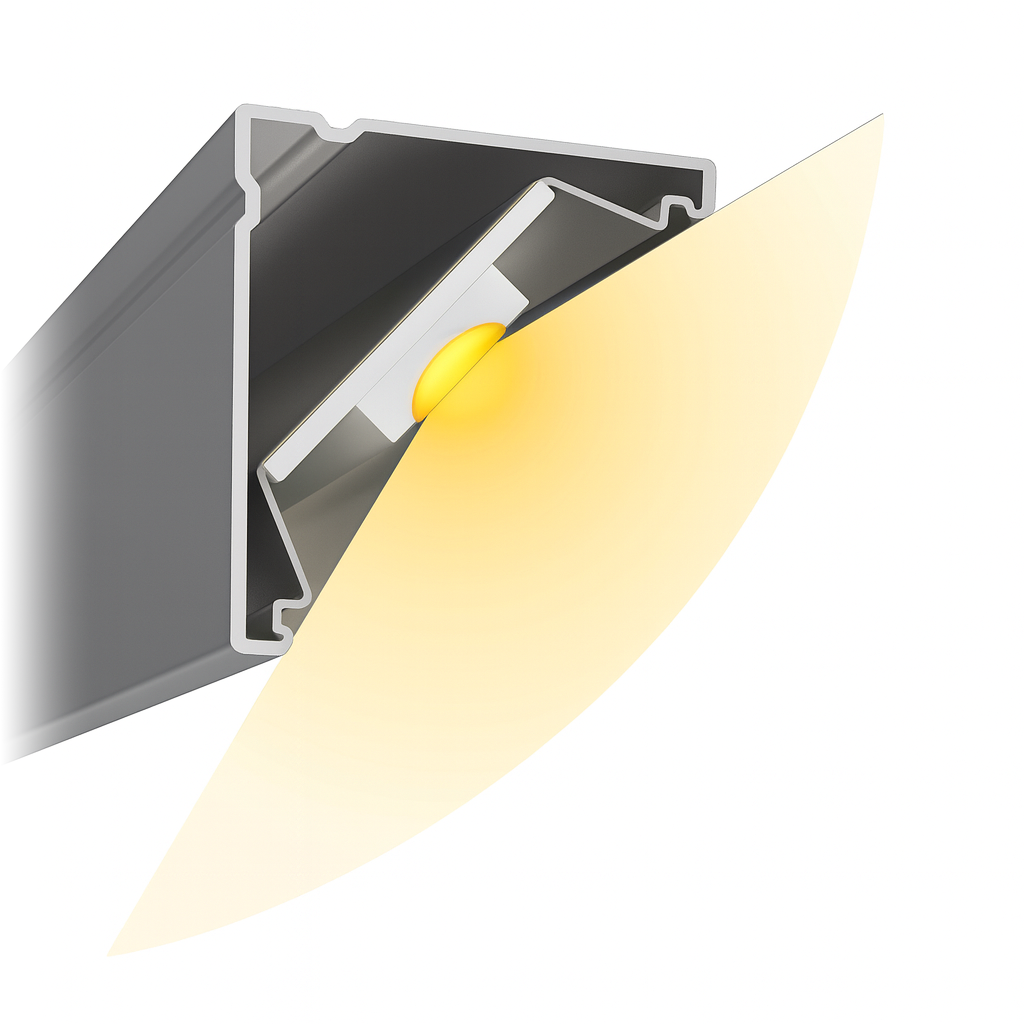

The 7W/FT Linear 90 Blaze Luminaire Series is an ultra-slim architectural LED fixture designed to provide powerful illumination from a compact linear profile. Delivering up to 910 lumens per foot while consuming only 7 watts per foot, the series is ideal for display, shelf, ceiling, accent, office, area, and general architectural lighting applications.
Operating on 24V constant voltage, the Linear 90 Blaze Series offers six color temperature options with CRI ratings up to 95, three optical lens options, multiple standard lengths, and custom lengths in 1" (25 mm) increments. Its compact 90-degree profile produces a broad 130° beam angle and supports dimming for additional lighting control.
Features
- 7W per foot power consumption
- Produces up to 910 lumens per foot

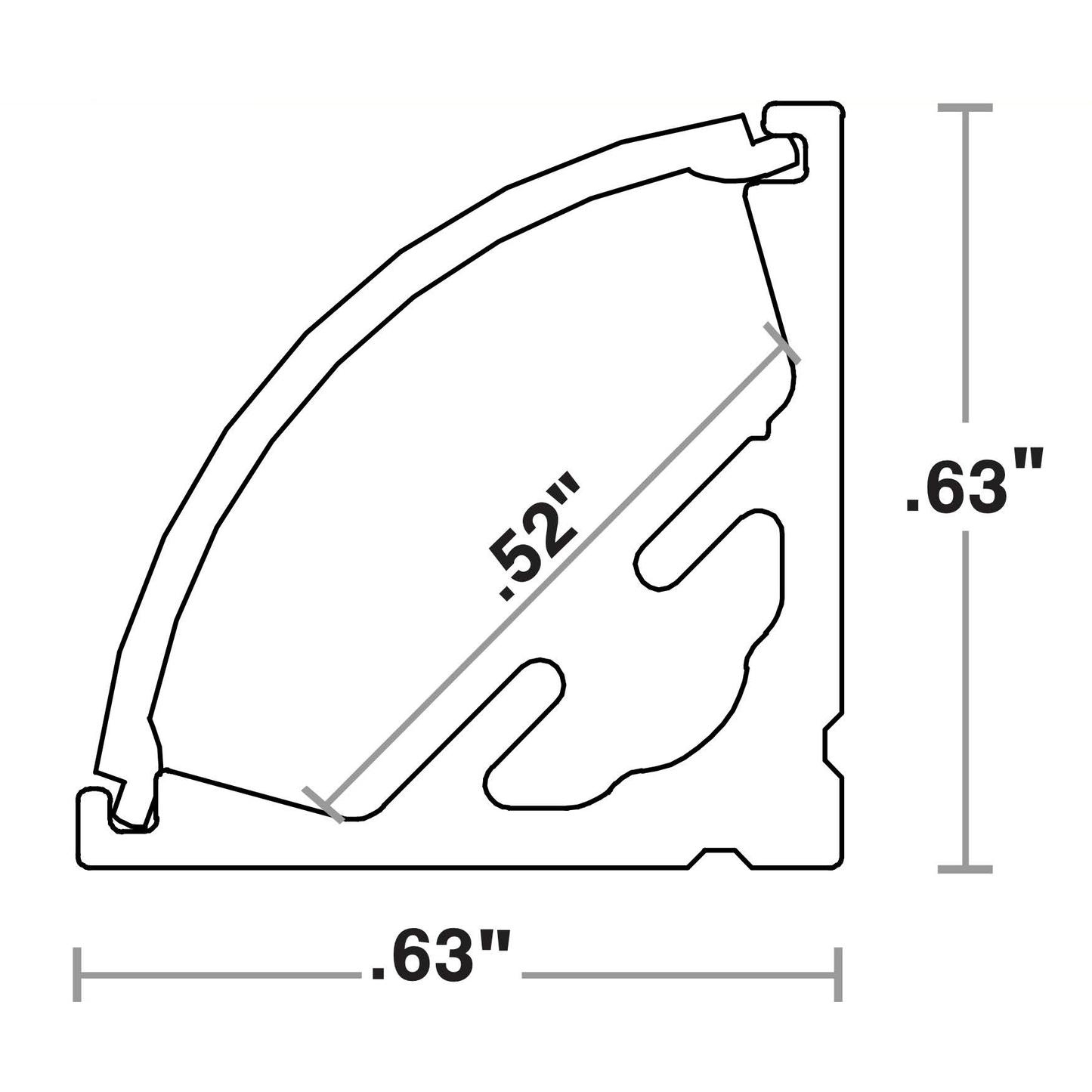

- Ultra-slim 90-degree linear profile
- 130° beam angle
- Dimmable
- Cuttable every 1" (25 mm)
- Custom lengths available from 24" to 78" in 1" increments
- Standard lengths: 24", 36", 48", 78" & 98"
- Color temperatures from 2700K to 6500K
- High CRI options up to CRI 95
- Diffused, Semi-Clear & Clear optics
- 24V constant-voltage operation
- IP20 rated
- UL Listed for damp locations
- Suitable for indoor and damp-location applications
Color Temperature & CRI Options
| Color Temperature | CRI |
| 2700K | CRI 95 |
| 3000K | CRI 95 |
| 3700K | CRI 90 |
| 4200K | CRI 90 |
| 5000K | CRI 88 |
| 6500K | CRI 85 |
Standard Length Options
| Length | Ordering Code |
| 24" | 2 |
| 36" | 3 |
| 48" | 4 |
| 78" | 6 |
| 98" | 8 |
Custom lengths are available from 24" to 78" in 1" increments.
Optics Options
| Optic | Ordering Code |
| Diffused | DF |
| Semi-Clear | SC |
| Clear | CL |
Specifications
| Product Type | Ultra-Slim Linear LED Luminaire |
| Series | Linear 90 Blaze Luminaire Series |
| Model | LNBLZ90 |
| Power Consumption | 7W per Foot |
| Maximum Light Output | Up to 910 lm per Foot |
| Standard Lengths | 24" / 36" / 48" / 78" / 98" |
| Custom Lengths | 24"–78" in 1" (25 mm) Increments |
| Cut Interval | 1" (25 mm) |
| Color Temperatures | 2700K / 3000K / 3700K / 4200K / 5000K / 6500K |
| CRI | 85–95 Depending on CCT |
| Optics | Diffused / Semi-Clear / Clear |
| Beam Angle | 130° |
| Dimming | Dimmable |
| Voltage | 24V Constant Voltage |
| IP Rating | IP20 |
| Location Rating | Indoor & Damp Locations |
| Certification | UL Listed for Damp Locations |
Applications
- Display & Shelf Lighting
- Ceiling Lighting
- Accent Lighting
- Area Lighting
- General Lighting
- Office Lighting
- Retail Displays
- Commercial Interiors
- Architectural Lighting
- Indoor & Damp-Location Installations
Why Choose the Linear 90 Blaze Luminaire Series?
The Linear 90 Blaze Luminaire Series combines an ultra-slim architectural profile with 7W per foot power consumption and up to 910 lumens per foot. Its broad 130° beam angle and multiple high-CRI color temperature options provide flexible illumination for applications where compact dimensions and high-quality light are important.
With five standard lengths, custom lengths available in 1" increments, three optical lens options, dimming capability, and 24V constant-voltage operation, the Linear 90 Blaze Series provides a highly configurable solution for display, shelf, ceiling, accent, office, and general architectural lighting.
