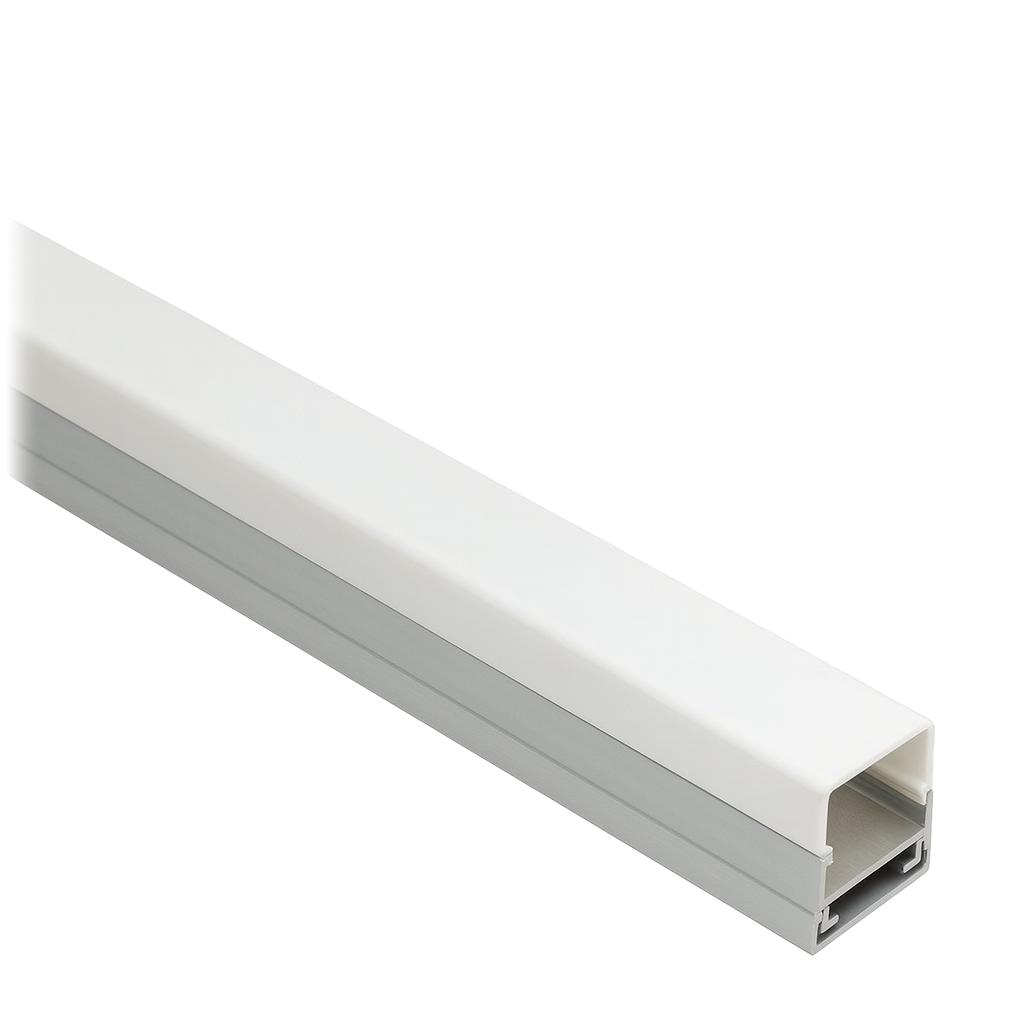

7W/FT Linear Nano Blaze Luminaire Series
7W/FT Linear Nano Blaze Luminaire Series
Couldn't load pickup availability
The Linear Nano Blaze Luminaire Series delivers high-performance architectural lighting in a slim, versatile design. Operating at just 7W per foot while producing up to 910 lumens per foot, the series provides an impressive 130 lm/W for efficient, high-output illumination.
With precision cut points every 1" (25 mm), the Linear Nano Blaze can be configured for a wide range of project requirements. Multiple color temperatures, high CRI options, and clear, semi-frosted, or frosted optics provide additional flexibility for architectural, commercial, retail, hospitality, and accent lighting applications.
Features
- 7W per foot power consumption
- Produces up to 910 lumens per foot
- High efficacy of 130 lumens per watt
- Precision cut points every 1" (25 mm)
- 24V DC constant voltage operation
- Available in multiple standard and custom lengths
- Color temperatures from 2700K to 6500K
- CRI up to 95 for excellent color rendering
- Clear, semi-frosted, and frosted optic options
- Rated for 50,000 hours
- IP20 rated
- Suitable for indoor damp-location applications
- UL listed for damp locations
Color Temperature & CRI Options
| Color Temperature | CRI |
|---|---|
| 2700K | 95 |
| 3000K | 95 |
| 3700K | 90 |
| 4200K | 90 |
| 5000K | 88 |
| 6500K | 85 |
Standard Lengths & Light Output
| Length | Power | Lumens |
|---|---|---|
| 24" (610 mm) | 14W | Up to 1,820 lm |
| 36" (914 mm) | 21W | Up to 2,730 lm |
| 48" (1,219 mm) | 28W | Up to 3,640 lm |
| 78" (1,981 mm) | 45.5W | Up to 5,915 lm |
| 98" (2,489 mm) | 57.2W | Up to 7,432 lm |
Custom lengths are available in 1" (25 mm) increments.
Optic Options
| Optic | Light Appearance |
|---|---|
| Clear | Maximum light transmission |
| Semi-Frosted | Balanced diffusion and output |
| Frosted | Soft, diffused illumination |
Specifications
| Product Type | Linear LED Luminaire |
|---|---|
| Series | Linear Nano Blaze |
| Power | 7W/FT |
| Light Output | Up to 910 lm/FT |
| Luminous Efficacy | 130 lm/W |
| Input Voltage | 24V DC Constant Voltage |
| Cut Increment | 1" (25 mm) |
| Standard Lengths | 24" / 36" / 48" / 78" / 98" |
| Custom Lengths | Available in 1" (25 mm) Increments |
| Color Temperatures | 2700K / 3000K / 3700K / 4200K / 5000K / 6500K |
| CRI | Up to 95 |
| Optics | Clear / Semi-Frosted / Frosted |
| Rated Life | 50,000 Hours |
| Protection Rating | IP20 |
| Location Rating | Indoor / Damp Location |
| Certification | UL Listed for Damp Locations |
Applications
- Architectural Lighting
- Ceiling Lighting
- Cove Lighting
- Accent Lighting
- Retail Displays

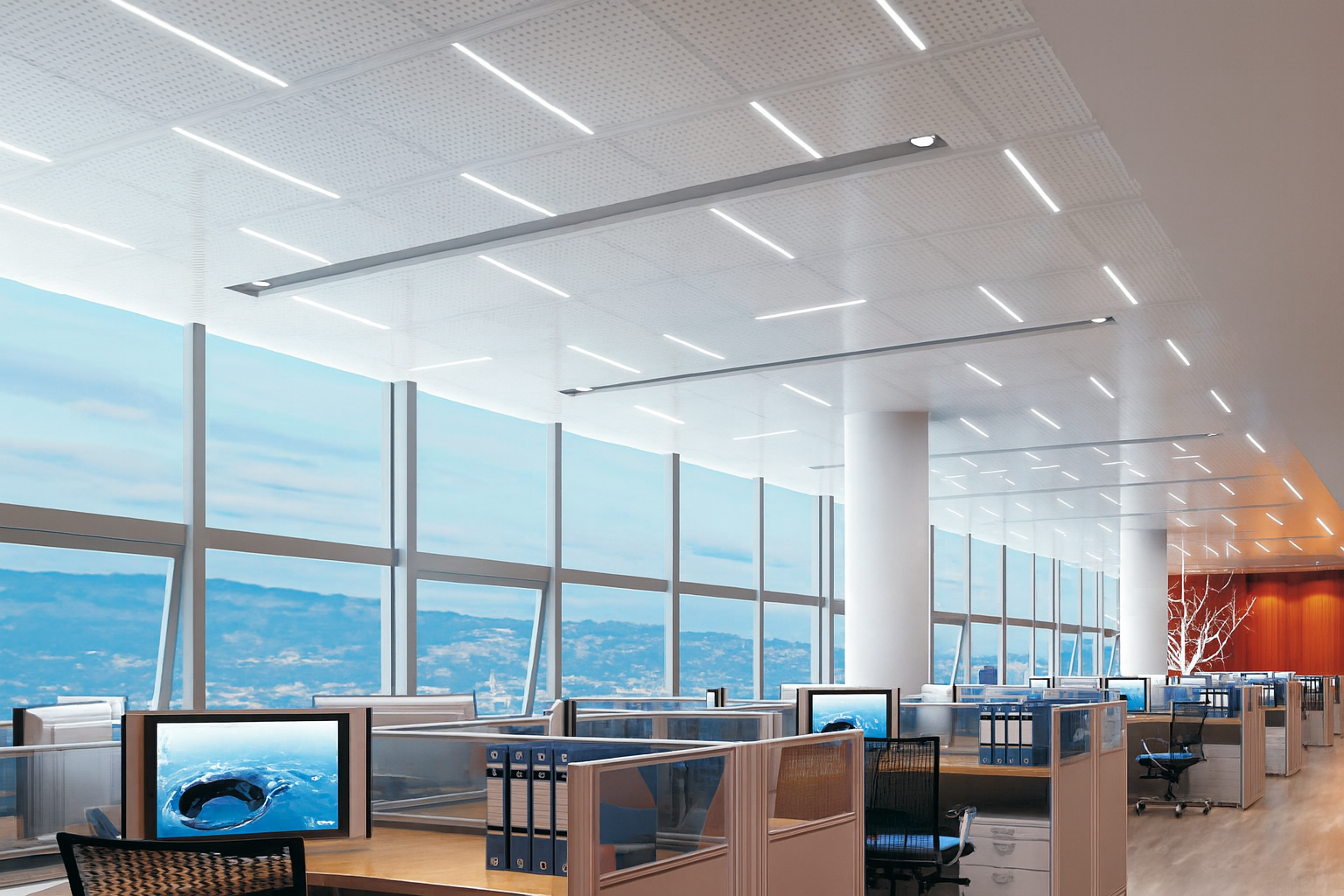

- Office Lighting
- General Area Lighting
- Hospitality Lighting
- Gallery Lighting
- Commercial Interiors
- Decorative Lighting
Why Choose the Linear Nano Blaze Luminaire Series?
The Linear Nano Blaze combines 7W/FT power consumption with up to 910 lumens per foot, providing high-output illumination at an efficacy of 130 lm/W. High-CRI color temperature options and multiple optics allow the luminaire to be configured for different architectural and commercial lighting requirements.

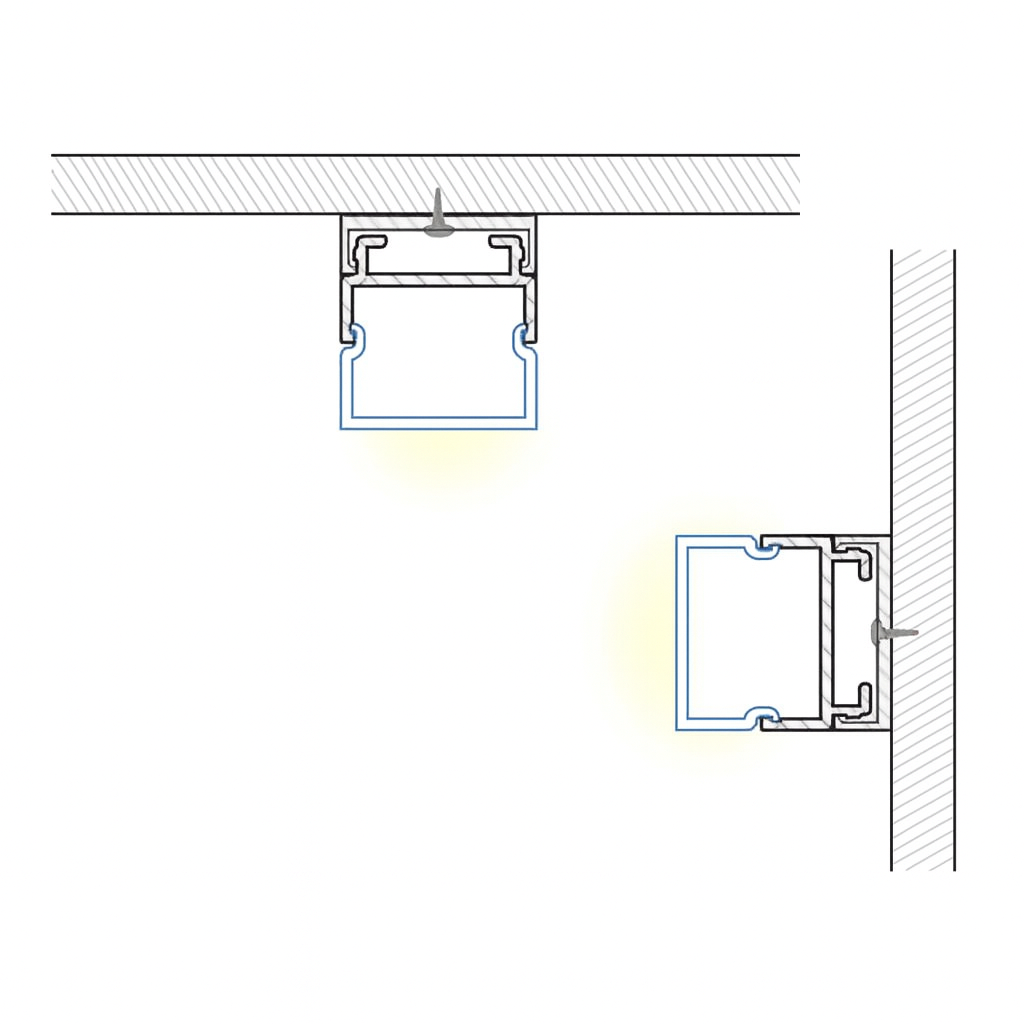

With 1" (25 mm) cut increments, multiple standard lengths, custom sizing capabilities, 24V DC operation, and a slim linear design, the Linear Nano Blaze provides the flexibility needed for precise integration into ceilings, coves, displays, architectural details, and other indoor lighting applications.
