4.5W/FT Blaze Flex Profile Luminaire Series

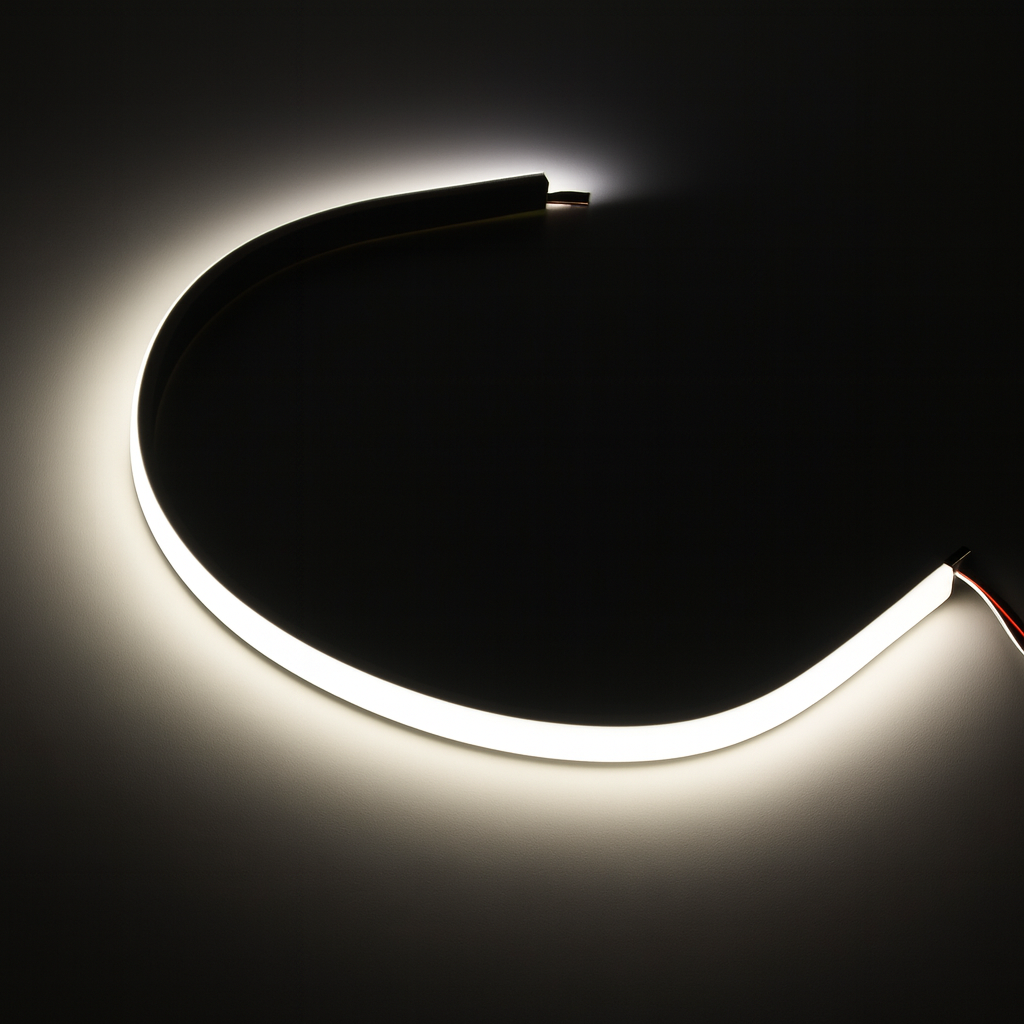

The 4.5W/FT Blaze Flex Profile Luminaire Series is a flexible architectural linear LED fixture engineered to provide smooth, continuous illumination with no visible LED hot spots. Delivering approximately 235 lumens per foot while consuming only 4.5 watts per foot, the Blaze Flex Profile combines high-quality light output with a flexible aluminum profile capable of creating curved and flowing lighting designs.

Operating on 24V DC constant voltage, the Blaze Flex Profile features high-density 2835 SMD LEDs, a broad 120° beam angle, CRI ratings from 92–95, and multiple color temperature options from 2500K to 6300K. Fixtures are available fully assembled from 8 inches up to 8 feet, with custom lengths available in 1-inch increments.

Features

• 4.5W per foot power consumption
• Produces approximately 235 lumens per foot
• Total linear diffusion with no visible LED hot spots
• 66 LEDs per foot
• High-quality 2835 SMD LED technology
• 120° beam angle
• High CRI 92–95 for superior color rendering
• High R9 and R13 values
• Available in seven color temperatures from 2500K to 6300K
• Dimmable
• 24V DC constant-voltage operation

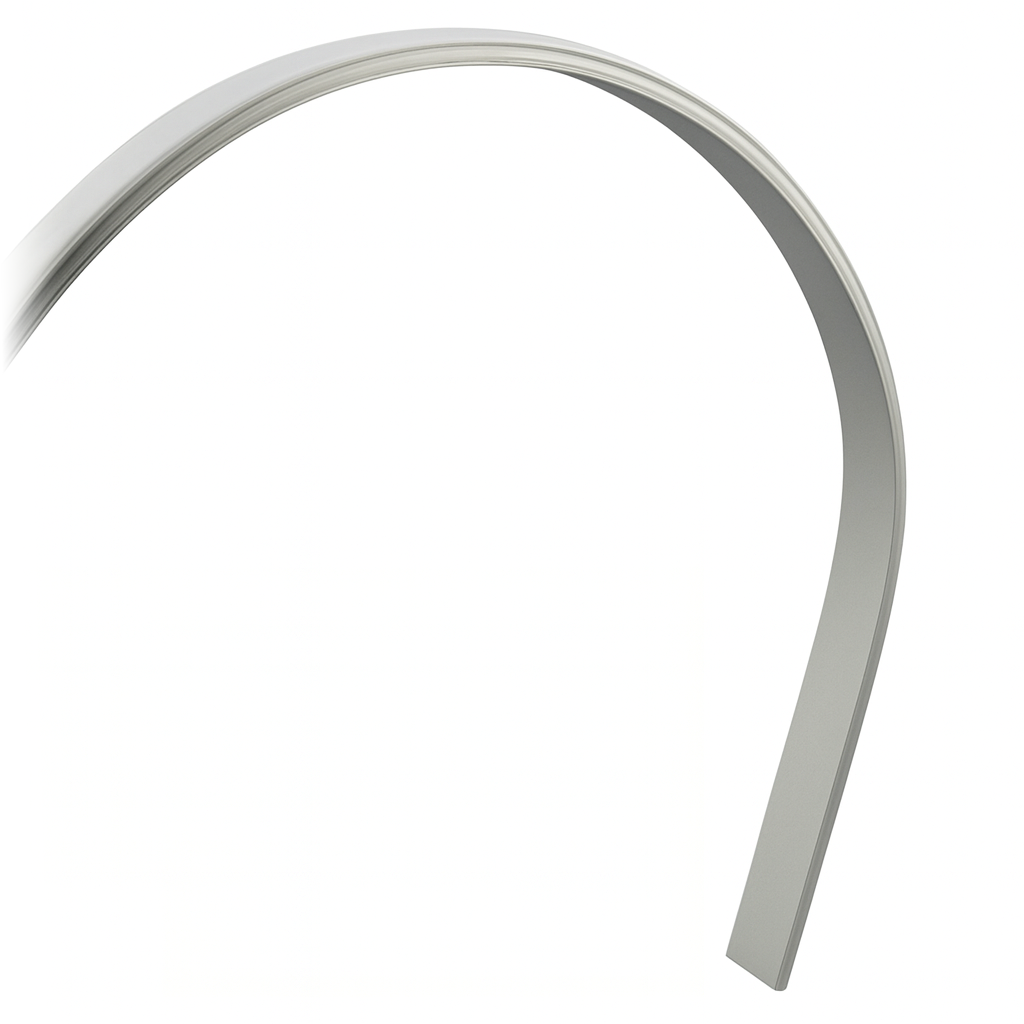

• Flexible profile with up to 6" (152.4 mm) bend radius
• Available from 8" to 8'
• Custom lengths available in 1" increments
• Maximum run of 8 feet
• Brushed Aluminum, Satin Black & Glossy White finish options

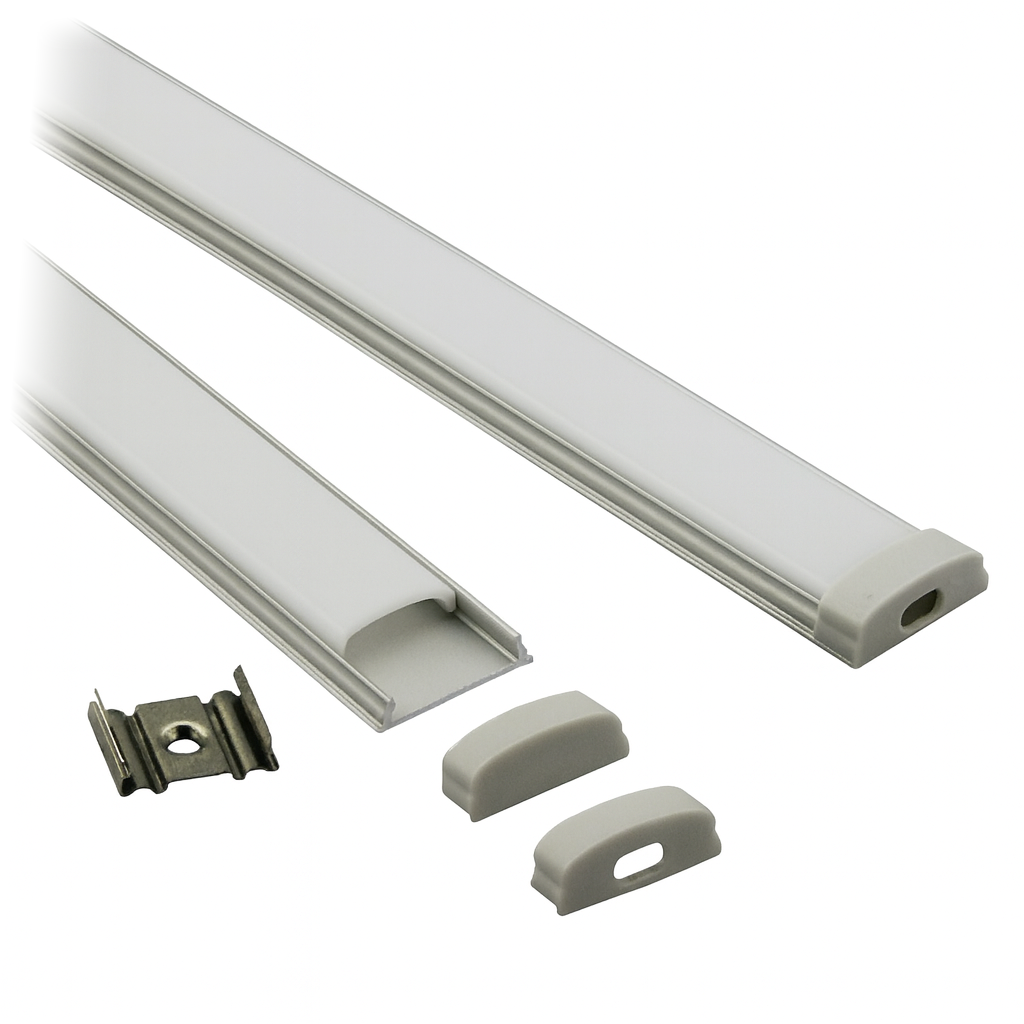

• 3M adhesive or mounting clip installation
• UL Listed low-voltage luminaire
• 5-year limited warranty

Color Temperature Options

Fixture Finish Options

Length Options

Fixtures are available fully assembled from 8 inches up to 8 feet. The minimum fixture length is 8 inches and can be increased in 1-inch increments.

Input Options

• Hard-Wire Lead
• Female DC Plug

Hard-Wire Lead Length: 3" to 20'
DC Plug Length: 3" to 42"

Specifications

Compliance

• UL Listed 2108 Low Voltage Luminaire
• UL 1598 / CSA 250.0-08
• UL 8750
• UL 879 / CAN/CSA-C22.2 No. 207-M89

Applications

• Curved Architectural Lighting
• Cove Lighting
• Accent Lighting
• Retail Displays
• Display & Shelf Lighting
• Hospitality Lighting
• Commercial Interiors
• Residential Accent Lighting
• Custom Linear Lighting Designs
• Indoor & Damp-Location Applications

Why Choose the Blaze Flex Profile Luminaire Series?

The Blaze Flex Profile Luminaire Series combines flexible architectural form with smooth, diffused illumination. Its high-density 2835 SMD LEDs deliver approximately 235 lumens per foot at only 4.5W per foot, while CRI ratings from 92–95 provide high-quality color rendering for demanding residential and commercial applications.

With a flexible profile, up to a 6-inch bend radius, custom lengths in 1-inch increments, seven color temperature options, three fixture finishes, dimming capability, and 24V constant-voltage operation, the Blaze Flex Profile provides a highly configurable solution for straight and curved architectural lighting installations.
