7W/FT Linea Wide WN31 Architectural Slim Series
7W/FT Linea Wide WN31 Architectural Slim Series
Couldn't load pickup availability

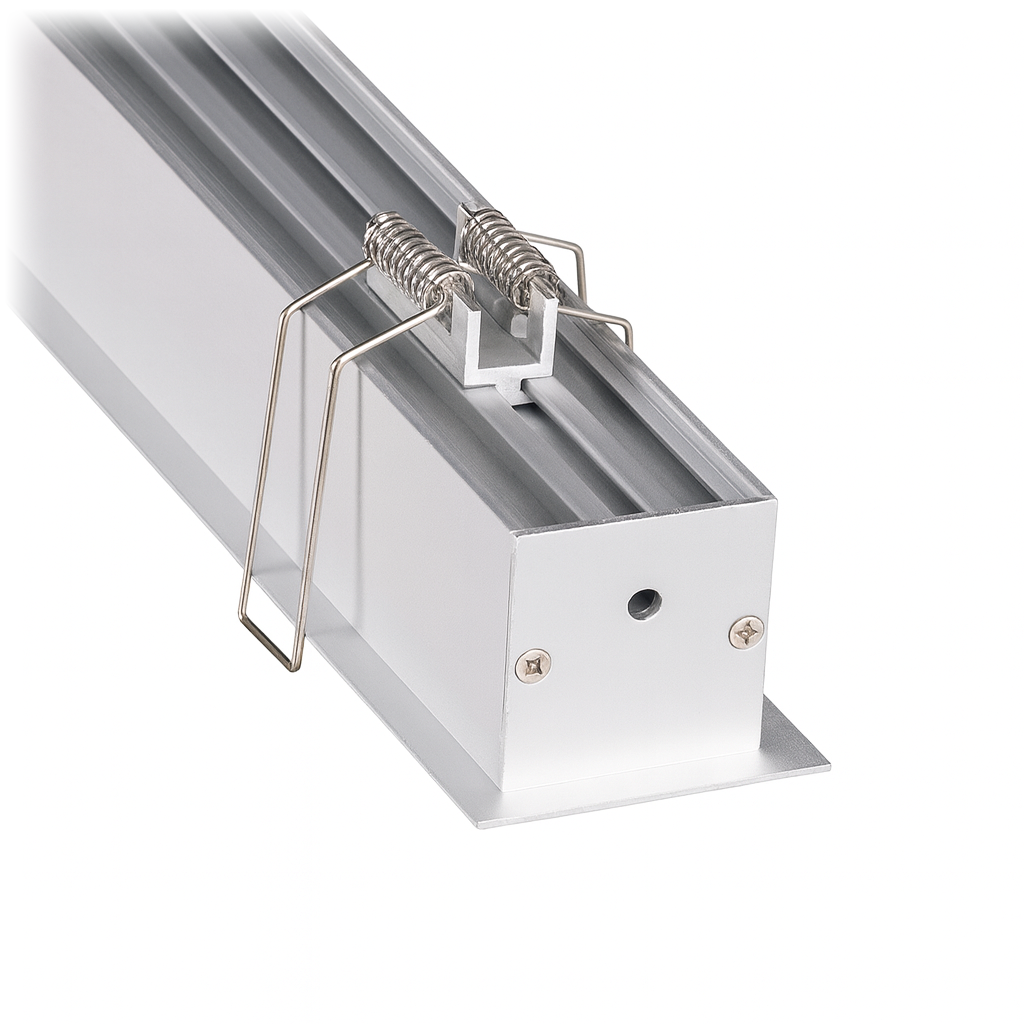

The 7W/FT Linea Wide WN31 Architectural Slim Series is a compact recessed linear LED luminaire designed to provide efficient, uniform illumination in a slim architectural profile. Delivering up to 910 lumens per foot while consuming only 7 watts per foot, the series is ideal for architectural, ceiling, accent, office, area, and general lighting applications.
Designed for recessed mounting, the Linea Wide WN31 features a broad 110° beam angle, dimming capability, and multiple optical lens options. Standard lengths are available from 24" to 78", while custom configurations can be specified in 2" (50 mm) increments for flexible architectural installations.
Features
- 7W per foot power consumption
- Produces up to 910 lumens per foot
- Slim recessed architectural profile
- 110° beam angle for broad illumination
- Dimmable
- Cuttable every 2" (50 mm)
- Custom lengths available from 24" to 78" in 2" increments
- Standard lengths: 24", 36", 48" & 78"
- Color temperatures from 2700K to 6500K
- High CRI options up to CRI 95
- Frost, Semi-Clear & Clear optics
- 24V constant-current operation
- IP54 waterproof rating
- UL Listed for wet locations
- Suitable for indoor & outdoor applications
Color Temperature & CRI Options
| Color Temperature | CRI |
| 2700K | CRI 95 |
| 3000K | CRI 95 |
| 4200K | CRI 90 |
| 5000K | CRI 88 |
| 6500K | CRI 85 |
Standard Length Options
| Length | Ordering Code | Power | Maximum Light Output |
| 24" (610 mm) | 2 | 14W | Up to 1,820 lm |
| 36" (914 mm) | 3 | 21W | Up to 2,730 lm |
| 48" (1,219 mm) | 4 | 28W | Up to 3,640 lm |
| 78" (1,981 mm) | 6 | 45.5W | Up to 5,915 lm |
Custom lengths are available from 24" to 78" in 2" (50 mm) increments.
Optics Options
| Optic | Ordering Code |
| Frost | FC |
| Semi-Clear | SC |
| Clear | CL |
Specifications
| Product Type | Recessed Architectural Linear LED Luminaire |
| Series | Linea Wide WN31 Architectural Slim Series |
| Model | LW-WN31 |
| Power Consumption | 7W per Foot |
| Maximum Light Output | Up to 910 lm per Foot |
| Standard Lengths | 24" / 36" / 48" / 78" |
| Custom Lengths | 24"–78" in 2" (50 mm) Increments |
| Cut Interval | 2" (50 mm) |
| Color Temperatures | 2700K / 3000K / 4200K / 5000K / 6500K |
| CRI | 85–95 Depending on CCT |
| Optics | Frost / Semi-Clear / Clear |
| Beam Angle | 110° |
| Dimming | Dimmable |
| Voltage | 24V Constant Current |
| Mounting | Recessed Mount |
| IP Rating | IP54 |
| Location Rating | Wet Location |
| Certification | UL Listed for Wet Locations |
Profile Dimensions
| Overall Width | 49 mm (1.93") |
| Housing Width | 31 mm (1.22") |
| Height | 35 mm (1.38") |
Applications
- Architectural Lighting
- Ceiling Lighting
- Accent Lighting
- Area & General Lighting
- Office Lighting
- Commercial Interiors
- Recessed Linear Lighting
- Indoor & Outdoor Applications
Why Choose the Linea Wide WN31 Architectural Slim Series?
The Linea Wide WN31 Architectural Slim Series combines a compact recessed profile with 7W per foot power consumption and up to 910 lumens per foot. Its broad 110° beam angle and multiple high-CRI color temperature options provide flexible illumination for both general and architectural accent lighting.
With four standard lengths, custom sizing in 2" increments, three optical lens options, dimming capability, IP54 protection, and UL wet-location listing, the WN31 Series provides a highly configurable solution for architectural, commercial, office, ceiling, and general lighting installations.
