11W/FT Linea Wide ER7635 Architectural Series
11W/FT Linea Wide ER7635 Architectural Series
Couldn't load pickup availability

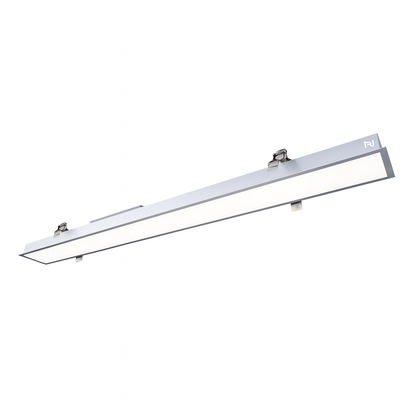

The 11W/FT Linea Wide ER7635 Architectural Series is a high-output recessed linear LED luminaire designed for architectural, commercial, office, accent, and general lighting applications. Delivering up to 1,430 lumens per foot while consuming only 11 watts per foot, the series combines powerful illumination with a clean, integrated architectural appearance.
Designed for recessed mounting, the Linea Wide ER7635 features a broad 110° beam angle, dimming capability, and multiple optical lens options. Standard lengths are available from 24" to 78", while custom configurations can be specified in 2" (50 mm) increments for greater installation flexibility.
Features
- 11W per foot power consumption
- Produces up to 1,430 lumens per foot
- Recessed architectural mounting
- 110° beam angle for broad illumination
- Dimmable
- Cuttable every 2" (50 mm)
- Custom lengths available from 24" to 78" in 2" increments
- Standard lengths: 24", 36", 48" & 78"
- Color temperatures from 2700K to 6500K
- High CRI options up to CRI 95
- Frost, Semi-Clear & Clear optics
- 24V operation
- IP54 rated
- UL Listed for wet locations
- Suitable for indoor & outdoor applications
Color Temperature & CRI Options
| Color Temperature | CRI |
| 2700K | CRI 95 |
| 3000K | CRI 95 |
| 4200K | CRI 90 |
| 5000K | CRI 88 |
| 6500K | CRI 85 |
Standard Length Options
| Length | Ordering Code | Power | Maximum Light Output |
| 24" (610 mm) | 2 | 22W | Up to 2,860 lm |
| 36" (914 mm) | 3 | 33W | Up to 4,290 lm |
| 48" (1,219 mm) | 4 | 44W | Up to 5,720 lm |
| 78" (1,981 mm) | 6 | 71.5W | Up to 9,295 lm |
Custom lengths are available from 24" to 78" in 2" (50 mm) increments.
Optics Options
| Optic | Ordering Code |
| Frost | FC |
| Semi-Clear | SC |
| Clear | CL |
Specifications
| Product Type | Recessed Architectural Linear LED Luminaire |
| Series | Linea Wide ER7635 Architectural Series |
| Model | LW-ER7635 |
| Power Consumption | 11W per Foot |
| Maximum Light Output | Up to 1,430 lm per Foot |
| Standard Lengths | 24" / 36" / 48" / 78" |
| Custom Lengths | 24"–78" in 2" (50 mm) Increments |
| Cut Interval | 2" (50 mm) |
| Color Temperatures | 2700K / 3000K / 4200K / 5000K / 6500K |
| CRI | 85–95 Depending on CCT |
| Optics | Frost / Semi-Clear / Clear |
| Beam Angle | 110° |
| Dimming | Dimmable |
| Voltage | 24V |
| Mounting | Recessed Mount |
| IP Rating | IP54 |
| Location Rating | Wet Location |
| Certification | UL Listed for Wet Locations |

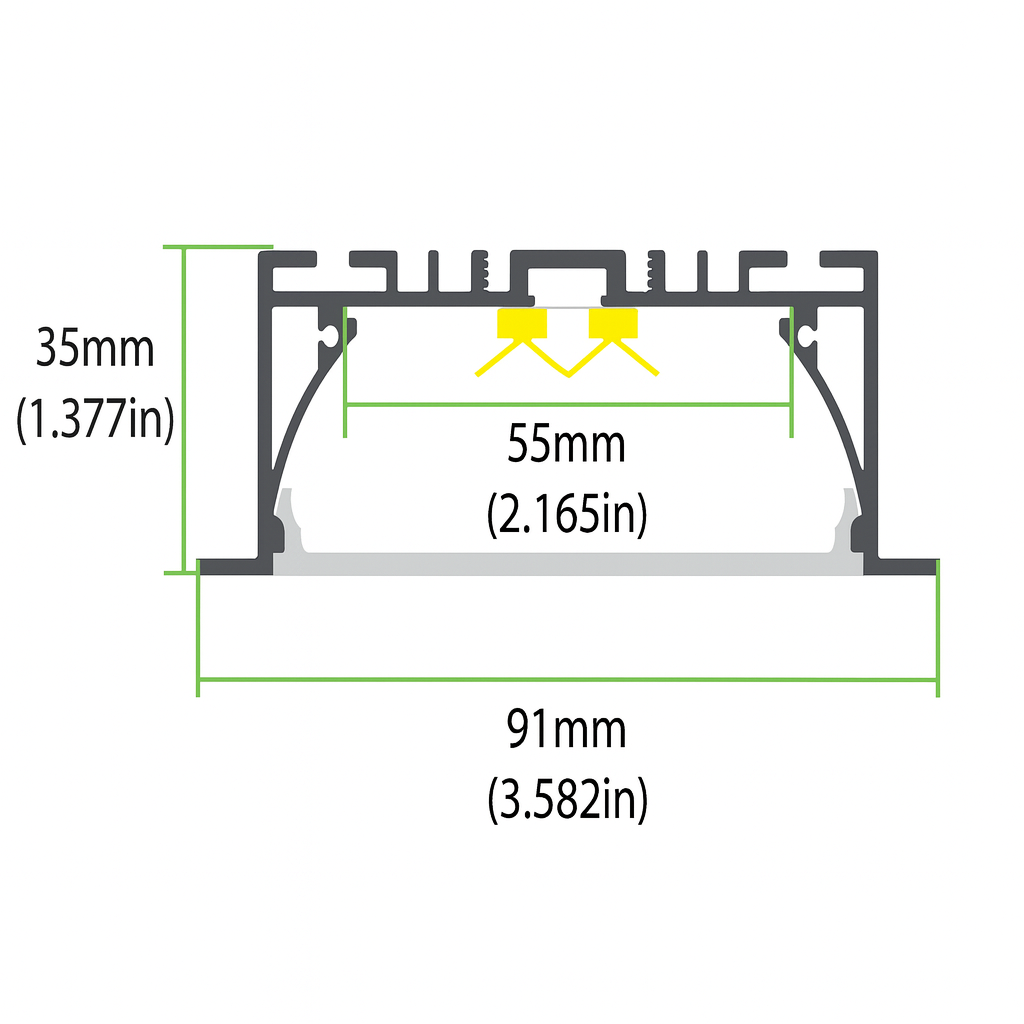

Profile Dimensions
| Overall Width | 3.582" (91 mm) |
| Housing Width | 2.165" (55 mm) |
| Height | 1.377" (35 mm) |
Applications
- Architectural Lighting
- Ceiling Lighting
- Accent Lighting
- Area & General Lighting
- Office Lighting
- Commercial Interiors
- Recessed Linear Lighting
- Indoor & Outdoor Applications
Why Choose the Linea Wide ER7635 Architectural Series?
The Linea Wide ER7635 Architectural Series delivers up to 1,430 lumens per foot while consuming only 11 watts per foot, providing powerful linear illumination in a clean recessed architectural profile. Its broad 110° beam angle and multiple high-CRI color temperature options make it suitable for both general and accent lighting applications.
With standard and custom lengths, 2" incremental sizing, three optical lens options, dimming capability, IP54 protection, and wet-location listing, the Linea Wide ER7635 provides a highly configurable solution for architectural, commercial, office, ceiling, and general lighting installations.
