Diamond Brite LEDs
LED Dazzler Linear Light Series
LED Dazzler Linear Light Series
Couldn't load pickup availability

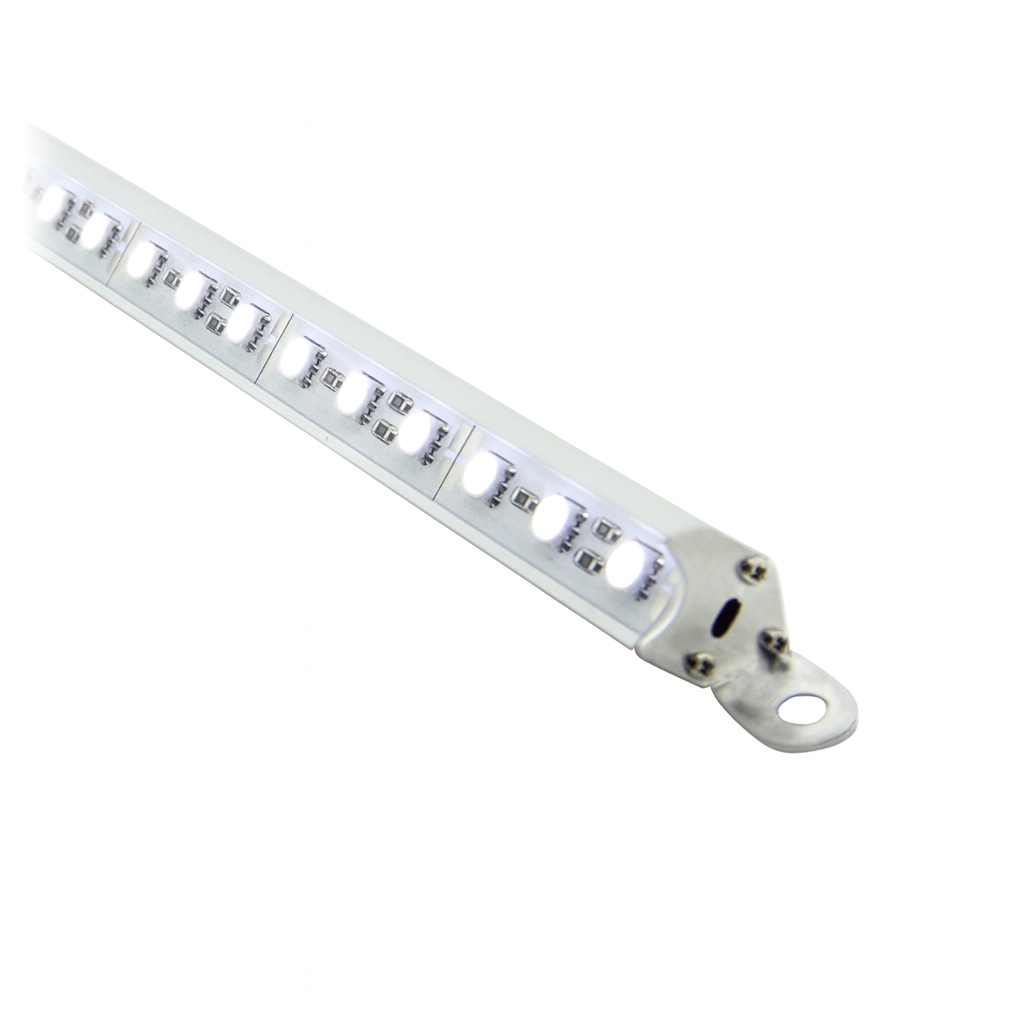

The LED Dazzler Linear Light Series is a low-profile display lighting solution designed to enhance jewelry, watches, artwork, optical products, and high-end retail merchandise. Featuring a slim 14 mm profile and high-output 5050 SMD LEDs, the Dazzler Series delivers precise illumination while maintaining a clean, discreet appearance within showcases and displays.
Available in multiple color temperatures with CRI options up to Ra 95, the Dazzler Series is designed to reveal fine details, material finishes, gemstones, and product colors with exceptional clarity. A focused 45° beam profile, 12V operation, multiple length and wattage configurations, and customizable finishes make it adaptable to a wide range of professional display lighting projects.
Features
- Slim 14 mm low-profile design for discreet showcase integration
- High-output 5050 SMD LEDs
- 45° beam profile for focused display illumination
- Available in 3000K, 5000K & 7000K
- CRI options up to Ra 95
- 12V operation
- Multiple length & wattage configurations available
- Standard and custom lengths available
- Brushed silver standard finish
- Custom RAL colors available
- Surface or designed mounting options
- Designed for professional showcase & display lighting
- Conforms to UL Standard 1598
Color Temperature & CRI Options
| Color Temperature | Description | CRI |
|---|---|---|
| 3000K | Warm White | Ra 80 |
| 5000K | Pure White | Ra 95 |
| 7000K | Bright White | Ra 90 |
Finish Options
- Standard: Brushed Silver
- Custom: RAL colors available upon request
Specifications
| Product Type | LED Linear Display Light |
|---|---|
| Series | LED Dazzler Series |
| LED Source | 5050 SMD LEDs |
| Input Voltage | 12V |
| Color Temperatures | 3000K / 5000K / 7000K |
| CRI | Ra 80 / Ra 95 / Ra 90 Depending on Color Temperature |
| Beam Profile | 45° |
| Profile | 0.55" (14 mm) |
| Lengths | Multiple Standard & Custom Lengths Available |
| Wattage | Varies by Length / Configuration |
| Standard Finish | Brushed Silver |
| Custom Finishes | RAL Colors Available Upon Request |
| Mounting | Surface / Designed Mounting |
| Compliance | Conforms to UL Standard 1598 |
Applications
- Jewelry & Diamond Showcases
- Watch Displays
- Antique & Craft Displays
- Optical Shops
- Art Galleries
- Museums & Exhibitions
- Luxury Boutiques
- High-End Retail Displays
- Specialty Product Showcases
Why Choose the LED Dazzler Series?
The LED Dazzler Linear Light Series combines a discreet 14 mm profile with focused 45° optics and high-output 5050 SMD LEDs, making it an excellent solution for applications where the lighting fixture should remain visually minimal while the displayed merchandise receives the attention.
With color temperatures from 3000K to 7000K, CRI options up to Ra 95, multiple lengths and wattages, custom sizing, and custom RAL finish options, the Dazzler Series provides the flexibility required for jewelry showcases, galleries, optical displays, boutiques, and other premium retail environments.
