Diamond Brite LEDs
7.68W/FT Las Vegas RGBWWW 24V LED Strip Series
7.68W/FT Las Vegas RGBWWW 24V LED Strip Series
Couldn't load pickup availability
The 7.68W/FT Las Vegas RGBWWW 24V LED Strip Series is a versatile, high-output LED tape designed to combine dynamic RGB color with dedicated 6500K White and 2400K Warm White channels in a single flexible lighting system. Operating at 24V DC, the strip provides extensive color control for architectural, accent, cove, display, hospitality, entertainment, and decorative lighting applications.

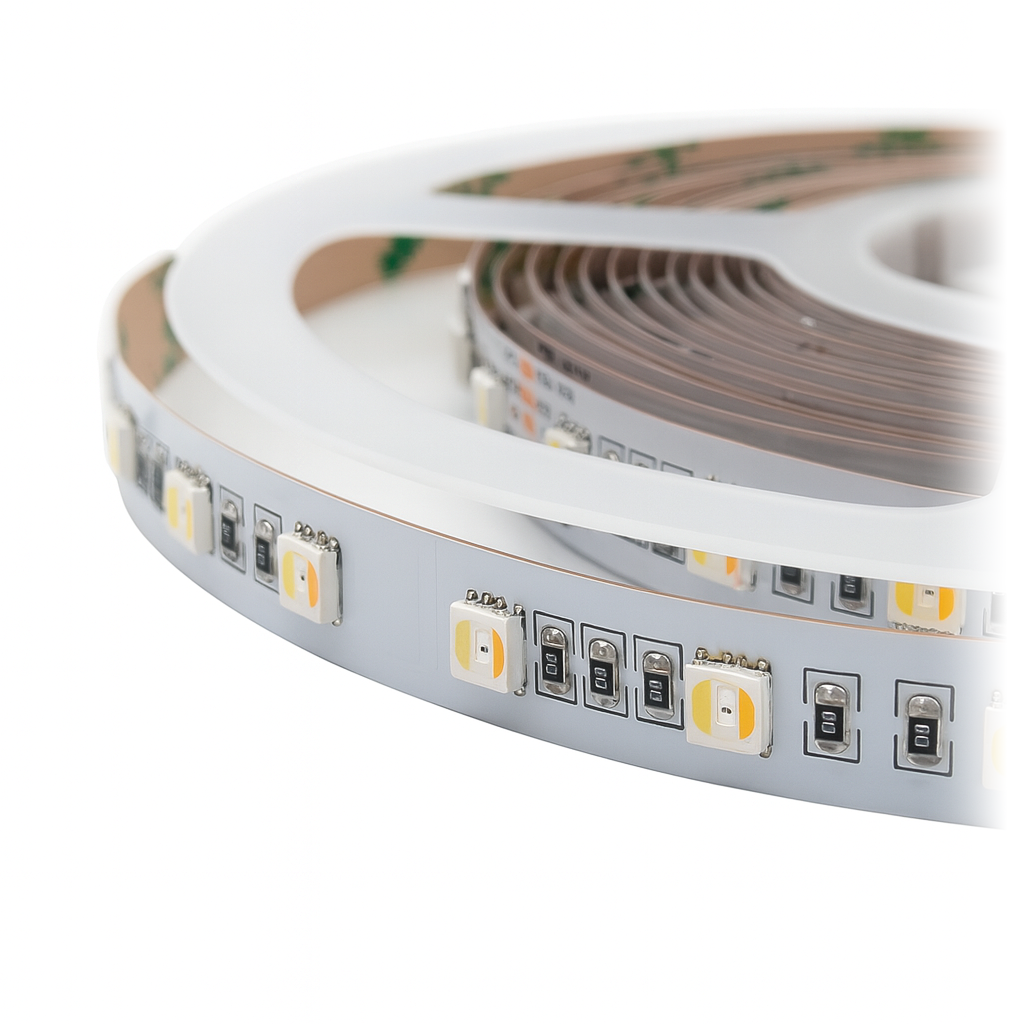

Built with high-quality SMD 5050 LEDs on a flexible white PCB, the Las Vegas RGBWWW Series consumes 25.2W per meter (approximately 7.68W per foot) and features a broad 120° beam angle. The strip can be cut every 4" (100 mm), is supplied in 16.4 ft (5 m) reels, and includes 3M double-sided adhesive backing for convenient installation.
Features
- 7.68W per foot power consumption
- 25.2W per meter
- RGB + White + Warm White multi-channel LED strip
- Dedicated 6500K White channel
- Dedicated 2400K Warm White channel
- High-quality SMD 5050 LED technology
- 18 LEDs per foot / 60 LEDs per meter
- 120° beam angle
- 24V DC constant-voltage operation
- Dimmable with compatible control equipment
- Cuttable every 4" (100 mm)
- 16.4 ft (5 m) reel length
- Flexible white PCB
- 3M double-sided adhesive mounting
- IP22 rated
- Approximately 50,000-hour luminous flux maintenance
- Operating temperature from -20°F to 120°F
Light Output
| Channel | Specification | CRI / Efficacy |
| Red | 619–625 nm / 48,000 mcd | — |
| Green | 520–530 nm / 72,000 mcd | — |
| Blue | 465–475 nm / 21,000 mcd | — |
| White | 6500K / 486 lm | 90 lm/W / CRI 80+ |
| Warm White | 2400K / 388 lm | 72 lm/W / CRI 80+ |
Specifications
| Product Type | RGBWWW Flexible LED Strip |
| Series | Las Vegas RGBWWW 24V LED Strip Series |
| Model | FLXLVS-RGBWWW-24V-IP20 |
| Power Consumption | 7.68W/FT (25.2W/M) |
| Input Voltage | 24V DC |
| Control Method | CV – Constant Voltage |
| LED Type | SMD 5050 |
| LED Density | 18 LEDs/FT (60 LEDs/M) |
| Color Channels | RGB + 6500K White + 2400K Warm White |
| White CRI | 80+ |
| Beam Angle | 120° |
| Dimming | DMX / PWM / RF PWM / 0–10V / MLV Incandescent |
| Cut Interval | 4" (100 mm) |
| Reel Length | 16.4 ft (5 m) |

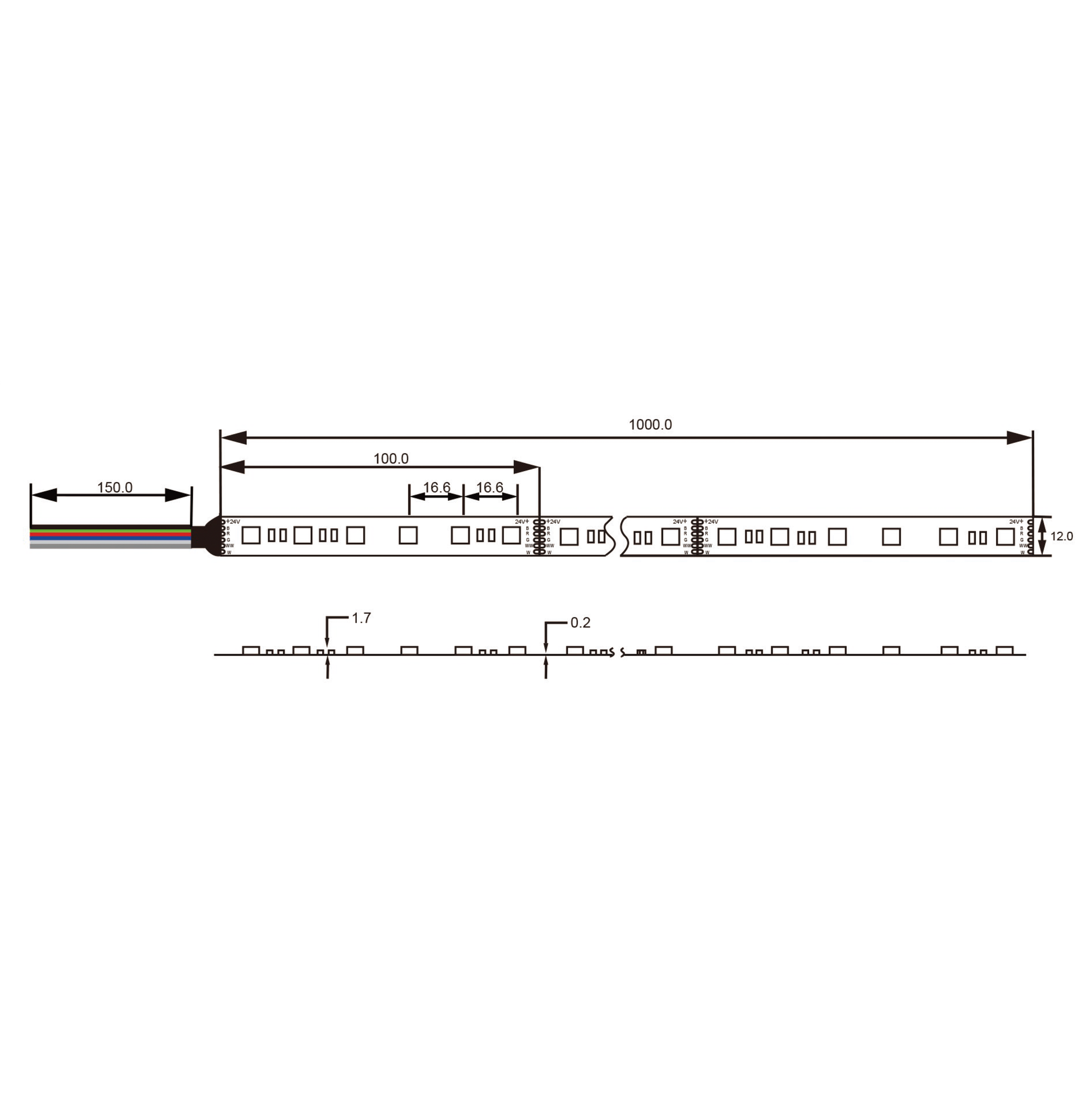

| Strip Width | 0.47" (12 mm) |
| PCB | White Flexible PCB, 2 oz Density |
| Mounting | 3M Double-Sided Adhesive Tape |
| IP Rating | IP22 |
| Operating Temperature | -20°F to 120°F |
| Luminous Flux Maintenance | Approximately 50,000 Hours |
Dimming & Control
- DMX Control
- PWM Control
- RF PWM Control
- 0–10V Control
- MLV Incandescent Dimming
Connection & Installation
For longer installations, parallel connections are strongly recommended to help maintain consistent brightness and prevent voltage drop. Middle-feed connections can be used to create longer continuous runs, while powering the LED strip from both ends can extend the maximum installation length.
The manufacturer's connection diagrams show a recommended parallel configuration of up to approximately 49' 2" (3 reels) and a double-end powered configuration of up to approximately 65' 4" (4 reels). Appropriate 24V power supplies and RGBWWW-compatible controllers should be selected based on the total connected load.
Applications
- Architectural Accent Lighting
- Cove Lighting
- Retail Displays
- Hospitality Lighting
- Restaurants & Bars
- Entertainment Spaces
- Color-Changing Accent Lighting
- Display & Shelf Lighting
- Residential Accent Lighting
- Commercial Interiors
Why Choose the Las Vegas RGBWWW LED Strip Series?
The Las Vegas RGBWWW LED Strip Series combines RGB color-changing capability with dedicated 6500K White and 2400K Warm White channels, providing greater lighting flexibility than a standard RGB strip. Users can create vibrant colored effects while retaining dedicated white-light channels for functional and architectural illumination.
With 24V constant-voltage operation, a broad 120° beam angle, 4" cut intervals, multiple dimming and control methods, flexible PCB construction, and convenient 3M adhesive mounting, the Las Vegas RGBWWW Series provides a versatile solution for sophisticated residential and commercial lighting installations.
