Diamond Brite LEDs
7.7W/FT Las Vegas RGB Dazzler Strip Series
7.7W/FT Las Vegas RGB Dazzler Strip Series
Couldn't load pickup availability

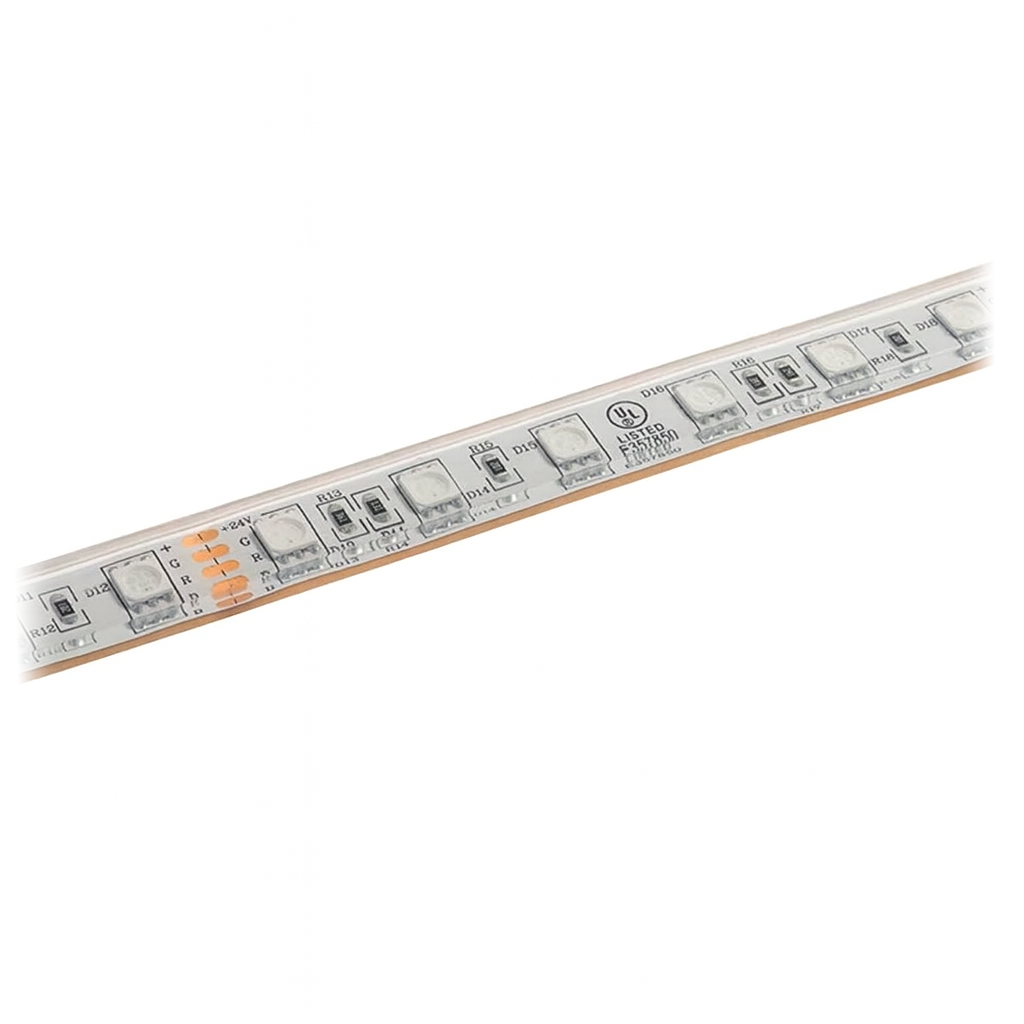

The Las Vegas RGB Dazzler Strip Series is a premium color-changing LED strip designed for architectural, decorative, and accent lighting applications. Built with a thick PCB board and high-quality SMD 5050 LED chips, it provides vibrant RGB illumination, reliable performance, and flexible control for dynamic lighting installations.
Available in both 12V DC and 24V DC configurations, the Las Vegas RGB Dazzler Series features multiple waterproof options ranging from IP20 to IP68. With a 120° beam angle, 4" (100 mm) cuttable segments, multiple dimming and control options, and 3M adhesive backing, it is suitable for indoor, outdoor, and submersible applications.
Features
- 25.2W per meter (~7.7W per ft)
- 12V DC or 24V DC constant-voltage operation
- High-quality SMD 5050 LED chips
- Thick PCB board for durable construction
- 18 LEDs per ft (60 LEDs per meter)
- Dynamic RGB color-changing illumination
- CRI 80+
- Cuttable every 4" (100 mm)
- 120° wide beam distribution
- 3M double-sided adhesive backing
- DMX PWM, RF PWM, 0–10V, and MLV incandescent dimming options
- IP20, IP65, and IP68 configurations available
- Operating temperature from -20°F to 120°F
- Approximately 50,000-hour rated life
RGB Luminous Intensity
| Color | Luminous Intensity |
|---|---|
| Red | 48,000 MCD |
| Green | 72,000 MCD |
| Blue | 21,000 MCD |
Reel Length Options
| Voltage | Reel Length |
|---|---|
| 12V DC | 16.4 ft (5 m) |
| 24V DC | 39.37 ft (12 m) |
Waterproof Options
| IP Rating | Application |
|---|---|
| IP20 | Indoor |
| IP65 | Splash-Proof |
| IP68 | Submersible |
Dimming & Control Options
| Control Method | Availability |
|---|---|
| DMX PWM | Available |
| RF PWM | Available |
| 0–10V | Available |
| MLV Incandescent | Available |
Specifications
| Product Type | RGB LED Strip |
|---|---|
| Power Consumption | ~7.7W/ft (25.2W/m) |
| Input Voltage | 12V DC / 24V DC Constant Voltage |
| LED Chip | SMD 5050 |
| LED Density | 18 LEDs/ft (60 LEDs/m) |
| Color | RGB |
| CRI | 80+ |
| Cut Interval | 4" (100 mm) |
| Beam Angle | 120° |
| 12V Reel Length | 16.4 ft (5 m) |
| 24V Reel Length | 39.37 ft (12 m) |
| Mounting | 3M Double-Sided Adhesive Backing |
| Dimming / Control | DMX PWM / RF PWM / 0–10V / MLV Incandescent |
| IP Ratings | IP20 / IP65 / IP68 |
| Operating Temperature | -20°F to 120°F |
| Rated Life | 50,000 Hours |

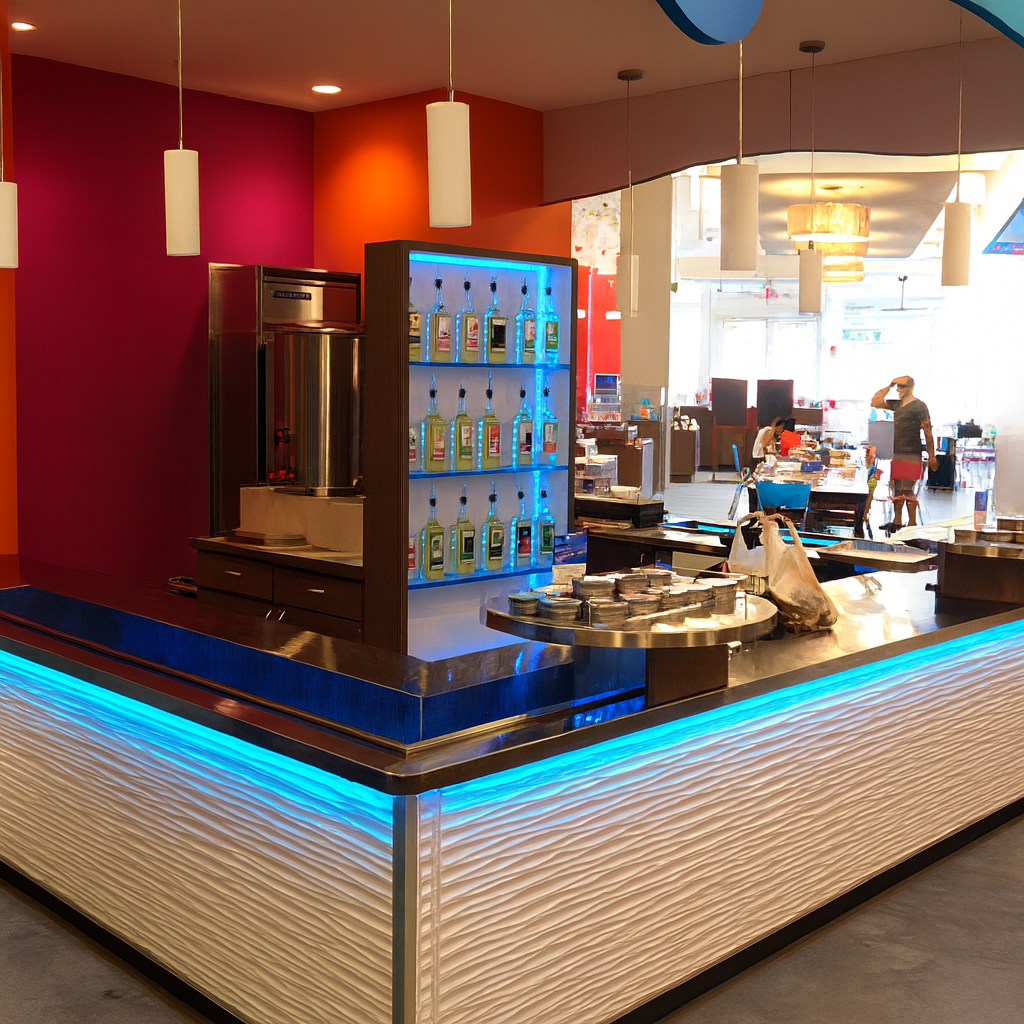

Applications
- Cove Lighting
- Wall Accent Lighting
- Furniture Lighting
- Architectural Features
- Signage
- Retail Displays
- Hospitality Environments
- Outdoor Patios
- Building Facades
- Decorative Color-Changing Installations

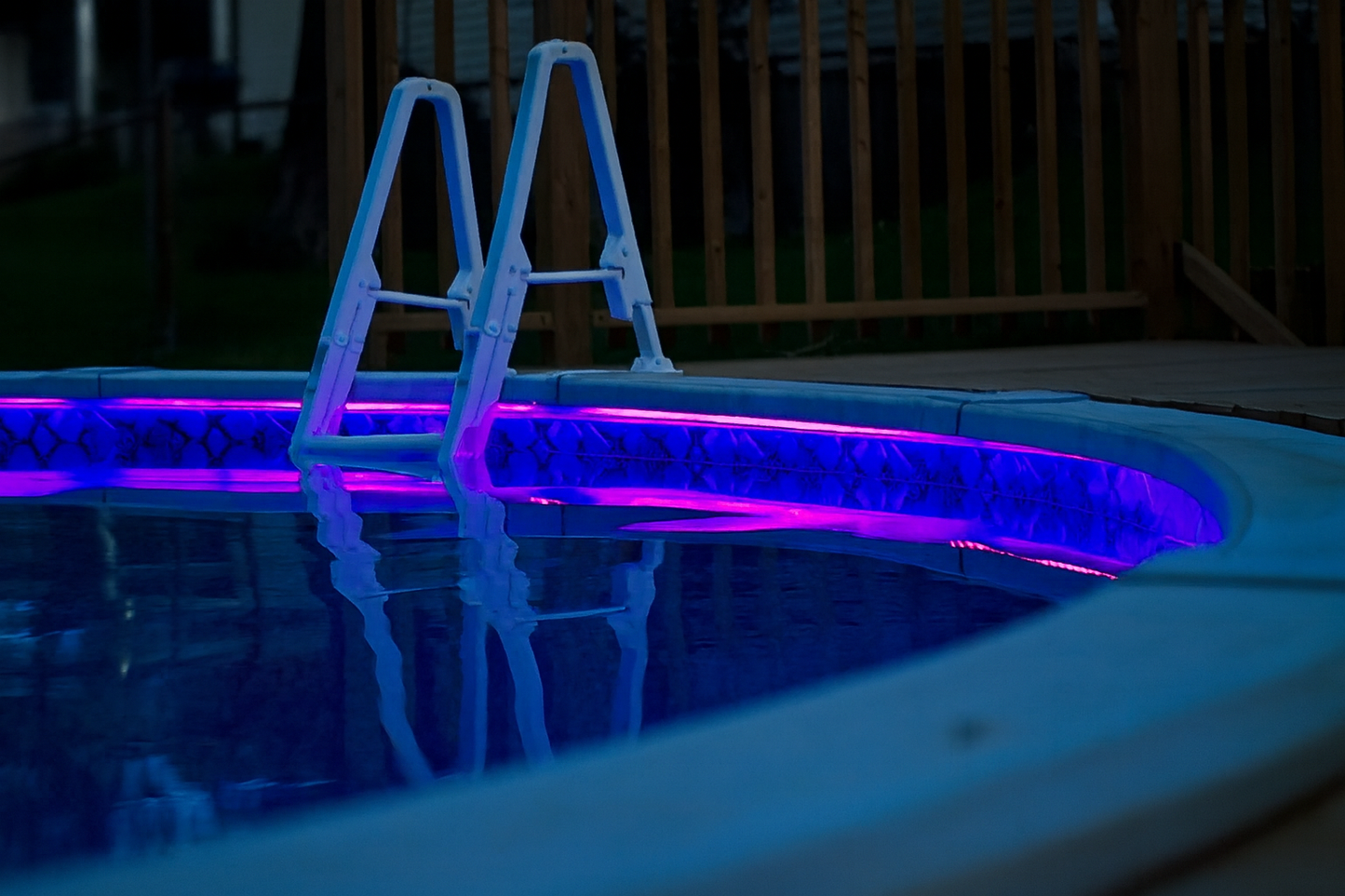

- Submersible Applications with IP68 Configuration
Why Choose the Las Vegas RGB Dazzler Strip Series?
The Las Vegas RGB Dazzler Strip Series combines a thick PCB board, high-quality SMD 5050 LEDs, and dynamic RGB color control to provide a durable and versatile solution for color-changing lighting projects. Its 4" (100 mm) cut intervals and 3M adhesive backing provide flexibility for custom installations.
With 12V and 24V DC configurations, multiple dimming and control options, IP20, IP65, and IP68 protection levels, and a 50,000-hour rated life, the Las Vegas RGB Dazzler Series is well suited for architectural features, coves, signage, retail displays, hospitality spaces, outdoor facades, and other dynamic accent lighting applications.
