Diamond Brite LEDs
10W Landscape Quantum Series
10W Landscape Quantum Series
Couldn't load pickup availability
The 10W Landscape LED Quantum Series is a sleek, high-performance outdoor luminaire designed for landscape, pathway, and architectural accent lighting. Delivering 1,200 lumens from only 10W, it combines efficient LED performance with a focused 45° beam for precise outdoor illumination.
Constructed from durable die-cast aluminum with a matte black powder-coated finish, the Quantum Series is rated IP67 for outdoor environments. Its premium optical lens can illuminate trees up to 30 feet away, making it an excellent solution for pathways, gardens, trees, architectural landscapes, and outdoor accent applications.
Features
- 10W integrated LED landscape luminaire
- Produces 1,250 total lumens and 1,200 delivered lumens
- Approximately 120 delivered lm/W
- Integrated DC LED module
- 12V / 24V DC operation
- Requires DC driver, sold separately
- Standard 3000K Warm White
- Custom 2700K–5000K color temperatures available with minimum order quantity
- CRI 90+ for excellent color rendering
- Premium optical lens with focused 45° beam angle
- Capable of illuminating trees up to 30 ft away
- ELV dimming from 100%–10%
- Approximately 50,000-hour rated life
- Inground installation with spike stake
- Durable die-cast aluminum construction
- Matte black powder-coated finish
- IP67 outdoor rated
- ADA Compliant
- CEC Title 24 JA8-2022 Certified
Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 3000K Warm White | Standard |
| 2700K–5000K | Custom – MOQ Applies |
Light Output
| Wattage | Total Lumens | Delivered Lumens | Delivered Efficacy |
|---|---|---|---|
| 10W | 1,250 lm | 1,200 lm | 120 lm/W |
Specifications
| Product Type | Landscape LED Luminaire |
|---|---|
| Wattage | 10W |
| Total Light Output | 1,250 lm |
| Delivered Light Output | 1,200 lm |
| Delivered Efficacy | 120 lm/W |
| Light Source | Integrated DC LED Module |
| Voltage | 12V / 24V DC |
| Driver | DC Driver Required – Sold Separately |
| Standard CCT | 3000K Warm White |
| Custom CCT | 2700K–5000K – MOQ Applies |
| CRI | 90+ |

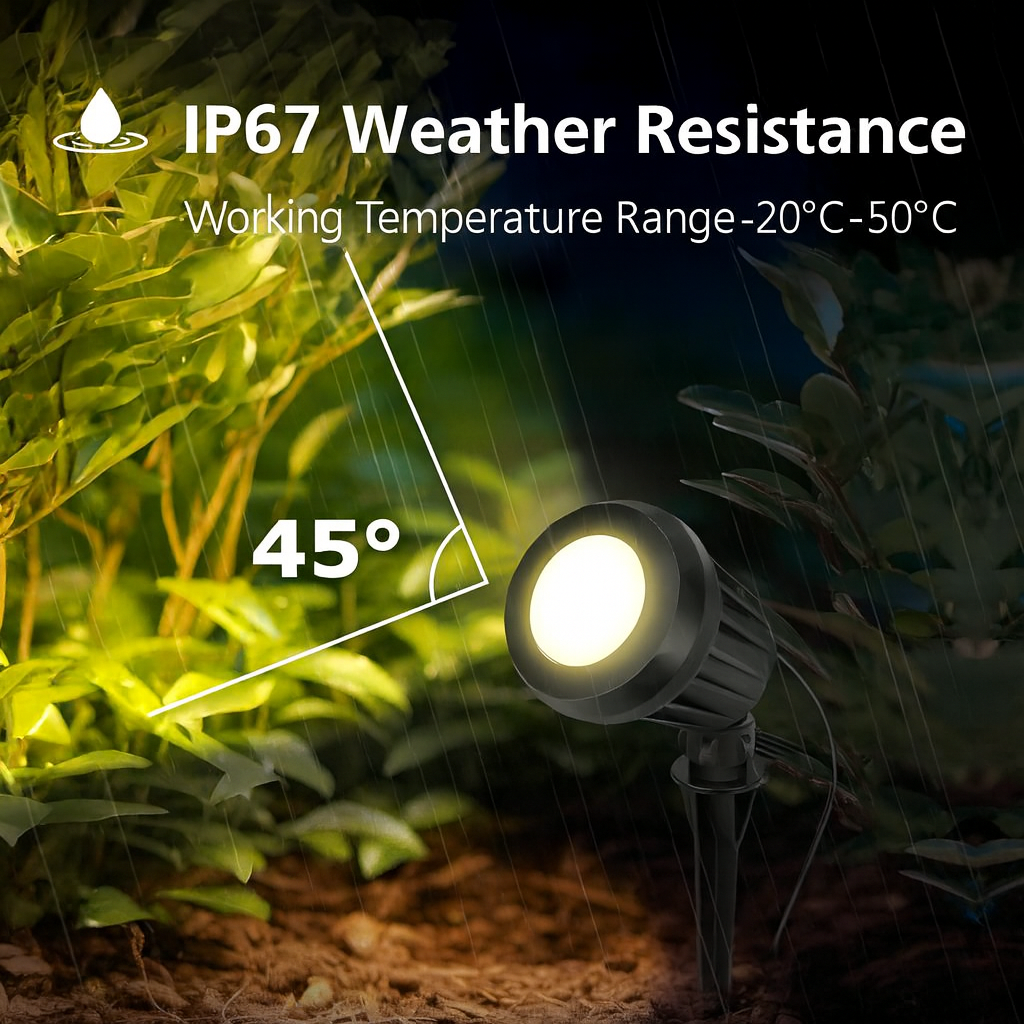

| Beam Angle | 45° |
| Dimming | ELV, 100%–10% |
| Dimmer | Not Included |
| Rated Life | 50,000 Hours |
| Mounting | Inground with Spike Stake |
| Material | Die-Cast Aluminum |
| Finish | Matte Black Powder-Coated |
| IP Rating | IP67 |
| Compliance | ADA Compliant / CEC Title 24 JA8-2022 Certified |

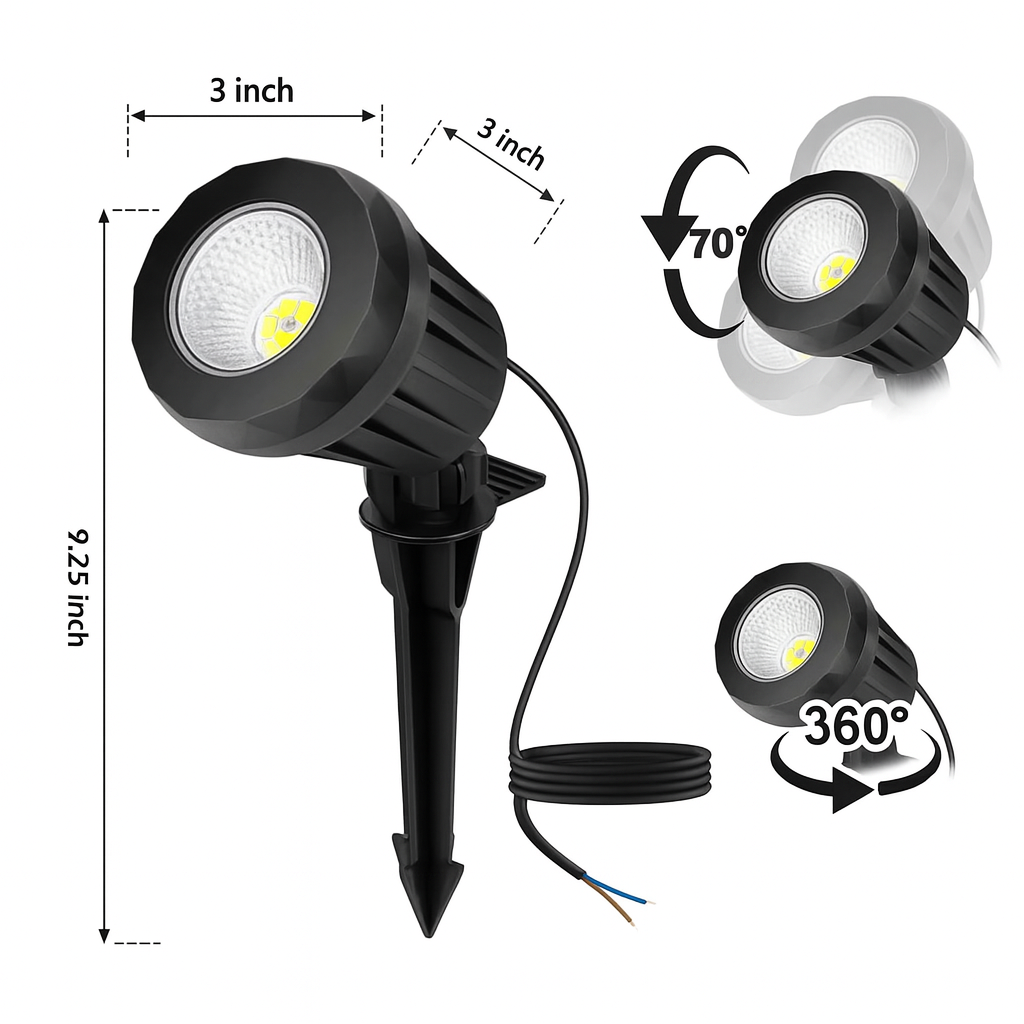

| Fixture Dimensions | 3" W × 3" H × 9.25" E (76 × 76 × 235 mm) |
Applications
- Pathway Lighting
- Tree Illumination
- Garden Lighting
- Architectural Landscapes
- Outdoor Accent Lighting
- Residential Landscapes
- Commercial Landscapes
Why Choose the Landscape LED Quantum Series?
The Landscape LED Quantum Series combines 1,200 delivered lumens at only 10W with a focused 45° optical beam, providing efficient and precise illumination for outdoor landscapes. Its premium optical lens can illuminate trees up to 30 feet away, making it particularly effective for highlighting landscape features and architectural elements.
With durable die-cast aluminum construction, a matte black powder-coated finish, CRI 90+, ELV dimming, IP67 protection, and a 50,000-hour rated life, the Quantum Series provides a durable and versatile solution for pathways, trees, gardens, architectural landscapes, and outdoor accent lighting.
