Iodine Linear LED Series - Surface Mount
Iodine Linear LED Series - Surface Mount
Couldn't load pickup availability

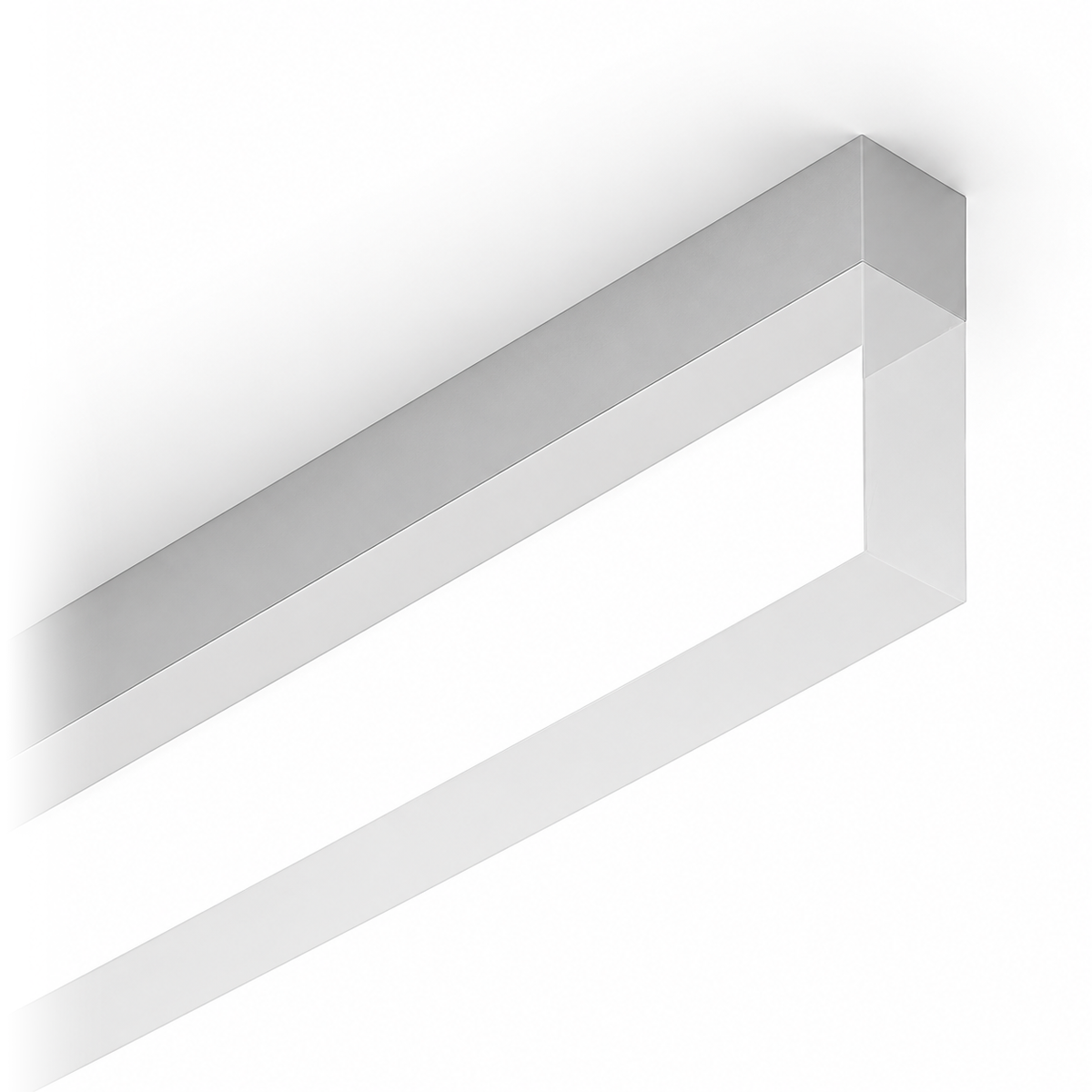

The Iodine Linear LED Series - Surface Mount is a minimalist architectural linear LED luminaire featuring a distinctive 1" wide acrylic blade and clean surface-mounted installation. The fixture delivers direct illumination while maintaining the signature floating-blade appearance of the Iodine Series.
Constructed with an extruded aluminum housing and premium high-efficacy LEDs, the Surface Mount configuration is available with multiple light output packages, color temperatures, blade heights, finishes, and dimming protocols for flexible architectural applications.
Features
- Surface mounted architectural LED luminaire
- Direct illumination
- 1" wide acrylic blade
- Clear acrylic blade with floating lens appearance
- Extruded aluminum housing
- No visible fasteners
- Premium high-efficacy LEDs
- Multiple light output packages
- Color temperatures from 2700K to 6500K
- RGBW option available
- Multiple blade height options
- Multiple architectural finish options
- Dimmable driver options
- Remote driver system
- Custom continuous runs available
- 5-year system warranty
Light Output Options
| Output | Power | Light Output |
|---|---|---|
| Extremely Low Output | 2W/FT | 200 lm/FT |
| Very Low Output | 4W/FT | 390 lm/FT |
| Low Output | 6W/FT | 590 lm/FT |
| Standard Output | 8W/FT | 775 lm/FT |
| High Output | 10W/FT | 965 lm/FT |
| Very High Output | 12W/FT | 1,125 lm/FT |
| Custom Power Output | Consult Factory | |
Color Temperature Options
| Color Temperature | Ordering Code |
|---|---|
| 2700K | 27K |
| 3000K | 30K |
| 3500K | 35K |
| 4000K | 40K |
| 5000K | 50K |
| 6500K | 65K |
| RGBW | RGBW |
Length Options
| Length | Ordering Code |
|---|---|
| 1 Foot | 1 |
| 2 Feet | 2 |
| 3 Feet | 3 |
| 4 Feet | 4 |
| Custom Continuous Run | Continuous Run |

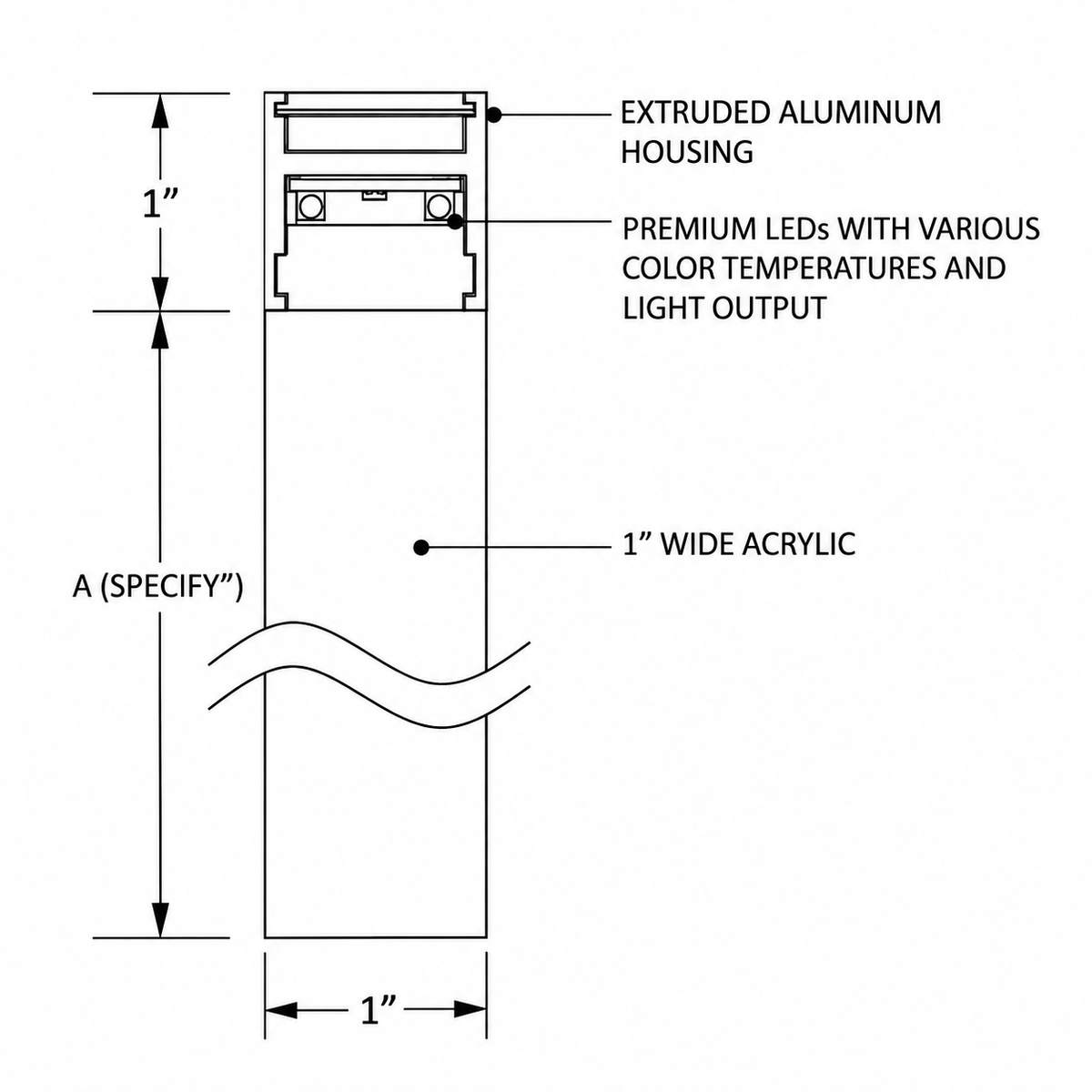

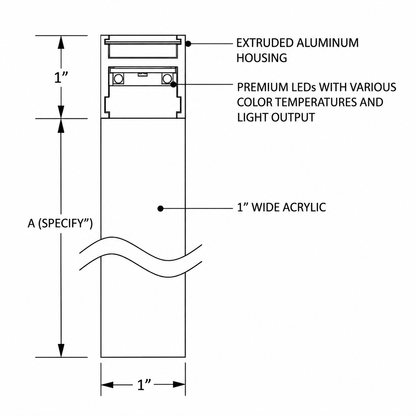

Specifications
| Product Type | Architectural Linear LED Luminaire |
| Series | Iodine Linear LED Series |
| Mounting | Surface Mount Top |
| Light Distribution | Direct |
| Blade Width | 1" |
| Blade Material | Acrylic |
| Housing | Extruded Aluminum |
| Standard Lengths | 1FT / 2FT / 3FT / 4FT |
| Custom Lengths | Continuous Runs Available |
| Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / RGBW |
| Light Output | 200–1,125 lm/FT |
| Power | 2W/FT–12W/FT |
| Driver | Remote Driver |
| Dimming | Multiple Dimming Protocols Available |
| Warranty | 5 Years |
Applications
- Architectural Lighting
- Ceiling Lighting
- Office Lighting
- Hospitality Lighting
- Retail Lighting
- Commercial Interiors
- Reception Areas
- Residential Interiors
- Surface Mounted Linear Lighting
Why Choose the Iodine Surface Mount Series?
The Iodine Surface Mount Series brings the distinctive 1" acrylic blade of the Iodine family to a streamlined surface-mounted configuration. Its minimal architectural profile provides direct illumination without requiring a suspended installation.
With six standard output packages from 200 to 1,125 lumens per foot, multiple color temperatures, blade heights, finishes, dimming protocols, standard lengths, and custom continuous runs, the Iodine Surface Mount Series provides a highly configurable solution for contemporary architectural interiors.
