Iodine Linear LED Series - Recessed Mud-In
Iodine Linear LED Series - Recessed Mud-In
Couldn't load pickup availability

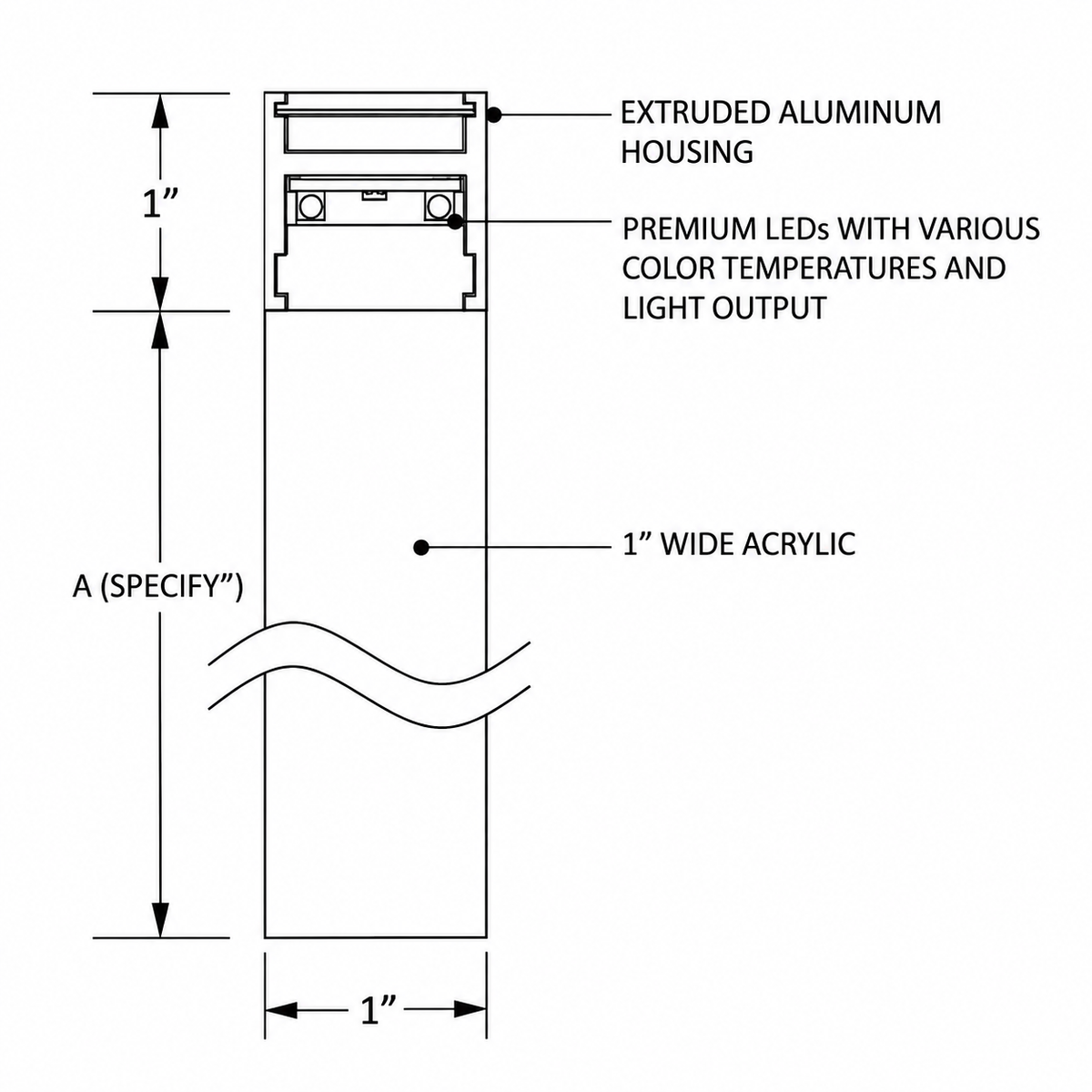

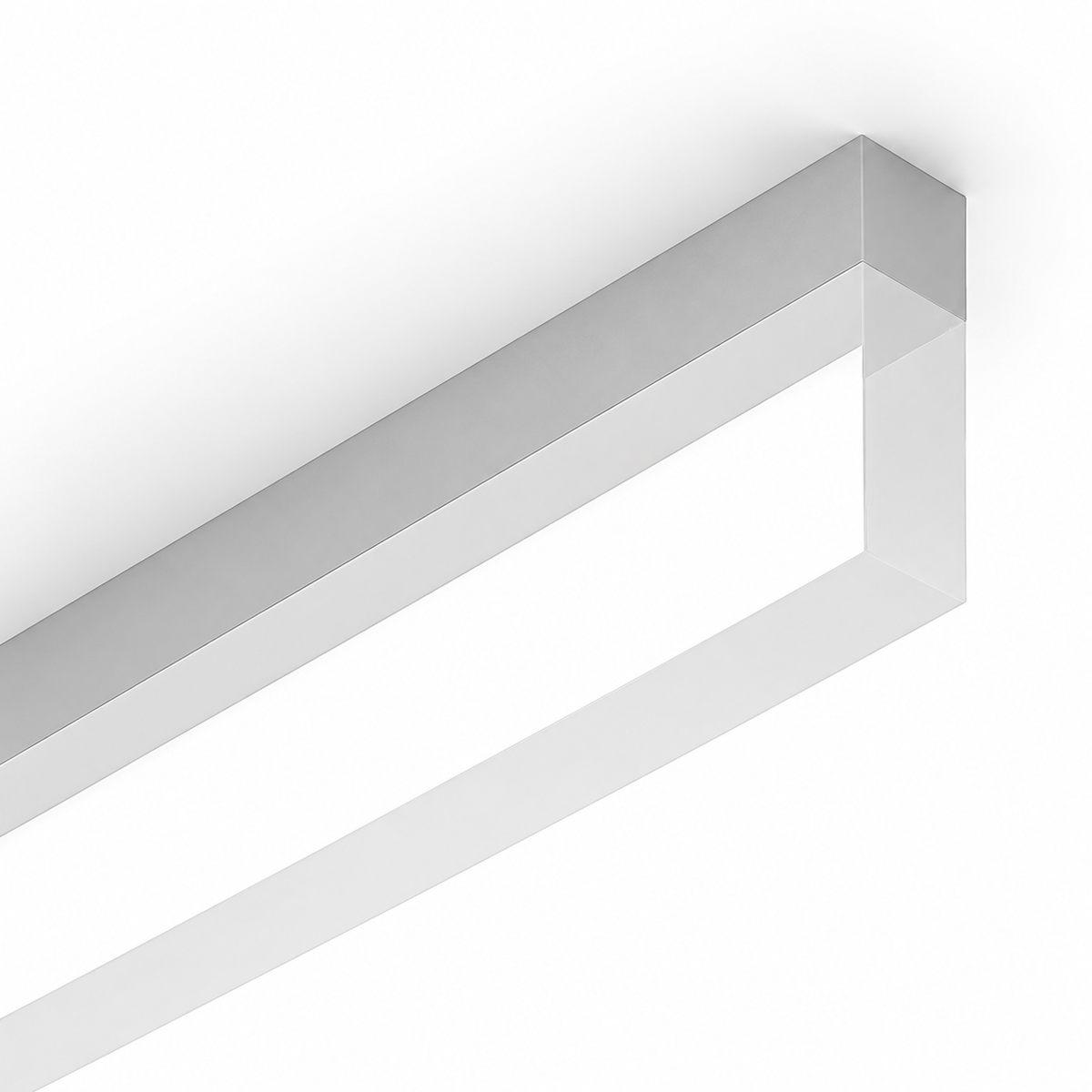

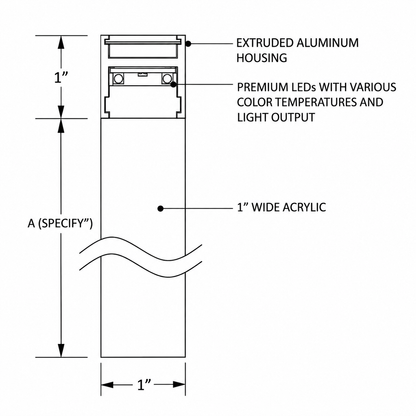

The Iodine Linear LED Series - Recessed Mud-In is a minimalist architectural linear LED luminaire designed to integrate into the surrounding architectural surface. Featuring the distinctive 1" wide acrylic blade of the Iodine Series, the recessed mud-in configuration creates a clean installation that visually emphasizes the illuminated blade.
Constructed with an extruded aluminum housing and premium high-efficacy LEDs, the Iodine Recessed Mud-In Series offers multiple light output packages, color temperatures, blade heights, finishes, and dimming protocols for highly customized architectural installations.
Features
- Recessed mud-in architectural LED luminaire
- Direct illumination
- 1" wide acrylic blade
- Clear acrylic blade with floating lens appearance
- Extruded aluminum housing
- No visible fasteners
- Premium high-efficacy LEDs
- Multiple light output packages
- Color temperatures from 2700K to 6500K
- RGBW option available
- Multiple blade height options
- Multiple architectural finish options
- Dimmable driver options
- Remote driver system
- Custom continuous runs available
- 5-year system warranty
Light Output Options
| Output | Power | Light Output |
|---|---|---|
| Extremely Low Output | 2W/FT | 200 lm/FT |
| Very Low Output | 4W/FT | 390 lm/FT |
| Low Output | 6W/FT | 590 lm/FT |
| Standard Output | 8W/FT | 775 lm/FT |
| High Output | 10W/FT | 965 lm/FT |
| Very High Output | 12W/FT | 1,125 lm/FT |
| Custom Power Output | Consult Factory | |
Color Temperature Options
| Color Temperature | Ordering Code |
|---|---|
| 2700K | 27K |
| 3000K | 30K |
| 3500K | 35K |
| 4000K | 40K |
| 5000K | 50K |
| 6500K | 65K |
| RGBW | RGBW |
Length Options
| Length | Ordering Code |
|---|---|
| 1 Foot | 1 |
| 2 Feet | 2 |
| 3 Feet | 3 |
| 4 Feet | 4 |
| Custom Continuous Run | Continuous Run |
Specifications
| Product Type | Architectural Linear LED Luminaire |
| Series | Iodine Linear LED Series |
| Mounting | Recessed Mud-In |
| Light Distribution | Direct |
| Blade Width | 1" |
| Blade Material | Acrylic |
| Housing | Extruded Aluminum |
| Standard Lengths | 1FT / 2FT / 3FT / 4FT |
| Custom Lengths | Continuous Runs Available |
| Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / RGBW |
| Light Output | 200–1,125 lm/FT |
| Power | 2W/FT–12W/FT |
| Driver | Remote Driver |
| Dimming | Multiple Dimming Protocols Available |
| Warranty | 5 Years |
Applications
- Architectural Lighting
- Ceiling Lighting
- Office Lighting
- Hospitality Lighting
- Retail Lighting
- Commercial Interiors
- Reception Areas
- Residential Interiors
- Recessed Linear Lighting
Why Choose the Iodine Recessed Mud-In Series?
The Iodine Recessed Mud-In Series integrates the fixture housing into the architectural surface while leaving the distinctive 1" acrylic blade as the primary visible lighting element. The result is an exceptionally clean and minimal architectural appearance.
With six standard output packages from 200 to 1,125 lumens per foot, multiple color temperatures, blade heights, finishes, dimming protocols, standard lengths, and custom continuous-run configurations, the Iodine Recessed Mud-In Series provides extensive flexibility for high-end architectural lighting installations.
