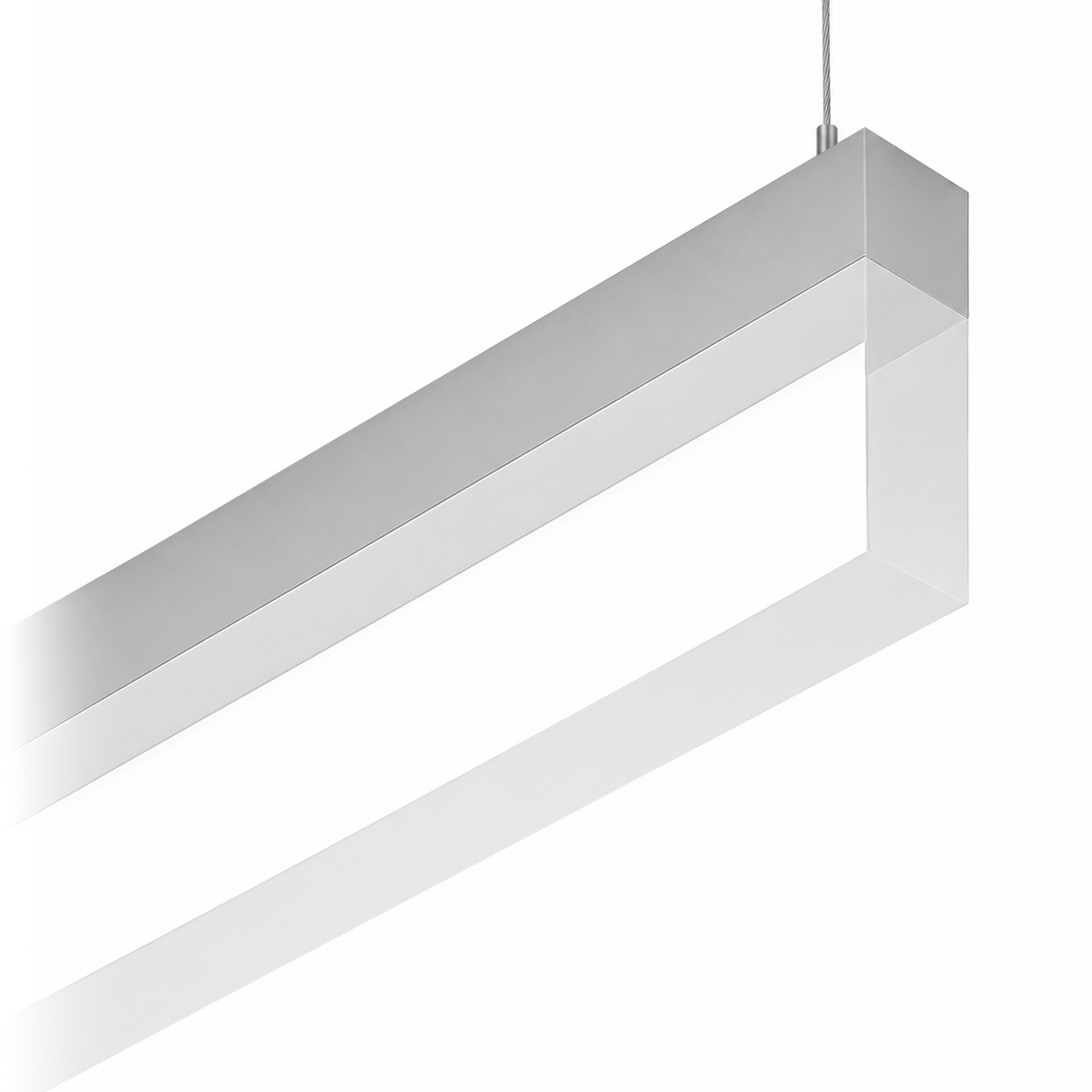

Iodine Linear LED Series - Cable Suspended Direct
Iodine Linear LED Series - Cable Suspended Direct
Couldn't load pickup availability
The Iodine Linear LED Series - Cable Suspended Direct is a minimalist architectural linear LED luminaire featuring a distinctive 1" wide acrylic blade suspended from the ceiling. Designed for direct downward illumination, the fixture creates a clean floating-light appearance while providing efficient functional lighting for modern architectural environments.
Constructed with an extruded aluminum housing and premium high-efficacy LEDs, the Iodine Series offers multiple light output packages, color temperatures, blade heights, finishes, suspension lengths, canopy configurations, and dimming protocols for flexible architectural installations.
Features
- Cable suspended direct architectural LED luminaire
- Direct downward illumination
- 1" wide acrylic blade
- Clear acrylic blade with floating lens appearance
- Extruded aluminum housing
- No visible fasteners
- Premium high-efficacy LEDs
- Multiple light output packages
- Color temperatures from 2700K to 6500K
- RGBW option available
- Multiple blade height options
- Multiple suspension lengths available
- Multiple architectural finish options
- Dimmable driver options
- Remote driver system
- Custom continuous runs available
- 5-year system warranty
Light Output Options
| Output | Power | Light Output |
|---|---|---|
| Extremely Low Output | 2W/FT | 200 lm/FT |
| Very Low Output | 4W/FT | 390 lm/FT |
| Low Output | 6W/FT | 590 lm/FT |
| Standard Output | 8W/FT | 775 lm/FT |
| High Output | 10W/FT | 965 lm/FT |
| Very High Output | 12W/FT | 1,125 lm/FT |
| Custom Power Output | Consult Factory | |
Color Temperature Options
| Color Temperature | Ordering Code |
|---|---|
| 2700K | 27K |
| 3000K | 30K |
| 3500K | 35K |
| 4000K | 40K |
| 5000K | 50K |
| 6500K | 65K |
| RGBW | RGBW |
Length Options
| Length | Ordering Code |
|---|---|
| 1 Foot | 1 |
| 2 Feet | 2 |
| 3 Feet | 3 |
| 4 Feet | 4 |
| Custom Continuous Run | Continuous Run |
Specifications
| Product Type | Architectural Linear LED Luminaire |
| Series | Iodine Linear LED Series |
| Mounting | Cable Suspended |
| Light Distribution | Direct |
| Blade Width | 1" |
| Blade Material | Acrylic |
| Housing | Extruded Aluminum |
| Standard Lengths | 1FT / 2FT / 3FT / 4FT |
| Custom Lengths | Continuous Runs Available |
| Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / RGBW |
| Light Output | 200–1,125 lm/FT |
| Power | 2W/FT–12W/FT |
| Driver | Remote Driver |
| Dimming | Multiple Dimming Protocols Available |
| Warranty | 5 Years |
Applications
- Architectural Lighting
- Office Lighting
- Conference Rooms
- Hospitality Lighting
- Retail Lighting
- Restaurants
- Reception Areas
- Commercial Interiors
- Residential Interiors
- Suspended Linear Lighting
Why Choose the Iodine Cable Suspended Direct Series?
The Iodine Cable Suspended Direct Series combines a minimal 1" acrylic blade with efficient downward illumination and a distinctive floating-light appearance. Its slim architectural design makes it ideal for spaces where the fixture itself is intended to become part of the overall interior design.
With six standard output packages from 200 to 1,125 lumens per foot, multiple color temperatures, blade heights, finishes, suspension lengths, dimming protocols, and custom continuous-run configurations, the Iodine Series provides extensive flexibility for architectural lighting projects.
