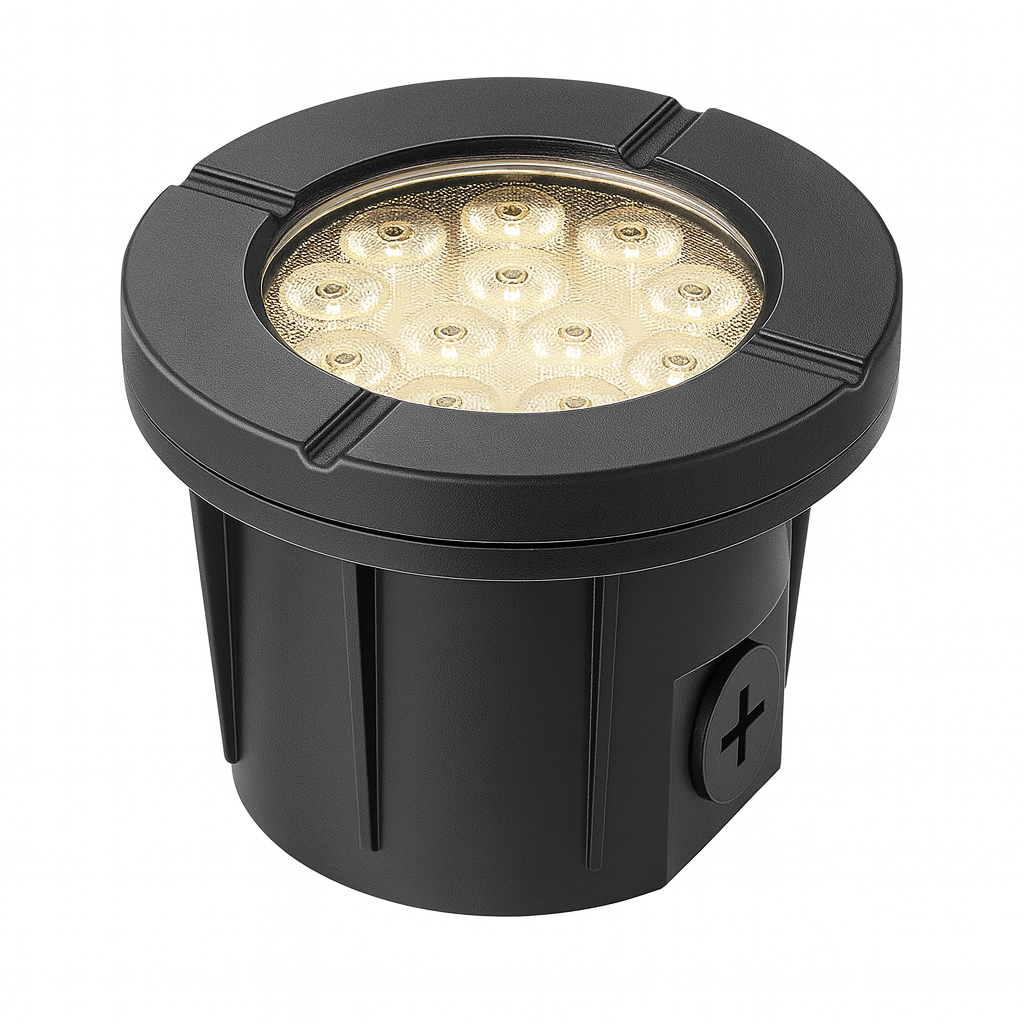

8W Dot 4.0 Recessed Inground Series
8W Dot 4.0 Recessed Inground Series
Couldn't load pickup availability
The 8W Dot 4.0 Recessed LED IngroundSeries provides a clean, architectural lighting solution for indoor and outdoor applications. Delivering up to 600 lumens, this recessed inground fixture is designed for uplighting walls, pathways, landscaping, stone surfaces, and architectural features in residential and commercial environments.
Constructed from durable die-cast aluminum with a matte black powder-coated finish, the Inground Dot 4.0 combines a discreet appearance with dependable outdoor performance. Five precision beam options from 15° to 59° provide flexibility for narrow accent lighting, architectural uplighting, and wider illumination.
Features
- 8W DC LED module
- Delivers up to 600 lumens
- Standard 3000K warm white color temperature
- 2700K–5000K options available upon request
- Multiple beam angles: 15°, 19°, 23°, 34° & 59°
- 12V / 24V DC operation
- Requires DC driver, sold separately
- ELV dimmable from 100%–10%
- ELV dimmer sold separately
- Durable die-cast aluminum construction
- Matte black powder-coated finish
- IP67 rated for protection against dust and water
- Recessed inground installation
- Upward illumination
- Suitable for indoor & outdoor applications
- ADA compliant
- CEC Title 24 JA8 certified
- Approximately 50,000-hour rated life
Beam Angle Options
| Beam Angle | Light Distribution |
|---|---|
| 15° | Narrow Spot |
| 19° | Spot |
| 23° | Medium Spot |
| 34° | Flood |
| 59° | Wide Flood |
Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 3000K | Standard |
| 2700K–5000K | Optional Upon Request |
Specifications
| Product Type | Recessed Inground LED Luminaire |
|---|---|
| Series | Inground Dot 4.0 Series |
| Power | 8W |
| Light Output | Up to 600 lm |
| LED Source | DC LED Module |
| Input Voltage | 12V / 24V DC |
| Driver | DC Driver Required, Sold Separately |
| Color Temperature | 3000K Standard / 2700K–5000K Optional |
| Beam Angles | 15° / 19° / 23° / 34° / 59° |
| Dimming | ELV, 100%–10% |
| Material | Die-Cast Aluminum |
| Finish | Matte Black Powder Coat |

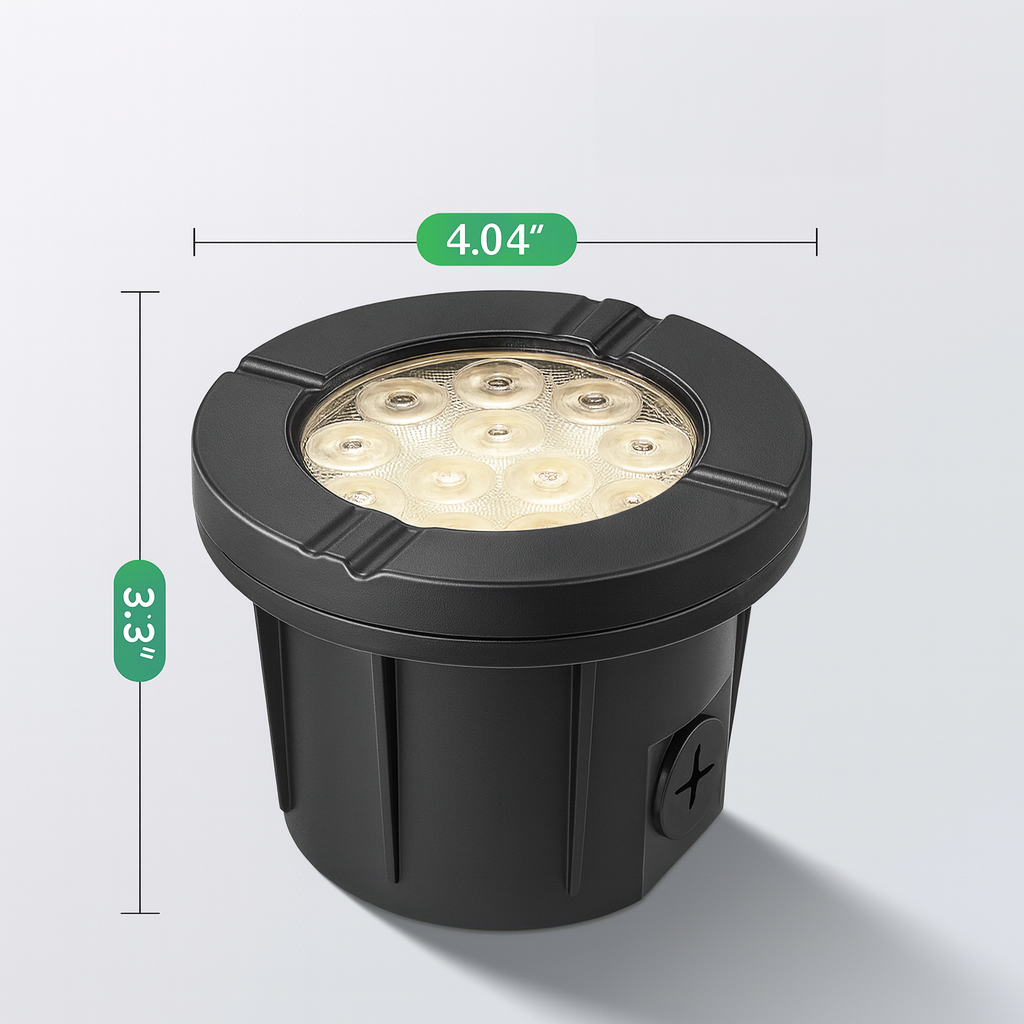

| Fixture Width | 4.04" (103 mm) |
| Fixture Height | 3.30" (84 mm) |
| Extension | 2.66" (68 mm) |
| Mounting | Recessed Inground |
| Illumination Direction | Up |
| IP Rating | IP67 |
| Rated Life | Approximately 50,000 Hours |
| Compliance | ADA Compliant / CEC Title 24 JA8 Certified |
Applications
- Architectural Uplighting
- Pathways & Walkways
- Landscape Accent Lighting
- Garden Lighting
- Walls & Building Features
- Stone & Masonry Features
- Residential Exteriors
- Commercial Properties
- Indoor Architectural Accent Lighting
Why Choose the Inground Dot 4.0 Series?
The 8W Inground Dot 4.0 Series delivers up to 600 lumens with five precision beam options, allowing designers to create everything from narrow architectural accents to wider landscape illumination. Its compact recessed design keeps the fixture visually discreet while directing illumination upward toward walls, landscaping, and architectural features.
With durable die-cast aluminum construction, a matte black powder-coated finish, IP67 protection, 12V / 24V DC operation, ELV dimming, and an approximately 50,000-hour rated life, the Inground Dot 4.0 Series provides a versatile solution for professional residential and commercial lighting projects.
